Aluminum Fluted Cladding Panel

Product Overview

Aluminum fluted cladding panels (also called ribbed aluminum panels or linear grooved aluminum panels) are 3D decorative architectural panels formed with continuous parallel convex ribs and concave grooves, fabricated by CNC extrusion or precision bending. Unlike flat aluminum panels, fluted panels create strong linear texture and dynamic light-shadow effects as light changes throughout the day, adding depth and rhythm to building surfaces.

Manufactured from high-grade aluminum alloy with optional PVDF, powder coat, wood grain or anodized finishes, our fluted aluminum panels are suitable for both exterior facade and interior wall applications. The rigid rib structure delivers higher structural strength than flat panels of the same thickness, while remaining lightweight and easy to install. It has become one of the most popular modern design elements for commercial and high-end residential projects globally.

7 Core Advantages of Aluminum Fluted Cladding Panels

3D Linear Design & Dynamic Light & Shadow Effect

The continuous parallel rib profile creates natural light and shadow changes on the wall surface as sunlight angle shifts, eliminating the flat, monotonous look of plain wall panels. The strong linear sense visually extends space height, delivering a minimalist, premium modern aesthetic that works for a wide range of architectural styles.

Fully Customizable Flute Profile & Dimensions

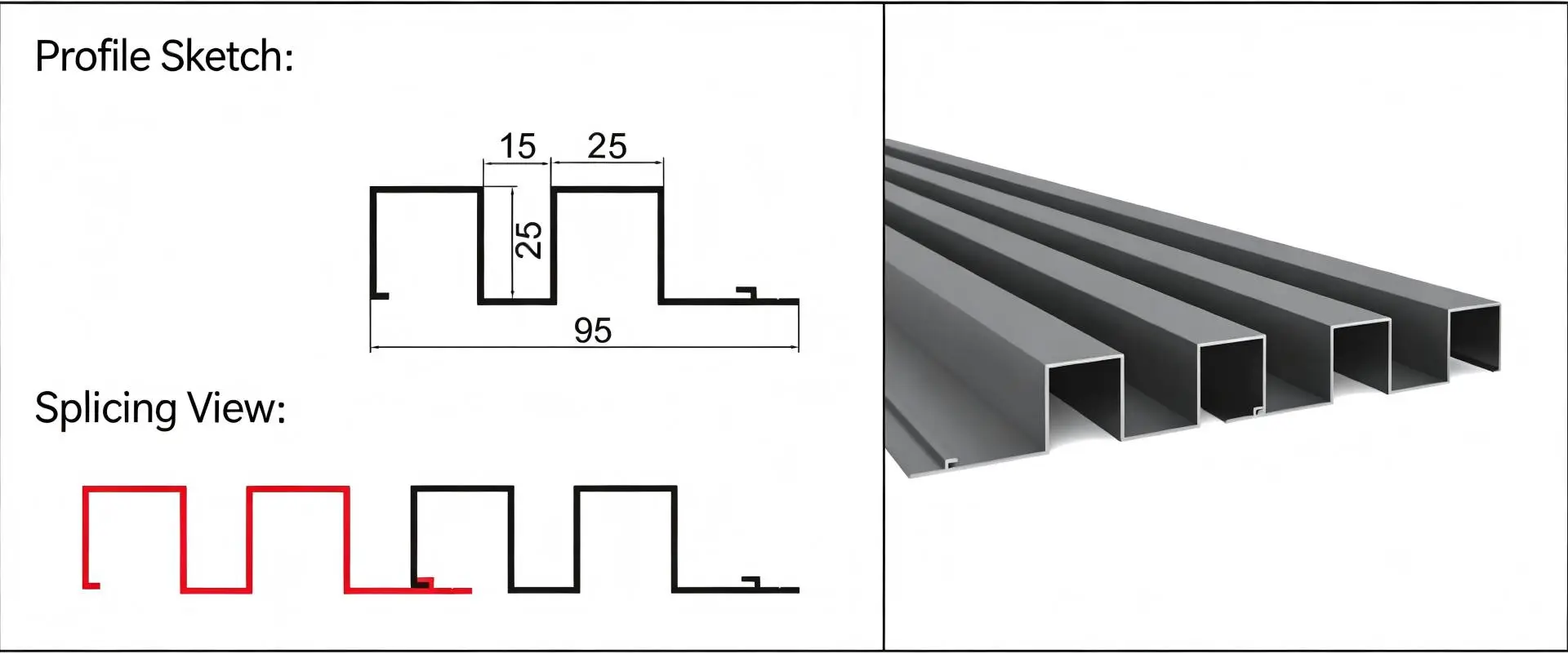

We support full customization of flute width, depth, shape and spacing to match design intent: square flute, rounded flute, trapezoidal flute, wide rib, narrow rib, deep groove and shallow groove profiles are all available. Panels can be produced in lengths up to 6 meters without joints, creating continuous, unbroken linear visual effects for large facades.

Higher Structural Rigidity With Light Weight

The convex rib structure acts as built-in stiffeners, increasing panel rigidity by 300% compared to flat aluminum panels of the same thickness. Large panels require no additional internal stiffeners, reducing material usage and weight while maintaining flatness and wind load resistance. Standard panels weigh only 4-6kg per square meter.

Dual Use for Exterior & Interior Applications

Fluted aluminum panels work seamlessly for both exterior and interior projects: exterior grade panels use 20-30 year PVDF fluorocarbon coating for weather resistance, while interior grade panels use powder coat, heat transfer wood grain, anodized or brushed finishes. The same design language can be carried from building facade to interior walls for a unified look.

Built-In Ventilation & Optional Acoustic Performance

The gap between ribs and the wall creates natural ventilation behind the panel, reducing wind pressure on the facade and preventing moisture buildup. Optional micro-perforations on the groove surface combined with sound-absorbing backing deliver NRC 0.7-0.85 acoustic performance, making fluted panels ideal for spaces requiring noise reduction.

Simple Modular Installation & Low Maintenance

Panels install with a hidden clip-on keel system, with no visible fasteners on the surface for a clean, seamless look. The smooth, non-porous coating resists dirt and stains, requiring only annual water washing to maintain appearance. There is no warping, rotting or fading common with wood, WPC or PVC fluted panels.

Diverse Finish & Color Options

Choose from hundreds of solid colors, metallic finishes, realistic wood grain, stone texture, brushed anodized, antique bronze and custom color matches. Special finishes like anti-fingerprint coating are available for high-traffic interior applications.

Technical Specifications

Typical Application Scenarios

• Commercial building facades and feature walls

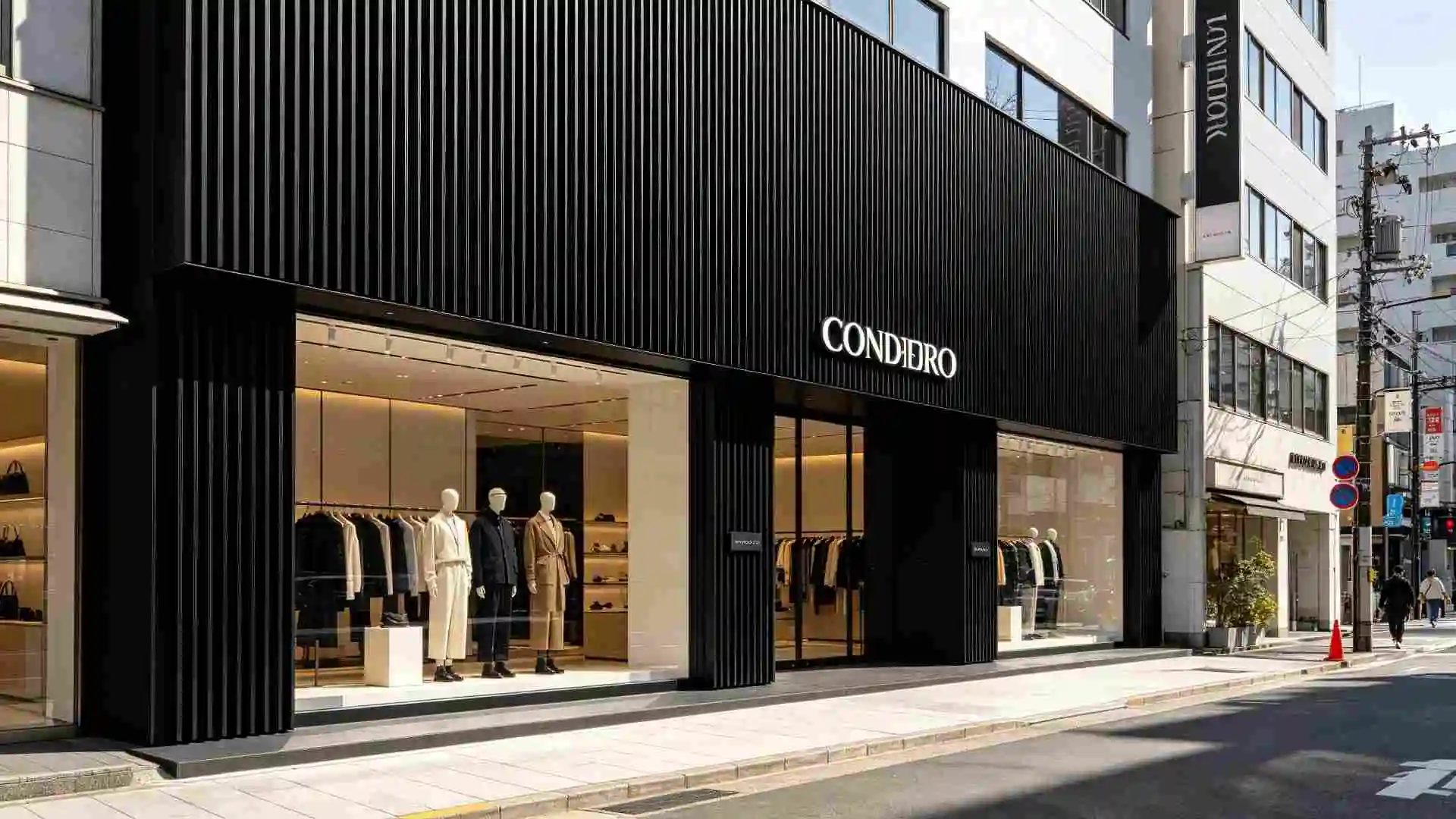

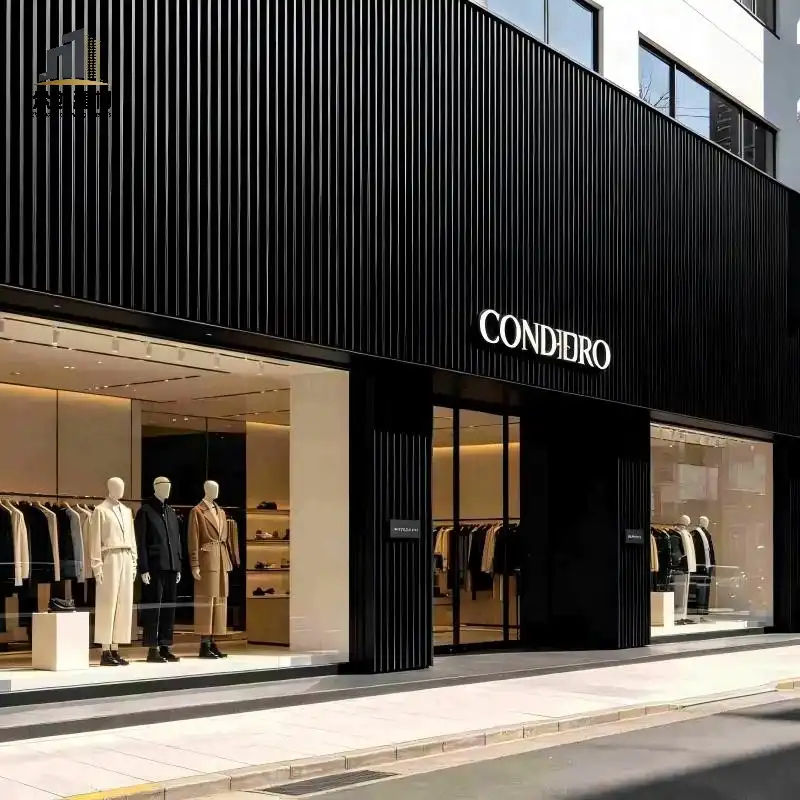

• Retail storefronts and brand shop frontages

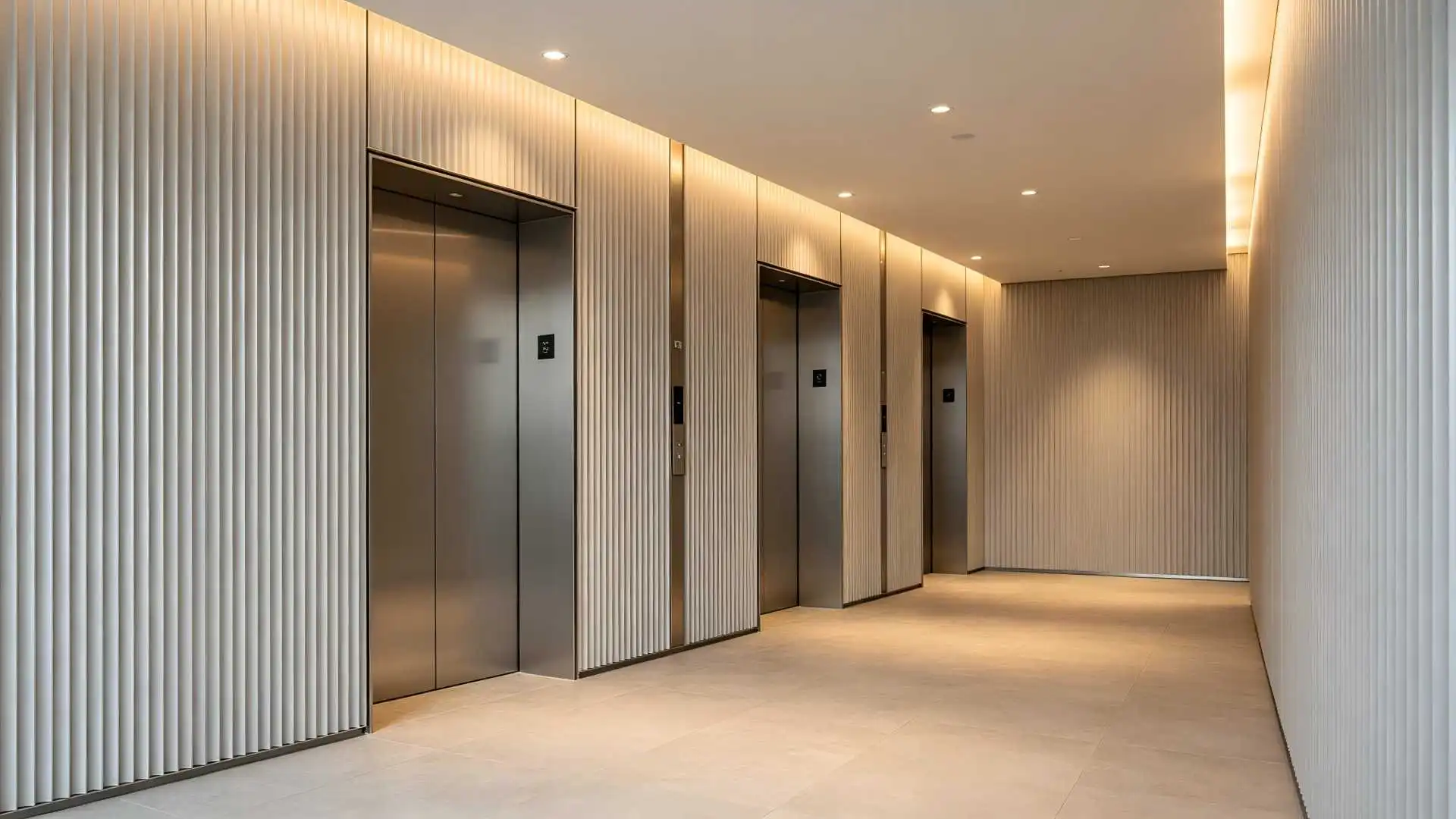

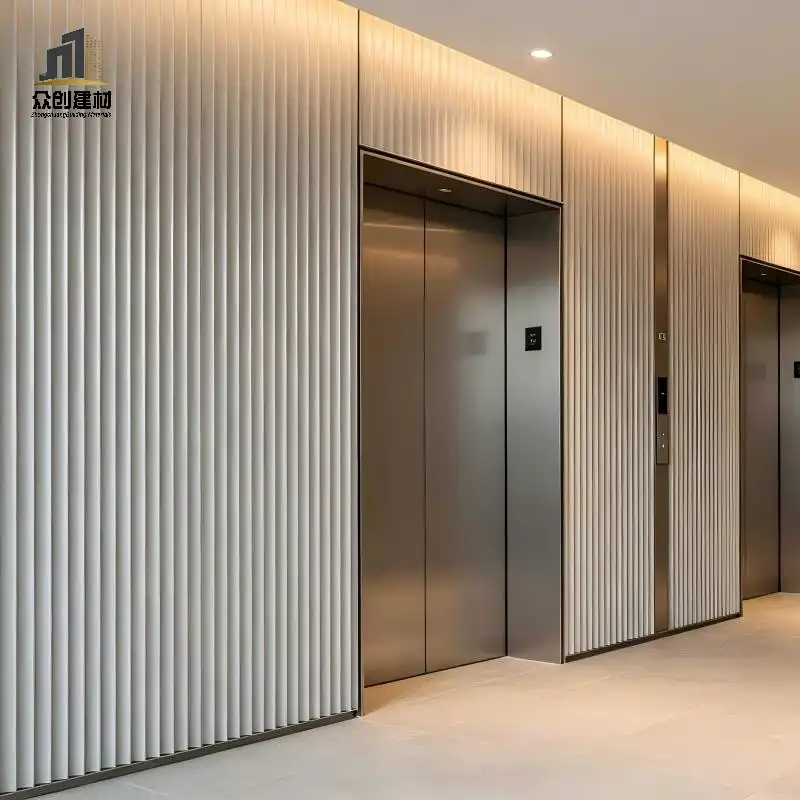

• Office building lobby walls and elevator halls
• Hotel corridor walls and ceiling accents
• High-end residential TV background walls and feature walls
• Exterior sun shading and facade line details
• Custom furniture door panels and cabinet surfaces
• Exhibition hall and public space decorative walls

Custom Project Delivery Process

1. Design consultation: Confirm flute profile, dimensions, finish and project requirements
2. Sample production: Produce flute profile and finish samples for design approval
3. Deepening design: Provide shop drawings, keel layout and installation details
4. Factory production: Precision CNC extrusion/bending with batch quality inspection
5. Delivery & installation guidance: On-time delivery with on-site installation support
6. After-sales service: Full product warranty and technical support

Frequently Asked Questions

Q: Can fluted aluminum panels be made into curved shapes?

A: Yes. We support custom curved fluted panels using CNC roll-forming technology, with the same rib profile and finish quality as flat panels for curved facades and circular columns.

Q: What finish is recommended for interior use?

A: For interior walls, matte powder coat or wood grain transfer finishes are most popular. High-traffic areas like lobbies and corridors can add anti-fingerprint coating to reduce smudges.

Q: How do aluminum fluted panels compare to WPC/wood fluted panels?

A: Aluminum fluted panels are 100% waterproof, fireproof, insect-proof and will never rot, warp or fade, with a 20+ year service life compared to 3-5 years for WPC/wood panels. They are also fully recyclable and suitable for exterior use, while WPC panels are interior-only.

Q: Can fluted panels be used for ceilings?

A: Yes. Lightweight 1.5mm thick fluted panels are ideal for ceiling applications, delivering linear texture and optional acoustic performance for commercial and residential ceilings.
