Aluminum Linear Baffle Ceiling | Custom Suspended Metal Ceiling System

Zhongchuang's Aluminum Linear Baffle Ceiling System is the ultimate solution for contemporary open-ceiling design. Our linear baffles create a visually striking, layered appearance that adds depth and dimension to any space while providing superior acoustic performance and functional benefits.

Manufactured from high-grade AA3003 aluminum alloy, our baffle ceilings offer exceptional durability, corrosion resistance and design flexibility. The modular, suspended design allows for easy installation and maintenance, making them ideal for large commercial and public spaces. Whether you prefer a minimalist monochromatic look or a bold multi-color design, we can customize every aspect to match your architectural vision.

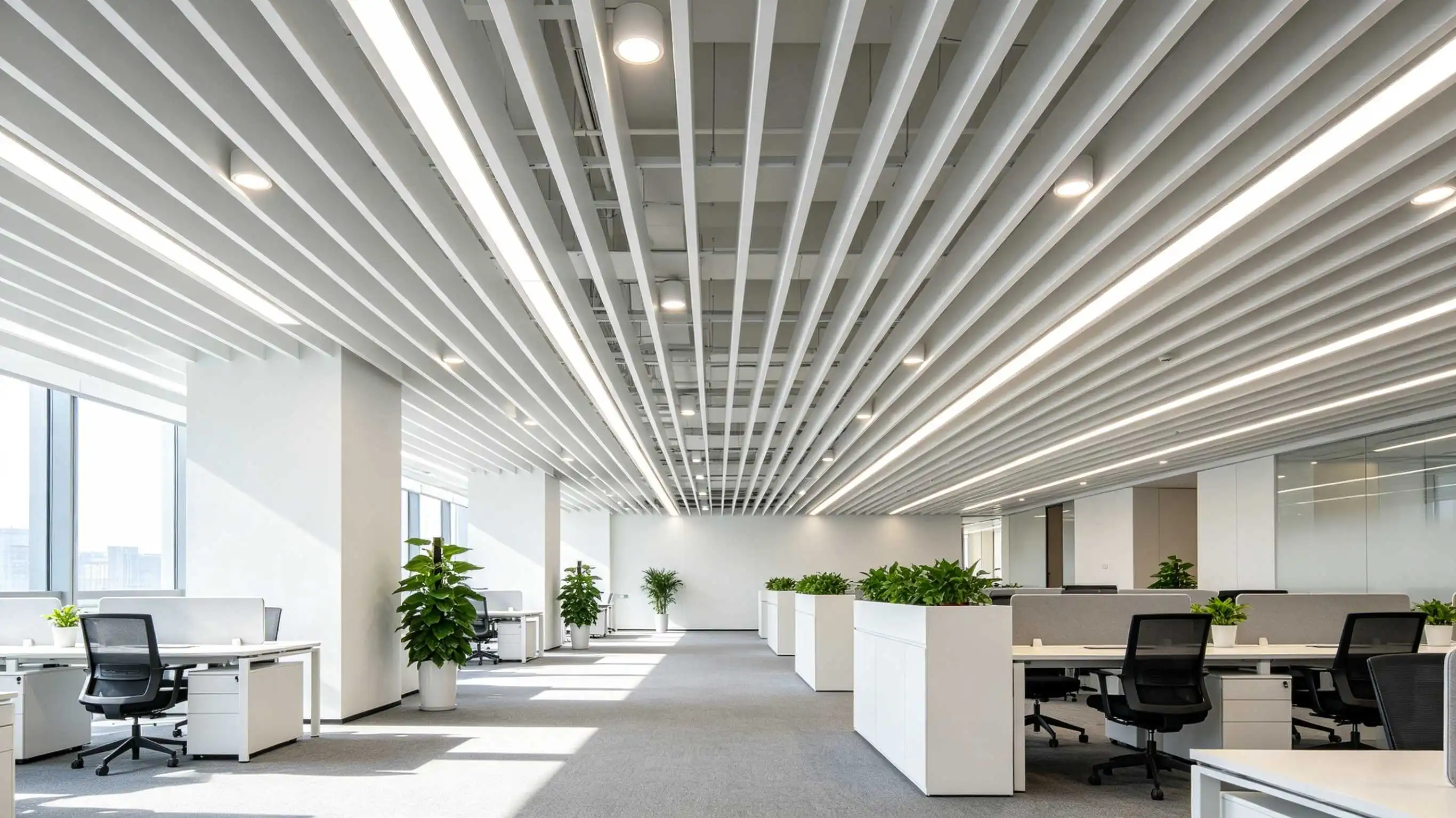

Modern office space with white aluminum linear baffle ceiling

Key Features at a Glance:

✅ Modern open-ceiling aesthetic with visual depth

✅ Excellent acoustic control with optional insulation

✅ Easy access to overhead utilities

✅ Lightweight yet durable aluminum construction

✅ Unlimited customization options

✅ A1 fire-rated (EN 13501-1)

✅ 30-year structural warranty + 15-year coating warranty

Core advantages
1. Stunning Architectural Aesthetics

Linear baffle ceilings transform ordinary spaces into extraordinary environments:

Layered depth: Creates a sense of height and spaciousness

Visual continuity: Seamless appearance across large areas

Design versatility: Available in various heights, widths and spacing

Color options: Full RAL color range for creative design possibilities

Directional design: Can be installed horizontally, vertically or diagonally

2. Superior Acoustic Performance

Our baffle ceilings effectively control reverberation and improve speech intelligibility:

NRC ratings up to 0.9 with acoustic insulation backing

Reduces echo in large open spaces

Improves communication in offices and educational facilities

Enhances comfort in restaurants and retail environments

3. Practical and Functional

Beyond aesthetics, our linear baffle ceilings offer significant practical benefits:

Easy maintenance: Simply wipe clean with a damp cloth

Tool-free access: Individual baffles can be removed quickly

Conceals utilities: Hides wiring, ducts and plumbing while maintaining access

Lightweight: Reduces structural load on buildings

Fire-safe: A1 fire rating meets all international safety standards

4. Complete Customization

We offer comprehensive customization to meet your project requirements:

Baffle dimensions: Heights from 10mm to 300mm, widths from 10mm to 200mm

Spacing: Custom spacing from 20mm to 300mm

Thicknesses: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm

Finishes: Powder coating, PVDF coating, anodizing, wood grain transfer

Colors: Standard RAL colors plus custom color matching

Detailed technical specifications

System Structure

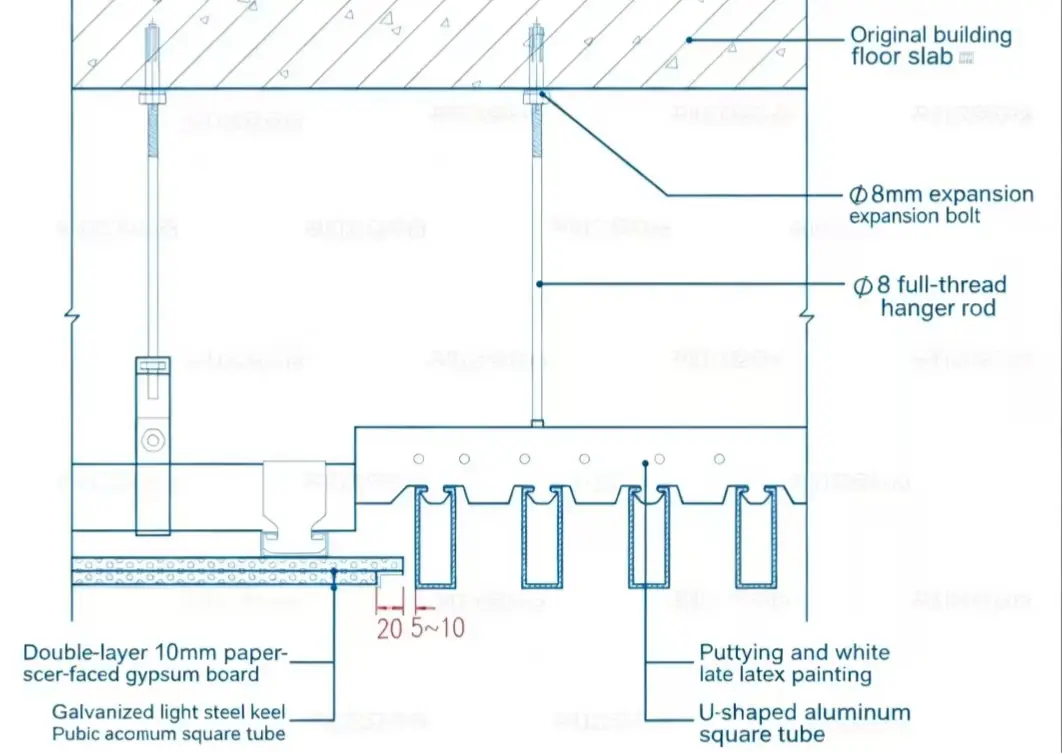

Aluminum linear baffle ceiling system structure diagram

Our linear baffle ceiling system consists of three main components:

Aluminum Baffles: The main decorative and functional elements

Suspension Wires: Adjustable wires to hang the system from the ceiling structure

Carrier Rails: Extruded aluminum rails that hold the baffles in place

The installation process is simple and efficient:

Install suspension wires at 1200mm intervals

Attach carrier rails to the suspension wires

Slide baffles into the carrier rails

Adjust spacing and alignment as needed

Surface treatment options

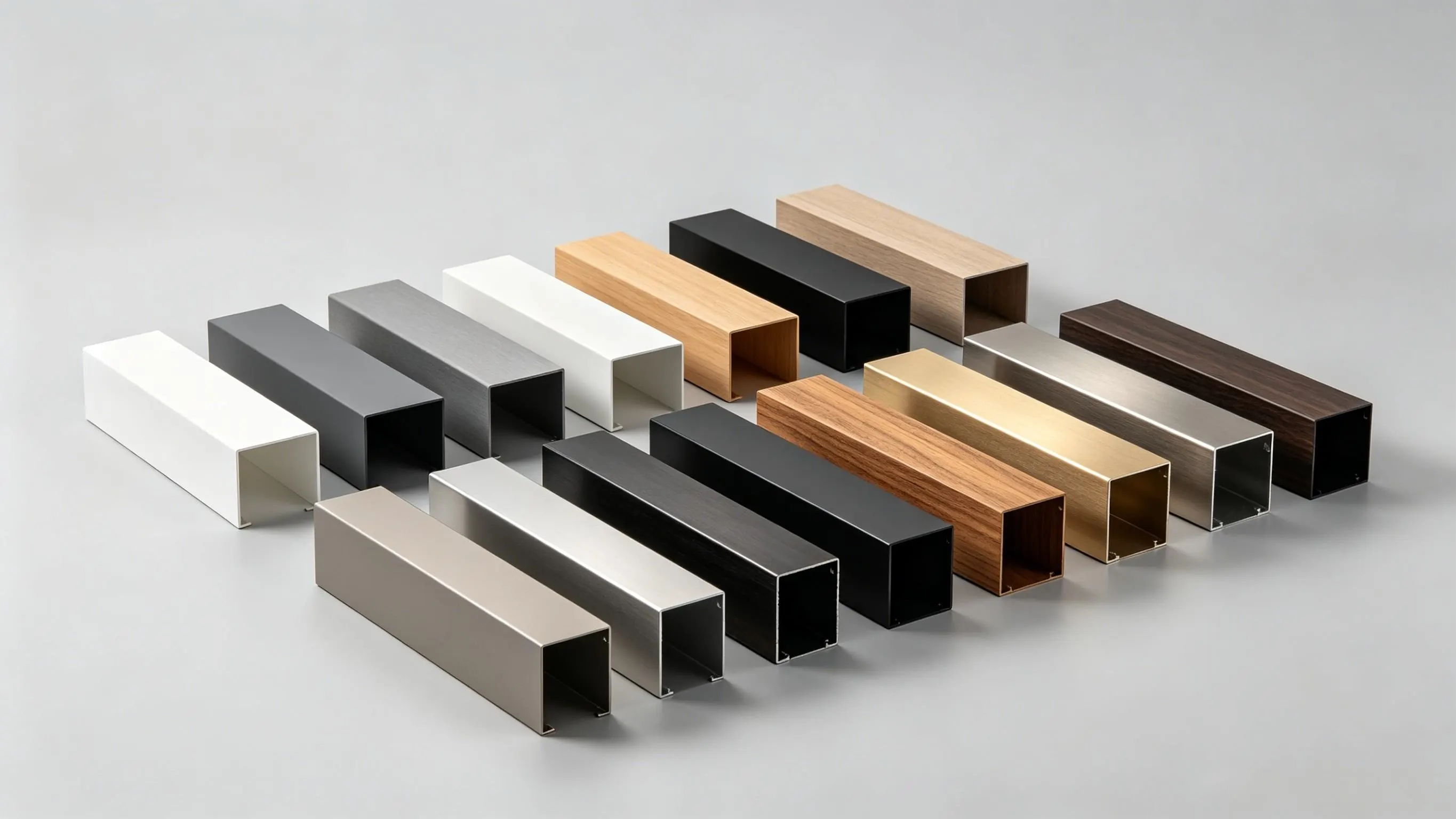

Various surface finishes for aluminum linear baffle ceilings

Powder Coating: The most popular option for indoor applications. Provides a durable, scratch-resistant finish in a wide range of colors.

PVDF Coating: Ideal for outdoor or high-humidity environments. Offers excellent UV resistance and weatherability.

Anodizing: Creates a hard, protective oxide layer that enhances corrosion resistance. Available in silver, black, bronze and champagne.

Wood Grain Transfer: Provides the natural look of wood with the durability of aluminum. Perfect for creating warm, inviting spaces.

Application scenarios

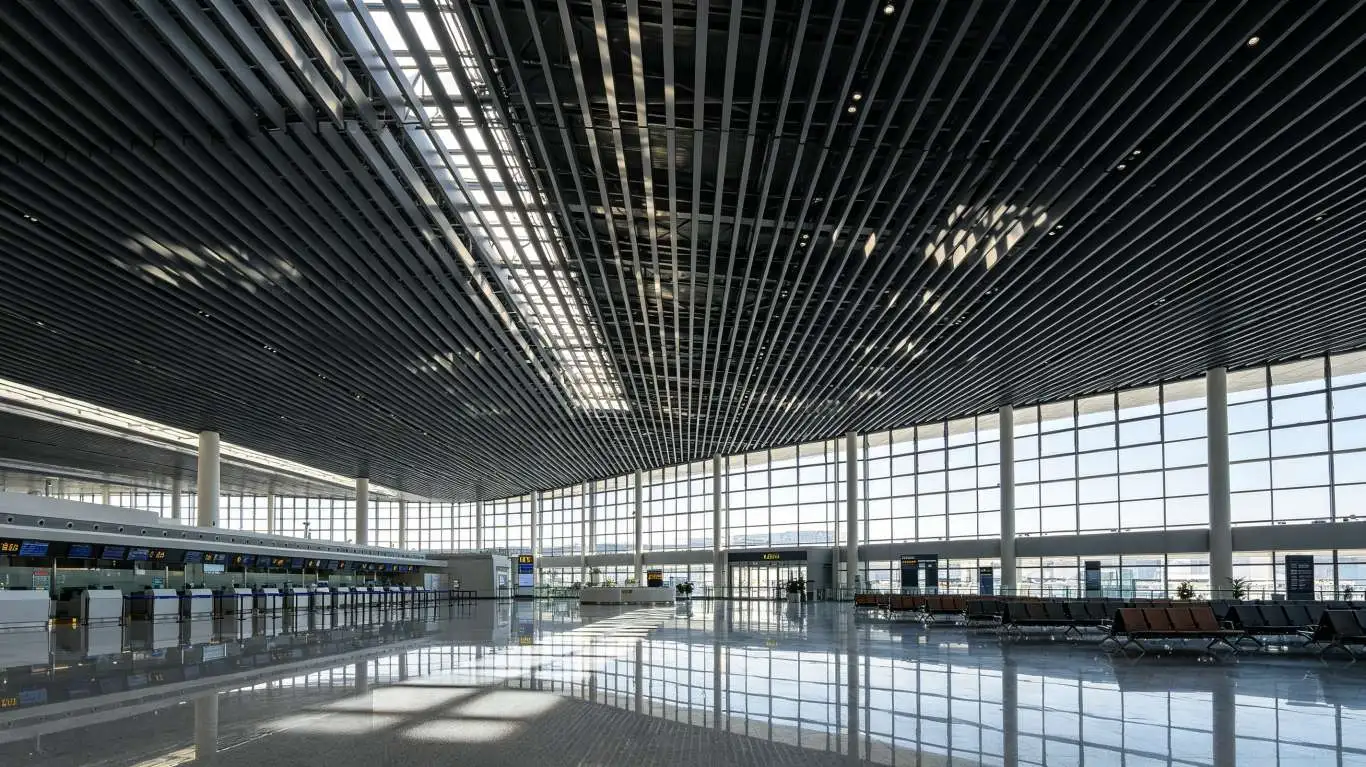

Aluminum linear baffle ceiling applications in various spaces

Our linear baffle ceilings are perfect for:

Office Buildings: Open-plan offices, lobbies, conference rooms

Retail Spaces: Shopping malls, department stores, boutiques

Transportation Hubs: Airports, train stations, metro stations

Educational Facilities: Schools, universities, libraries

Healthcare Facilities: Hospitals, clinics, waiting areas

Hospitality: Hotels, restaurants, cafes, bars

Entertainment Venues: Cinemas, theaters, stadiums

FAQQ: What is the difference between linear baffle ceilings and traditional ceilings?

A: Linear baffle ceilings are an open-ceiling system that creates a modern, layered appearance. Unlike traditional closed ceilings, they allow for easy access to overhead utilities and provide better air circulation.

Q: Can linear baffle ceilings improve acoustics?

A: Yes! When equipped with acoustic insulation backing, our linear baffle ceilings can achieve NRC ratings of up to 0.9, significantly reducing echo and improving sound quality in large spaces.

Q: How long does it take to install a linear baffle ceiling?

A: Installation time depends on the size and complexity of the project, but our modular system is typically 2-3 times faster to install than traditional drywall ceilings.

Q: Are linear baffle ceilings easy to maintain?

A: Absolutely. Aluminum baffles are easy to clean with a damp cloth and do not require painting or other regular maintenance. Individual baffles can be removed and replaced if damaged.

Q: Can you create custom colors and finishes?

A: Yes! We offer custom color matching services to match any RAL color or existing finish. We can also create custom wood grain, metallic and textured finishes.
