Aluminum Grid Ceiling | Custom Open-Cell Metal Ceiling System

Aluminum Grid Ceiling System is a classic open-cell ceiling solution that combines timeless aesthetics with exceptional functionality. Manufactured from high-grade AA3003/AA6063 aluminum alloy, our grid ceilings feature a precise interlocking design that creates a clean, uniform appearance while providing excellent ventilation and easy access to overhead utilities.



The modular construction allows for fast, efficient installation and simple maintenance, making it the most popular choice for commercial and public buildings worldwide. Available in a wide range of grid sizes, colors and finishes, our aluminum grid ceilings can be customized to match any architectural design vision.

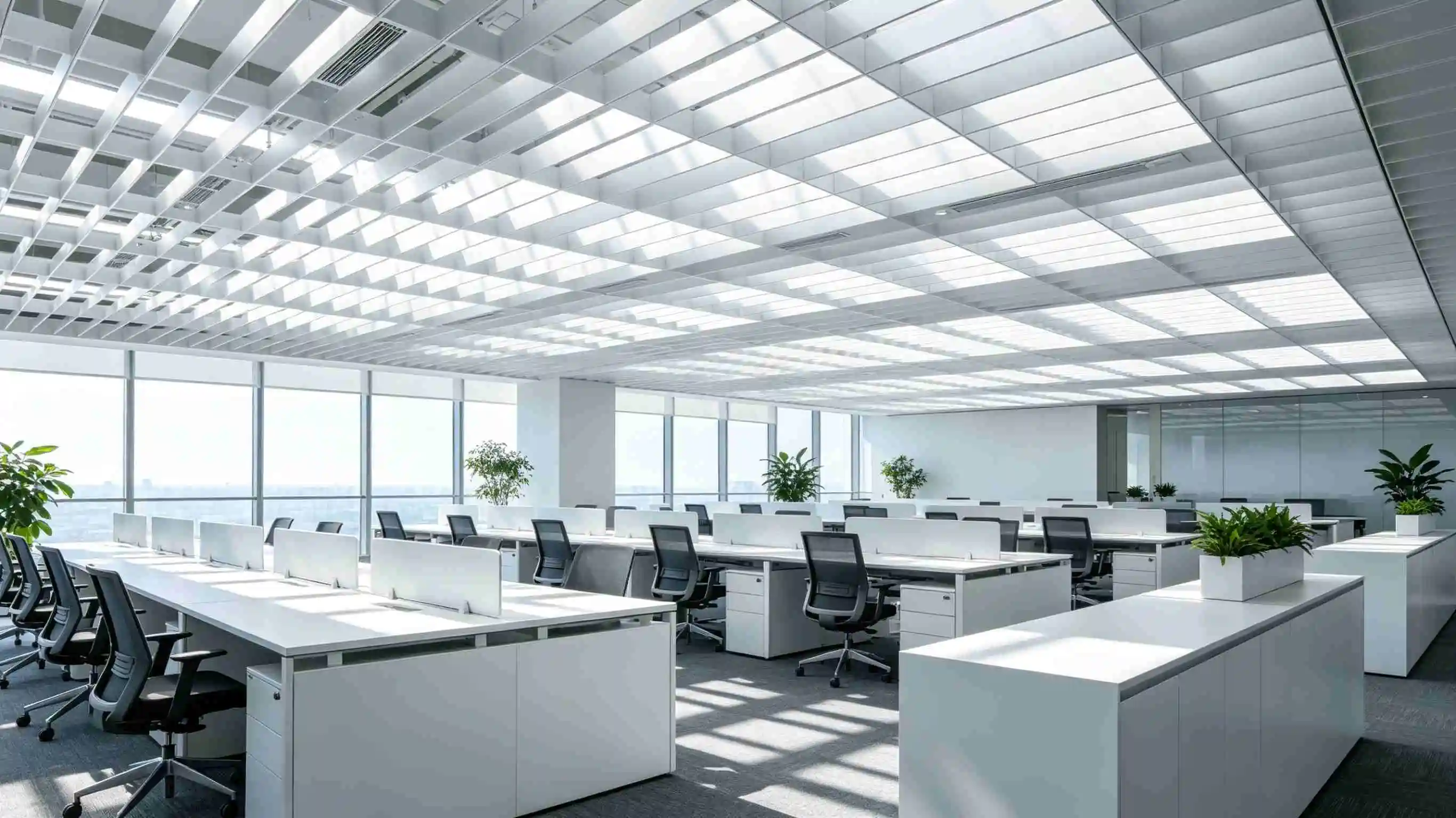

Modern office space with white aluminum grid ceiling



Key Features at a Glance:



✅ A1 fire-rated (EN 13501-1) non-combustible construction

✅ Lightweight design reduces structural load by 50% compared to steel grids

✅ Excellent ventilation and natural light transmission

✅ Easy access to HVAC, electrical and plumbing systems

✅ Unlimited customization options

✅ Fast, tool-free installation

✅ 100% recyclable and sustainable

---

Core Advantages
1. Clean, Modern Aesthetics

Aluminum grid ceilings create a crisp, organized appearance that enhances any commercial space:

Uniform grid pattern: Creates a sense of order and professionalism

Design versatility: Available in square, rectangular and custom grid patterns

Color options: Full RAL color range for seamless integration with interior design

Layered effects: Can be combined with other ceiling systems for dynamic designs

Concealed fasteners: Creates a smooth, uninterrupted surface

2. Superior Functionality



Beyond aesthetics, our aluminum grid ceilings offer significant practical benefits:

Excellent ventilation: Open-cell design allows air to circulate freely

Acoustic performance: Can be combined with acoustic infill panels for superior sound control

Light reflection: Bright white finishes reflect up to 85% of light, reducing energy costs

Easy maintenance: Simply wipe clean with a damp cloth

Individual panel replacement: Damaged panels can be replaced without removing adjacent ones

3. Durable and Long-Lasting

Our aluminum grid ceilings are engineered to withstand the rigors of commercial use:

Corrosion resistance: Aluminum alloy construction resists rust and corrosion

Color retention: High-quality coatings maintain their appearance for decades

Structural stability: Precision manufacturing ensures consistent alignment over time

Impact resistance: Resists damage from accidental impacts

Temperature resistance: Performs flawlessly from -40°C to +80°C

4. Cost-Effective Solution

Aluminum grid ceilings offer exceptional value for money:

Low initial cost: More affordable than many other ceiling systems

Fast installation: Reduces labor costs and project timelines

Low maintenance: No painting or special treatment required

Long lifespan: 30+ years of service life with minimal degradation

Easy renovation: Can be easily updated or modified as needs change

---

Detailed Technical Specifications



Parameter	Standard Options	Customization Range
Base Material	AA3003 Aluminum Alloy	AA6063-T6 Aluminum Alloy
Sheet Thickness	0.4mm, 0.5mm, 0.6mm	0.3mm – 1.0mm
Grid Pattern	Square (Standard)	Rectangular, Hexagonal, Custom
Grid Cell Size	100×100mm, 150×150mm, 200×200mm, 250×250mm, 300×300mm	50×50mm – 500×500mm
Grid Height	30mm, 40mm, 50mm	20mm – 100mm
Standard Panel Size	600×600mm, 600×1200mm	Up to 1200×2400mm
Surface Finish	Powder Coating	Anodizing, PVDF Coating, Wood Grain Transfer
Coating Thickness	60-80μm	40-120μm
Fire Rating	A1 (EN 13501-1)	-
Load Capacity	Up to 5kg per square meter	-
Warranty	15 years (coating), 25 years (structure)	-

---

System Structure



Our aluminum grid ceiling system consists of three main components:

Grid Components: Main runners, cross tees and wall angles that form the grid structure

Grid Cells: The individual aluminum grid units that create the open-cell pattern

Suspension System: Adjustable wires and hangers that support the ceiling from the structure



The installation process:

Install suspension wires at 1200mm intervals

Attach main runners to the suspension wires

Insert cross tees into the main runners to form the grid pattern

Place aluminum grid cells into the grid openings

Adjust alignment and level as needed

---

Surface Finish Options

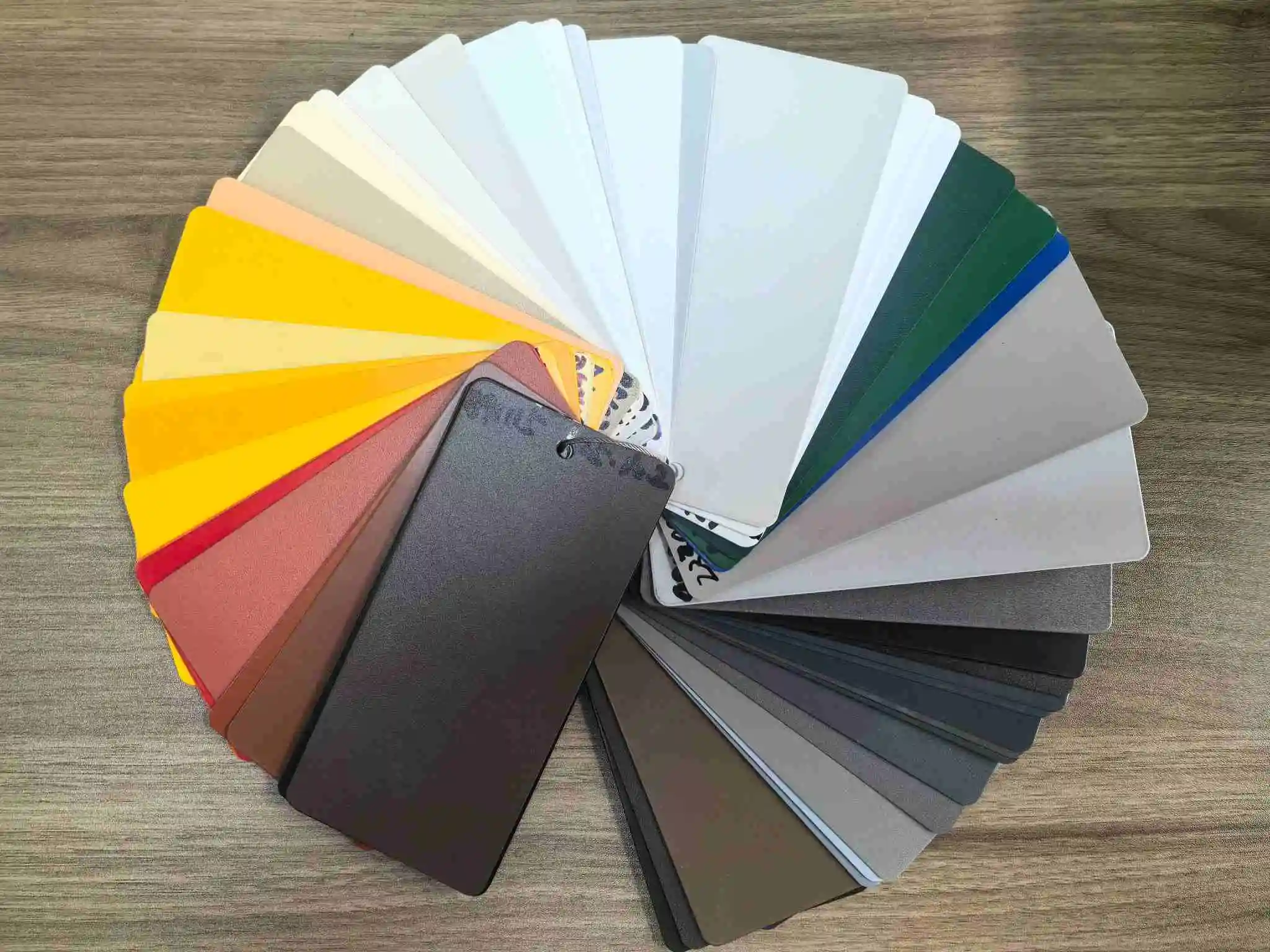

Various surface finishes for aluminum grid ceiling



Powder Coating: The most popular option for indoor applications. Provides excellent durability and a wide range of colors.

Anodizing: Creates a hard, protective oxide layer. Available in natural silver, black, bronze and champagne.

PVDF Coating: Ideal for high-humidity or outdoor applications. Offers superior UV resistance and weatherability.

Wood Grain Transfer: Provides the natural look of wood with the durability of aluminum. Perfect for creating warm, inviting spaces.

Metallic Finishes: Add a touch of luxury with gold, silver, bronze and copper finishes.

---

Application Scenarios

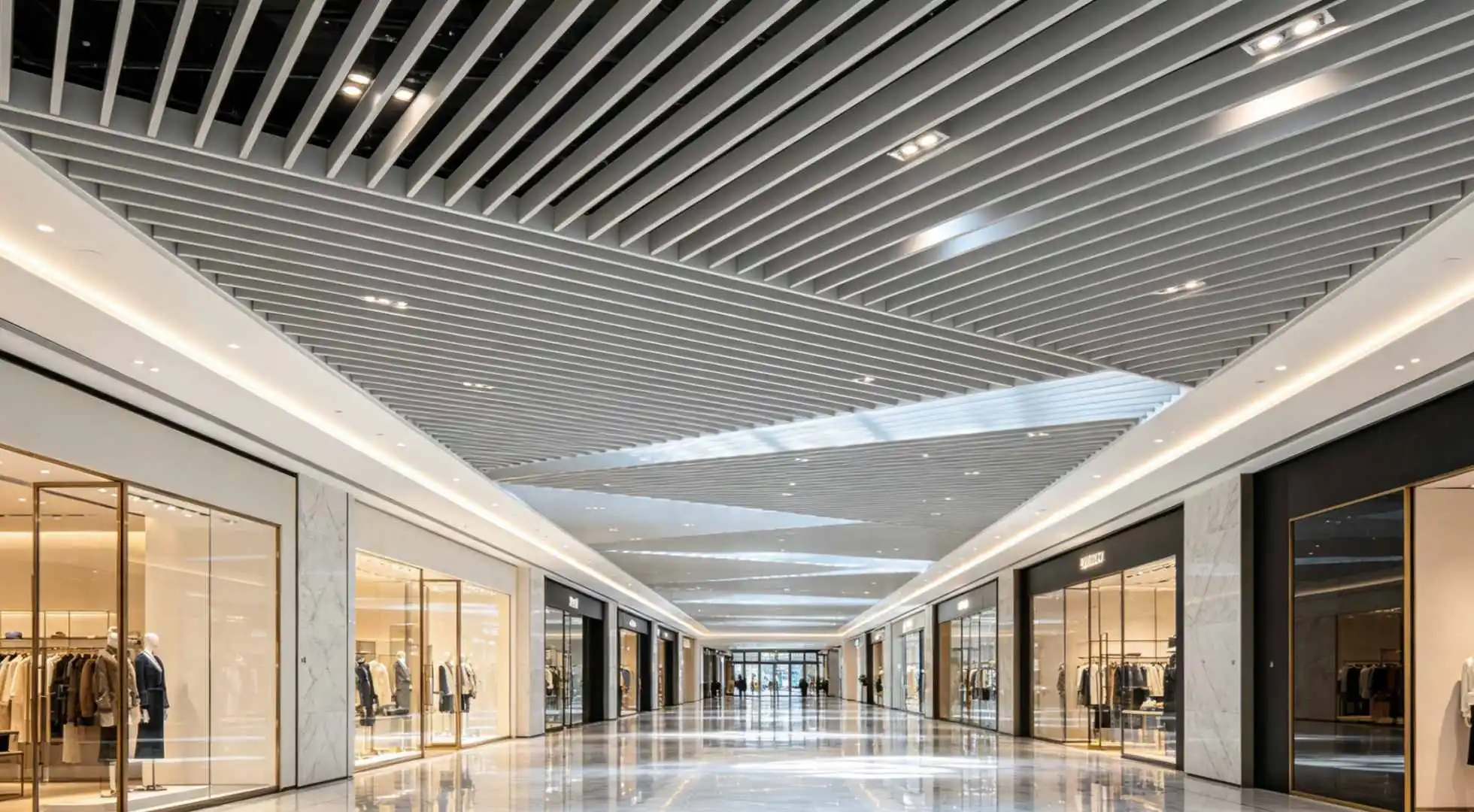

Aluminum grid ceiling applications in various spaces



Our aluminum grid ceilings are perfect for:

Office Buildings: Open-plan offices, lobbies, conference rooms

Retail Spaces: Shopping malls, supermarkets, department stores

Public Buildings: Airports, train stations, hospitals, schools

Industrial Facilities: Factories, warehouses, data centers

Hospitality: Hotels, restaurants, cafes, bars

Special Applications: Parking garages, corridors, restrooms

---

Frequently Asked Questions (FAQ)
Q: What is the difference between aluminum grid ceiling and aluminum baffle ceiling?

A: Aluminum grid ceilings feature a square or rectangular open-cell pattern, while aluminum baffle ceilings consist of long, linear strips. Grid ceilings offer a more uniform, organized appearance and are generally more affordable, while baffle ceilings provide better acoustic performance and a more modern, layered look.

Q: Can aluminum grid ceilings be used in high-humidity areas?

A: Yes! Our aluminum grid ceilings are corrosion-resistant and can be used in high-humidity areas such as bathrooms, kitchens and swimming pools. For extreme humidity, we recommend anodized or PVDF coated finishes.

Q: How easy is it to access utilities above an aluminum grid ceiling?

A: Extremely easy! Individual grid cells can be simply lifted out to access HVAC, electrical and plumbing systems. No tools are required, and the cells can be easily replaced once maintenance is complete.

Q: Can aluminum grid ceilings support light fixtures and other equipment?

A: Yes! Our grid systems can support standard light fixtures, speakers, smoke detectors and other lightweight equipment. For heavier items, additional support can be added to the suspension system.

Q: Can you create custom grid sizes and patterns?

A: Yes! We specialize in custom fabrication. We can create grids in any size, pattern or finish to meet your specific project requirements.

---
