Custom 3D Corrugated Aluminum Wall Panels Premium Wavy Facade & Interior Cladding

Product Overview

3D corrugated aluminum wall panels (also known as wavy aluminum cladding, ribbed aluminum sheets or 3D wave wall panels) are high-performance decorative metal panels manufactured from high-grade aluminum alloy, formed into three-dimensional wave patterns through precision rolling and molding.

Combining the structural durability and weather resistance of aluminum with the dynamic visual impact of 3D textured surfaces, these panels have become a top choice for parametric architectural facades and high-end interior design. Unlike flat aluminum panels, corrugated wave panels create changing light and shadow effects throughout the day, giving buildings a distinctive, lively appearance. Wave height, spacing, curvature and thickness are fully customizable to match any design intent.

Core Advantages

1. Dynamic 3D Parametric Visual Effect

The undulating wave surface creates ever-changing light and shadow patterns as sunlight moves across the facade, delivering a far more striking, architectural look than flat panels. From subtle fine ripples to bold large waves, the texture adds depth and character to any surface, making it ideal for landmark buildings and brand feature walls.

2. Fully Customizable Wave Specifications

Every dimension of the wave can be tailored to your design:

• Wave height: 10mm – 100mm
• Wave spacing: 20mm – 300mm
• Curvature: sine wave, triangular wave, trapezoidal wave or fully custom parametric curves
• Panel thickness: 1.5mm – 3.0mm We accept CAD, Rhino and parametric design files for direct production, ensuring exact replication of your design intent.

3. Superior Weather Resistance & Durability

Manufactured from AA3003/AA5052 aluminum alloy with premium PVDF fluorocarbon coating, exterior-grade corrugated panels resist UV radiation, acid rain, salt corrosion and extreme temperature fluctuations. The coating maintains its original color and finish for 20+ years without fading, chalking or cracking, and the panels carry an A2 non-combustible fire rating, meeting all major global building code requirements.

4. Lightweight, High Strength & Fast Installation

At only 3-6kg/m², corrugated aluminum panels are 70-80% lighter than stone, GRC or glass cladding, significantly reducing structural load on buildings. The standardized dry-hang installation system cuts installation time by 60% compared to traditional masonry, lowering overall construction cost and shortening project schedules.

5. Sustainable & Eco-Friendly

Made from 100% recyclable aluminum with low-emission production processes, these panels support LEED green building certification. They contain no harmful substances, release no VOCs, and can be fully recycled at the end of their service life, aligning with modern sustainable architecture requirements.

6. Versatile for Interior & Exterior Use

The same panel system works for both exterior facades and interior feature walls, allowing consistent design language across a building's exterior and interior. Water, mold and stain resistant surfaces are easy to clean and maintain, even in high-traffic commercial spaces.

Technical Specifications

Surface Finishes & Custom Options
Coating Systems

• PVDF Fluorocarbon Coating: The first choice for exterior applications, with 20-year fade and weather resistance warranty. Available in all RAL and Pantone colors, plus metallic and pearlescent finishes.
• Polyester Powder Coating: Cost-effective option for interior use, with excellent scratch and abrasion resistance, 10+ year interior warranty.
• Thermal Transfer Wood Grain / Stone Grain: High-definition natural wood or stone texture, 99% visual accuracy, for warm natural interior looks.
• Custom Color Matching: Brand-specific color matching available for retail and chain projects.

Wave Pattern Options

• Sine wave (smooth, organic curves)
• Triangular wave (sharp, geometric lines)
• Trapezoidal wave (structured, industrial look)
• Fully custom parametric wave patterns from design files

Application Scenarios

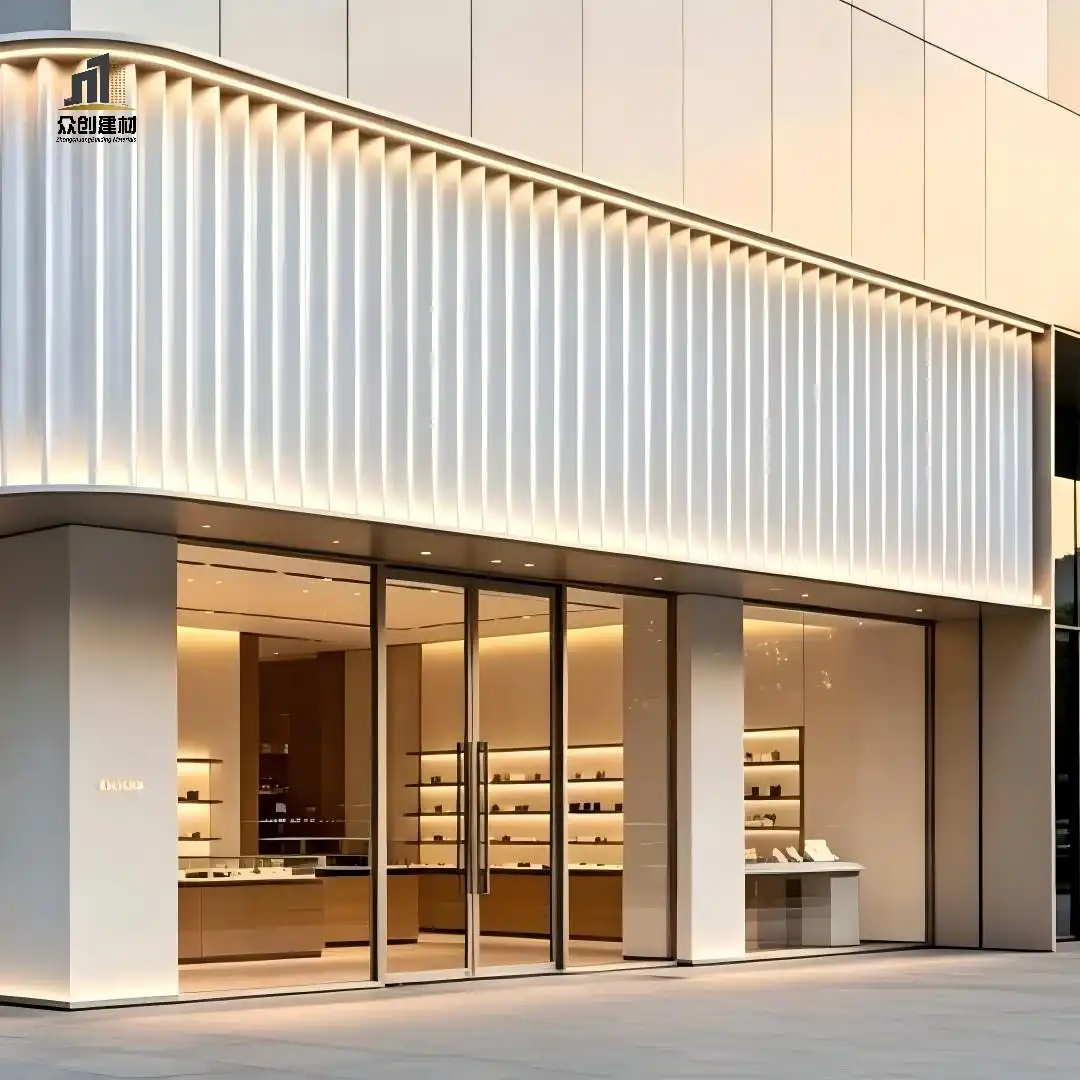

Architectural Exterior Facades

Ideal for commercial complexes, office towers, hotels, cultural buildings and retail pavilions. The dynamic wave texture creates a memorable landmark appearance, while the PVDF coating ensures long-term performance in all climate conditions.

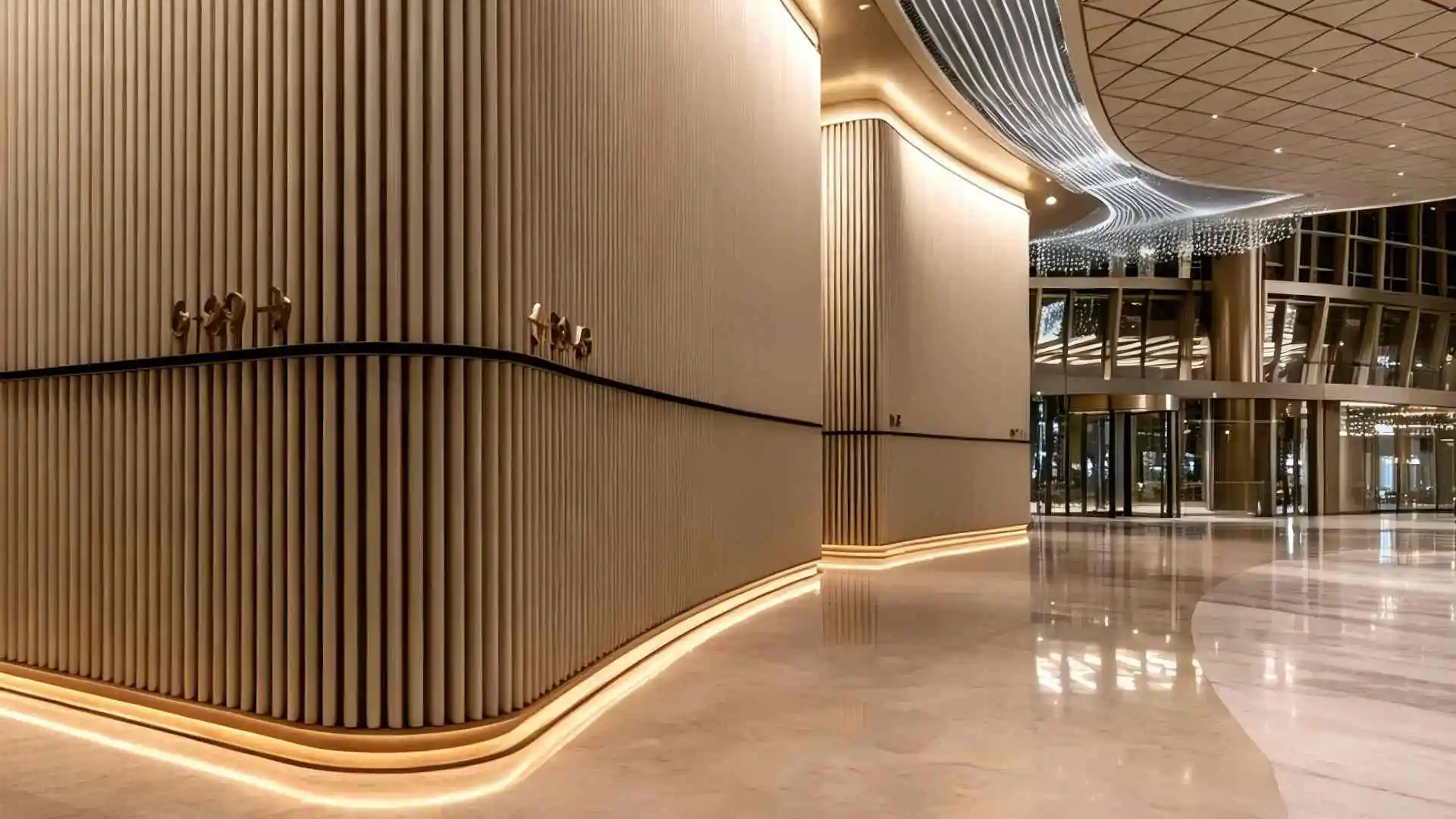

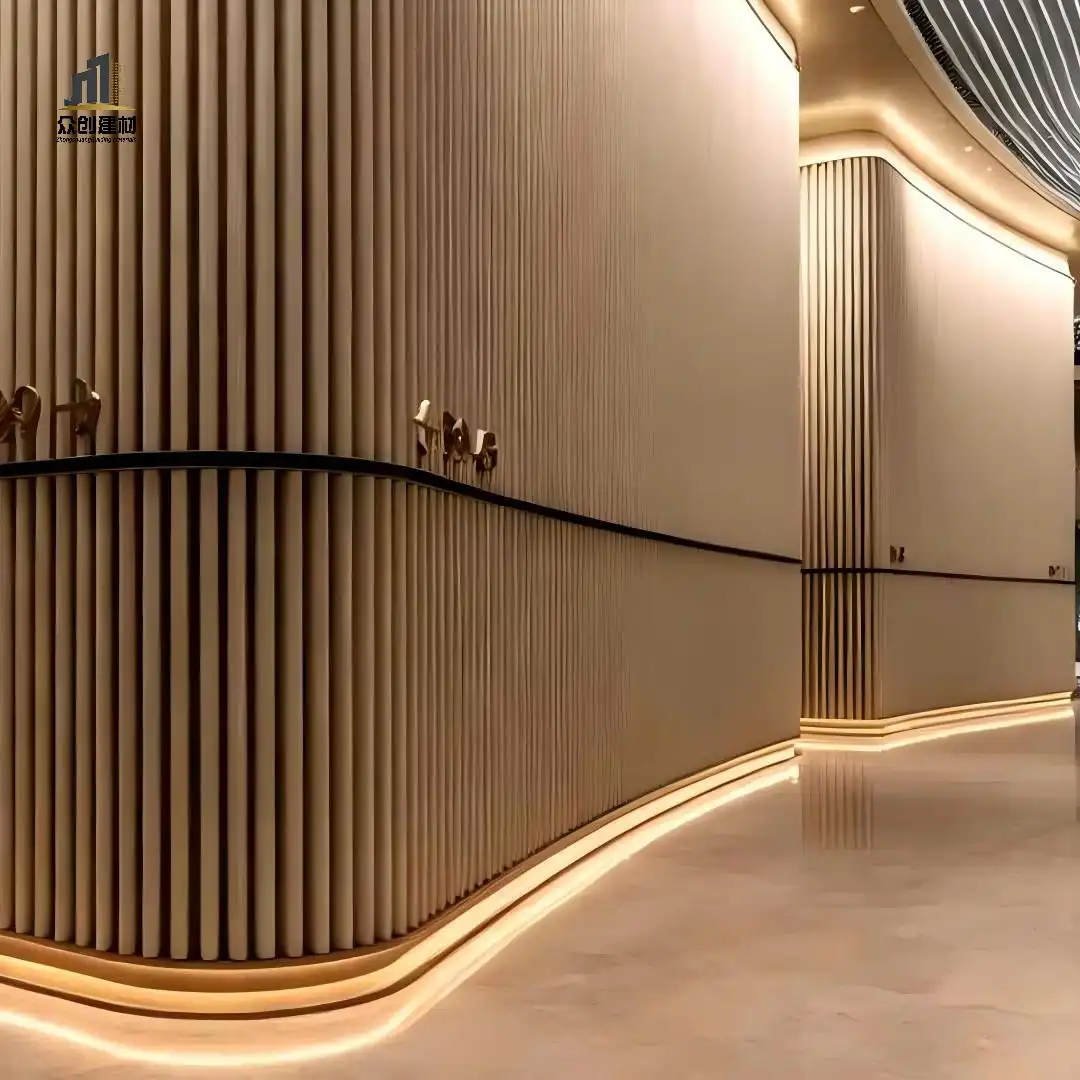

Interior Feature Walls & Ceilings

Perfect for brand flagship stores, hotel lobbies, restaurants, corporate reception areas and exhibition halls. The 3D texture adds depth and visual interest, and can be paired with integrated LED lighting to amplify the wave effect.

Public & Transportation Spaces

Suitable for airports, subway stations, museums and stadiums. The A2 fire rating, impact resistance and easy-to-clean surface make it ideal for high-traffic public spaces.

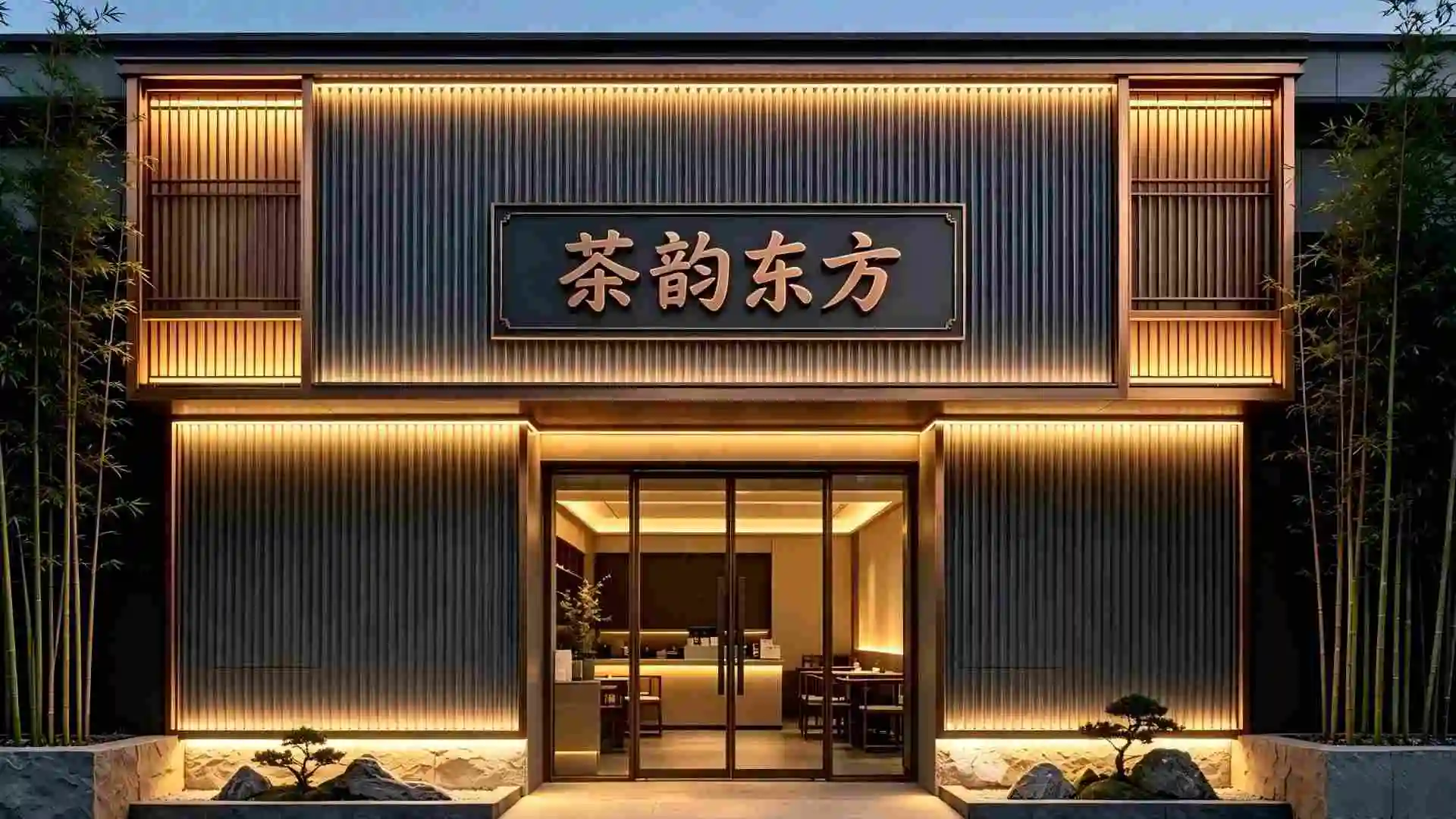

Landscape & Brand Identity Walls

Used for outdoor landscape walls, plaza feature walls and brand signage backdrops. The weather-resistant aluminum substrate stands up to outdoor conditions while delivering a premium custom look.

Installation Systems

1. Dry-Hang Ventilated System: The standard system for exterior facades. Aluminum alloy keel and adjustable hangers create a ventilated cavity behind panels, improving thermal performance and preventing moisture buildup. Fast to install and easy to remove for maintenance.
2. Seamless Joint System: For interior applications where a continuous, monolithic look is desired. Panels are joined with hidden connectors and minimal sealant, creating an almost seamless surface.
3. Open Joint System: Emphasizes the linear wave pattern with visible uniform gaps between panels, popular for large modern facades and industrial-style interiors.

All systems come with complete matching accessories: keels, hangers, sealing strips, fireproof cotton and installation instructions. We provide free installation node drawings and on-site technical guidance for large projects.

Reference Projects

• Commercial Complex, Guangzhou: 8,500m² of 50mm wave height silver PVDF corrugated panels used for the main facade. The dynamic wave pattern creates changing light and shadow effects throughout the day, and the panels have maintained perfect condition after 6 years of subtropical climate exposure.
• Luxury Flagship Store, Shanghai: 1,200m² of 20mm fine wave matte white corrugated panels used for interior feature walls and ceiling, paired with integrated linear LED lighting. The custom wave pattern reinforces the brand's modern, minimalist identity, with zero maintenance required after 3 years of use.

Frequently Asked Questions

Q: Can the wave shape and dimensions be fully customized?

A: Yes. Wave height from 10mm to 100mm, wave spacing from 20mm to 300mm, and any curvature or custom parametric shape can be produced. We accept CAD, Rhino and Revit design files for direct manufacturing.

Q: Are these panels suitable for exterior use? What is the weather warranty?

A: Yes. Exterior-grade panels use PVDF fluorocarbon coating with a 20-year fade, chalk and crack resistance warranty. The A2 fire rating meets EN 13501-1, ASTM E84 and other major international building standards.

Q: What is the minimum order quantity and lead time?

A: Standard colors and patterns: 10m² minimum order. Custom wave patterns or colors: 50m² minimum. Standard lead time is 15-20 working days, with rush order options available.

Q: Do you provide samples and design support?

A: We provide free 300×300mm physical samples of your selected wave pattern and finish. We also offer free panel layout design, installation node drawings and technical consultation for projects of any size.

Q: How does corrugated aluminum compare to stone, GRC or glass cladding?

A: It is 70-80% lighter, reducing structural load and support costs. It will not crack, fade or stain like stone, installs 3x faster, costs 30% less overall, and is 100% recyclable. It also offers far more design customization than traditional cladding materials.
