extruded aluminum wave panel

Extruded aluminum wave panel is a high-performance architectural metal material manufactured through advanced hot extrusion technology. Unlike traditional pressed aluminum panels, it is formed as a single continuous profile with integrated male-female locking edges, eliminating welding seams and ensuring perfect waterproof performance.

Our extruded aluminum wave panels are made from high-grade 6063-T5 aluminum alloy, offering exceptional rigidity, corrosion resistance and design flexibility. The seamless interlocking system allows for quick installation and creates a clean, continuous surface with no visible gaps. It is widely used in building facades, roofing systems, interior decorations and industrial enclosures.

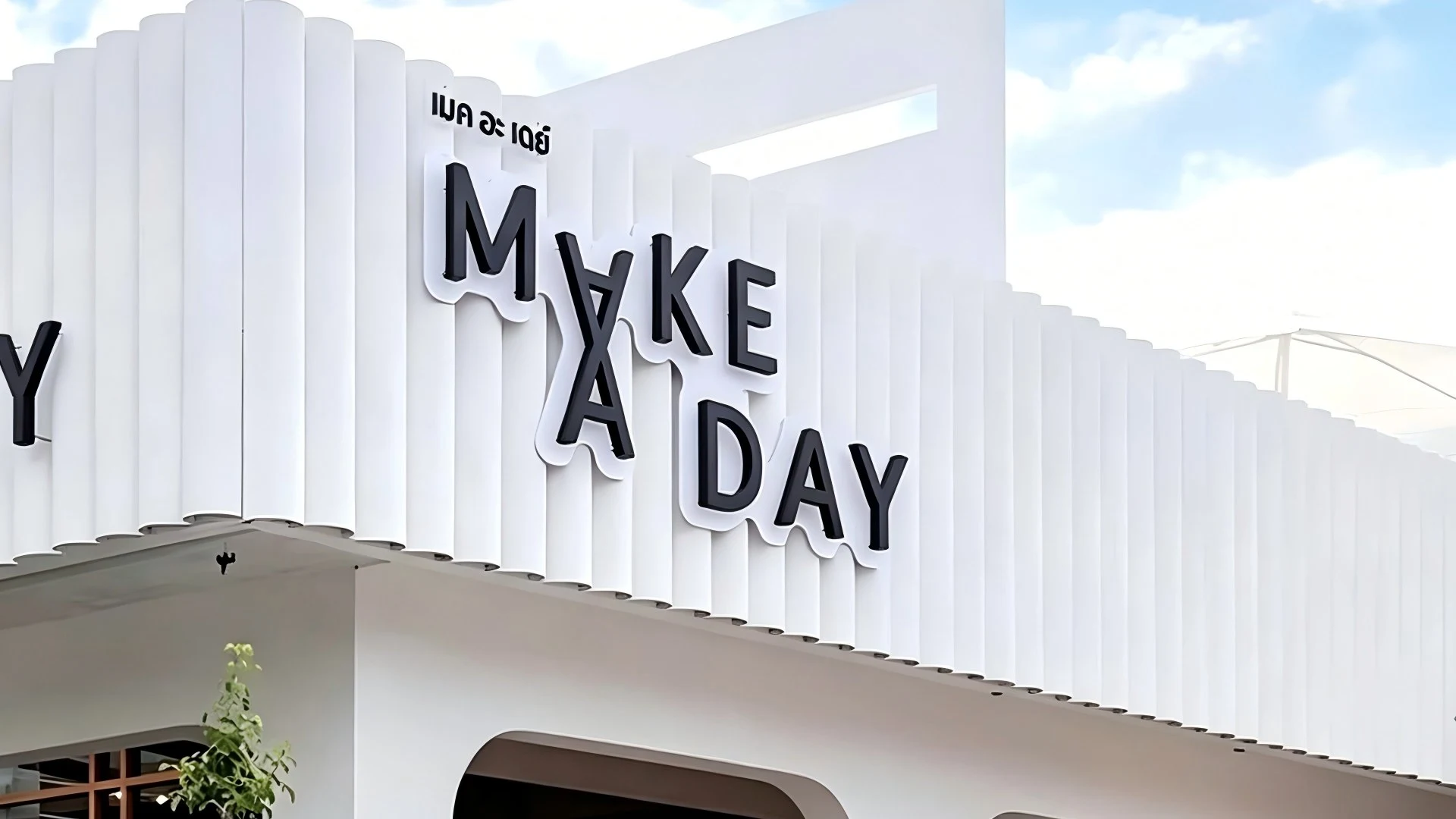

Extruded aluminum wave panel building facade with seamless splicing

1.1 Technical Specifications

Image Alt: Extruded aluminum wave panel technical specifications table

1.2 Core Advantages

1. One-Piece Extrusion Forming No welding, no splicing joints in the profile itself, ensuring uniform strength across the entire panel. Eliminates weak points that are prone to leakage and deformation.

2. 100% Waterproof Seamless Splicing Integrated male-female interlocking system with built-in rubber sealing strips creates a completely waterproof barrier. No need for additional sealants, reducing maintenance costs.

3. Superior Structural Strength 3-5 times stronger than traditional pressed aluminum panels of the same thickness. Can span longer distances with fewer supporting structures, reducing installation costs.

4. Exceptional Durability Will not rust, rot or corrode. PVDF coating provides 15-20 years of color fastness, with an overall service life of 50+ years.

5. Fast & Easy Installation Lightweight design and modular interlocking system allow for 30% faster installation compared to traditional facade systems.

6. Design Versatility Available in various wave heights, wavelengths and profiles. Can be installed horizontally, vertically or diagonally to create unique visual effects.

7. Environmentally Friendly 100% recyclable, contains no harmful substances. Energy-efficient production process and long lifespan reduce environmental impact.

1.3 Typical Applications

• Architectural Facades: Office buildings, shopping malls, hotels, cultural centers
• Roofing Systems: Industrial plants, warehouses, logistics centers, stadiums
• Interior Decoration: Ceilings, wall panels, partition walls, staircase cladding
• Industrial Enclosures: Factory walls, equipment enclosures, sound barriers
• Landscaping: Garden fences, pergolas, decorative screens, signboards

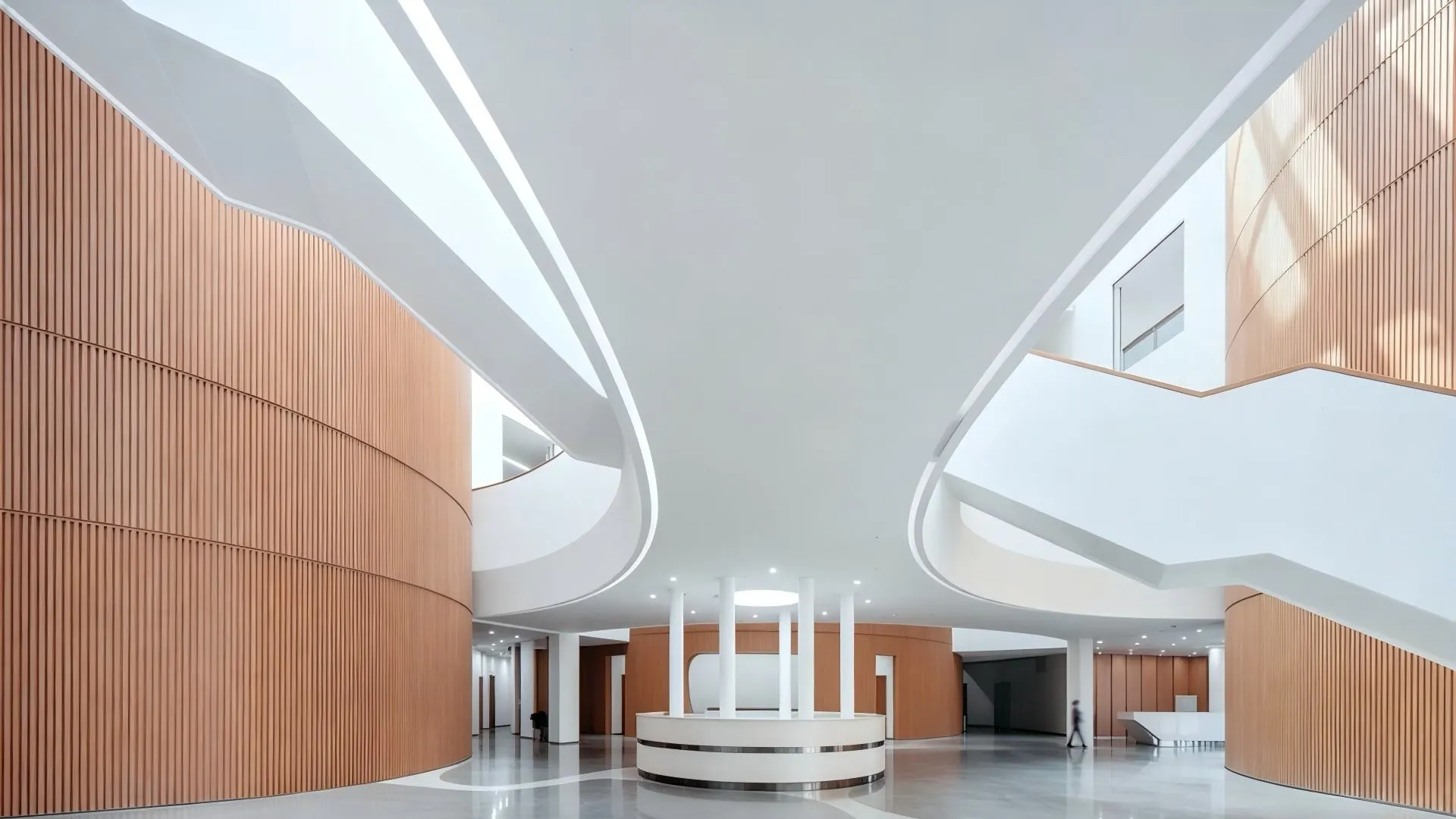

Aluminum alloy corrugated sheet interior decoration

1.4 Our Services

As a professional extruded aluminum wave panel manufacturer with over 18 years of experience, we provide:

• Custom profile design and extrusion
• Precision cutting, drilling and bending services
• Professional technical support and project consultation
• Complete installation guidance and on-site support
• 15-year product warranty against fading and peeling
• Fast worldwide shipping with secure packaging

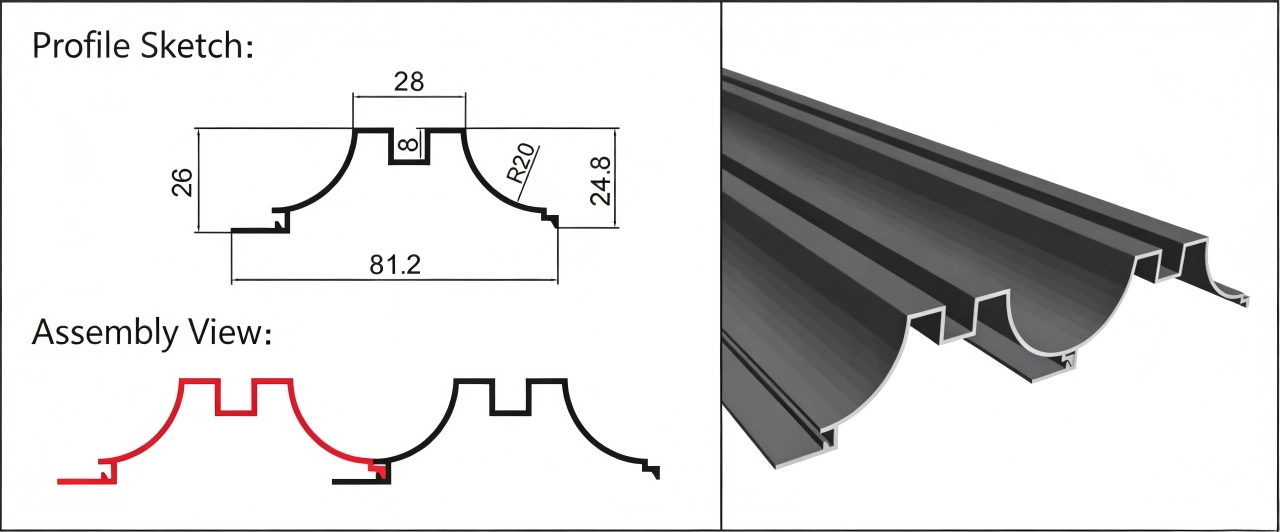

​​​​​​​Schematic diagram of seamless splicing of aluminum alloy corrugated sheets

1.5 Frequently Asked Questions (FAQ)

Q1: What is the difference between extruded aluminum wave panel and pressed aluminum wave panel?

A: Extruded panels are formed as a single continuous profile through hot extrusion, offering superior strength and seamless interlocking. Pressed panels are stamped from flat sheets, which are weaker and require additional sealants for waterproofing.

Q2: Is extruded aluminum wave panel completely waterproof?

A: Yes. Our panels feature an integrated male-female locking system with EPDM rubber seals, providing IP67 waterproof rating. No additional sealants are required at the joints.

Q3: Can you customize the wave shape and size?

A: Absolutely. We have a dedicated mold workshop that can create custom wave profiles according to your design requirements. We can also customize panel length, thickness and surface finish.

Q4: What is the maximum span of extruded aluminum wave panel?

A: The maximum span depends on the panel thickness and wave height. For a 2.0mm thick panel with 50mm wave height, the maximum span is approximately 2.5 meters. We can provide structural calculations for your specific project.

Q5: Is extruded aluminum wave panel suitable for coastal areas?

A: Yes. We offer marine-grade 5052 aluminum alloy and special corrosion-resistant coatings specifically designed for coastal and high-salt environments.

Q6: How long does it take to produce custom extruded aluminum wave panels?

A: Standard panels have a lead time of 7-10 days. Custom profiles require 20-30 days for mold making and production. We also offer expedited services for urgent projects.

Q7: Can extruded aluminum wave panels be recycled?

A: Yes. Aluminum is 100% recyclable without any loss of quality. Our panels can be fully recycled at the end of their service life, making them an environmentally sustainable choice.
