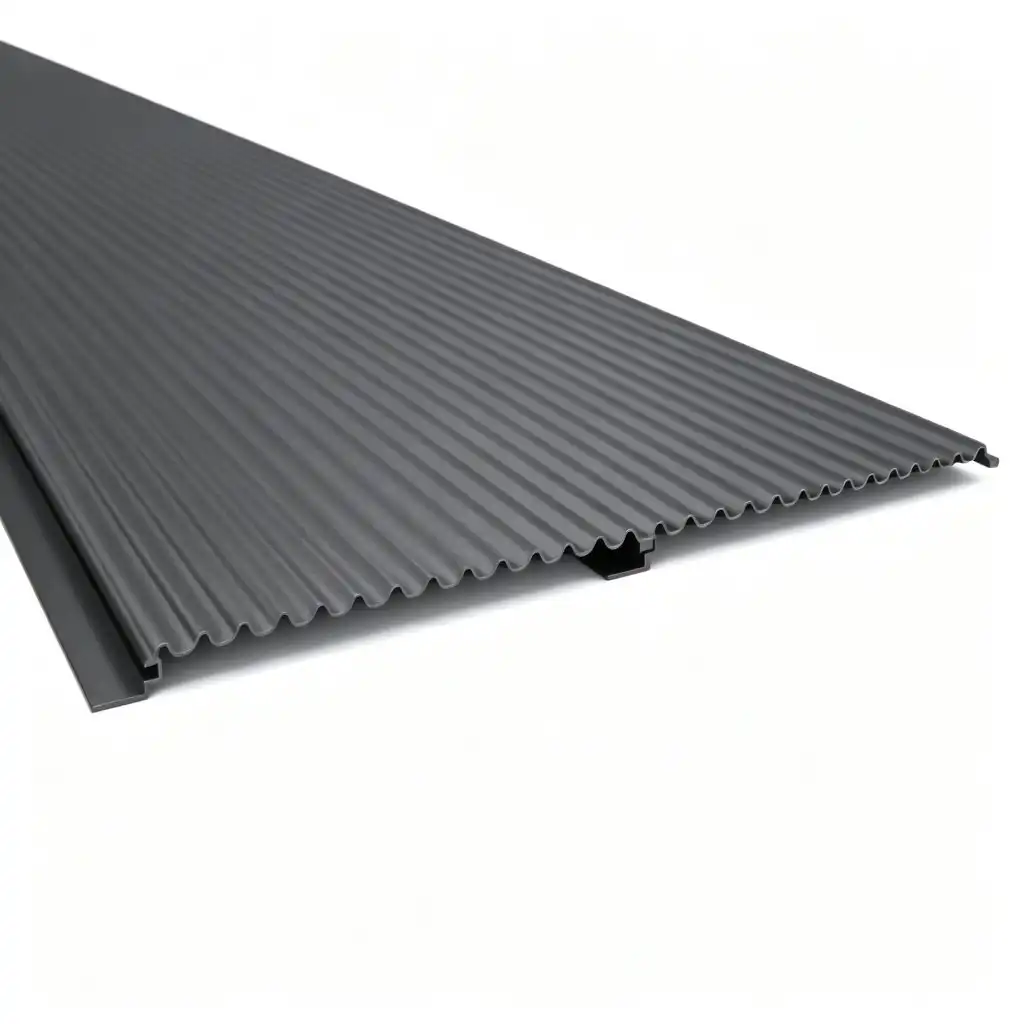

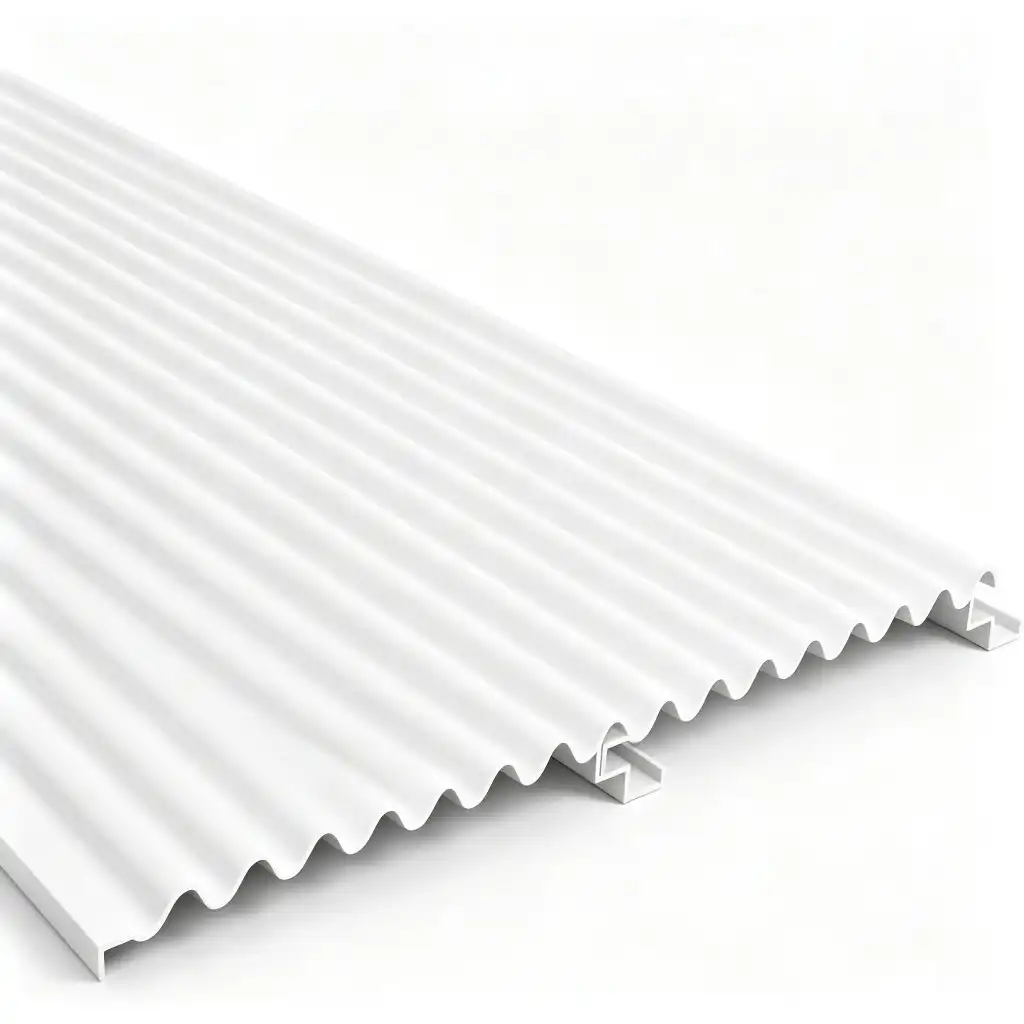

Fine-Ripple Aluminum Wave Trim

Product Overview

Fine-ripple aluminum wave trim is fabricated from high-grade aluminum alloy profiles through extrusion, creating a continuous micro-dense wavy cross-section. With denser pitch and smaller amplitude, the wave texture is as fine as comb teeth, producing delicate, soft light-and-shade variation under natural and artificial light, giving walls a refined texture.

The value of fine-ripple trim lies in its "understated refinement." Unlike large-wave trims that command attention, it brings flat walls to life through fine texture. Whether used to cover full wainscoting or as a decorative framework for feature walls, fine-ripple trim injects delicate quality and taste into any space.

Why Choose Fine-Ripple Aluminum Wave Trim

Compared with regular wave trims and flat trims, fine-ripple aluminum wave trim offers unique advantages:

Fine Texture: Dense wave texture produces soft light-and-shade variation — refined, pleasant, and understated.

Dimensional Yet Restrained: Combines three-dimensional layering with low-key elegance, ideal for high-end residential and commercial spaces.

Lightweight & Safe: Weighs just one-fifth of GRC wave moldings, safer for wall installation.

Never Cracks: GRC moldings crack under temperature cycles; aluminum fine-ripple trim never cracks or delaminates.

Color Retention: PVDF coating lasts 20 years without fading, for interior and exterior use.

Flexible Customization: Wave pitch, amplitude, and length are all customizable to fit various wall sizes and shapes.

Class A Fire Rating: Aluminum is non-combustible, meeting fire codes for public buildings.

Recyclable: 100% recyclable, supporting green building and LEED certification.

Core Product Series

Based on fine-ripple profile and installation method, fine-ripple aluminum wave trim falls into four series:

Custom Design Capabilities

The core value of fine-ripple aluminum wave trim lies in customization. We provide end-to-end service from texture design to delivery:

Texture Customization: Any wave pitch, amplitude, and curvature can be tooled, from micro-dense to gradient fine ripples.

Cut-to-Length: Standard 6m lengths can be cut to your wall dimensions, minimizing on-site joints.

Two-Tone Design: Wave peaks and troughs can be finished in different colors to enhance dimensionality.

Wood / Metal Finishes: Wood-grain transfer, anodizing, and other finishes available to suit different design styles.

Grille Combination: Multiple fine-ripple trims can combine into fine-ripple grilles for partitions, ceilings, and screens.

Accessories: Matching edge trims, corner profiles, and end caps provide complete edge finishing.

Technical Specifications

Surface Finishes

The finish of fine-ripple trim directly affects spatial texture. We offer multiple finish technologies covering everything from modern minimal to natural warm styles:

PVDF Fluorocarbon: 20-year fade warranty, for interior and exterior use, full RAL color range.

Wood-Grain Transfer: Realistic oak, walnut, and teak textures for natural, warm residential and club spaces.

Anodizing: Silver, champagne, and bronze metallic finishes for modern minimal and light-luxury styles.

Powder Coating: Matte, semi-matte, and gloss options — cost-effective for budget-conscious projects.

Two-Tone Design: Different peak and trough colors enhancing dimensionality and layering.

Installation System

Our installation system balances aesthetics, stability, and convenience:

Clip-in Installation: Factory-installed clips allow direct on-site clipping into the grid without field fabrication.

Hidden Screw Fixing: Fasteners are concealed in trim grooves, invisible from the front for a clean look.

Grille Combination: Fine-ripple grilles are fixed to the grid with dedicated connectors at uniform spacing.

Expansion Joints: Leave gaps at trim joints filled with color-matched sealant to prevent thermal expansion cracking.

Corner Treatment: Dedicated corner profiles and end caps provide perfect inside/outside corner finishing.

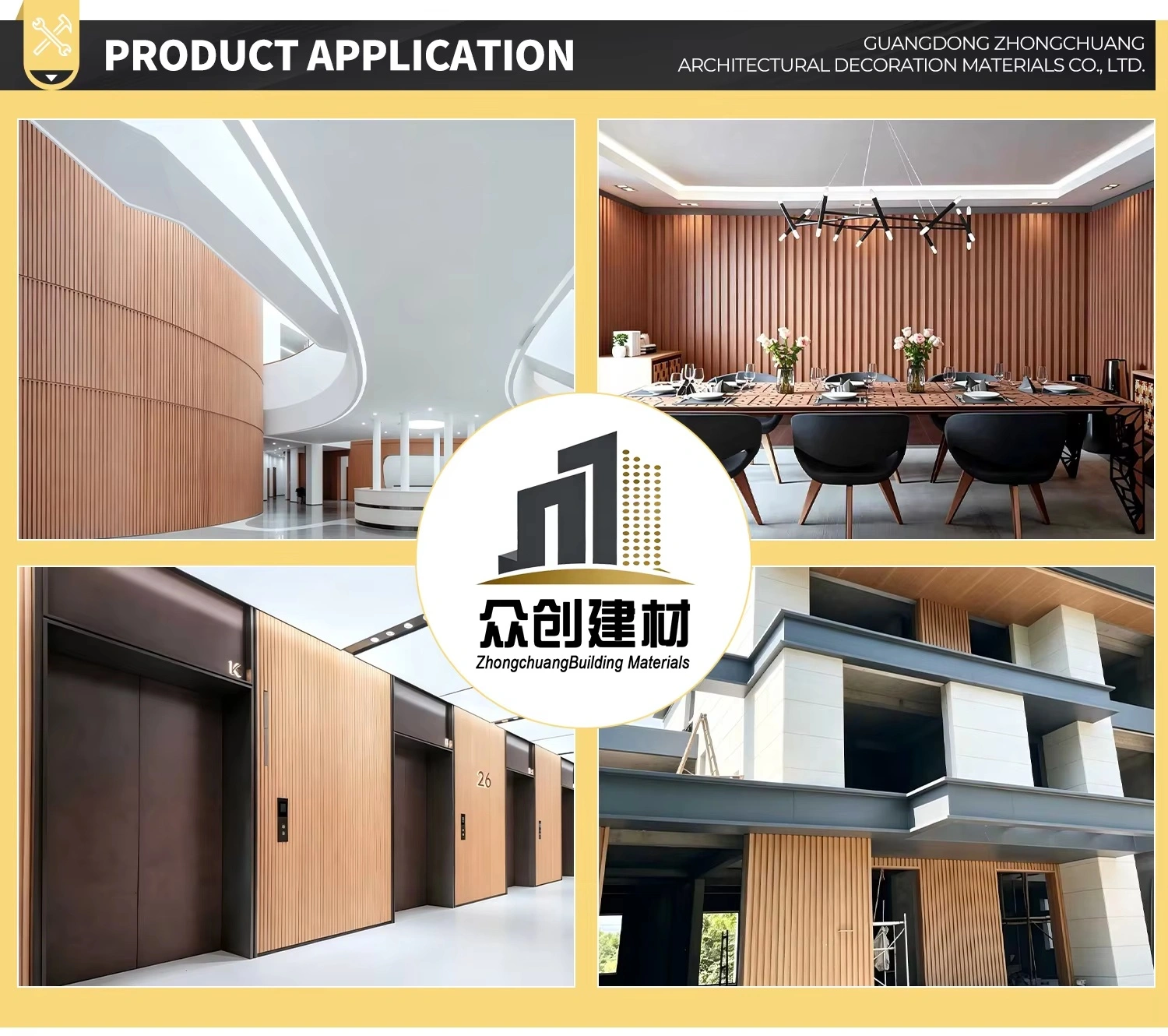

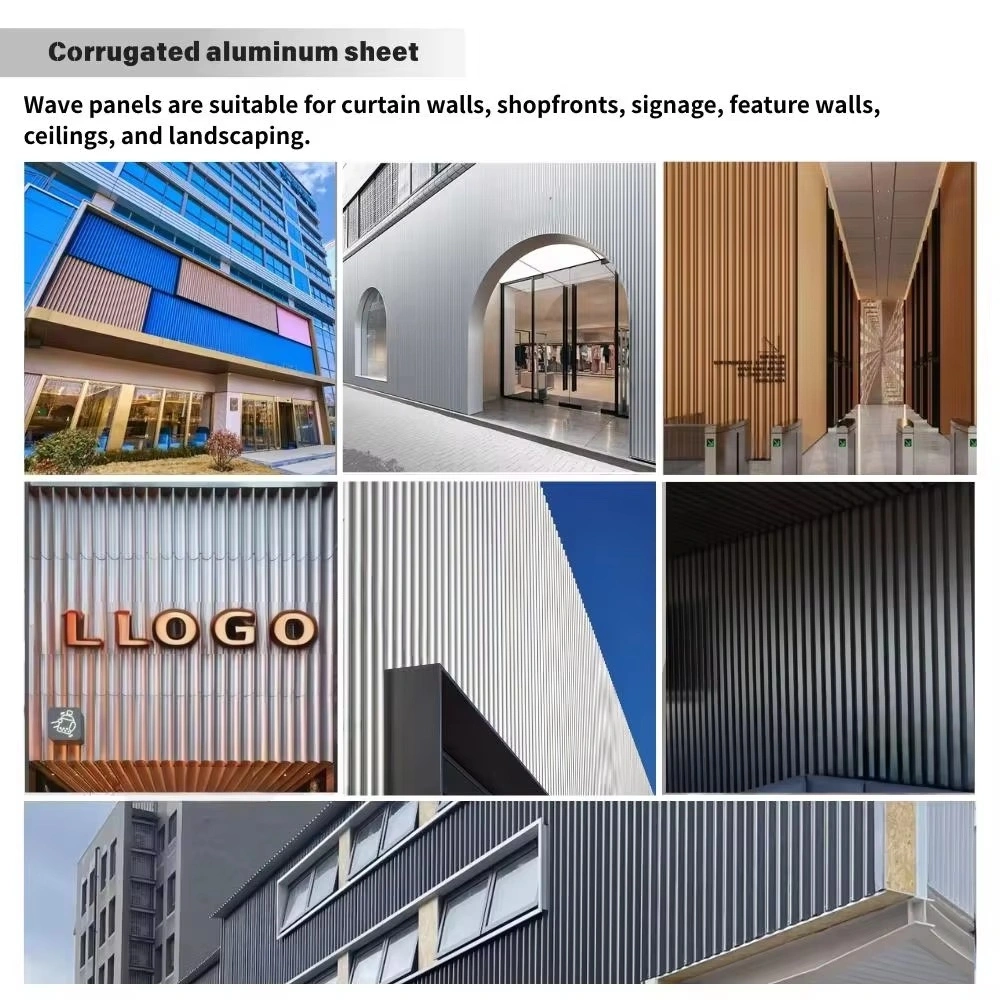

Typical Applications

Fine-ripple aluminum wave trim is widely used in:

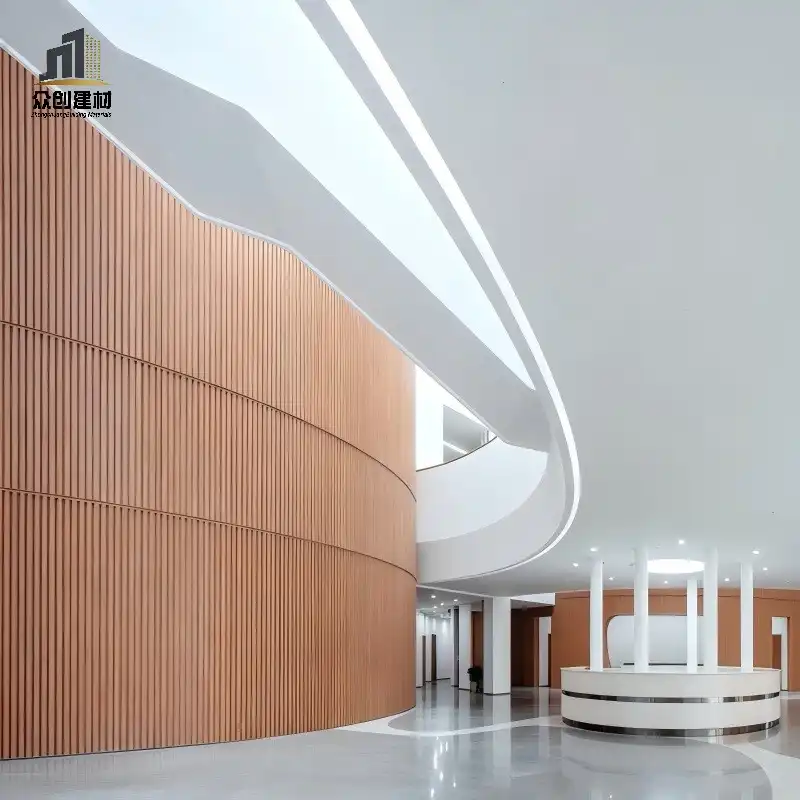

Residential Wainscoting & Feature Walls: Fine-ripple decoration on living room and bedroom walls and wainscoting creates refined layering.

Ceiling Decoration: Fine-ripple trims shape ceilings, giving the top surface a delicate texture.

Entryways & Screens: Fine-ripple grilles serve as partitions or screens — transparent yet elegant.

Commercial Spaces: Fine-ripple profiles on flagship store and mall walls create a high-end feel.

Hotels & Clubs: Fine-ripple trims in lobbies and corridors create an artistic atmosphere.

Building Facades: Fine-ripple grilles combine shading and decoration, enriching facade layering.

Quality Assurance & Certifications

Our fine-ripple aluminum wave trim is manufactured to international standards. Key certifications include:

ISO 9001 Quality Management System

CE Marking (EU Construction Products Regulation CPR compliant)

ASTM E84 Fire Certification (surface burning characteristics)

AAMA 2605 (highest aluminum coating weatherability grade)

SGS Test Reports (coating adhesion, impact resistance, salt spray, etc.)

All exterior products come with a 15–20 year warranty against fading, chalking, and delamination.

Frequently Asked Questions

Q1: Can custom fine-ripple textures be tooled?

A: Yes. We offer extrusion tooling for custom fine-ripple profiles; wave pitch, amplitude, and curvature are all customizable. Tooling fees depend on texture complexity and are refundable on volume orders.

Q2: What is the difference between fine-ripple trim and regular wave trim?

A: Fine-ripple trim has denser pitch and smaller amplitude (pitch 8–15mm, amplitude 2–8mm), producing a refined, delicate texture; regular wave trim has wider pitch and larger amplitude (pitch 50–100mm, amplitude 10–30mm) with stronger dimensionality. Fine ripple suits spaces seeking refined texture.

Q3: Is there a difference between interior and exterior fine-ripple trims?

A: Yes. For exterior use, we recommend PVDF fluorocarbon coating with a 20-year fade warranty; for interior, powder coating or wood-grain transfer can be chosen based on budget. Coastal exterior projects should add an epoxy primer.

Q4: Do fine-ripple trims require frequent maintenance?

A: Basically none. The durable surface coating only needs periodic dusting with a soft cloth. Compared with wooden profiles requiring regular repainting, maintenance costs are nearly zero.

Q5: Can samples be provided?

A: Yes. We provide free fine-ripple cross-section samples and color swatches; clients only cover international courier costs.
