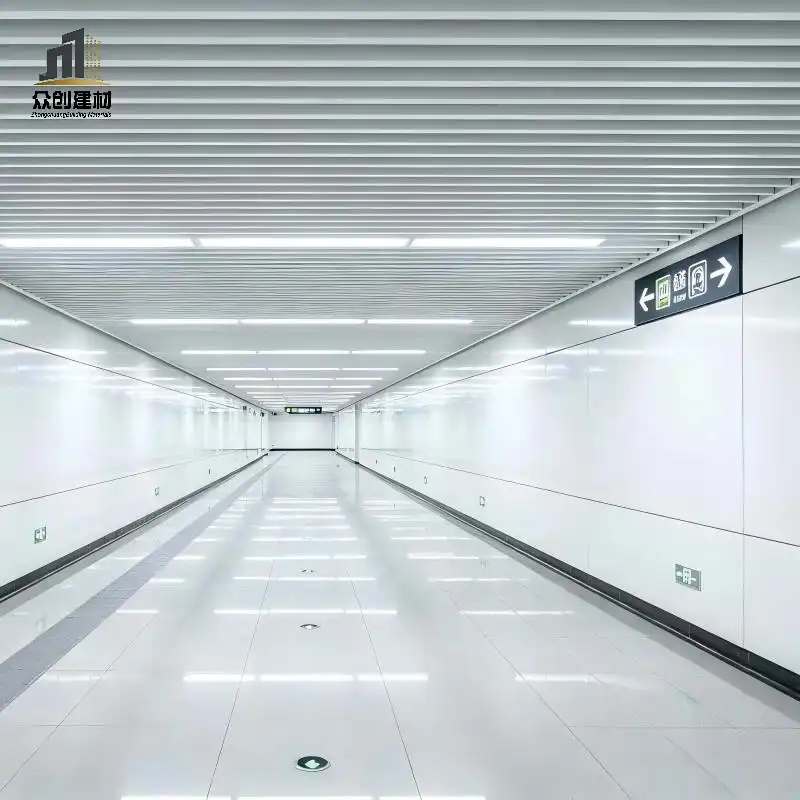

Linear Aluminum Ceiling for Metro Station

Product Overview

Our metro-specific linear aluminum ceiling (also called subway linear strip ceiling, transport hub linear aluminum ceiling) is engineered exclusively for metro, high-speed rail and other high-traffic transport environments, manufactured from high-grade 3003-H24 aluminum alloy with precision roll forming and a patented anti-vibration keel system. Unlike standard commercial linear ceilings, our metro-grade linear ceiling passes 100,000-cycle simulated train vibration testing without loosening or rattling, achieves an A2 non-combustible fire rating, delivers NRC 0.85 high sound absorption, and supports factory-integrated LED lighting, wayfinding signage, PA speakers and fire safety equipment. It solves core pain points of standard ceilings in metro environments: loose panels from constant train vibration, excessive echo and poor announcement clarity, disruptive maintenance that interrupts operations, insufficient fire performance, and rapid wear from heavy daily passenger flow. Our linear ceilings are deployed in over 30 metro lines globally, with a 25-year service life and 40% faster maintenance than traditional gypsum or mineral fiber ceilings.

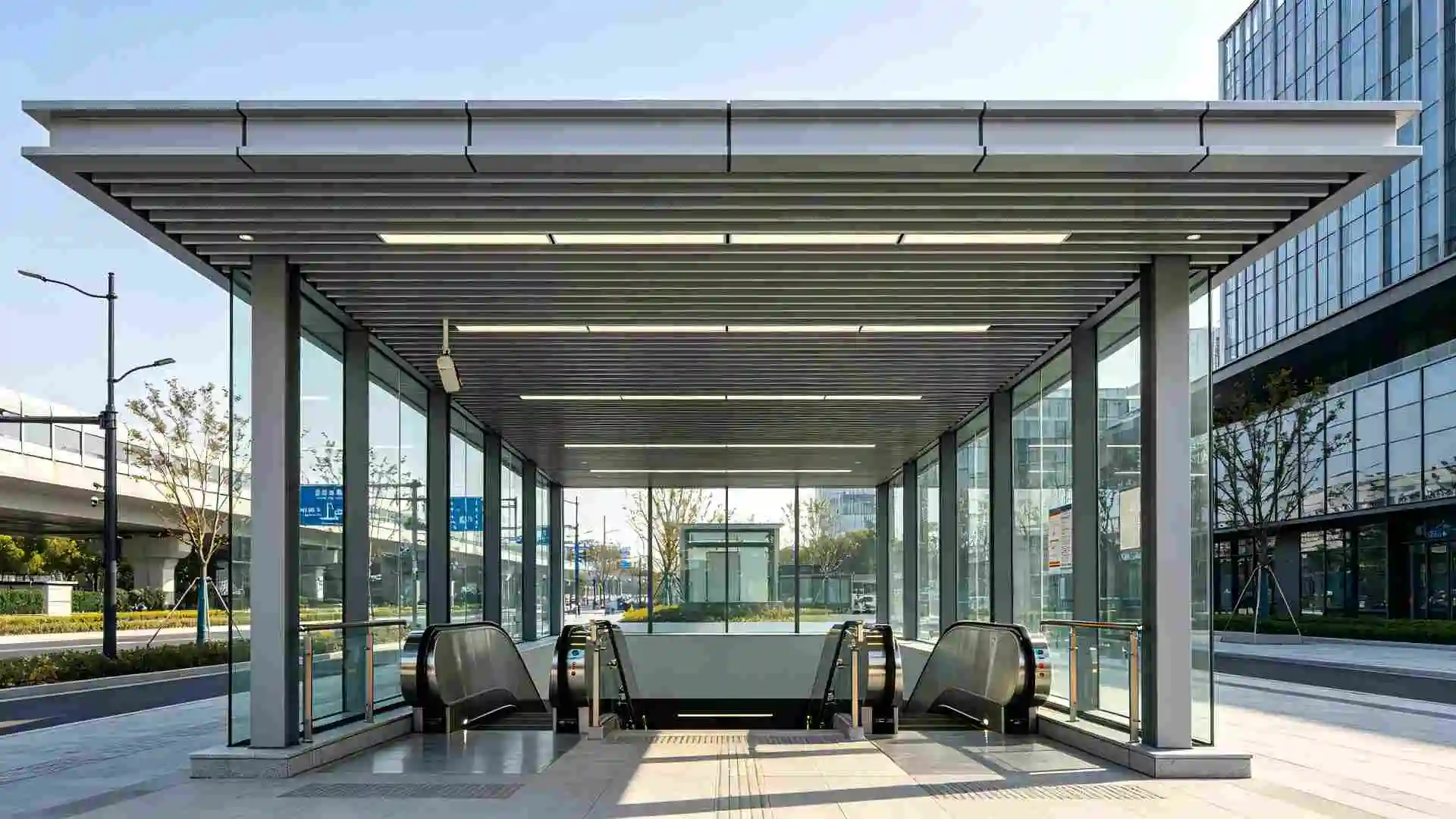

Semi-outdoor linear aluminum canopy ceiling for metro entrance, escalator area, eye level shot

8 Metro-Grade Core Advantages

100,000-Cycle Vibration Resistance Our patented anti-loosening keel clip design passes 100,000-cycle simulated train vibration testing, with zero panel loosening, rattling or displacement, eliminating the most common safety hazard for underground station ceilings.

A2 Non-Combustible Fire Rating 100% aluminum construction meets EN 13501-1 A2 non-combustible standards, passing the strictest global transport hub fire codes, with zero toxic smoke emission in fire conditions.

NRC 0.85 High Sound Absorption Optional perforated panels lined with acoustic black fleece achieve NRC 0.85 sound absorption, reducing station echo and PA announcement reverberation by 70% to ensure clear broadcast communication for passengers.

Heavy-Duty Wear & Stain Resistance A 2H hard polyester powder coating resists scratches, graffiti and repeated disinfectant wiping, engineered for stations with 100,000+ daily passenger flow, with no discoloration for 25 years.

Tool-Free Individual Panel Maintenance Panels clip in and out individually without tools in 10 seconds, allowing night-time maintenance without full ceiling disassembly, eliminating disruption to daily metro operations.

Fully Integrated System Design Factory pre-cut openings for LED strip lights, wayfinding signs, PA speakers, fire sprinklers and CCTV cameras, with all mounting brackets pre-fitted to cut on-site installation time.

Lightweight Structural Load Reduction Weighing only 3.5–4.5kg/㎡, the system is 70% lighter than mineral fiber ceilings and 80% lighter than gypsum ceilings, significantly reducing structural load for underground stations.

25-Year Underground Service Life Anti-corrosion coating is formulated for high-humidity underground environments, with no rust, no sagging, and minimal maintenance required across a 25-year service life.

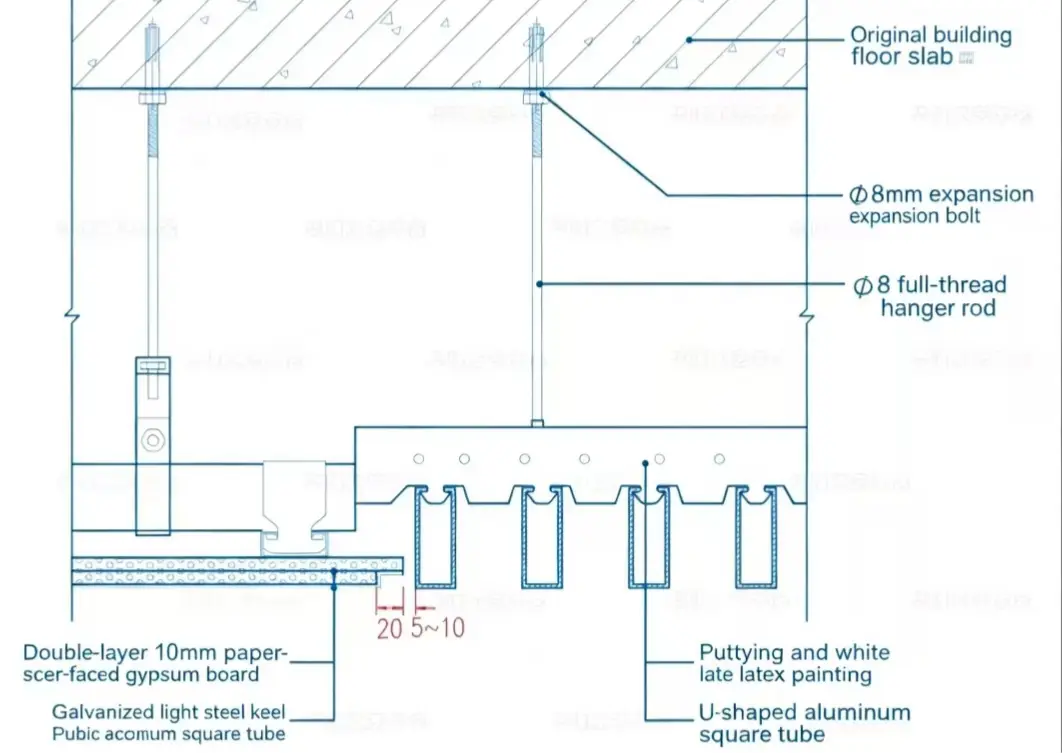

Aluminum linear baffle ceiling system structure diagram

Metro-Specific Technical Specifications

Recommended Metro Station Zones

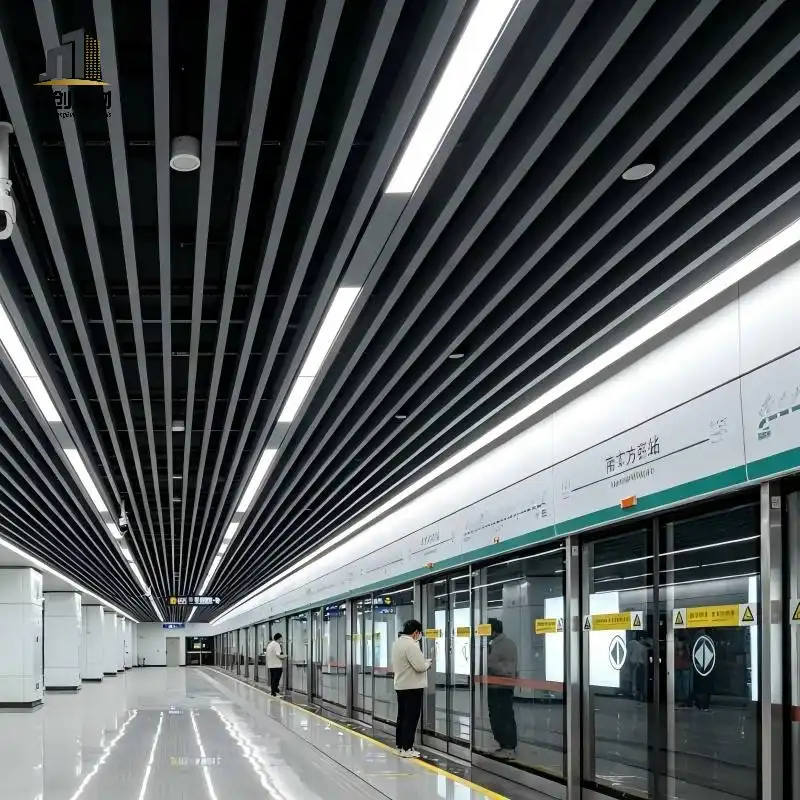

Platform ceilings: Vibration-resistant specification, high acoustic performance, integrated platform lighting

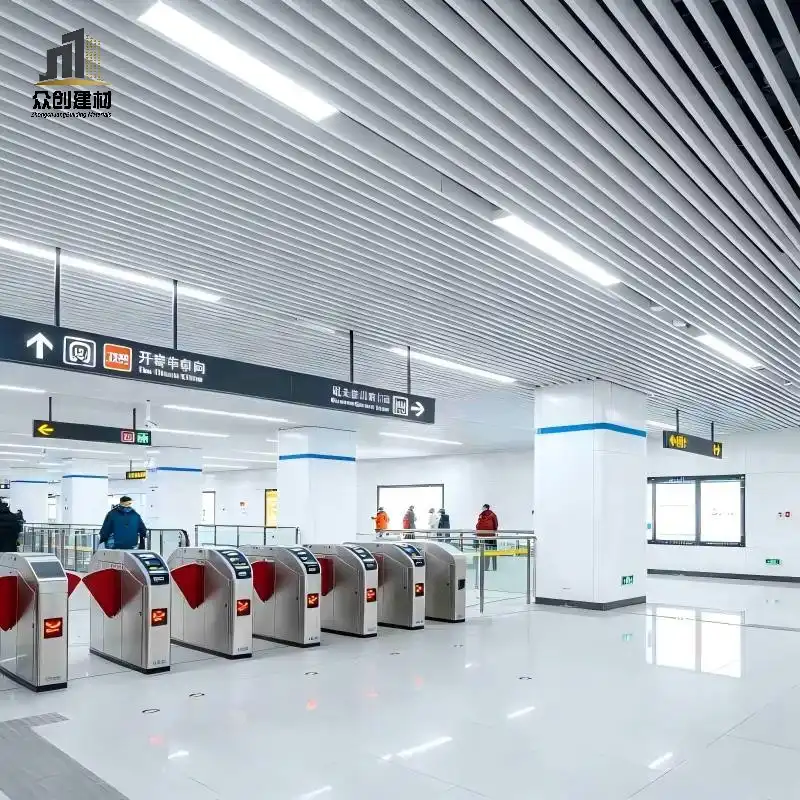

Concourse/paid area ceilings: Wear-resistant, easy-to-clean finish, integrated wayfinding signage

Passage/corridor ceilings: Long-span capability, fast installation, pre-cut for fire equipment

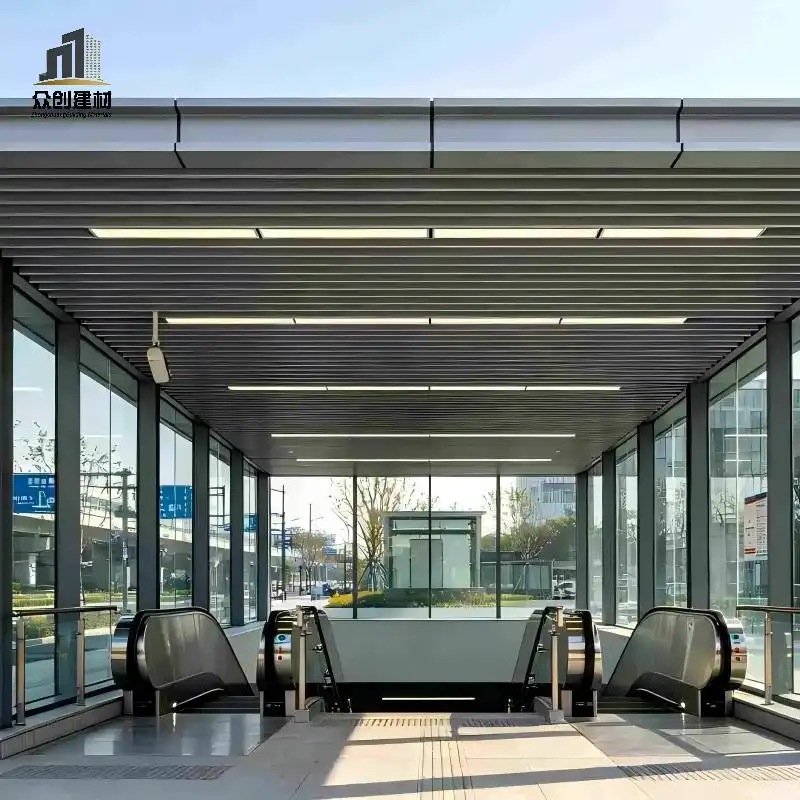

Entrance/exit canopies: Weather-resistant anti-corrosion coating for semi-outdoor use

Equipment zone ceilings: Fully removable panels for easy access to MEP systems

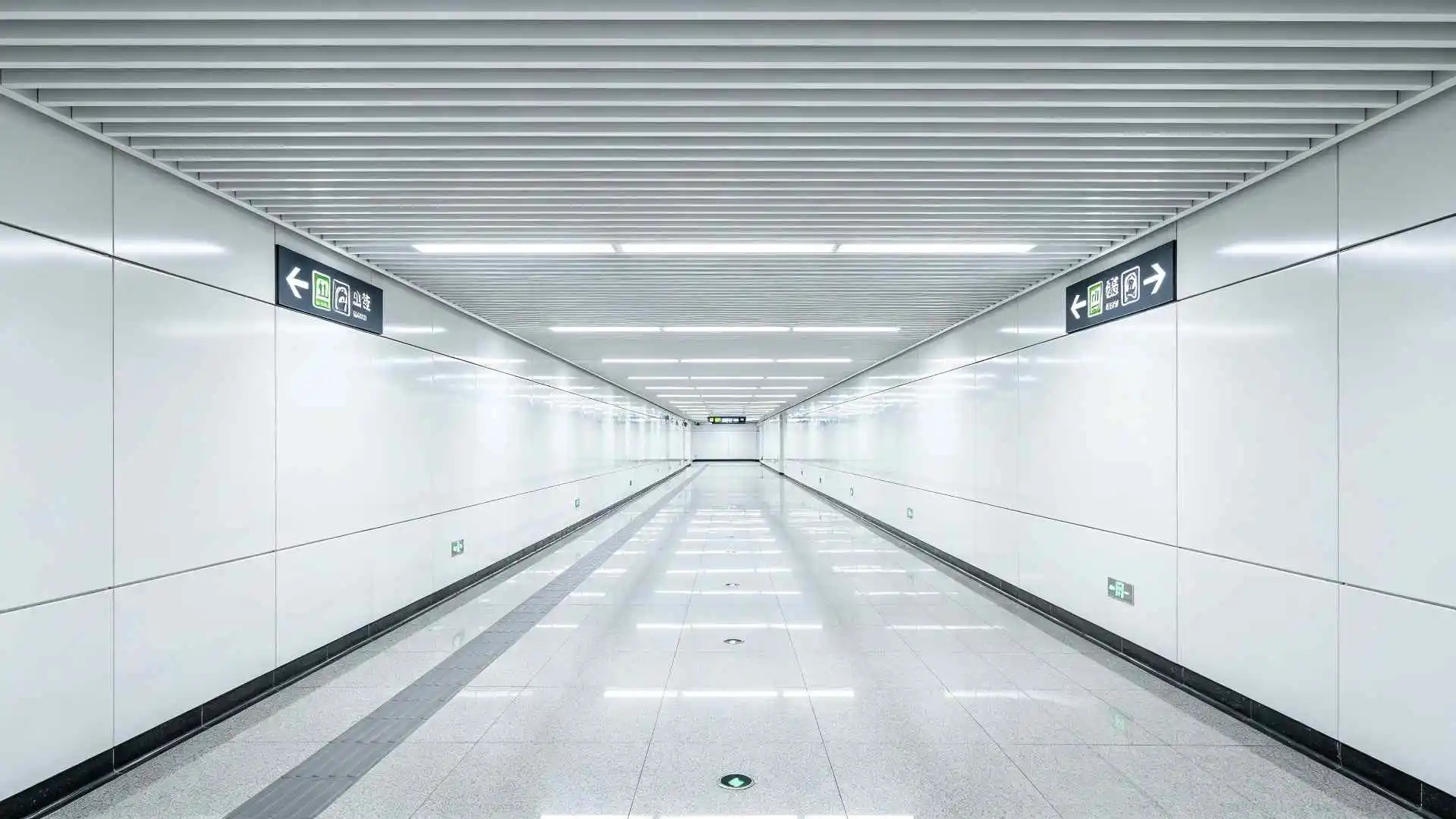

Linear aluminum ceiling for metro transfer corridor, perspective shot

Project Delivery & Installation Process

Share station construction drawings and zone-specific performance requirements

Our technical team provides detailed shop drawings, keel layouts and integrated equipment cutout drawings within 5 working days

Approve drawings and physical samples (7-day lead time for custom samples)

Factory production: Precision roll forming → CNC equipment cutouts → powder coating → acoustic fleece lamination → vibration testing → numbered protective packaging

All panels and accessories are numbered to match installation layouts, with dedicated on-site technical guidance available

On-site installation: Secure anti-loosening keels → clip panels in numbered order → install integrated equipment; installation is 30% faster than traditional ceiling systems

Metro Project Frequently Asked Questions

Can this ceiling pass metro fire inspection requirements?

Yes. Our linear aluminum ceiling holds full A2 non-combustible certification, with zero toxic smoke emission, meeting the strictest fire codes for underground transport hubs globally.

Will panels loosen or rattle from constant train vibration?

No. Our patented anti-loosening clip design passes 100,000-cycle vibration testing (simulating 25 years of train operation), with zero loosening, rattling or displacement.

Can we integrate lighting, signs and other equipment into the ceiling system?

Yes. All panels are factory pre-cut for LED lights, wayfinding signs, PA speakers, sprinklers and CCTV, with pre-fitted mounting brackets for fast, accurate on-site installation.

How do we perform maintenance without disrupting metro operations?

Individual panels can be removed and replaced in 10 seconds without tools, allowing maintenance teams to work during overnight service windows without removing large ceiling sections, with zero disruption to daily operations.

How effectively does it reduce station noise?

Perforated acoustic models achieve NRC 0.85, reducing echo and reverberation by 70%, making PA announcements clearly intelligible and reducing overall station noise levels by 15–20dB.

Is it suitable for humid underground environments?

Yes. Our anti-corrosion polyester coating is formulated for 95% humidity underground environments, with guaranteed no rust or sagging for 25 years.

Can it resist graffiti and heavy passenger wear?

We offer an optional anti-graffiti coating that allows permanent marker and spray paint to be wiped off with standard cleaners, and the 2H hard coating resists scratches from passenger contact and cleaning equipment.

What is the lead time for large metro projects?

Standard lead time is 20–25 days for 10,000㎡ projects, with rush production available for tight construction timelines.
