Perforated Aluminum Baffle Ceiling

Product Overview

Guangdong Zhongchuang perforated aluminum baffle ceiling (also called perforated U-shaped linear aluminum ceiling) is a high-performance acoustic open ceiling system. It combines the clean linear look and easy access of standard aluminum baffle ceilings with precision perforations and acoustic backing to absorb sound, reduce echo and lower noise levels in large spaces.

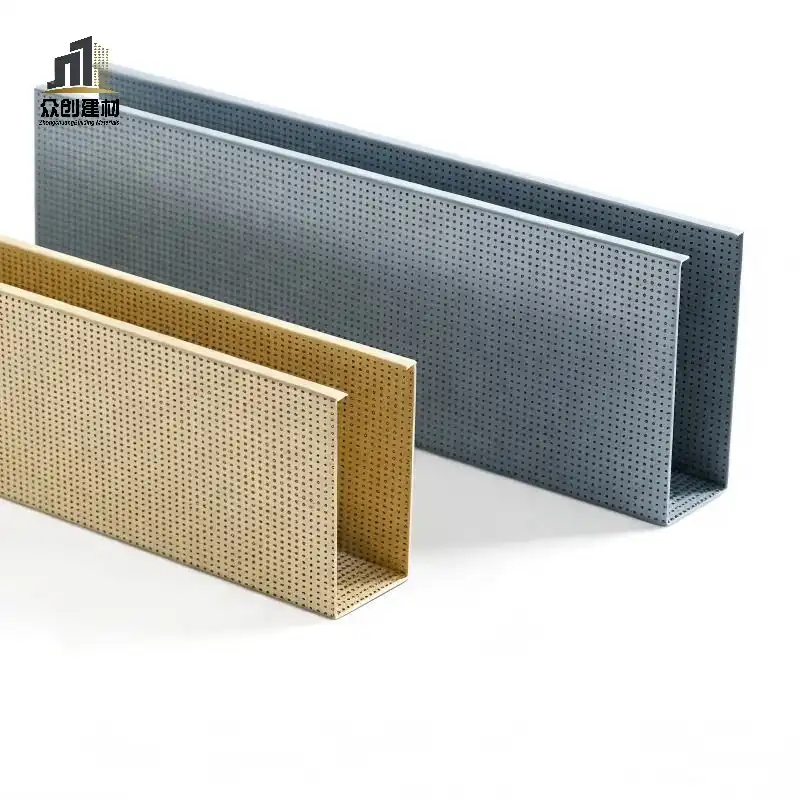

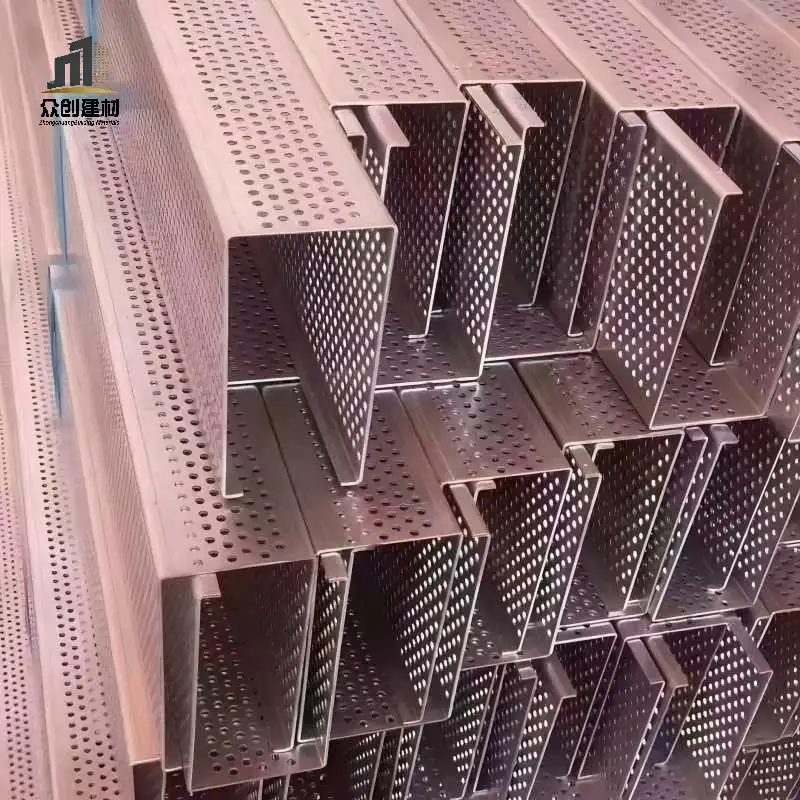

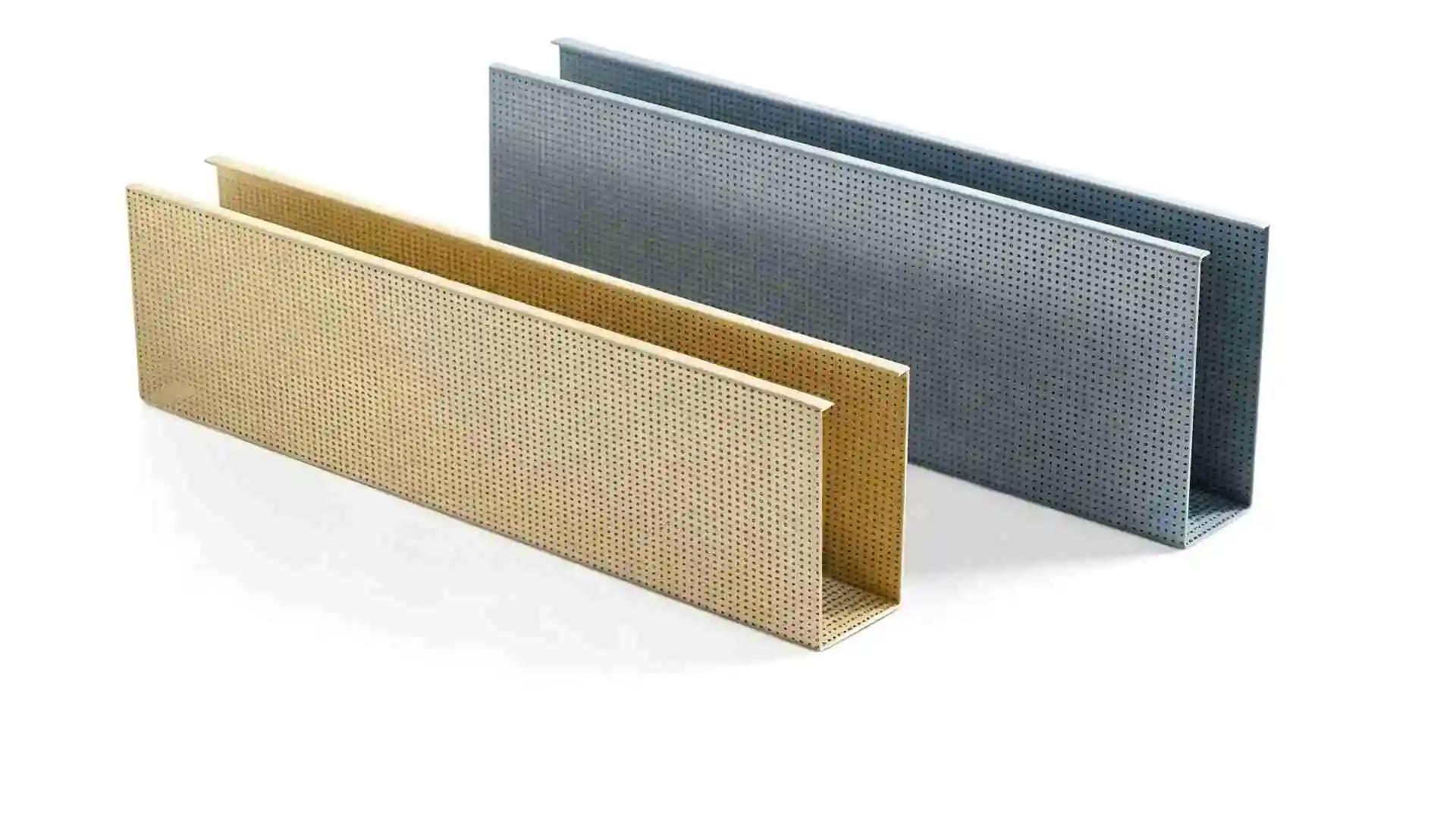

Each U-shaped aluminum baffle is perforated with custom hole patterns, with black acoustic fleece or fiberglass insulation bonded to the back. This absorbs sound waves passing through the baffles, reducing reverberation time and creating more comfortable acoustics — without sacrificing the open, modern visual that makes baffle ceilings popular. It is the ideal ceiling choice for large open spaces where noise control and modern design are both priorities.

7 Core Advantages of Perforated Acoustic Baffle Ceilings

Linear Open Visual Effect

The parallel U-shaped baffles create clean, continuous linear lines that visually extend space and make ceilings feel higher. The open design avoids the closed-in feeling of solid ceilings, while hiding MEP pipes, ducts and wiring above the ceiling.

Class Leading Acoustic Noise Reduction

This is the key difference from standard solid baffle ceilings: precision perforations allow sound waves to pass through the baffle surface, where they are absorbed by the acoustic backing. NRC (Noise Reduction Coefficient) ranges from 0.6 to 0.9, reducing echo and reverberation by 50-70% compared to solid baffles, creating much quieter, more comfortable spaces.

Fully Customizable Perforation & Acoustics

Every acoustic parameter is custom to project requirements:

Hole types: Round holes (most popular), square holes, slotted holes, micro-perforations

Hole diameter: 1.5mm to 6mm

Perforation rate: 10% to 30%

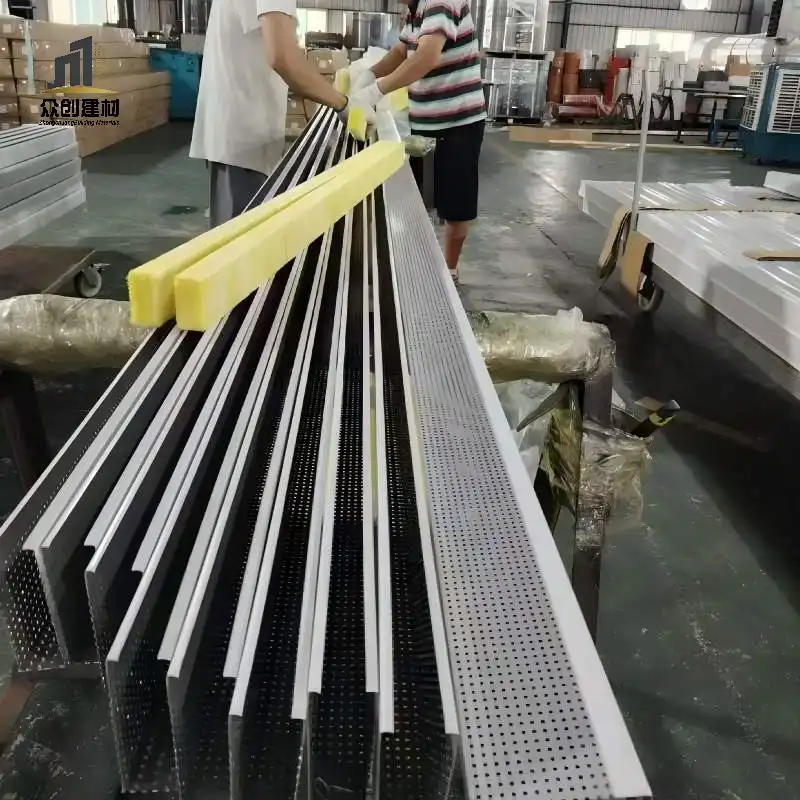

Acoustic backing: Black acoustic fleece (standard), 25mm/50mm fiberglass insulation (high performance) Our technical team can specify the right perforation and backing to meet target NRC and reverberation time requirements.

Full Customization of Size, Color & Layout

All baffle dimensions are fully custom: bottom width 20-200mm, height 30-200mm, length up to 6m, baffle spacing 50-300mm. All standard and custom RAL colors, wood grain and metallic finishes are available, with baffle direction running either parallel or in custom patterns.

A2 Fire Rated & Long Service Life

Both aluminum baffles and acoustic backing are A2 class non-combustible, meeting all commercial and public building fire codes. The system is moisture resistant, corrosion proof, will not sag or absorb moisture, and delivers 20+ years of service life with zero maintenance.

Fast Installation & Full Service Access

The standard clip-on keel installation system is fast and simple, with installation speed matching standard solid baffle ceilings. All above-ceiling services remain fully accessible through the baffle gaps — no ceiling removal needed for maintenance.

Seamless Lighting & MEP Integration

Linear LED lights can be integrated between baffles or recessed into baffle profiles, and air diffusers, sprinklers and speakers can be hidden in the gaps, creating a clean, uncluttered linear ceiling look.

Technical Specifications

Standard Perforation Options

1.5-2mm micro-perforation: Nearly invisible holes, clean visual, good mid-high frequency absorption

3mm round holes (15-20% open): Most popular general purpose option, balanced look and acoustic performance

3mm round holes (25-30% open): Maximum sound absorption for high-noise spaces

Slotted holes: Linear visual matching baffle direction, high end design look

Custom patterns: Logo perforations, custom hole patterns for feature areas

Typical Application Scenarios

Open plan offices and meeting rooms (reduces speech echo)

Shopping malls, corridors and atriums (controls crowd noise)

Airports, train stations and transit hubs (reduces public address echo)

Exhibition halls, museums and convention centers

Schools, universities and hospital waiting areas

Restaurants, food courts and large dining spaces

Gyms, leisure centers and entertainment venues

Broadcast rooms, auditoriums and multi-purpose halls

Custom Project Delivery Process

Acoustic consultation: Share room size, use and target noise level, our team recommends baffle size, perforation and acoustic backing

Design deepening: Provide baffle layout, keel plan, installation details and acoustic performance data

Sample approval: Send physical samples of baffle profile, perforation and color

Factory production: CNC perforation and fabrication with full quality inspection

Delivery & guidance: On-time delivery with installation instructions and on-site support

After-sales service: Full product warranty and long-term spare parts supply

Frequently Asked Questions

Q: How much better is acoustic performance vs solid baffle ceilings?

A: Perforated acoustic baffles reduce reverberation time by 50-70% compared to solid aluminum baffles. In a typical open office, this reduces background noise by 5-8dB and makes speech 30-40% clearer.

Q: Do perforated baffles cost more than solid baffles?

A: Perforated baffles with standard acoustic fleece are around 15-20% more expensive than solid baffles. High performance fiberglass backed options are 25-35% more, but still far cheaper than separate ceiling and acoustic treatment systems.

Q: Will the perforations collect dust?

A: The holes are small and vertical, so very little dust collects on them. Annual cleaning with a vacuum brush or low pressure air is all that is required. The acoustic backing is breathable and does not trap dust.

Q: Can I get wood grain perforated baffles?

A: Yes. We offer full wood grain transfer finish on perforated baffles, with the same realistic wood look as solid baffles.

Q: Are perforated baffle ceilings suitable for low ceilings?

A: Yes. Use low profile 30-40mm height baffles with narrow spacing, and the open linear design will make the ceiling feel higher than a solid ceiling.
