Powder Coated Aluminum U‑Channels | Suspended Linear Metal Ceiling Tiles

Powder coated aluminum U‑Channels, also referred to as aluminum U‑baffles or linear metal baffles, are highly‑popular linear metal profiles for modern commercial architecture. Different from liquid paint coating, electrostatic powder coating delivers dense, uniform surface finish with great scratch‑resistant performance. Suitable for both indoor and outdoor projects. Modular suspended structure allows convenient access to building utilities, balancing aesthetic appearance and practical functionality.

Core Advantages of Powder Coated Aluminum U‑Channels

1. Superior Powder Coating Performance Electrostatic powder coating ensures strong paint adhesion, resisting scratches and peeling. A wide range of matte and glossy colors are available. Exterior‑grade powder offers excellent UV resistance against fading. Powder coating is eco‑friendly with zero solvent emission compared with wet paint.

2. Modular Assembly for Easy Maintenance Each U‑channel can be installed or removed individually. When maintenance for HVAC or fire‑fighting systems is required, partial disassembly is sufficient, greatly cutting long‑term project maintenance costs.

3. Lightweight yet Rigid Aluminum Substrate Made of 3003‑H24 aluminum alloy. Low weight reduces building load while maintaining high structural rigidity. Resists deformation over large spans, ideal for shopping malls, airport terminals and exhibition centers.

4. High‑level Customization Capacity Bottom width, height and material thickness can be tailor‑made. Colors can match PANTONE color charts. Open‑type and closed‑type U‑profiles are available. Products can be applied for ceiling suspension or vertical wall cladding to achieve integrated wall‑ceiling design.

5. Optimized Acoustic Transparency Uniform gaps between adjacent baffles improve sound distribution and reduce echo, enhancing acoustic comfort for high‑traffic public spaces.

Technical Specifications of Powder Coated Aluminum U‑Channels

• Base Material: 3003‑H24 Aluminum Alloy
• Fabrication: Extruded or bent forming + electrostatic powder coating
• Usual Bottom Width: 20mm‑200mm
• Usual Profile Height: 30mm‑300mm
• Material Thickness: 0.6‑2.0 mm
• Surface Finish: Indoor powder coating / Exterior weather‑resistant powder coating
• Standard Colors: Matte black, ivory white, light grey, dark grey; custom PANTONE colors acceptable
• Installation: Suspension keel system, horizontal or vertical layout

Typical Application Scenarios

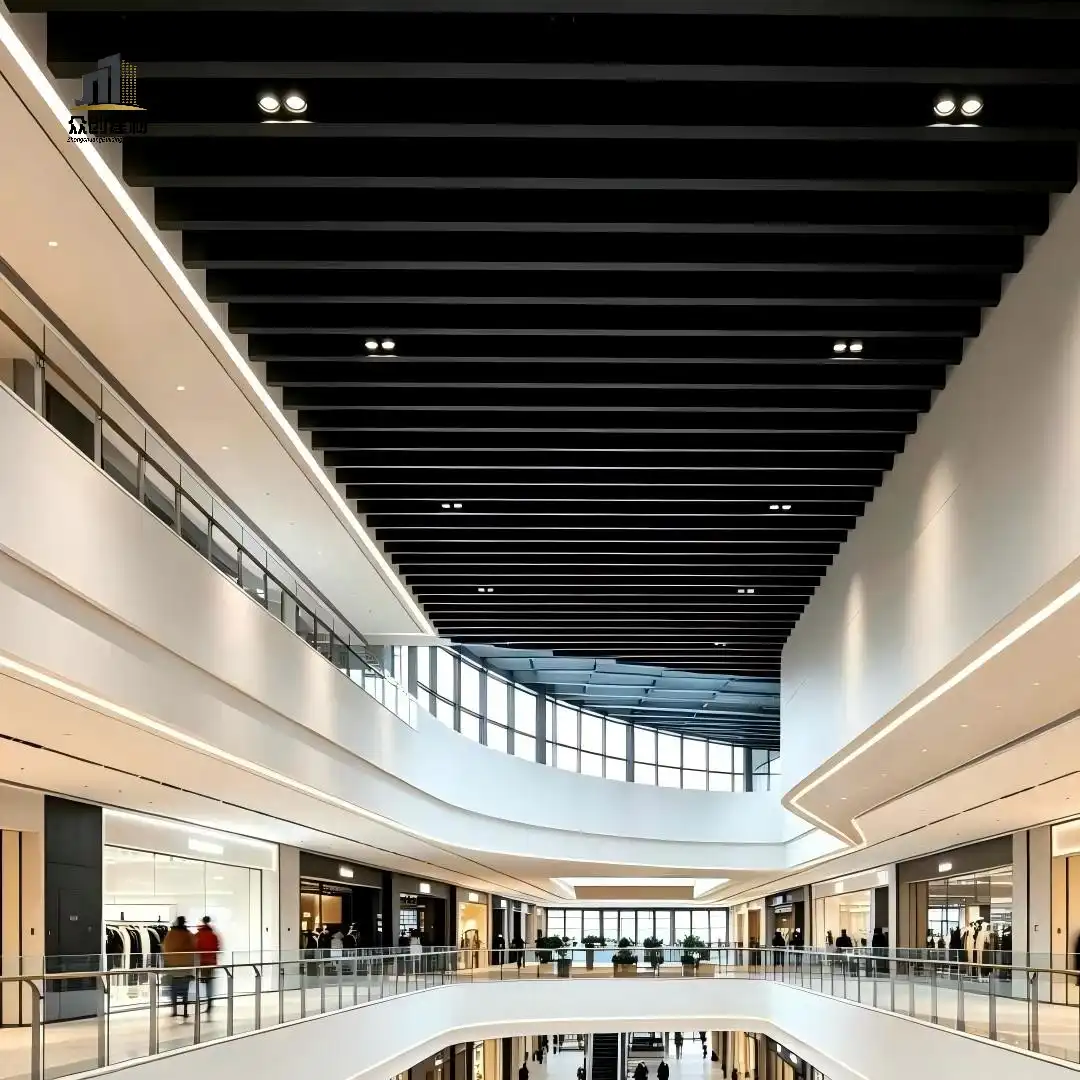

-Commercial buildings: Shopping centers, retail stores, exhibition corridors for ceiling & wall cladding

‑ Office projects: Office lobby, open‑plan workspace, meeting room ceilings

‑ Transportation hubs: Airport terminals, high‑speed railway stations, metro stations

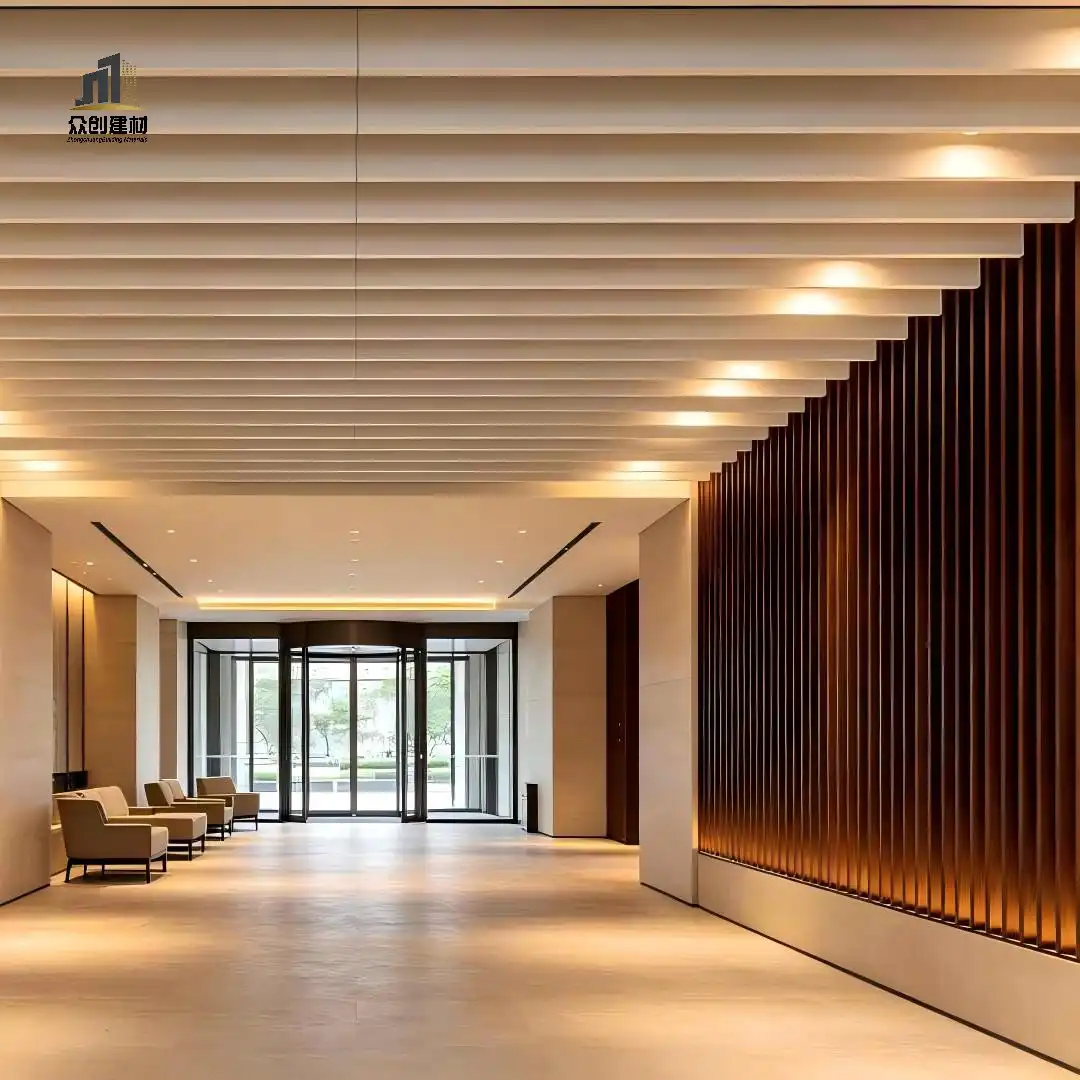

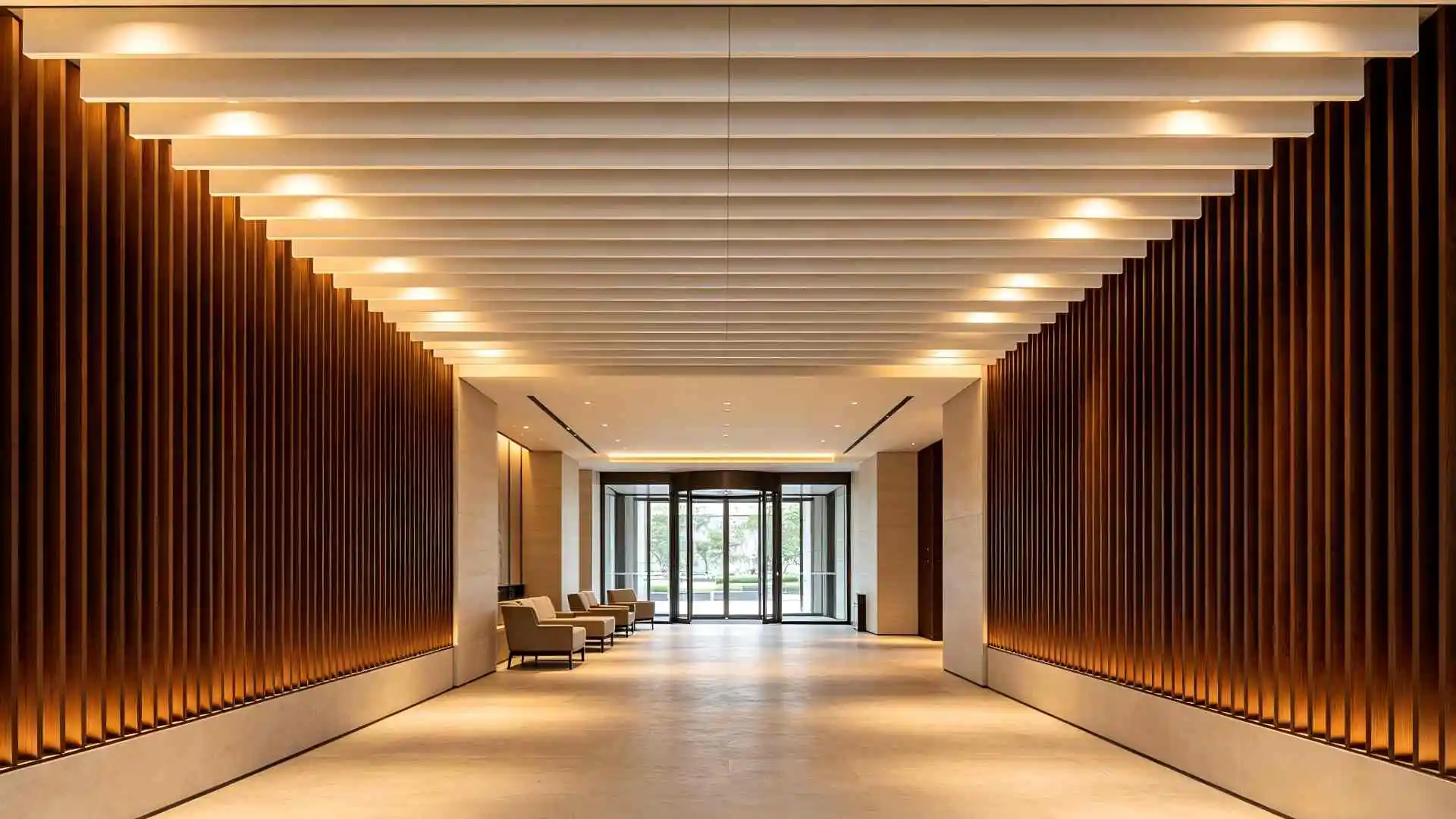

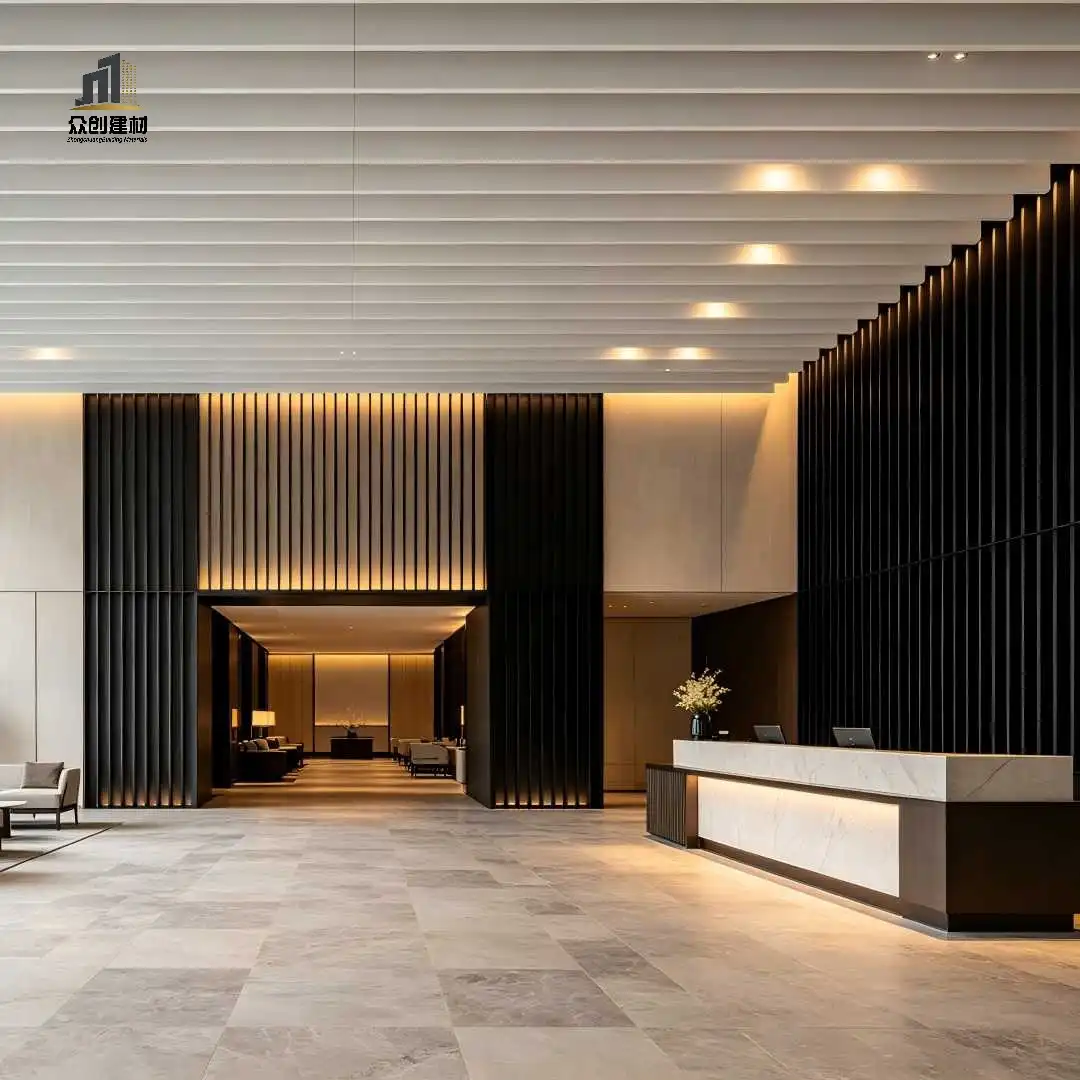

‑ Hospitality: Hotel lobbies, restaurants, clubs and exhibition halls

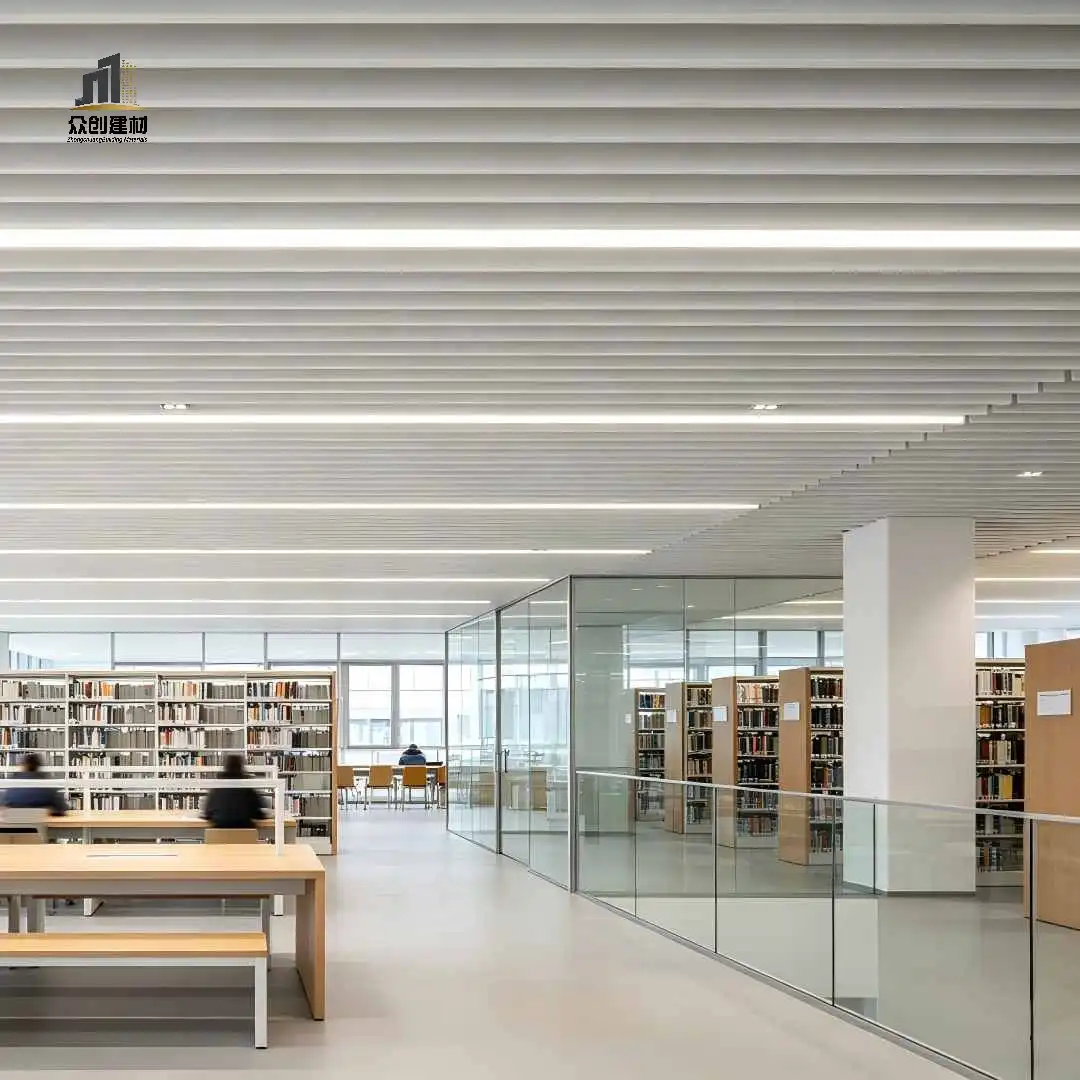

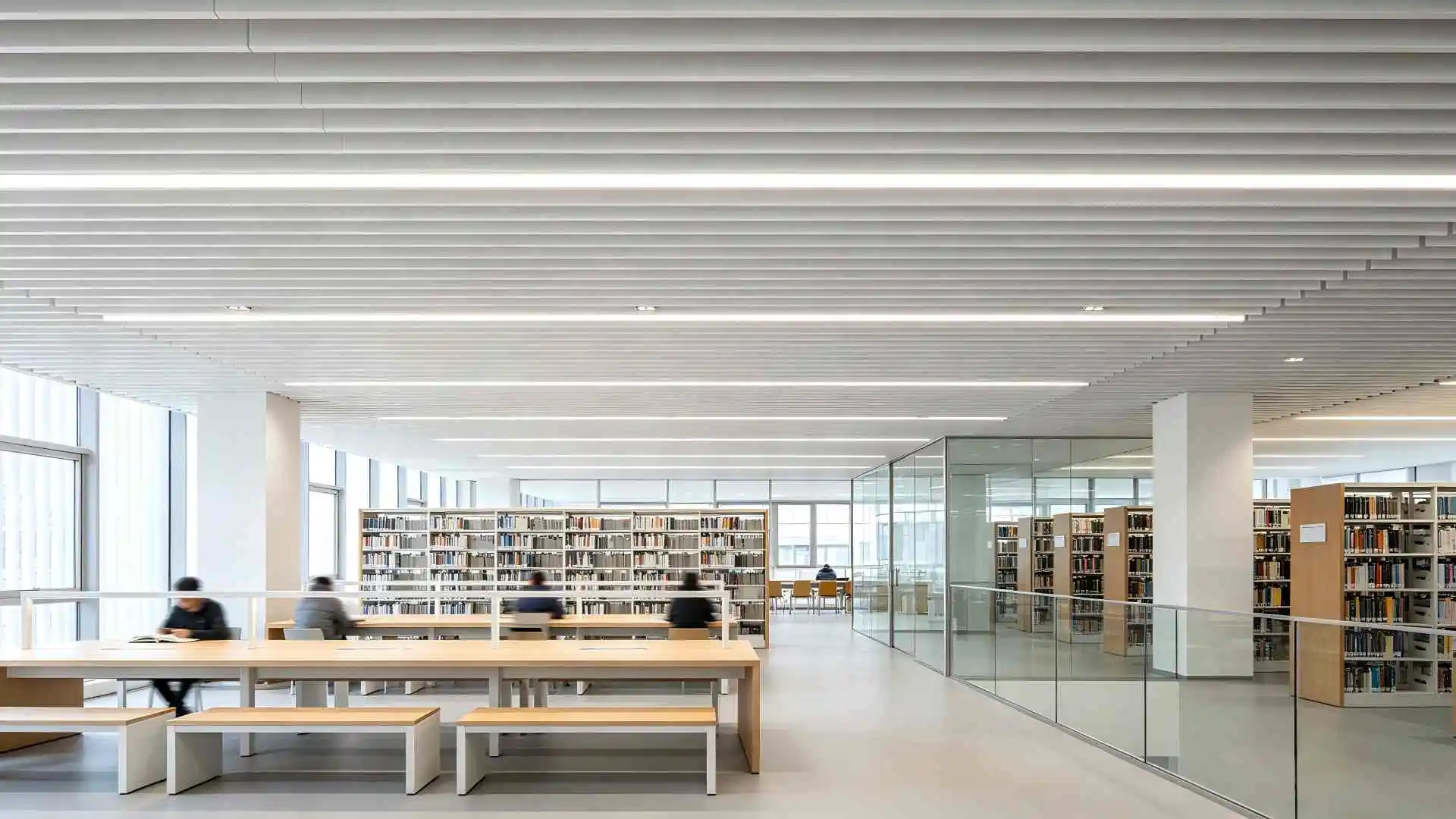

‑ Public facilities: Hospitals, schools, libraries for indoor & semi‑outdoor decoration

Customization & Delivery Process

1. Submit project drawings or dimension requirements, confirm bottom width, height, thickness and layout direction
2. Confirm color sample; select indoor powder or exterior weather‑resistant powder grade
3. Produce shop drawings for client review and approval

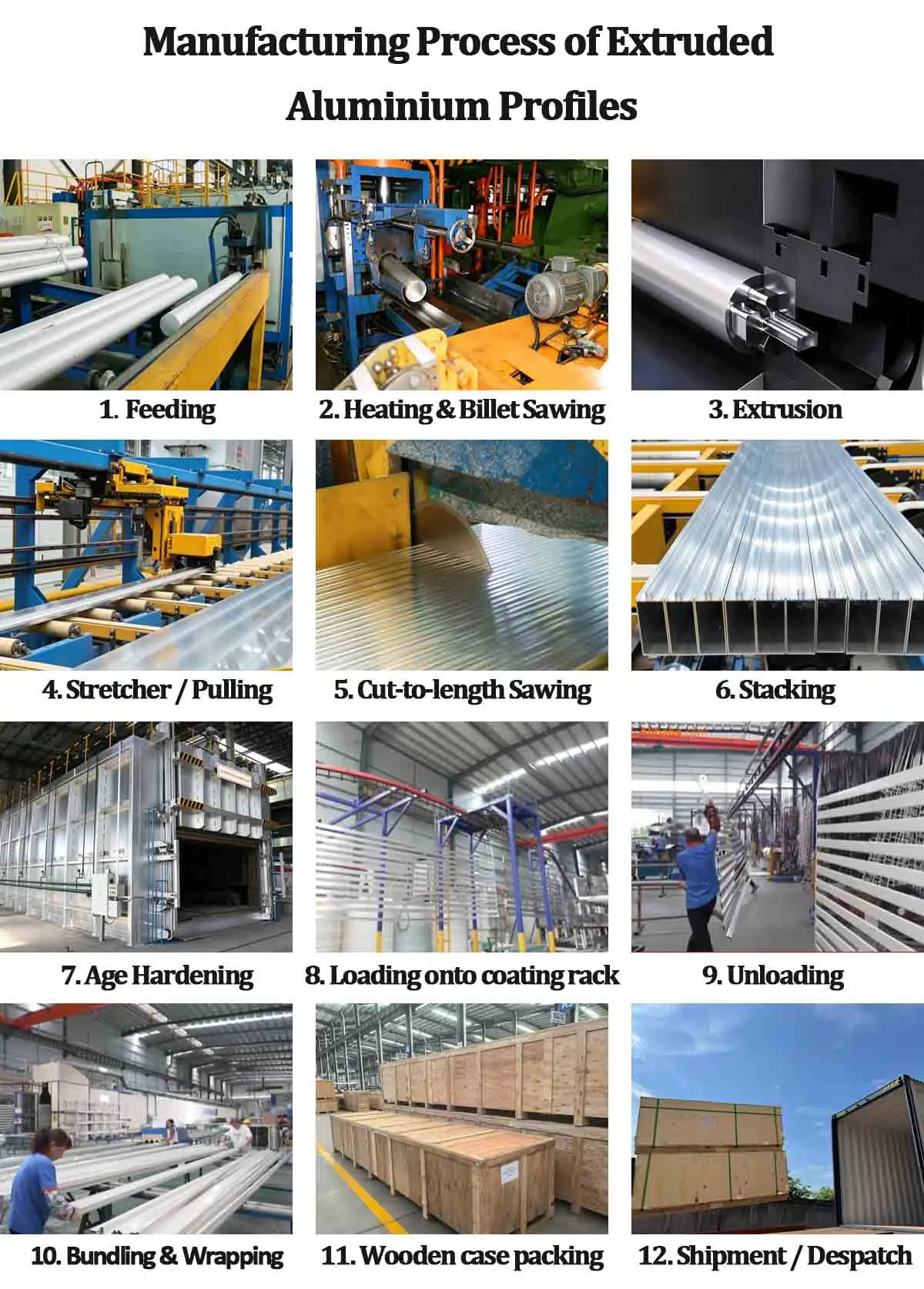

4. Manufacturing, powder coating and strict quality inspection
5. Export‑grade packing, complete with matching keel accessories for shipment

FAQ

Q: Can powder coated aluminum U‑Channels be used outdoors?

A: Yes. Please select exterior weather‑resistant powder formula for facades and canopy applications. Standard indoor powder is not suitable for outdoor exposure.

Q: Powder coating vs PVDF fluorocarbon coating, which one to choose?

A: Powder coating is cost‑effective for interior projects with abundant color options. PVDF fluorocarbon coating is recommended for coastal high‑corrosion outdoor environments.

Q: What are the minimum and maximum available dimensions?

A: Minimum bottom width 20 mm, maximum 200 mm. Standard single length up to 6 m; longer lengths can be achieved by joint connection.
