Subway Station Aluminum Ceiling Battens

Our Subway Station Aluminum Ceiling Battens are professional decorative ceiling materials exclusively developed for metro stations, light rail hubs and other rail transit spaces. Made of high-quality AA3003/H24 or AA5005/H24 aluminum alloy, through precision extrusion forming, professional anti-corrosion surface treatment and modular anti-vibration installation system, the product perfectly fits the harsh environment of subway stations. It integrates fire safety, corrosion resistance, noise reduction, easy maintenance and aesthetic design, fully complying with global rail transit industry standards such as ASTM, CE, EN 13501-1 and GB 8624, and has been widely applied in more than 200 subway projects around the world. With open vision, good ventilation and breathable performance, the product can hide pipelines, lighting and fire-fighting equipment, creating a concise and transparent modern space effect for subway stations.

Core Advantages

Class A Fire Safety (Mandatory for Subway): Adopts non-combustible aluminum alloy substrate, meets ASTM E84 Class A and EN 13501-1 A2-s1,d0 fire rating, no toxic fumes released in case of fire, fully complying with the fire safety requirements of high-flow underground public spaces.

Super Anti-Corrosion & Moisture Resistance: Equipped with subway-specific surface treatment (polyester powder coating/PVDF fluorocarbon coating), passed 1500-hour salt spray test, effectively resisting corrosion and moisture in underground closed environment, no rust, no fading, no peeling for more than 20 years.

Anti-Vibration & Anti-Deformation: Reinforced extrusion profile design, matched with anti-loosening hidden installation system, passed 10000 times vibration simulation test, adapting to the long-term vibration caused by train operation, no loosening, no deformation, no abnormal noise during service life.

Acoustic Noise Reduction Optimization: Perforated type can be matched with high-density sound-absorbing cotton, noise reduction coefficient (NRC) up to 0.9, effectively absorbing train and passenger flow noise, improving the acoustic comfort of subway stations.

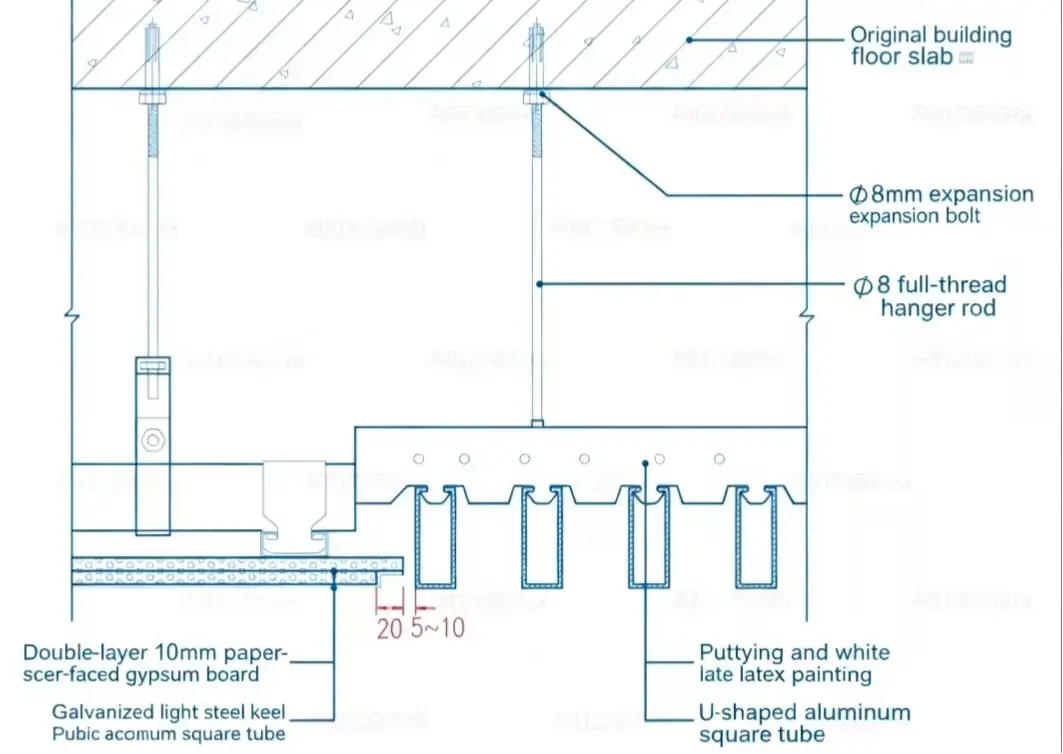

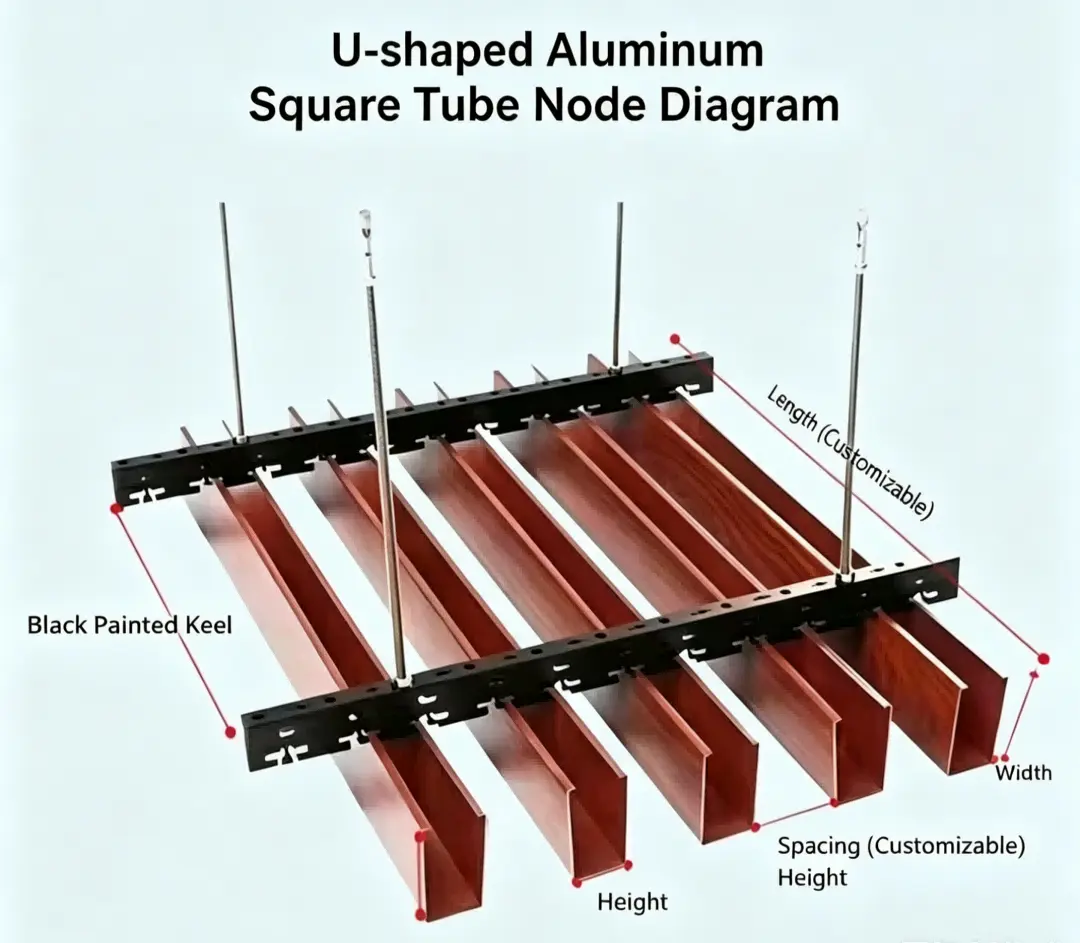

Modular Fast Installation & Easy Maintenance: Tool-free clip-in installation, factory prefabrication, on-site installation efficiency 40% higher than traditional materials, greatly shortening the subway project construction period. Each batten can be disassembled independently, facilitating the maintenance of pipelines and equipment above the ceiling.

Flexible Customization: Supports U-shaped, V-shaped, arc-shaped and wave-shaped profiles, full RAL color matching, wood grain, brushed metal and other surface effects, which can be integrated with lighting and signs to create a unique visual effect for subway stations.

Specifications

Application Scenarios

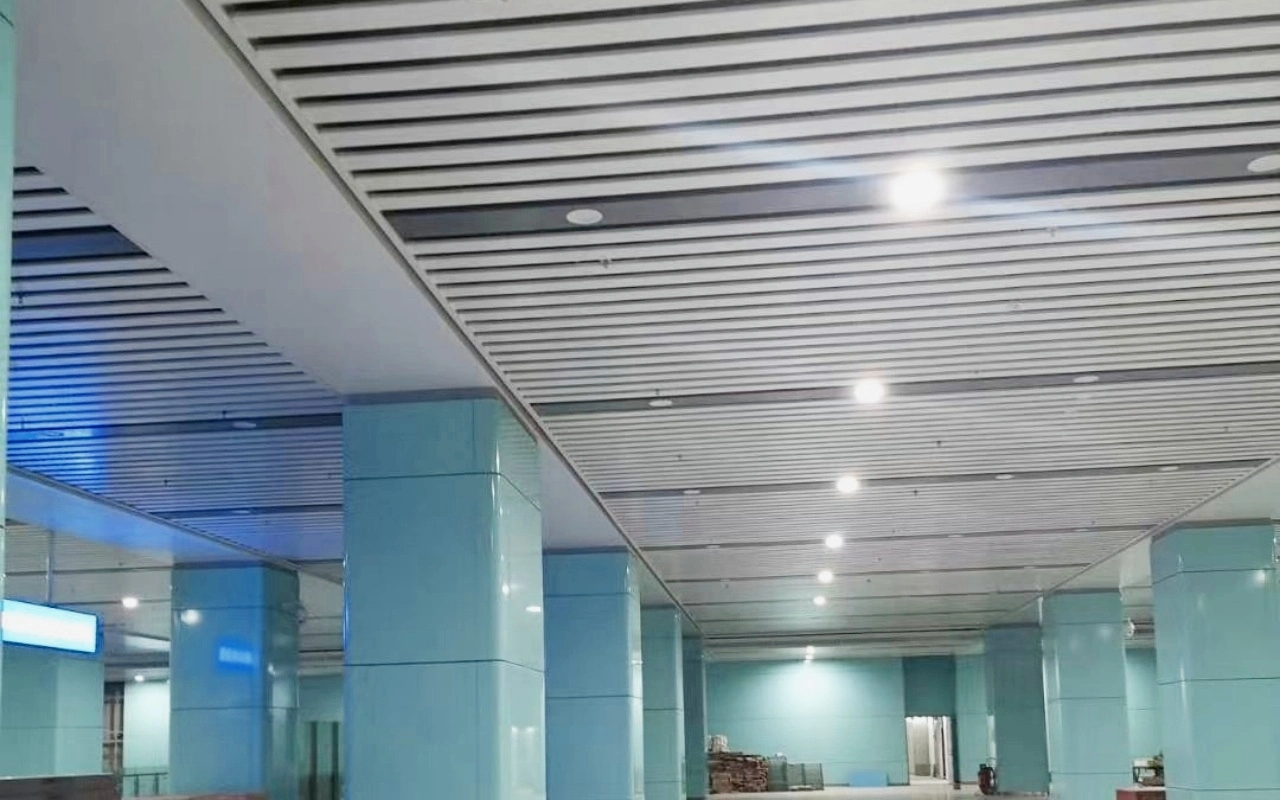

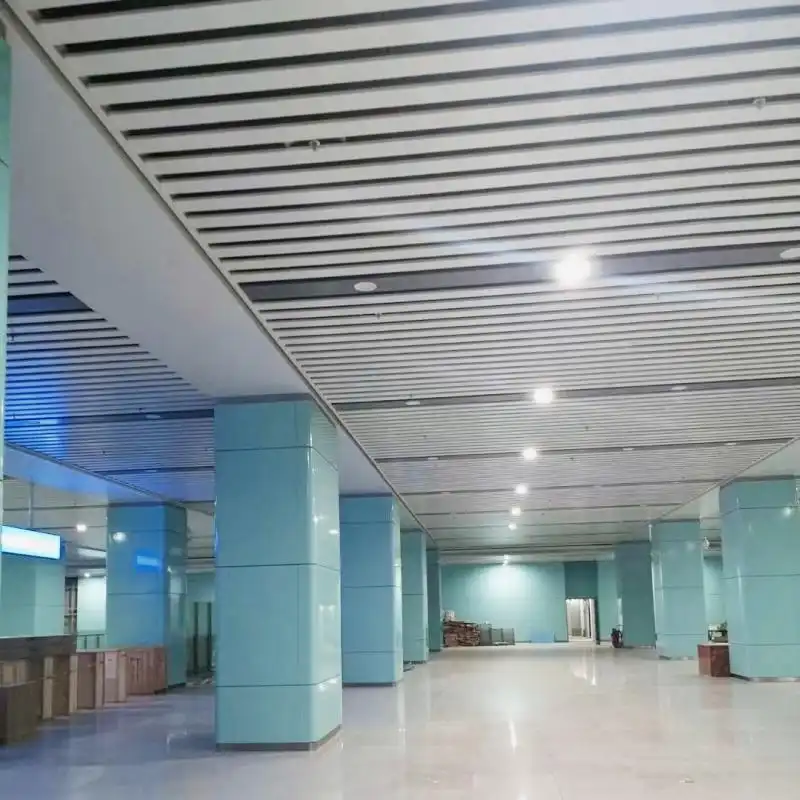

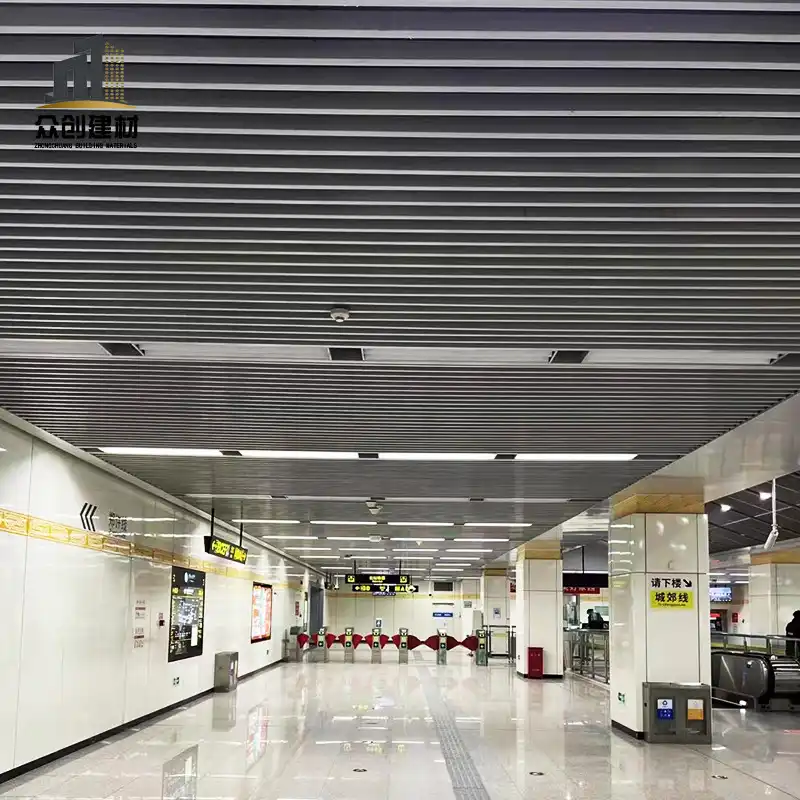

Subway Station Hall (Non-paid & Paid Area) - The main ceiling material, creating a neat and transparent space effect, hiding pipelines and equipment.

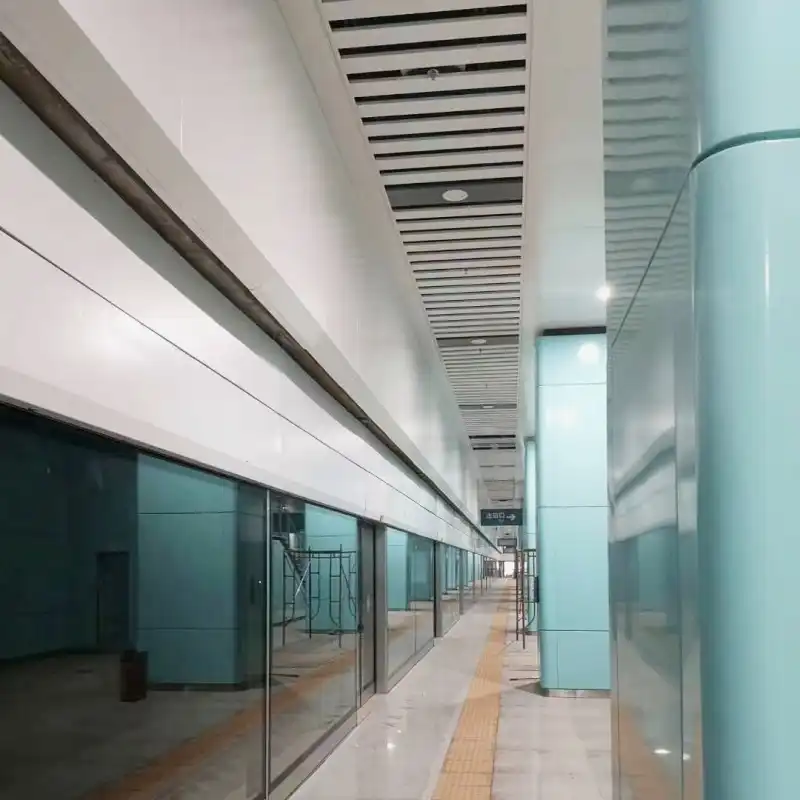

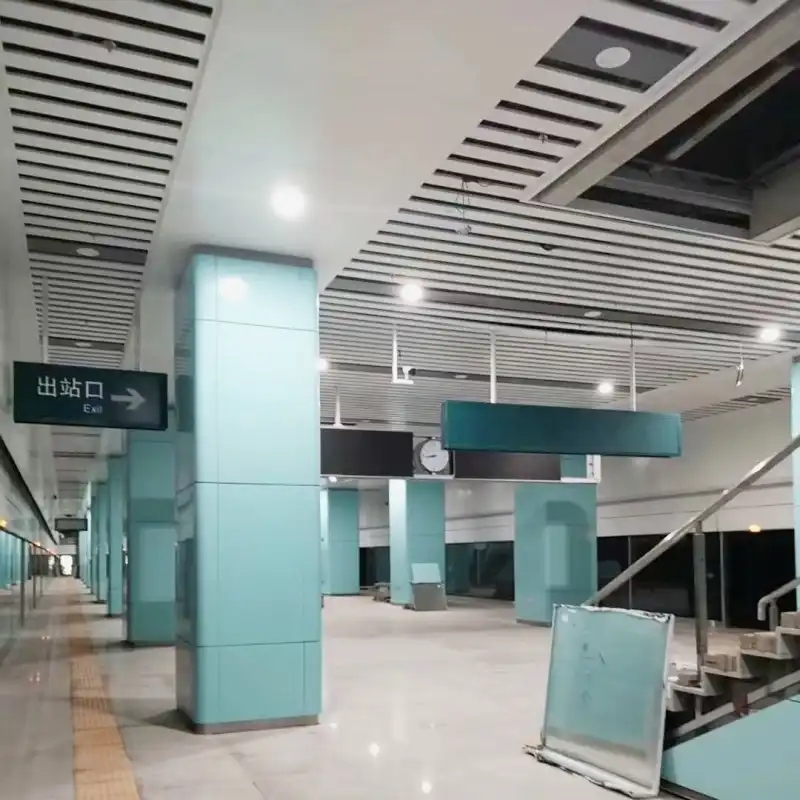

Subway Platform - Perforated type is preferred for noise reduction, adapting to the long-term vibration environment of train operation.

Transfer Hall & Transfer Channel - Arc-shaped or wave-shaped custom battens, enhancing the sense of space and guidance.

Entrance & Exit Passageway, Canopy - Anti-corrosion and moisture-proof, adapting to the semi-outdoor and underground transition environment.

Stairwell, Escalator Upper Area & Equipment Room - Easy maintenance, facilitating the overhaul of internal equipment.

Trust comes from proven performance. Our Subway Station Aluminum Ceiling Battens systems carry CE, UL, SASO, and ISO 12944-6 certifications. These internationally recognized standards validate our commitment to quality and safety in every component we manufacture.

Testing protocols exceed industry requirements. Each batch undergoes rigorous quality control procedures including adhesion testing, gloss deviation measurement, and abrasion resistance evaluation. Results consistently demonstrate superior performance characteristics.
