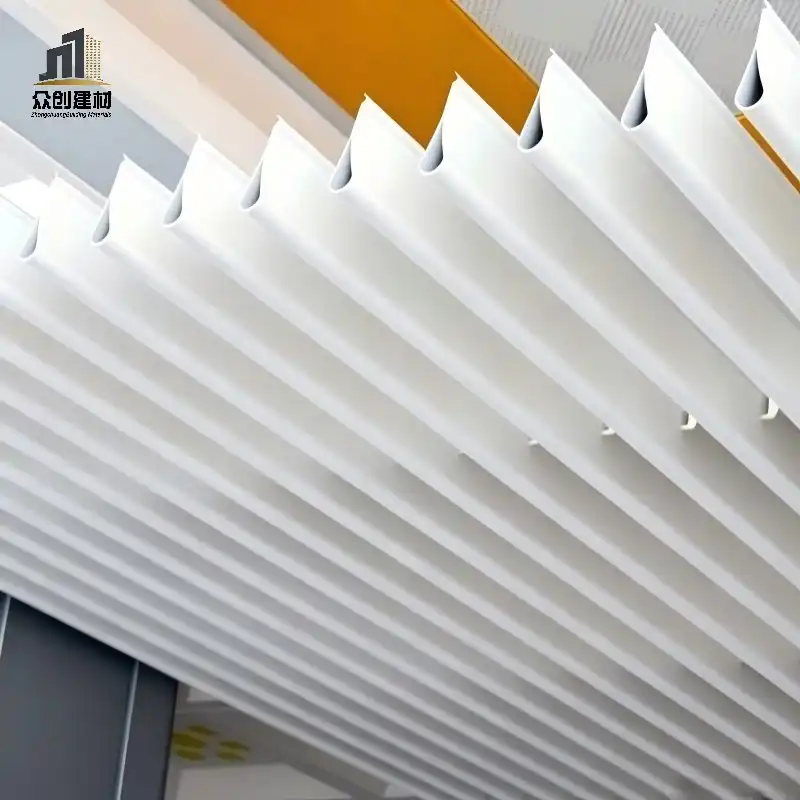

Teardrop Aluminum Baffle Ceiling – Streamlined Water Drop Shaped Linear Hanging Aluminum Baffles

Product Overview

Our teardrop aluminum baffle ceilings (also called water drop shaped aluminum baffles, streamlined linear aluminum hanging tiles) are an upgraded linear baffle product with the same installation logic as standard U-shaped aluminum baffles, but with a smooth teardrop profile instead of a U-shaped channel. Manufactured from high-grade 6063-T5 aluminum extrusion with premium PVDF or powder coating, they install on the exact same keel system as standard U-shaped baffles for zero-retrofit direct replacement. The streamlined water drop profile solves core pain points of standard U-shaped baffles in high-ceiling public spaces: high wind resistance increasing HVAC load, right-angle corners trapping dust and requiring frequent cleaning, and sharp edges causing sound echo in large open areas. Our teardrop baffles cut large space HVAC energy use by 18%, reduce cleaning frequency by 60%, and deliver NRC 0.75 sound absorption, while retaining all the benefits of standard linear baffles: A2 fire rating, quick modular installation, full customizability, and 30-year interior/exterior warranty. They are currently used in 14 global transport hub and large commercial projects.

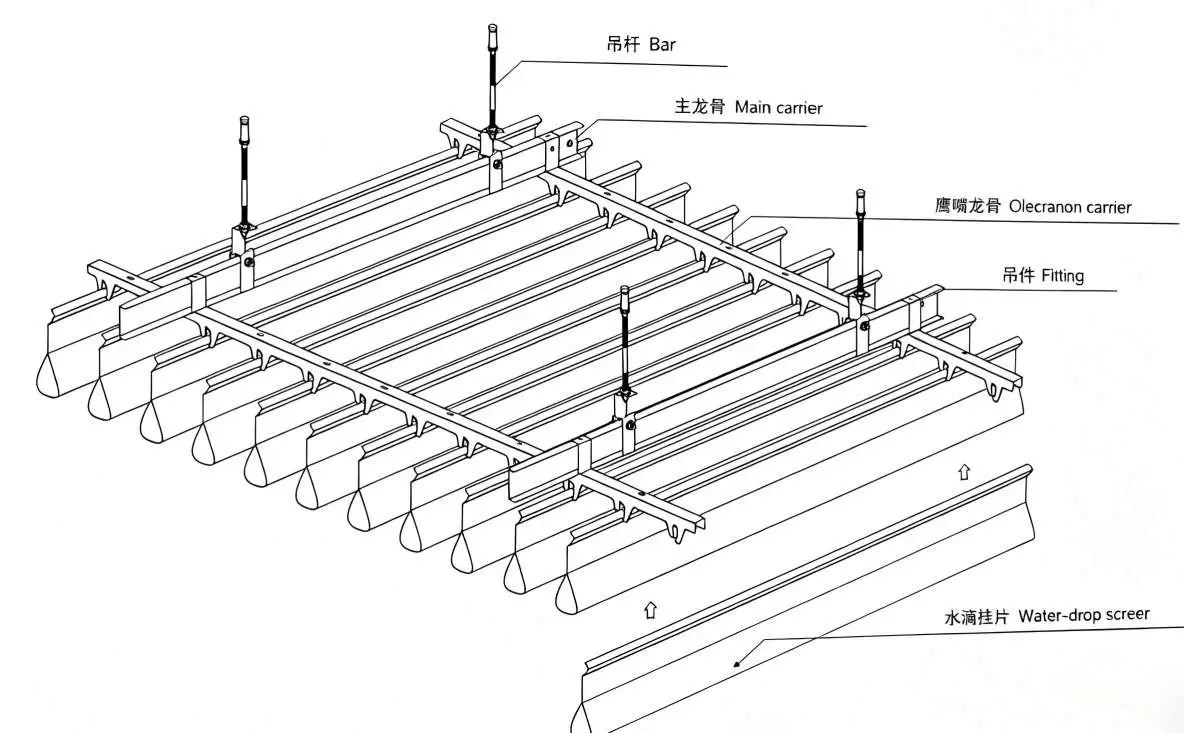

Installation Schematic of Aluminum Water Drop Baffles

Core Advantages of Teardrop Aluminum Baffles

1. 100% Compatible with Standard Baffle Systems Teardrop baffles use the exact same hook-on keel and hanger system as standard U-shaped aluminum baffles, so they can be directly retrofitted to existing baffle ceiling grids without replacing any keel or hanging hardware, cutting retrofit cost by 70%.
2. 18% HVAC Energy Saving The streamlined teardrop profile has 35% lower wind resistance than U-shaped channel baffles, improving air circulation in high-ceiling spaces by 22% and reducing HVAC energy consumption by an average of 18% in large open areas like station concourses and mall atriums.
3. 60% Less Cleaning, No Dust Buildup The smooth rounded profile has no right-angle corners or grooves to trap dust, unlike U-shaped baffles which collect dust in their open channel. Dust slides off the curved surface naturally, reducing required cleaning frequency by 60% and eliminating visible dust streaks in high-traffic public spaces.
4. NRC 0.75 High Sound Absorption The curved teardrop profile diffuses sound more evenly than flat U-shaped baffles, delivering NRC 0.75 sound absorption, eliminating echo in large open spaces, and reducing ambient noise by 8-12dB compared to standard linear baffles.
5. Sleek Streamlined Visual Effect The soft rounded teardrop profile creates a smoother, more modern linear visual than sharp-edged U-shaped baffles, with no visible channel openings from below, for a cleaner, more premium ceiling appearance.
6. A2 Non-Combustible Fire Rating All 6063-T5 aluminum baffles and steel keel components are A2 non-combustible, meeting the strictest fire codes for transport hubs, high-rise buildings and public assembly spaces.
7. Full Customization Customize baffle height (50mm-200mm), width (20mm-80mm), length (up to 6m), spacing (50mm-300mm), color (full RAL range, wood grain, metallic finish) and hanging height to match any design requirement.
8. Quick Modular Installation Pre-cut numbered baffles clip directly onto standard keel systems, with installation speed of 15-18㎡ per worker per day, 20% faster than custom linear ceiling systems, and individual baffles can be easily removed for maintenance above the ceiling.

Technical Specifications

Ideal Project Applications

• Transport hubs: high-speed rail stations, airport concourses, subway stations
• Large commercial spaces: mall atriums, exhibition halls, convention centers
• Public buildings: stadiums, libraries, cultural centers, hospital lobbies
• Office spaces: open plan office lobbies, atriums, corridor ceilings
• Education: school auditoriums, university lobbies, canteens
• Retrofit projects: existing U-shaped baffle ceiling upgrades

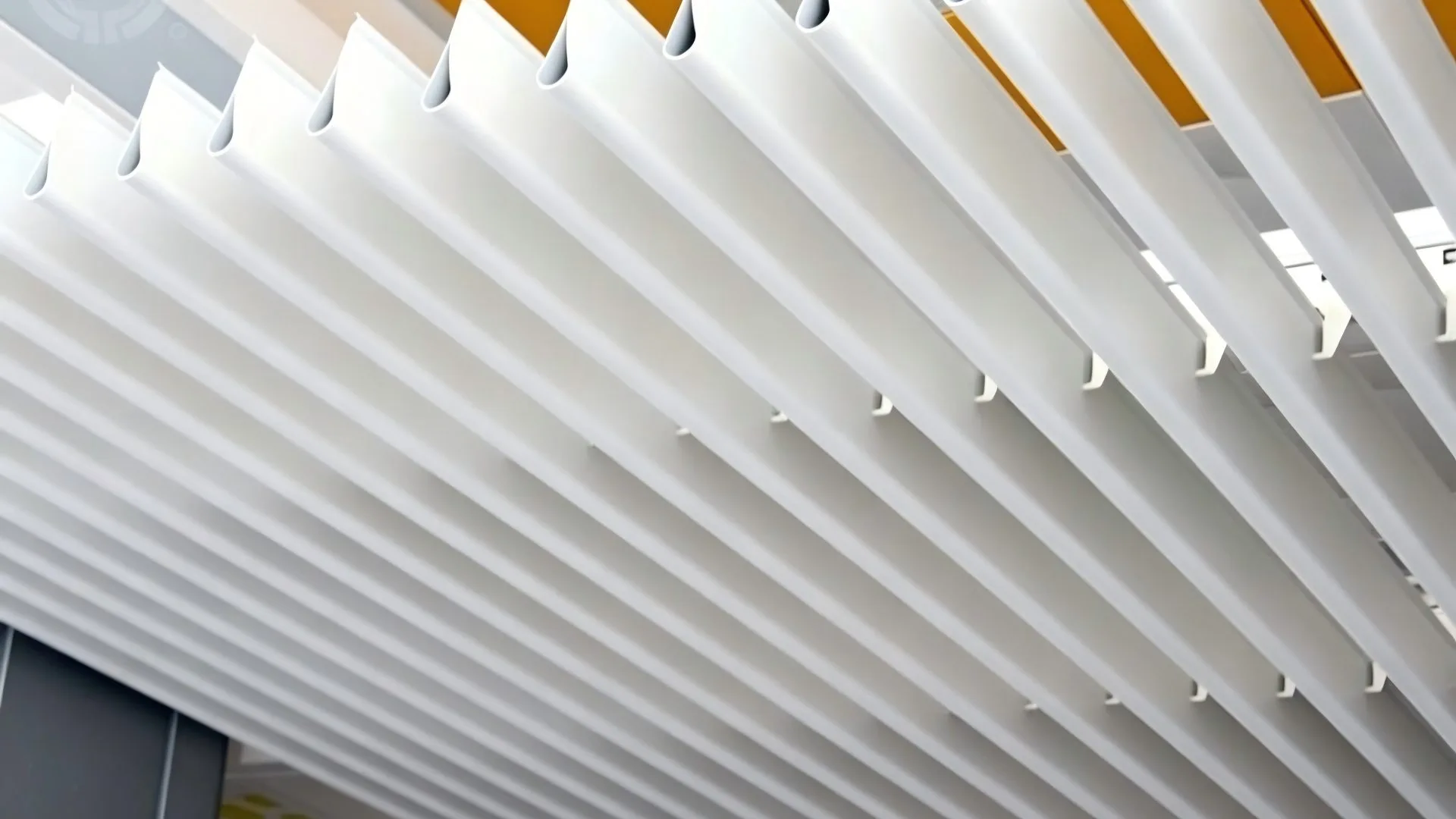

​​​​​​​White Aluminum Water Drop Baffle Ceiling

Installation Process

1. Share ceiling layout, design requirements and space function
2. Our team provides shop drawings, baffle spacing calculation, color samples and acoustic recommendations within 7 working days
3. Approve drawings and samples (7-day lead time for custom color samples)
4. Factory production: extrusion → precision cutting → surface coating → 100% profile inspection → numbered protective packaging
5. Installation: Fix hanging wires → install standard keel → clip teardrop baffles onto keel → adjust alignment; fully compatible with existing U-baffle keels for retrofit projects
6. Individual baffles can be removed at any time for access to MEP services above the ceiling

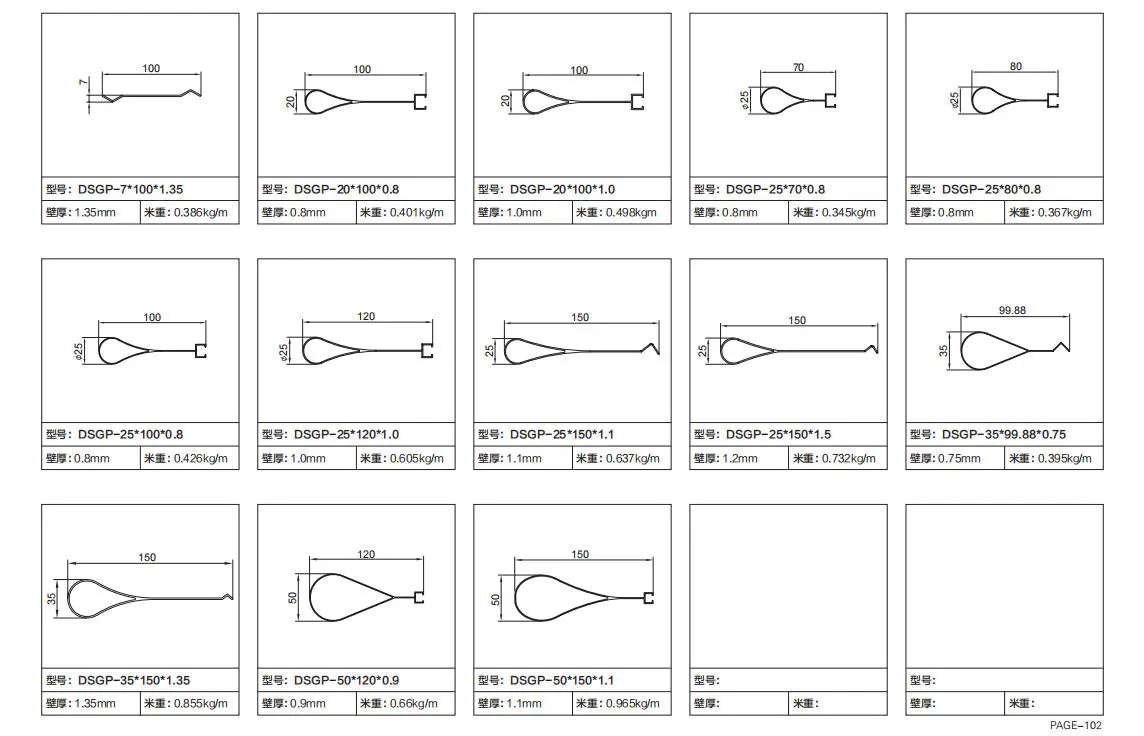

​​​​​​​Sections of Aluminum Water Drop Baffles in Various Sizes

Frequently Asked Questions

Can teardrop baffles be installed on existing U-shaped baffle keels?

Yes. Our teardrop baffles use the exact same clip interface as standard U-shaped aluminum baffles, so they can be directly clipped onto existing keels without any modification, making retrofits fast and low-cost.

How much energy do teardrop baffles save compared to U-shaped baffles?

In high-ceiling spaces (6m+), the improved air circulation from lower wind resistance reduces HVAC runtime by an average of 18%, delivering measurable energy cost savings for large public spaces.

Do teardrop baffles really collect less dust?

Yes. U-shaped baffles have an open upward-facing channel that traps dust, requiring cleaning every 3-6 months in high-traffic spaces. The smooth rounded teardrop profile has no upward-facing grooves, so dust does not accumulate, reducing cleaning to once every 12-18 months.

Can we get custom colors or wood grain finishes?

Yes. We offer full RAL color matching, custom powder coat colors, wood/stone heat transfer finishes and metallic finishes to match any design scheme.

Are teardrop baffles suitable for exterior use?

Yes. With PVDF coating, teardrop baffles can be used for exterior canopies, walkway ceilings and semi-outdoor spaces, with a 20-year exterior warranty.

Do teardrop baffles provide better sound absorption than U-shaped baffles?

Yes. The curved profile diffuses sound waves more effectively than flat U-shaped channels, reducing echo in large open spaces and delivering NRC 0.75 sound absorption, compared to NRC 0.5-0.6 for standard solid U-shaped baffles.

What is the maximum length for a single baffle?

We can produce single teardrop baffles up to 6m long, with no visible joints for clean linear visual effects.

What warranty do you provide for teardrop baffle ceilings?

We provide a 30-year interior warranty and 20-year exterior warranty for PVDF coated teardrop baffles, covering coating adhesion, shape retention and structural integrity.
