U-shaped aluminum square tube ceiling

The, also named U channel aluminum tube ceiling, linear U aluminum baffle, is the most mainstream linear suspended ceiling material for modern commercial architectural decoration. It is extruded from premium 6063-T5 aluminum alloy into integrated U-type hollow profiles, installed by vertical suspension to form neat linear gaps, presenting minimalist, high-level spatial aesthetics.

Different from integrated gypsum ceilings and flat aluminum panels, U aluminum baffle ceiling adopts open linear layout. Air and sound can circulate freely through gaps, with great ventilation and acoustic adjustment effects. It supports straight linear layout, curved wave layout, staggered height layout and combined multi-size layout, satisfying diversified design demands of architects. Our factory provides full customization of width, depth, wall thickness, surface coating and length, widely applied to large commercial complexes, office buildings, transportation hubs and high-end catering spaces.

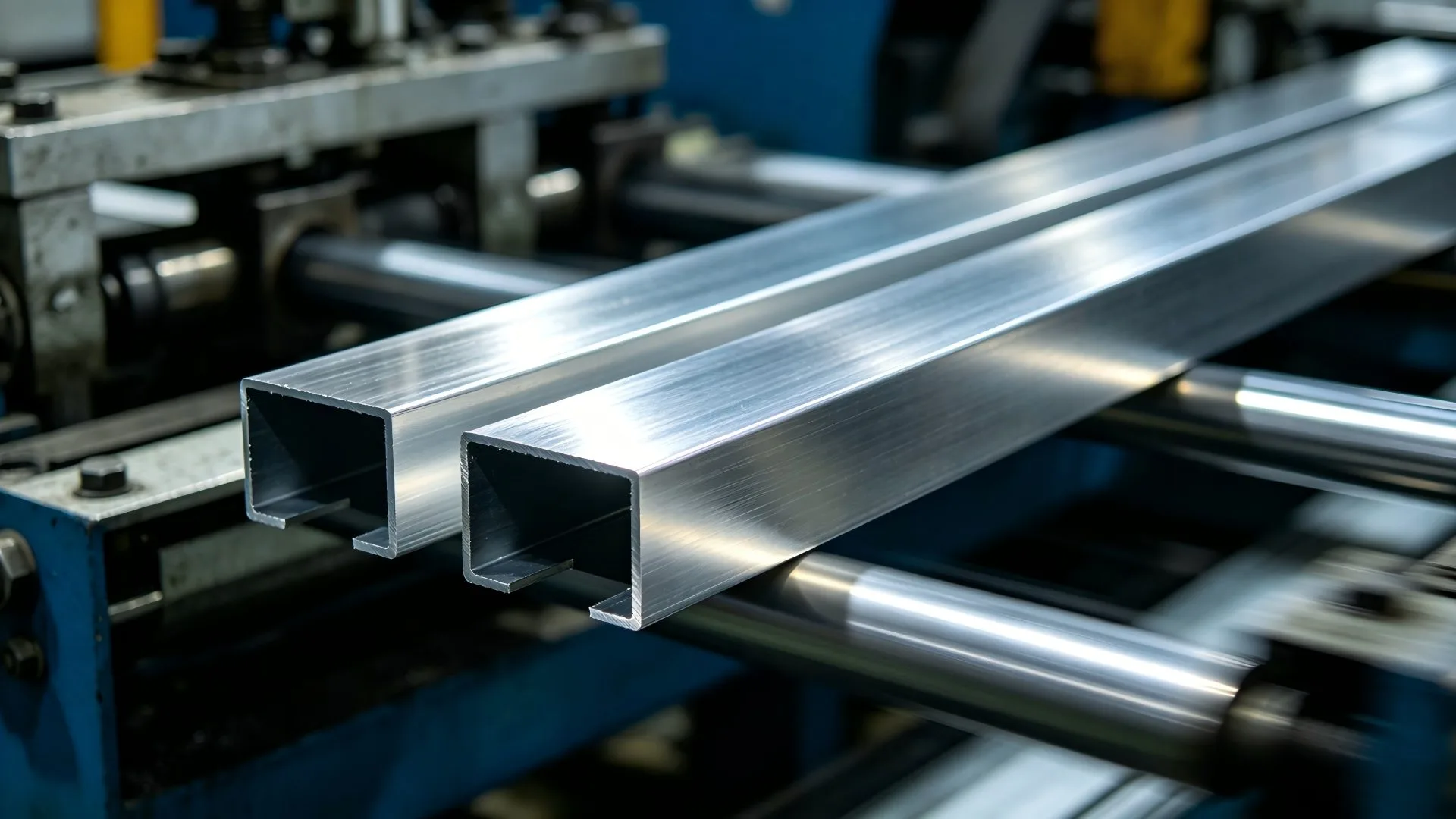

U channel aluminum tube ceiling

Core Product Advantages

High Precision Extruded Integrated U Profile Raw material 6063-T5 aluminum alloy is extruded by 1800-ton extrusion machine, uniform wall thickness, smooth inner and outer surfaces, no deformation after long-time suspension. Available standard U dimensions cover 30mm–200mm width, 20mm–150mm depth.

Rich Surface Finish Selection & Long Weather Resistance Two mainstream coating technologies: polyester powder coating for indoor projects, PVDF fluorocarbon coating for semi-outdoor & corridor areas. Wood grain thermal transfer, stone grain, matte metal, bright brushed, RAL color customization are all available. PVDF coated U baffles reach 15-year coating warranty, no fading or chalking.

A2 Class Non-combustible Fire Safety 100% inorganic aluminum raw material, pass EN 13501-1 A2 fire rating test. No open flame combustion, no toxic smoke emission during fire hazard, fully meet fire codes of shopping malls, subway stations, hospitals and other public crowded buildings.

Excellent Acoustic & Ventilation Performance Open gap design reserves air circulation channels. When matched with glass wool sound-absorbing cotton on the ceiling back, the space reverberation time can be effectively reduced, improving audio clarity for offices, cinemas and exhibition halls.

Modular Suspension System, Fast On-site Installation Complete matching accessories: main keel, secondary keel, hanging code, connecting pieces. Pre-cut U aluminum baffles are delivered to construction site, workers only need to lock the hanging codes, cutting construction period by 40% compared with traditional ceiling materials.

Easy Maintenance & Convenient Pipeline Inspection Vertical suspension gap reserves inspection channels for air conditioner pipes, electrical lines and fire pipes. Workers can lift individual U baffles separately without removing the whole ceiling, greatly lowering later maintenance costs. The dense coating surface resists dust adhesion, only regular water wiping is required for cleaning.

Lightweight & High Structural Stability Single U baffle weight only 3–6 kg per square meter, will not produce heavy load pressure on building roof steel structure. Even for large-span ceilings of airport terminal and railway station, no additional roof reinforcement is needed.

Complete Technical Parameter Table

Aluminum Ingots Melting & Extrusion: Raw aluminum material extruded into straight U channel blanks

Aging Hardening Treatment: Constant temperature aging workshop to boost aluminum hardness

Cutting & Precision Trimming: Cut U baffles to customized length, deburr edge treatment

Surface Degreasing & Pretreatment: Multi-stage cleaning tank to remove oil stains, enhance coating adhesion

Coating Production Line Spraying: Dust-free constant temperature spraying workshop for powder or PVDF coating

Wood Grain Thermal Transfer (Optional): Heat transfer oven to print natural wood grain texture

Accessory Matching & Inspection: Match hanging keel accessories, full inspection of flatness, color and dimension

Protective Film Wrapping & Packing: PE film covered, carton packing for sea transportation

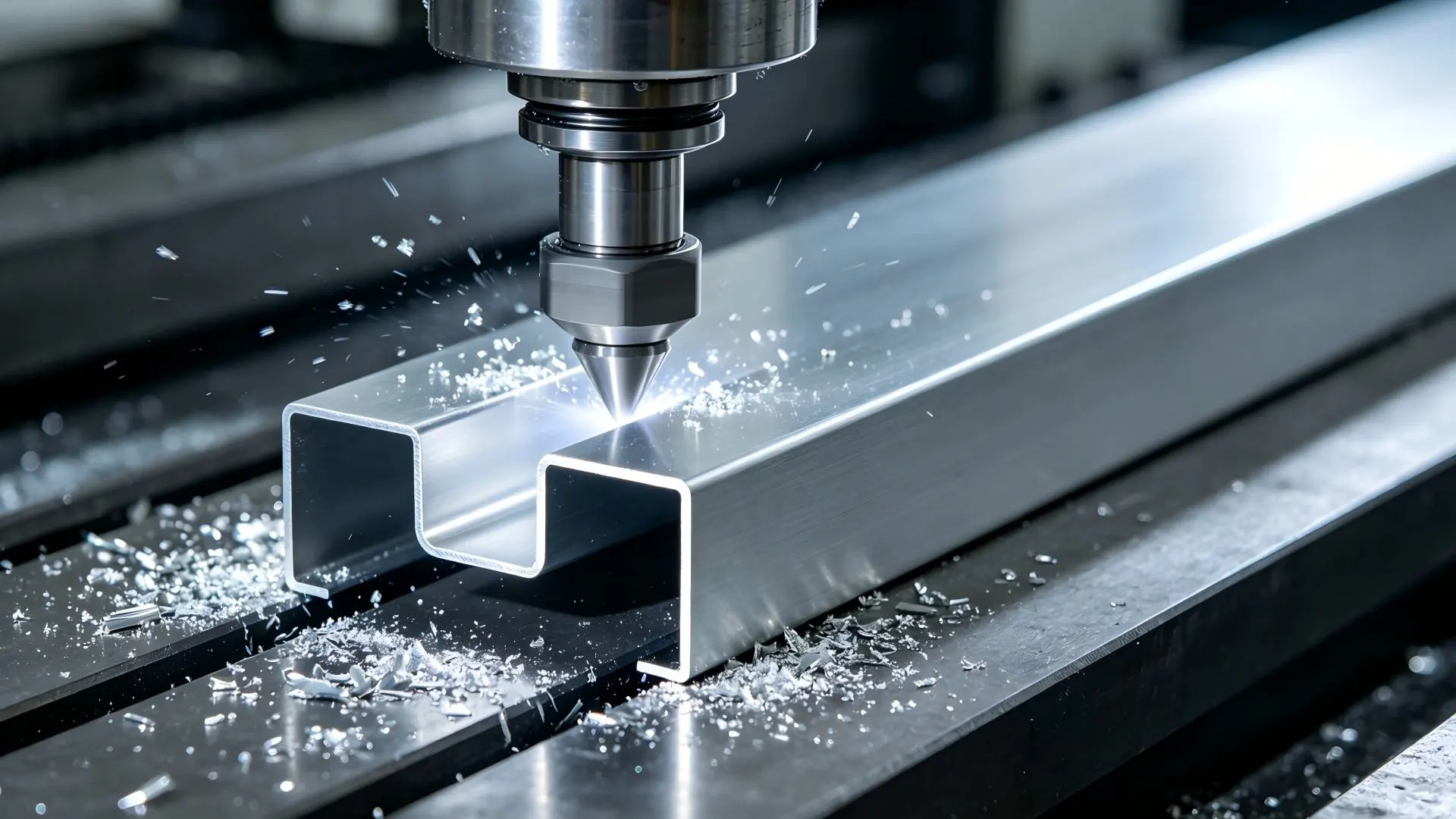

Edge cutting detail close-up

Applicable Project Scenarios

Commercial Mall & Shopping Center: Atrium long linear U baffle ceiling, staggered height U tube combination design

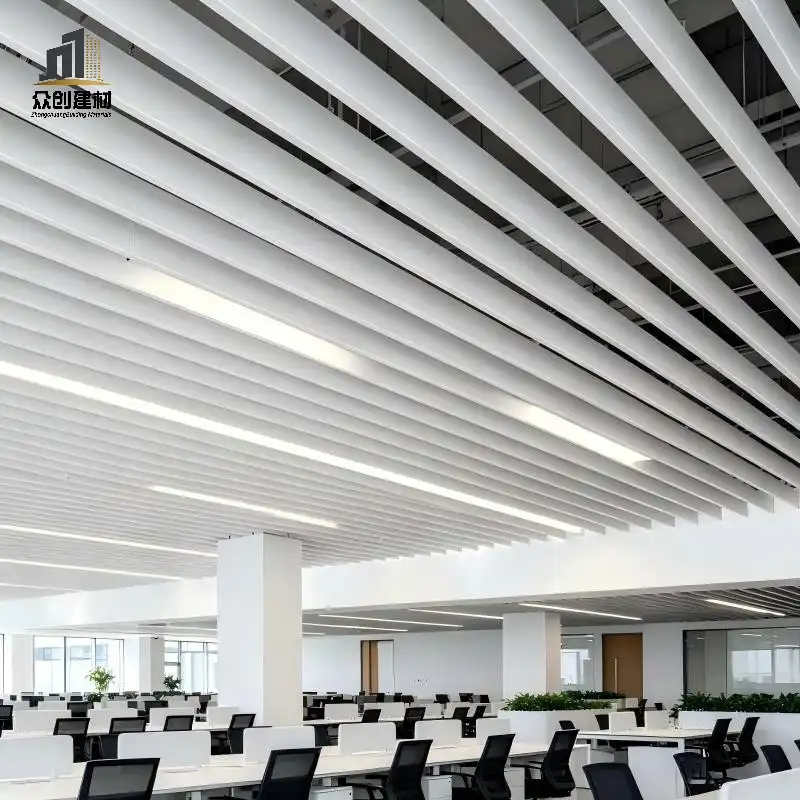

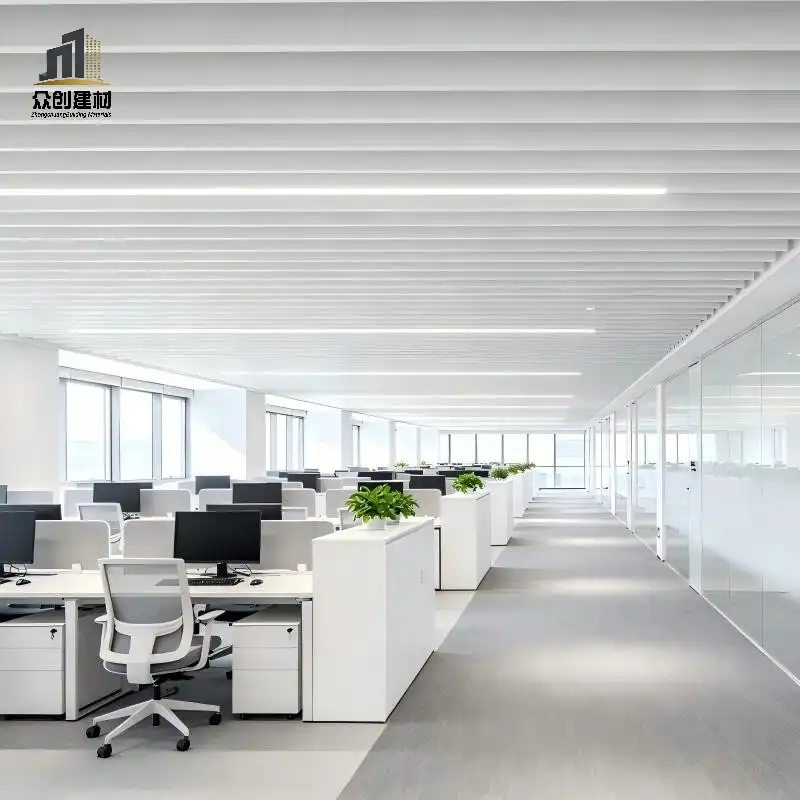

Office Building & Enterprise Office: Simple white linear U ceiling for open office area, sound absorption matched design

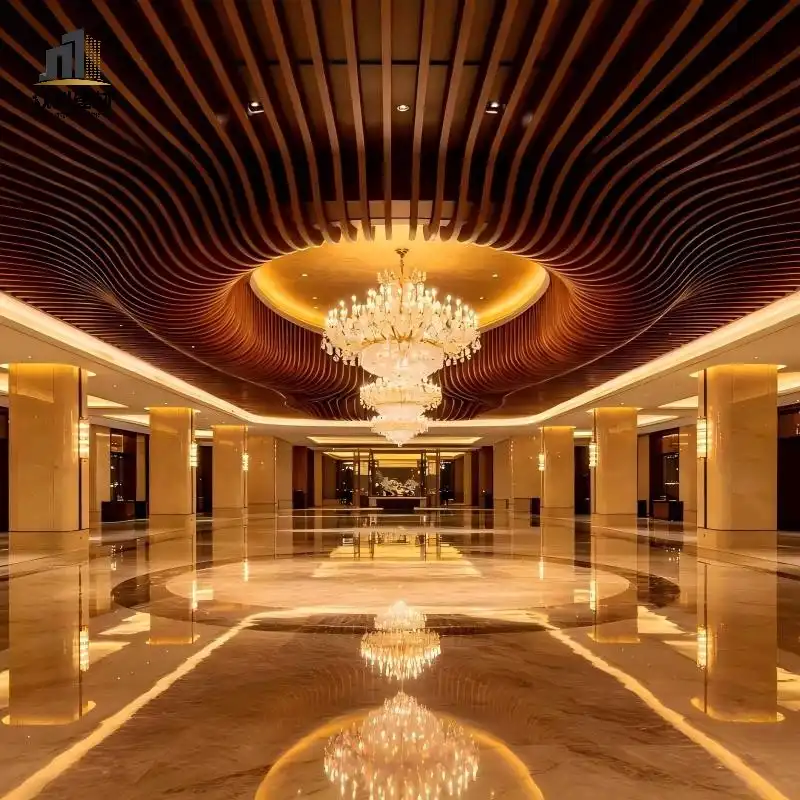

High-end Hotel Lobby & Corridor: Wood grain U aluminum baffle ceiling, curved wave U layout for lobby feature area

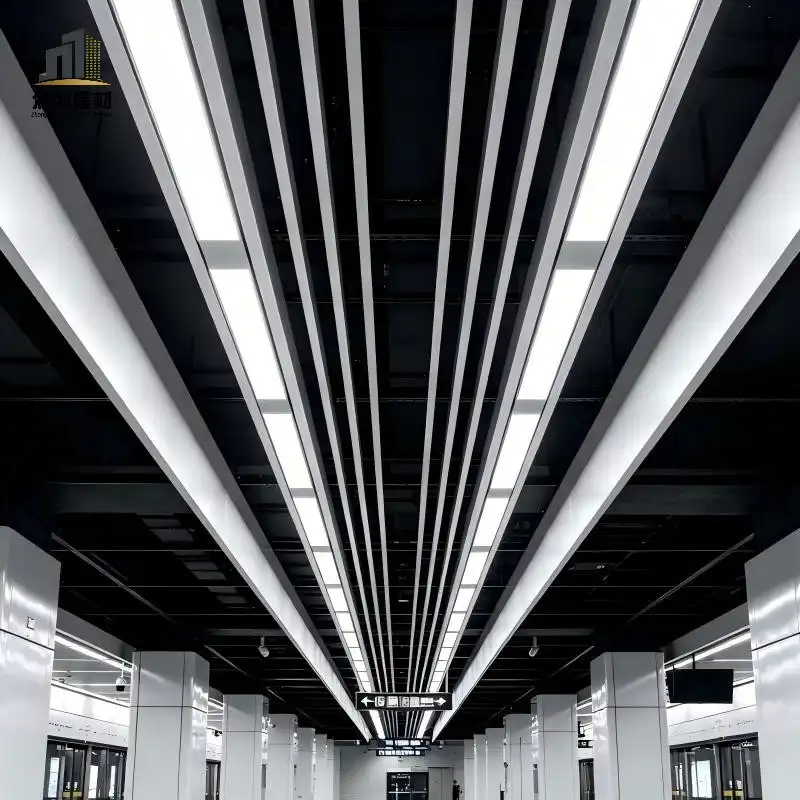

Transportation Public Projects: Airport terminal, subway station, railway station waiting hall large-span U baffle ceiling

Catering & Entertainment Space: Restaurant, cinema, exhibition hall acoustic U baffle ceiling, dark matte color series

Medical & Education Buildings: Hospital outpatient hall, school classroom environment-friendly fireproof U ceiling

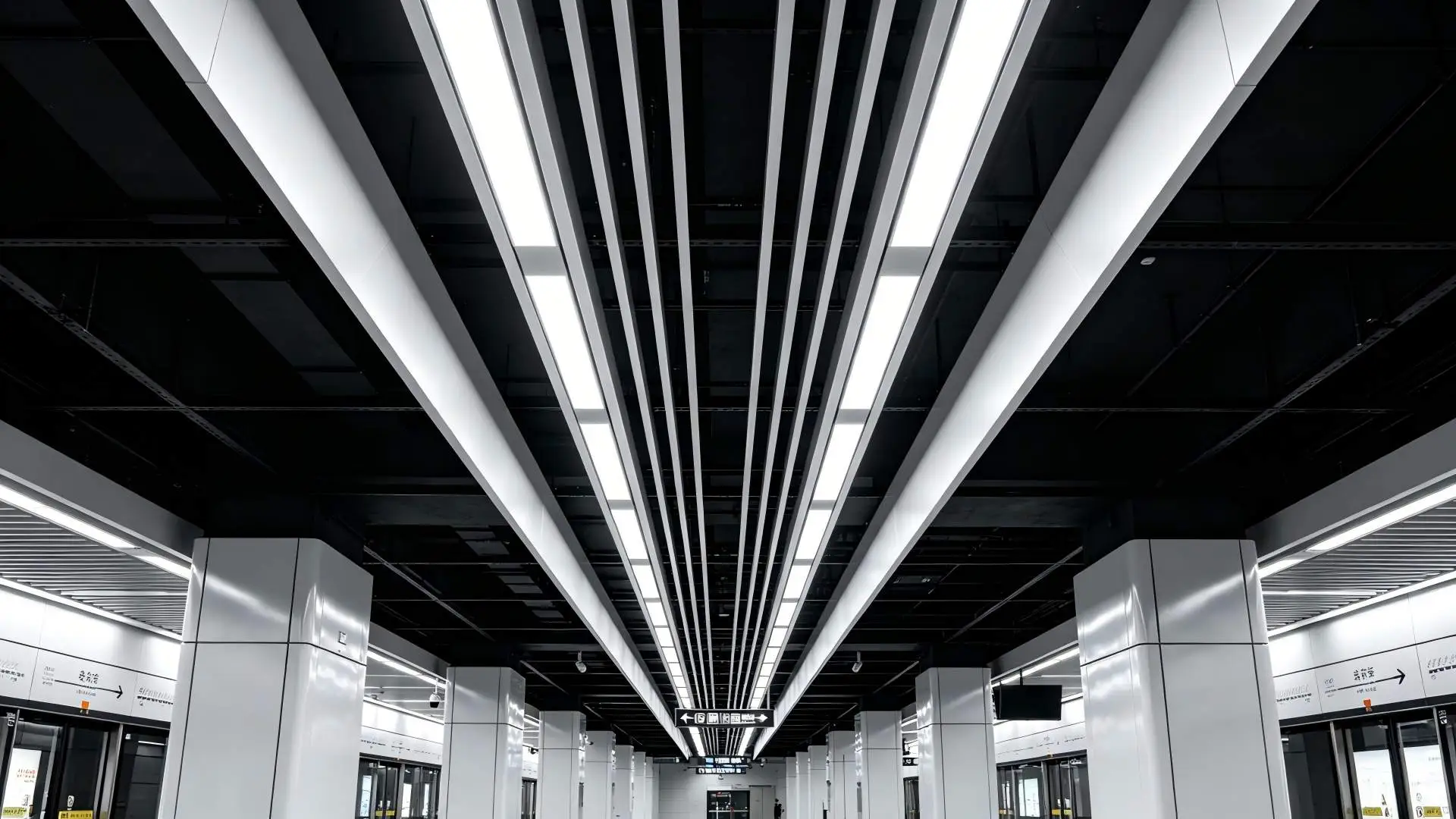

Subway station ceiling

FAQ

Q1: Can U shape aluminum baffle ceiling make curved wave shapes?

A: Yes. We adopt CNC stretch bending technology to process finished straight U baffles into continuous wave curves, S-shaped arcs and circular surrounding shapes, supporting customized bending radius according to architectural drawings.

Q2: How to choose powder coating or PVDF coating for U aluminum baffles?

A: Polyester powder coating is cost-effective, suitable for all indoor projects like offices, shopping malls and restaurants, with 10-year coating warranty. PVDF fluorocarbon coating owns stronger anti-UV and anti-aging performance, recommended for semi-outdoor corridors, building overhangs and coastal indoor spaces, providing 15-year coating warranty.

Q3: Is it convenient to maintain air-conditioning pipes after installing U baffle ceiling?

A: Extremely convenient. The vertical suspension structure allows single U tube to be lifted independently without disassembling surrounding baffles. Maintenance workers can directly reach the pipeline through gaps, greatly saving post-maintenance time and labor cost.

Q4: What's the minimum order quantity for customized wood grain U aluminum baffles?

A: No strict MOQ limit. We support small-batch sample orders for design confirmation, and mass production for large engineering projects, global wholesale supply.
