UV Printed Aluminum Baffle Ceiling

Product Overview

Our UV printed aluminum baffle ceiling (also called UV printed aluminum U-baffle, custom printed linear aluminum ceiling) is a personalized decorative linear ceiling product, manufactured from high-grade 3003-H24 aluminum alloy U-profiles, printed with 1200DPI high-resolution industrial UV flatbed printers using imported UV-curable inks. Unlike traditional heat-transfer or film-laminated aluminum baffles, our UV printed baffles deliver photo-realistic custom pattern effects, with 4H-6H scratch resistance, 10 years of indoor color retention, zero VOC emissions and an A2 non-combustible fire rating. It solves core industry pain points: blurry patterns on transfer-printed baffles, peeling edges on laminated baffles, high formaldehyde emissions and poor fire performance. UV printed aluminum baffles are widely used in shopping malls, brand stores, restaurants, children’s playgrounds, hotels, offices and themed spaces, with fully customizable patterns, sizes and colors to match any design style.

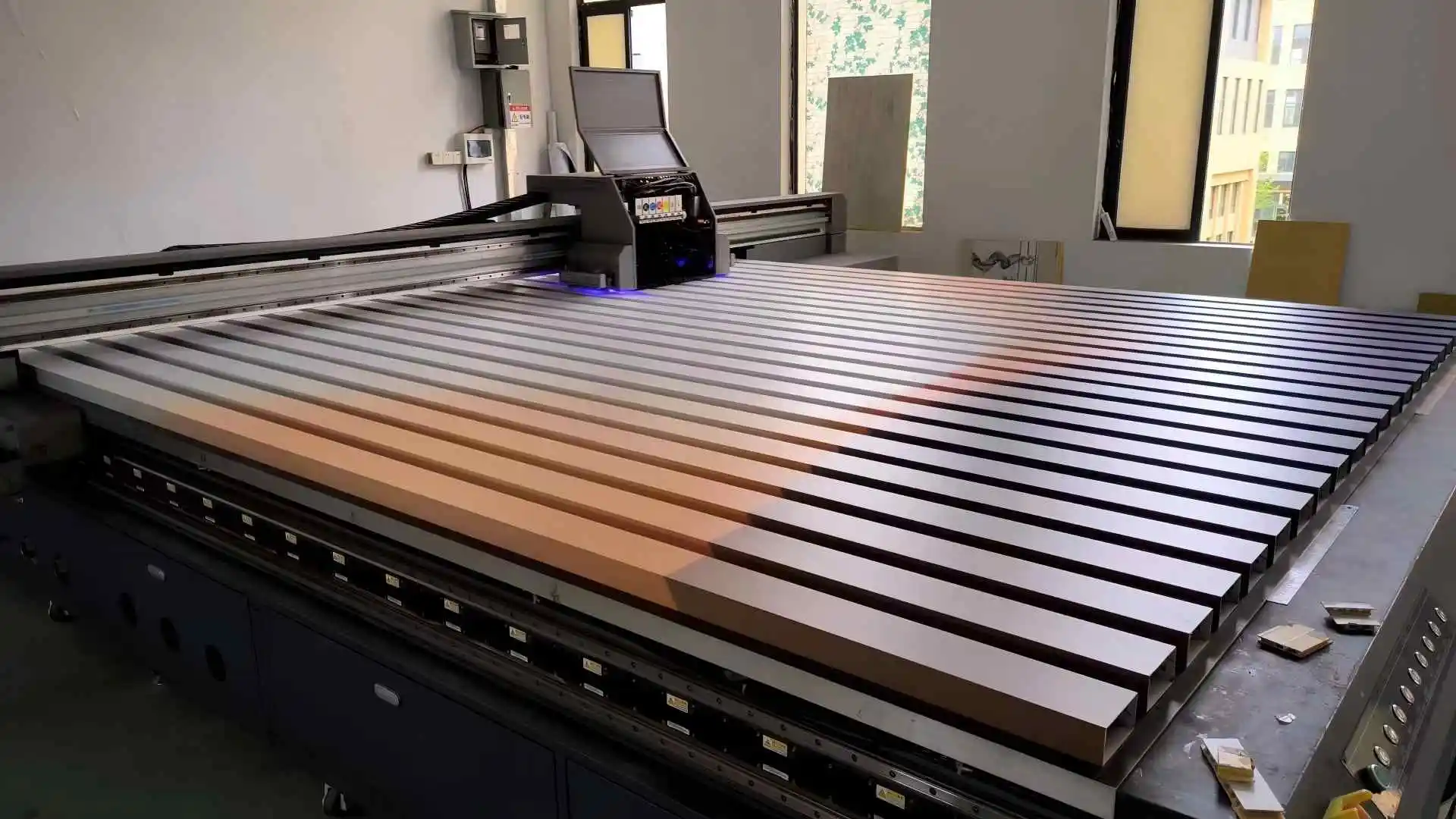

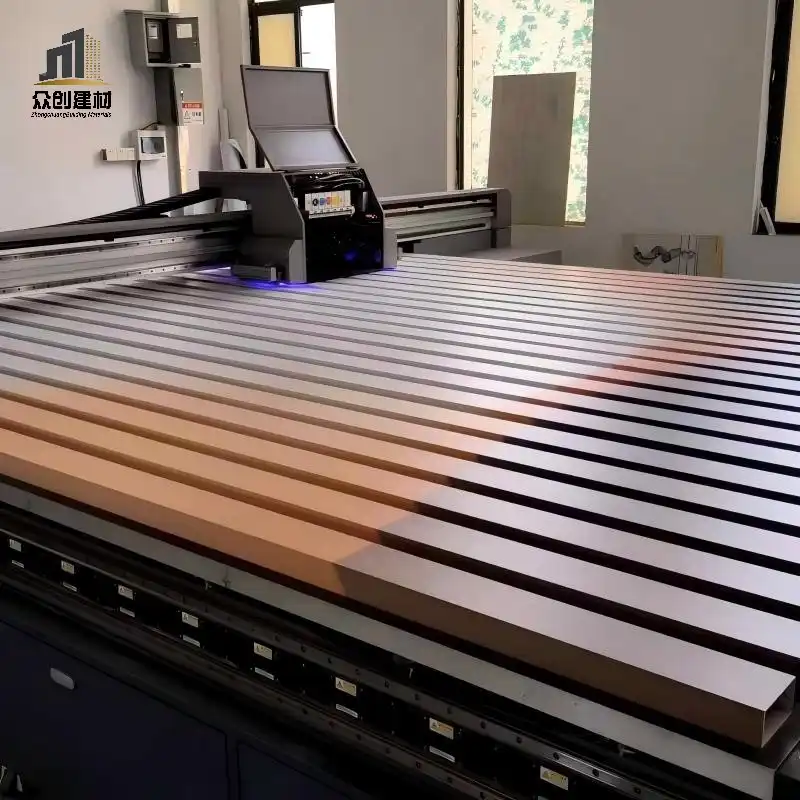

50*80 square tube UV printing effect

7 Core Advantages of UV Printed Aluminum Baffle Ceiling

1200DPI Photo-Level Custom Printing We use imported industrial UV flatbed printers with 1200DPI resolution, supporting unlimited custom patterns: wood grain, stone grain, gradient colors, corporate logos, artistic designs, cartoon images and photo-realistic custom graphics, with zero color difference between batches and 3x higher clarity than traditional heat-transfer printing.

4H-6H Scratch & Wear Resistance UV ink cures instantly under UV light to form a hard coating with 4H-6H pencil hardness, twice as scratch-resistant as heat-transfer printing. It resists damage during installation and daily cleaning, remaining intact after 10 years of use.

10 Years Indoor Color Retention UV ink offers excellent UV and aging resistance, with no fading or yellowing for 10 years of indoor use – 5 years longer service life than standard spray-painted or transfer-printed baffles.

A2 Non-Combustible Fire Rating A 100% aluminum base paired with inorganic UV ink achieves an A2 non-combustible fire rating (EN 13501-1), eliminating the fire hazard of film-laminated baffles (B1 rating, flammable film layer) and meeting the strictest fire codes for public spaces.

Zero VOC, Safe & Eco-Friendly UV ink cures instantly during printing with no solvent volatilization, delivering zero VOC and formaldehyde emissions and no post-installation odor. It is suitable for hospitals, schools, kindergartens and other high-environmental-standard spaces, ready for use immediately after installation.

Fully Customizable Sizes & Spacing We support full customization: baffle bottom width 20–200mm, height 30–200mm, thickness 0.6–1.2mm, maximum length 6m, baffle spacing 50–300mm, plus custom colors, patterns and curved shapes to match special design requirements.

40% Faster Modular Installation Compatible with standard universal keel systems, no custom parts required. Baffles clip directly onto the keel, delivering 40% faster installation than gypsum board or wood ceilings, with easy individual baffle removal and replacement for future maintenance.

Technical Specifications

Application Scenarios

Commercial retail: Shopping mall atriums, brand flagship stores, clothing boutiques, shopping centers, supermarket ceilings

Food & entertainment: Theme restaurants, cafes, cinemas, KTVs, bars, children’s playgrounds, amusement parks

Public spaces: Airport terminals, high-speed rail stations, exhibition halls, schools, hospitals, kindergartens, office lobbies

Hospitality & office: Hotel lobbies, corridors, meeting rooms, open-plan offices, reception areas

Themed spaces: Exhibition booths, art galleries, museums, theme parks, brand experience centers

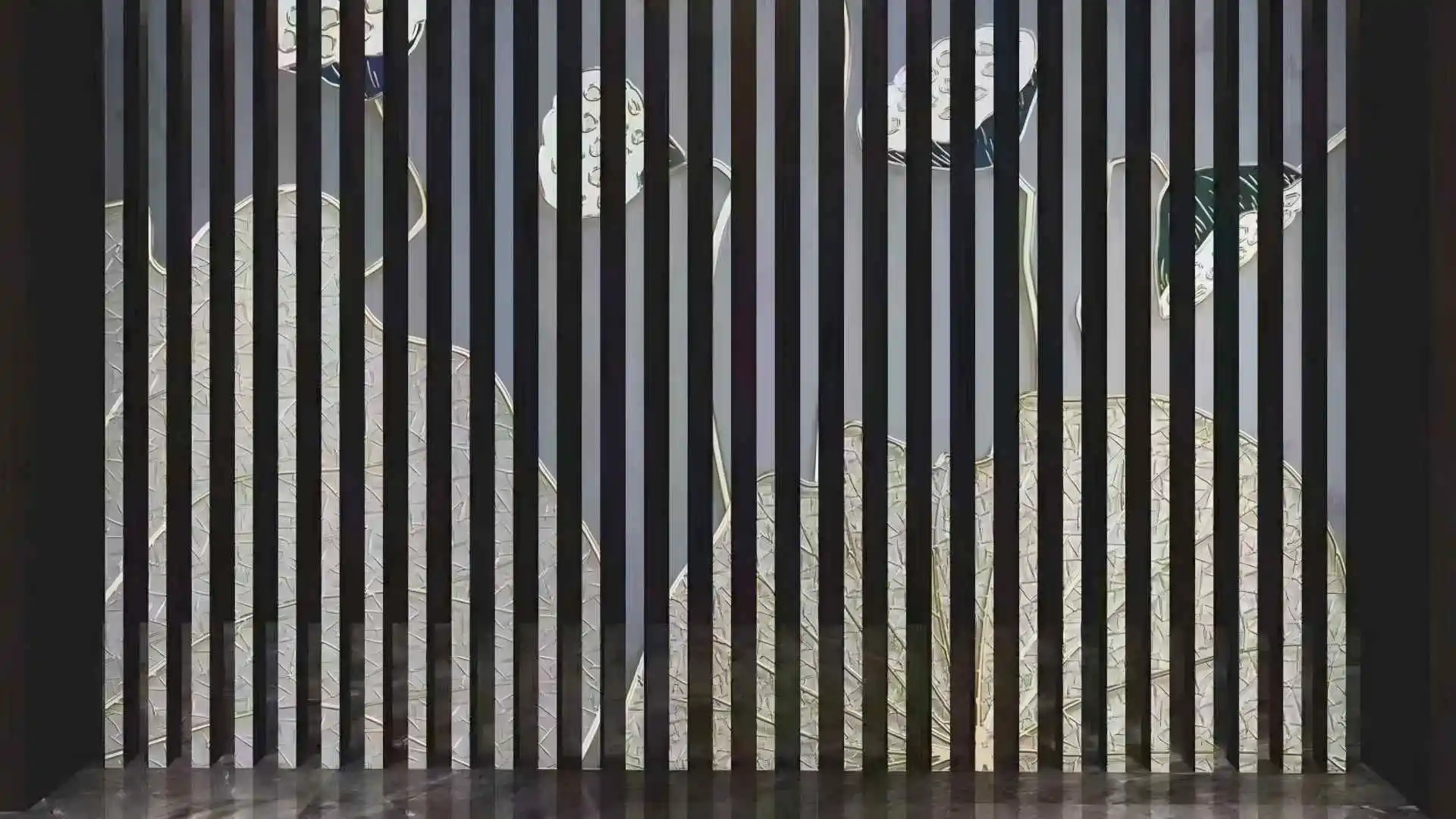

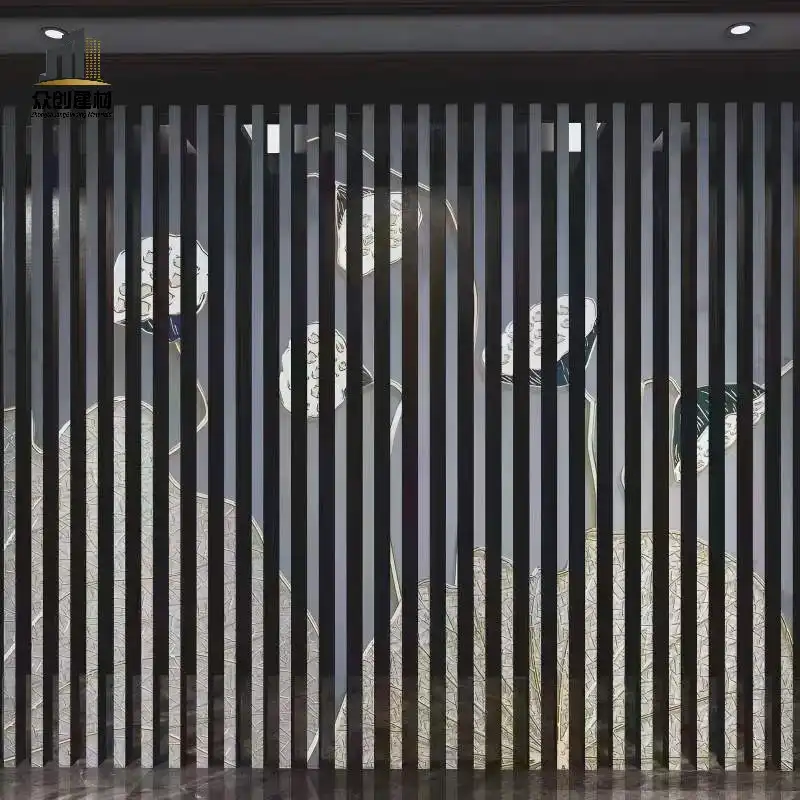

UV-printed lotus pattern installation effect

Customization & Installation Process

Share your design requirements: pattern, dimensions, spacing, project area and application scenario

Our design team provides free 3D renderings and layout drawings within 48 hours, with physical samples to confirm pattern and color

Sample approval: We produce a 20cm test sample for your confirmation within 3 days, adjusting color and pattern until you are satisfied

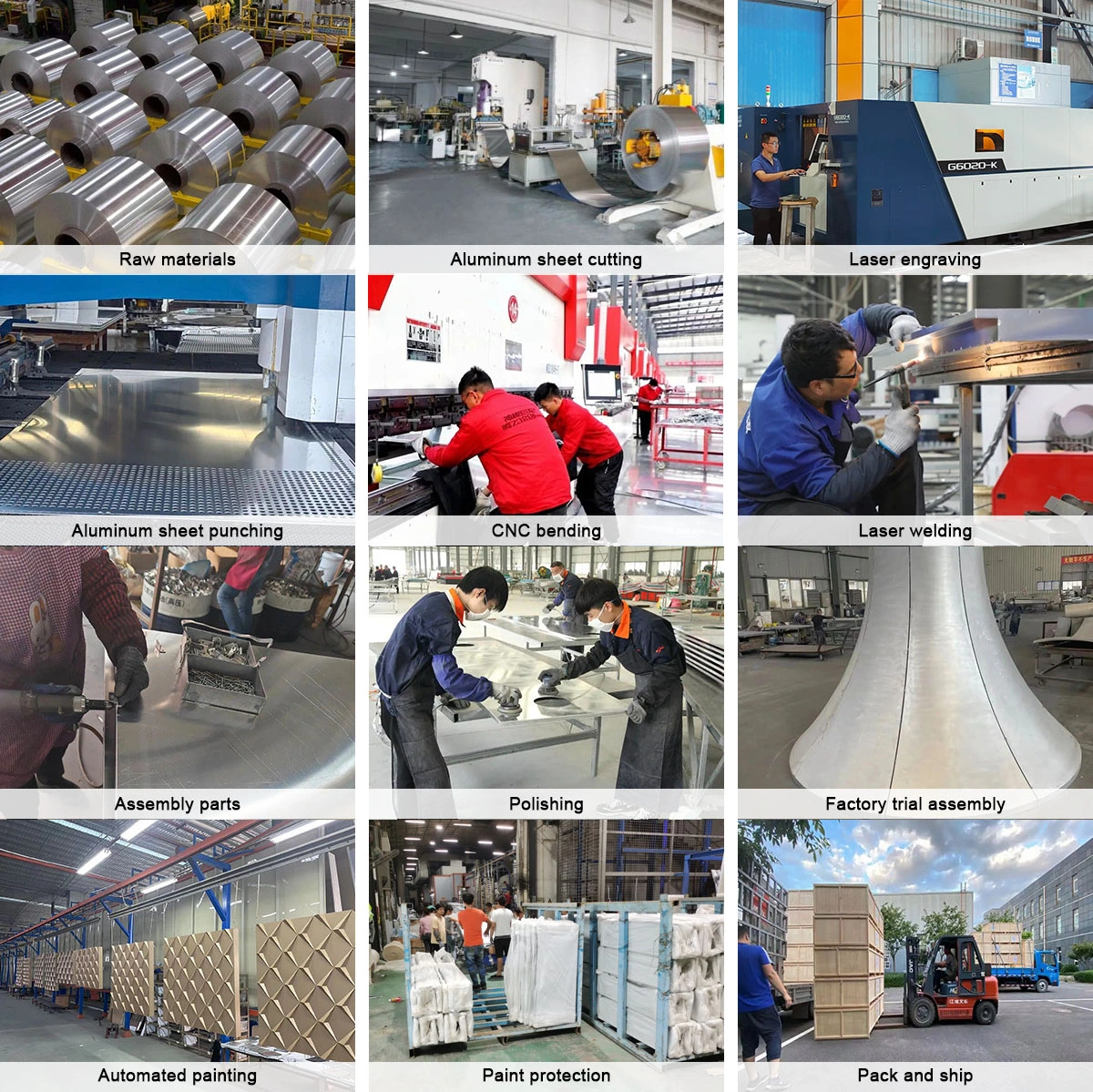

Factory production: CNC cutting → edge forming → surface cleaning → UV printing → curing → quality inspection → protective packaging

Numbered packaging with installation manual: All baffles are marked with position numbers for simple on-site installation

On-site installation: Install standard keels → clip baffles into place per numbering → adjust spacing; remote installation guidance is available

Frequently Asked Questions

What is the difference between UV printing, heat-transfer printing and film lamination?

UV printing delivers 3x higher resolution than heat transfer with no blurry patterns; UV ink cures into a hard coating that never peels, unlike laminated film which lifts at edges after 2–3 years; UV printing produces zero VOCs and achieves an A2 fire rating, while laminated baffles carry high formaldehyde emissions and poor fire performance.

Can I print my own custom pattern or logo?

Yes. We support fully custom designs: you may provide any high-resolution image, logo or design file, and we will print it exactly as specified, with zero color difference across bulk production.

Will the printed pattern scratch or peel off?

No. UV ink penetrates the aluminum surface coating and cures instantly into a hard 4H–6H layer that will not peel or scratch during normal use and cleaning, with a 10-year indoor service life.

Can UV printed baffles be used outdoors?

We offer special outdoor-grade UV ink with weather-resistant coating, suitable for outdoor corridors, canopies and semi-outdoor spaces, with 3 years of outdoor color retention.

What is the minimum order quantity for custom patterns?

MOQ for custom patterns is 50㎡; we also accept small-batch custom orders for brand stores and small projects.

Can you produce curved or special-shaped UV printed baffles?

Yes. We manufacture single-curved, wave-shaped and other custom special-shaped baffles, with continuous pattern printing across curved surfaces.

Are UV printed baffles environmentally friendly?

Yes. UV ink produces zero VOC and formaldehyde emissions with no post-installation odor, meeting EU CE and US EPA environmental standards, suitable for schools, hospitals and kindergartens.

Do I need special keels for installation?

No. Our UV printed baffles are compatible with standard universal aluminum baffle keel systems, no custom keels required, reducing material costs.
