Hook-On Aluminum Panel System

Product Overview

The Hook-On Aluminum Panel System is a next-generation modular quick-install ceiling & facade solution. Its core is a patented interlocking hook-edge design, where panels interlock precisely with Z/J-type carriers to form a seamless, wind-resistant, independently removable metal cladding system.

Crafted from 1100/3003/5052 aerospace-grade aluminum alloy (1.0–3.0mm thick) with Akzo Nobel powder/PVDF fluorocarbon coating, it delivers Class A fire resistance, 20+ years weatherability, sound absorption, moisture/dust protection & zero VOC. Widely used for interior ceilings, exterior facades, corridors & large public spaces, it’s the ultimate aesthetic + functional + maintenance-friendly solution for modern architecture.

Key Benefits

🔧 Tool-Free Quick Installation | 300% Efficiency BoostModular assembly, no screws, no welding, hand-install & remove. Single panels can be detached independently for easy access to lights/pipes without full dismantling, minimizing maintenance costs.

📐 Seamless & Flat | Precision Joints ≤1mmPatented hook-edge + wind-resistant clips ensure tight interlocking, visually seamless. Large panels (up to 1000×2000mm) stay flat & deformation-free.

🛡️ Safe & Durable | Wind & Earthquake ResistantAA-grade aluminum + reinforcing ribs for structural stability. Independent wind clips per panel prevent falling in strong winds. Class A fire rating (EN 13501-1) & antibacterial (JIS Z 28001) – ideal for public spaces.

🎨 Fully Customizable | Design Freedom100% custom sizes, thicknesses, perforations, colors & textures. Choose solid/metallic/wood/stone/brushed finishes for minimalist, luxury or industrial styles.

♻️ Eco-Friendly & SustainableAluminum is 100% recyclable, zero formaldehyde & low VOC production. Coatings last 20+ years without fading/chalking, delivering low total lifecycle cost.

Specifications Table

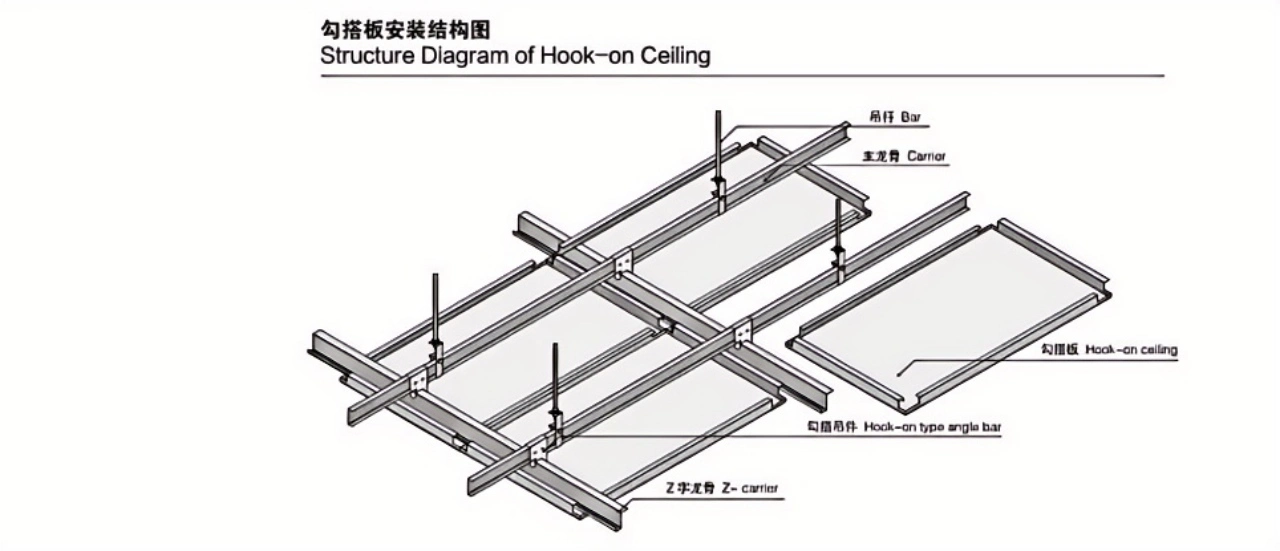

System Structure

Hook-On System = Panel + Hook Carrier + Main Carrier + Hanger Rod + Wind Bracket

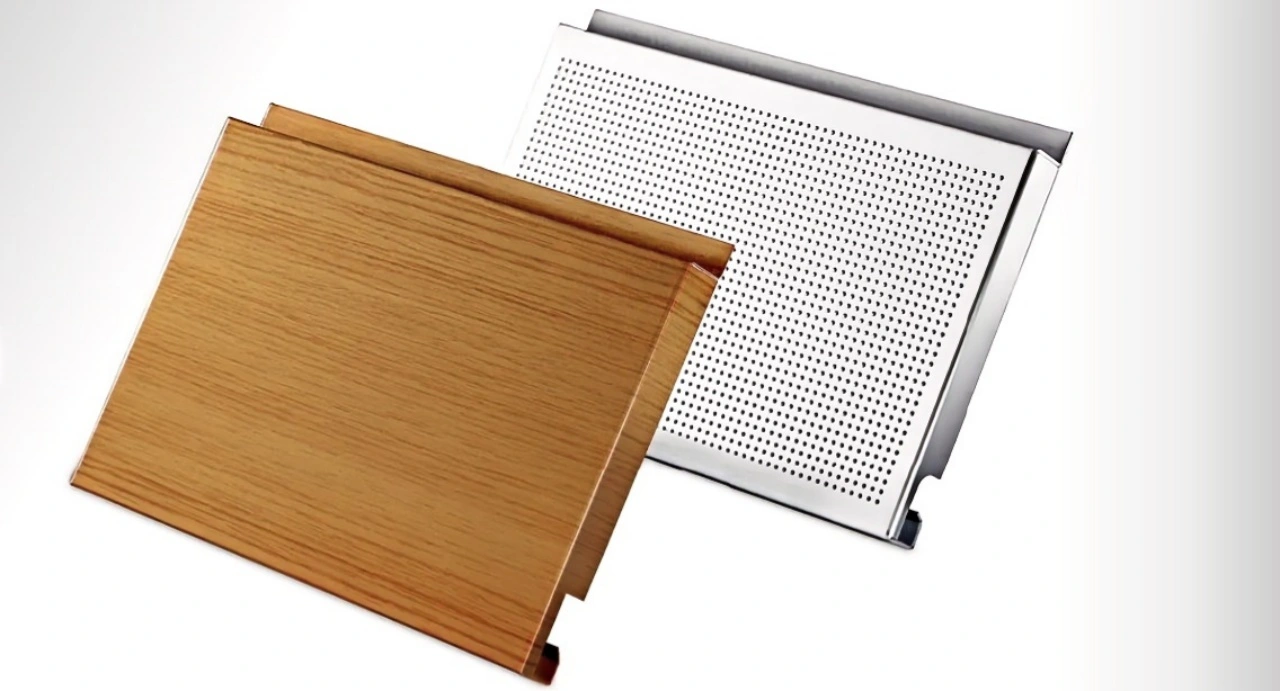

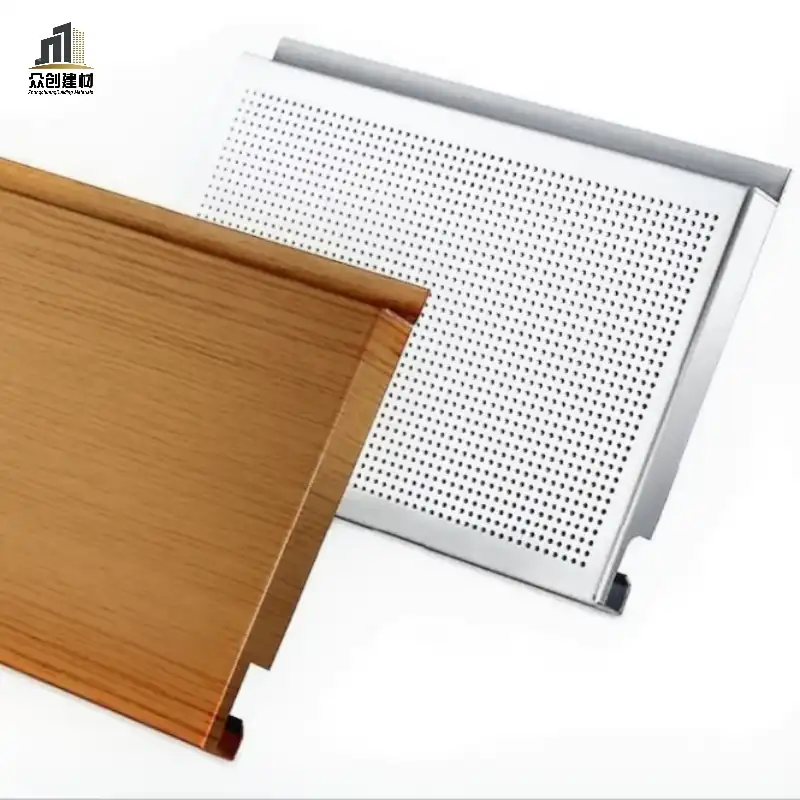

Panel: L-shaped hook edge (one in, one out) for interlocking.

Hook Carrier (Z/J-type): Supports panels, parallel unidirectional layout.

Main Carrier: 40×15×10mm galvanized steel, 3m length, supports hook carriers.

M8 Hanger Rod: Secures main carrier, spacing 1200×1200mm.

Wind Bracket (50 Clip): Independent fixing per panel, anti-wind & anti-fall.

Surface Finishes

PVDF Fluorocarbon (Outdoor #1)UV & salt spray resistant, 20 years fade-free. Ideal for facades, canopies, airports & railways.

Electrostatic Powder (Indoor Mainstream)Rich color, scratch-resistant & cost-effective. Perfect for offices, malls & corridors.

Wood/Stone Grain Film (Realistic Texture)Natural wood/stone look, waterproof & crack-resistant. Eco-friendly alternative to real wood/stone.

Perforated Acoustic (Noise Reduction)Round/square/custom holes with Soundtex non-woven fabric for sound absorption. Great for meeting rooms, concert halls & underground garages.

Applications

✅ Interior Ceilings: Office lobbies, corridors, elevator halls, meeting rooms, mall atriums, hotel lobbies

✅ Exterior Facades: Building exteriors, canopies, entrances, walkways, public building facades

✅ Transport Hubs: Airports, high-speed rail stations, metro stations, bus terminals

✅ Public Spaces: Hospitals, schools, stadiums, exhibition centers, underground garages

✅ Commercial Spaces: Retail chains, showrooms, restaurants, cafes

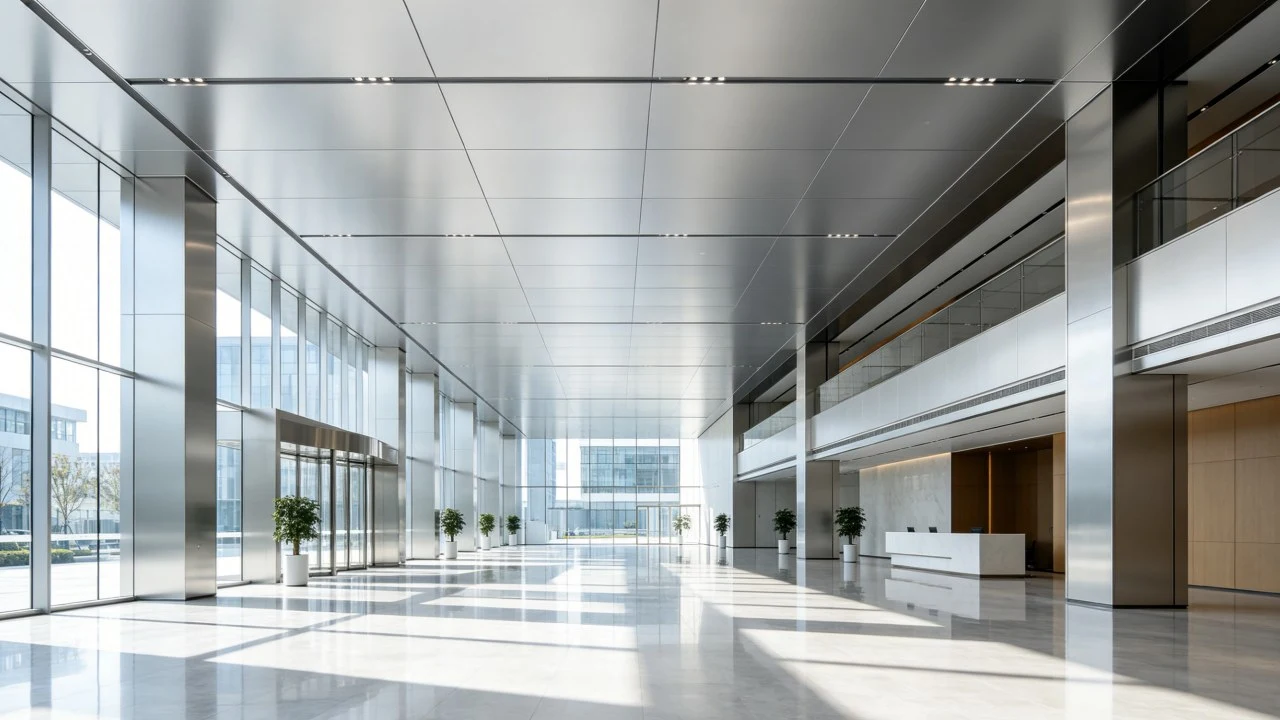

Hook-type aluminum panel system used in office building ceilings

Why Choose Us

Foshan Factory Direct: 12 years R&D & production, 20,000㎡ daily output, fast delivery

One-Stop Customization: Design → Tooling → Production → Coating → Installation guidance

International Certifications: ISO 9001 / ISO 14001 / EN 13501-1 / JIS Z 28001

Global Project Experience: Exported to SE Asia, Middle East, Australia, Europe, Americas

Warranty & Support: 20-year warranty, free technical support, installation guidance & replacement parts
