Integrated LED Aluminum Ceiling System | Linear Light Metal Ceiling Solution

Product Overview

The Integrated LED Aluminum Ceiling System (also known as linear light metal ceiling, LED integrated aluminum ceiling or seamless LED ceiling panel system) is an all-in-one modular ceiling solution that combines high-performance aluminum ceiling panels with factory-pre-integrated linear LED lighting, eliminating the need for on-site cutting, separate light fixture installation and messy alignment work.

Unlike traditional ceilings where panels and lights are installed separately — often resulting in uneven gaps, misaligned fixtures, dark spots and long installation time — this system delivers a perfectly seamless, uniform, architecturally designed ceiling with integrated lighting straight from the factory. It is the preferred ceiling solution for modern commercial spaces where clean aesthetics, high-quality lighting and fast installation are equally important.

Core Advantages

1. Seamless All-in-One Factory Integration

All LED linear lights are pre-installed and perfectly aligned with ceiling panels at the factory, with zero on-site cutting or modification required. The result is a flawless, monolithic ceiling with no visible gaps, misaligned edges or rough cut-outs — a finish impossible to achieve with traditional separate panel + light installation.

2. Glare-Free Uniform Lighting

Embedded linear LED lights deliver even, consistent illumination across the entire ceiling, with UGR<19 low glare rating and no dark spots or shadow areas. The diffused linear light creates a comfortable, eye-friendly environment ideal for offices, schools, healthcare facilities and retail spaces, with CRI>90 high color rendering for accurate color representation.

3. Fully Customizable Design

Every element of the system can be tailored to your project:

Panel size: 300×300mm up to 1500×6000mm

Light layout: parallel lines, grid patterns, custom geometric designs

Color temperature: 2700K warm white to 6500K cool white

Brightness & dimming: 0-10V, DALI, TRIAC dimming compatible

Surface finish: any RAL color, wood grain, metallic or custom brand color There is no need to compromise your design to fit standard light fixture sizes.

4. 50% Faster Installation & Lower Labor Cost

The pre-integrated system installs in a single step, compared to the traditional two-step process of ceiling installation + separate electrical and light fitting work. This cuts total installation time by 50%, reduces on-site labor cost, and eliminates common installation errors such as misaligned lights, wrong cut-out sizes and damaged panels.

5. High-Performance Aluminum Substrate

Manufactured from AA3003/AA5052 aluminum alloy, the system carries an A2 non-combustible fire rating (EN 13501-1), is 100% waterproof and mold resistant, and wipes clean with standard detergents. It is ideal for healthcare, education, food service and high-traffic public spaces where hygiene and safety are critical. The aluminum substrate is 100% recyclable and supports LEED green building certification.

6. Smart Building Compatible

The system supports all major smart lighting control protocols including DALI, 0-10V dimming, motion sensors and daylight harvesting, making it fully compatible with modern smart building and office automation systems. LED drivers are accessible from above the ceiling for easy maintenance without removing panels.

System Composition & Technical Specifications

Customization Options
Panel & Light Layout

Parallel linear layout: The most popular option, with continuous linear lights running parallel to panels, ideal for open offices and corridors

Grid layout: Lights form a uniform grid pattern, perfect for retail, education and public spaces

Custom geometric layout: Custom light patterns, logos or feature designs for brand spaces and lobbies

Variable spacing: Light spacing from 100mm to 1200mm, customizable to achieve desired brightness and aesthetic

Performance Options

Acoustic version: Perforated panels with high-density glass wool backing, NRC 0.7-0.9, for noisy open offices and restaurants

Anti-bacterial coating: Special anti-bacterial powder coating for hospitals, laboratories and food processing areas

High-output version: Higher brightness LED for high-ceiling spaces such as lobbies, atriums and exhibition halls

Emergency lighting: Integrated emergency backup LED for public building code compliance

Surface Finishes

Standard RAL solid colors (15+ in-stock options)

Wood grain thermal transfer (oak, walnut, teak, grey oak and 10+ more)

Metallic and pearlescent finishes

Custom brand color matching for chain retail and corporate projects

Application Scenarios

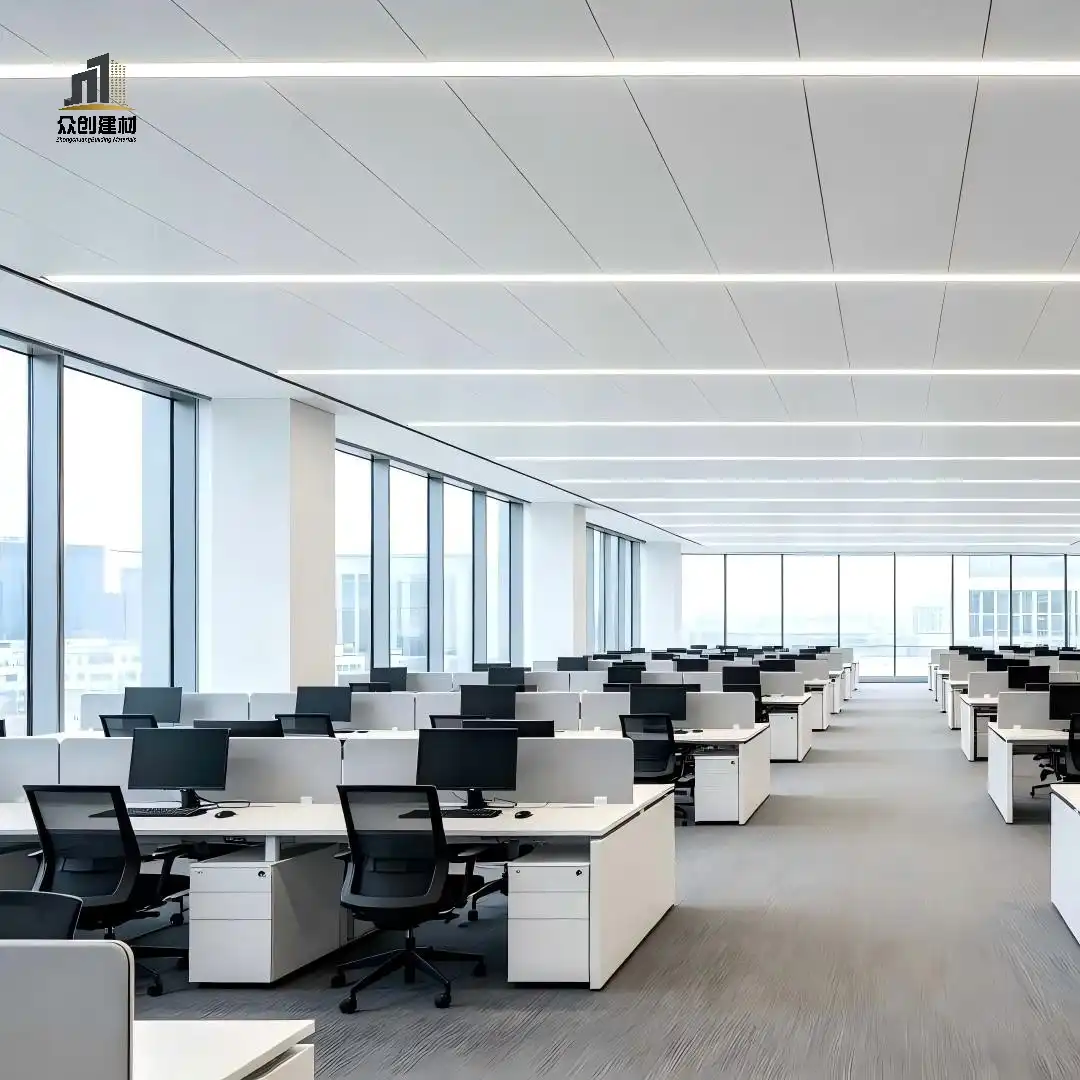

Open Plan Offices & Co-working Spaces

Recommended: 600×1200mm panels with parallel linear lights, 4000K neutral white, UGR<19, acoustic option

Why: Glare-free uniform lighting reduces eye strain and improves focus, while the clean seamless ceiling creates a modern, professional work environment. The fast installation minimizes downtime for office fit-out projects.

Schools, Universities & Education Facilities

Recommended: 600×600mm panels with grid layout, 3500K-4000K, UGR<16, anti-glare

Why: Low-glare lighting protects students' eyesight and improves classroom visibility, while the A2 fire rating and durable, easy-clean surface meet strict education building safety and maintenance requirements.

Healthcare & Medical Facilities

Recommended: 600×600mm panels with anti-bacterial coating, 3500K-4000K, CRI>95, seamless layout

Why: The seamless, non-porous surface is easy to disinfect and resists bacteria and mold growth. High CRI lighting allows accurate clinical assessment, and the A2 fire rating meets healthcare building codes.

Retail & Brand Spaces

Recommended: Custom size panels with custom light layout, 2700K-4000K, CRI>90, brand color finish

Why: Custom light patterns and colors reinforce brand identity, while high CRI lighting makes products look more vibrant and attractive. The seamless premium finish elevates the in-store customer experience.

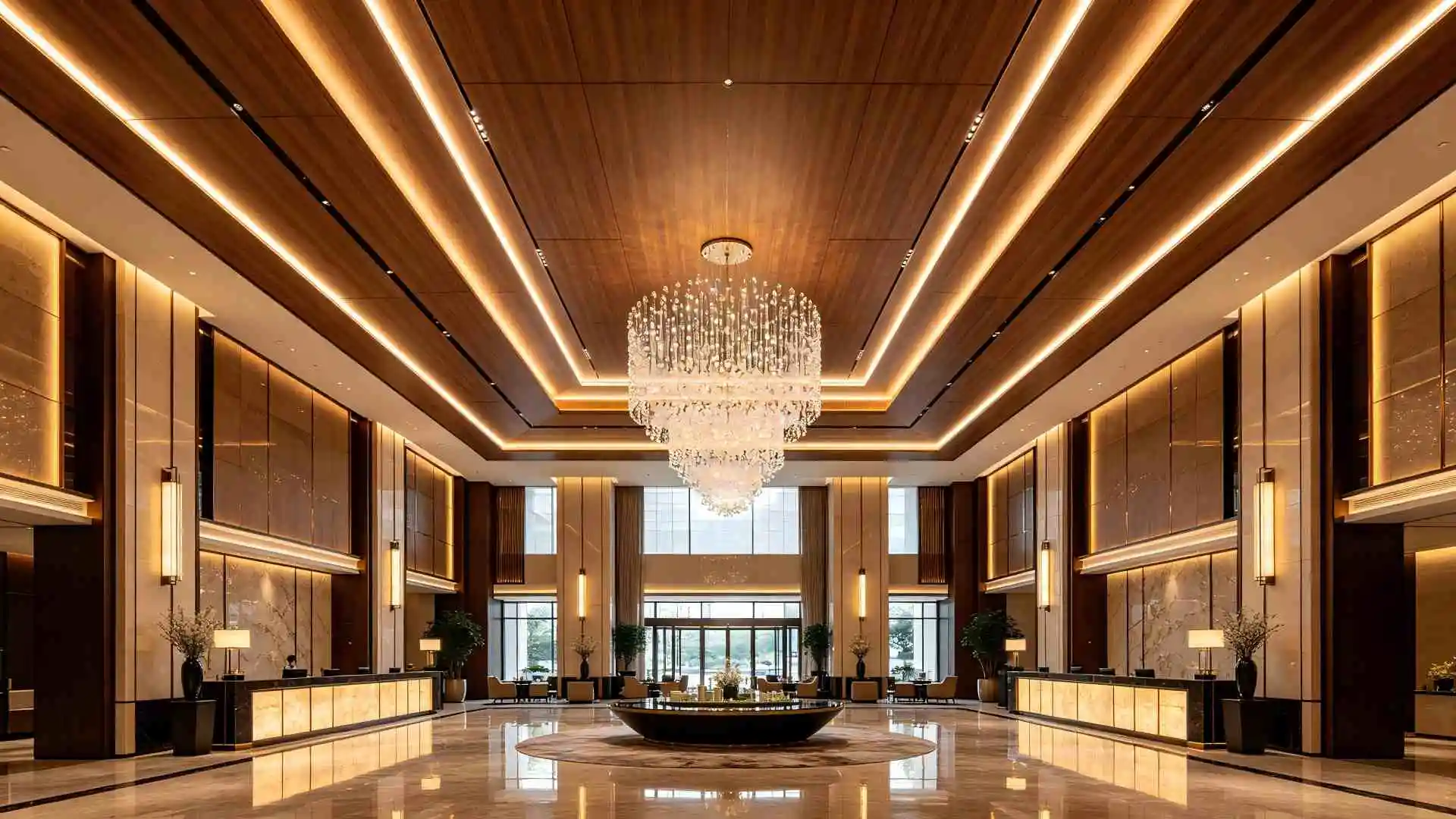

Hotels, Hospitality & Lobbies

Recommended: Custom size panels with feature light layout, 2700K-3000K warm white, wood grain or custom finish

Why: Warm dimmable lighting creates a welcoming, luxurious atmosphere, while the seamless ceiling delivers a high-end, boutique hotel look. The system works for both grand lobbies and intimate guest room corridors.

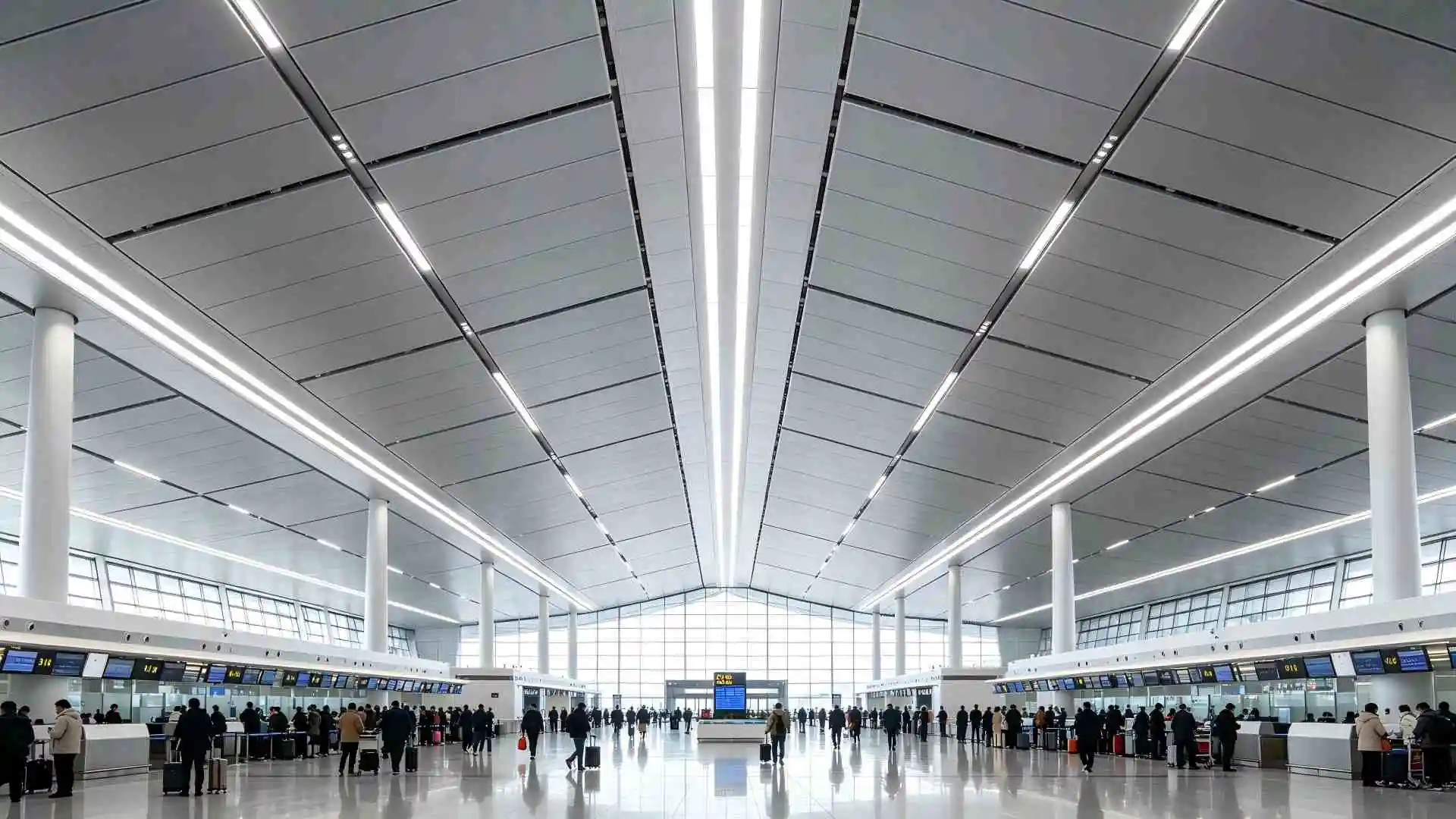

Public & Transportation Spaces

Recommended: 600×1200mm thick panels with high-output LED, PVDF coating, emergency lighting option

Why: High impact resistance, fire safety and low maintenance make it ideal for airports, subway stations, museums and exhibition halls. The uniform lighting improves safety and wayfinding in large public spaces.

Installation & Technical Support

Three installation systems are available to match different design and budget requirements:

Exposed T-bar Grid System: The most cost-effective option, panels and lights rest in a visible 15mm/24mm T-grid, easy to install and access for maintenance

Concealed Grid System: Panels clip into hidden brackets with no visible grid, creating a fully seamless, monolithic ceiling for high-end spaces

Fully Integrated Custom System: Pre-engineered system with all panels, lights, drivers and accessories pre-assembled for fastest possible on-site installation

All projects include:

Free ceiling layout design and lighting calculation based on your CAD/BIM files

Free installation node drawings, wiring diagrams and step-by-step installation guides

Remote technical support during installation, with on-site support available for large projects

Complete matching accessories: grids, hangers, drivers, edge trims and sealing strips

Reference Projects

Tech Company Headquarters, Shenzhen: 12,000m² of 600×1200mm integrated LED aluminum ceiling with parallel linear lights, 4000K, acoustic backing. The system installed in 18 days (50% faster than traditional ceiling + separate lights), and post-occupancy surveys showed 22% reduction in employee eye strain and 15% improvement in perceived productivity.

International School, Guangzhou: 8,500m² of 600×600mm grid layout integrated LED ceiling, UGR<16 anti-glare, 3500K. The low-glare lighting received positive feedback from teachers and students, with zero maintenance required after 3 years of daily use.

Quality Assurance You Can Trust

Every panel meets rigorous international standards with CE, UL, SASO, and ISO 12944-6 certifications. Our coating quality exceeds industry benchmarks:

Film thickness ≥50μm average

Cross-cut adhesion grade 0

Hardness rating ≥2H

Superior acid and abrasion resistance

Frequently Asked Questions

Q: Can the light layout and pattern be fully customized?

A: Yes. Parallel, grid, custom geometric and even brand logo light patterns are all possible. We provide lighting design and layout services based on your space dimensions and brightness requirements.

Q: Is this system suitable for wet areas such as bathrooms and kitchens?

A: Yes. The aluminum substrate is 100% waterproof and mold resistant, and LED drivers are IP44 rated as standard (IP65 available for wet areas). It is ideal for kitchens, bathrooms, pool areas and food service spaces.

Q: How does the cost compare to traditional ceiling + separate LED lights?

A: Material cost is 10-20% higher than basic ceiling + budget LED lights, but 50% faster installation reduces labor cost significantly, resulting in comparable or lower total project cost. The 50,000+ hour LED lifespan also reduces long-term maintenance and replacement cost.

Q: What is the lead time for custom projects?

A: Standard sizes and colors: 10-15 working days. Custom sizes, colors or light layouts: 15-20 working days. Rush order options are available for urgent projects.

Q: Can the LED lights be replaced or maintained?

A: Yes. LED strips and drivers are accessible from above the ceiling, and individual light sections can be replaced without removing the entire ceiling. Standard LED lifespan is 50,000+ hours, meaning 10+ years of maintenance-free use under normal operating conditions.

Get a Free Quote & Lighting Design

Guangdong Zhongchuang Building Decoration Materials Co., Ltd. is an 18-year specialist in custom architectural aluminum ceiling and lighting systems, with a 50,000m² modern factory serving over 1,200 projects worldwide. Contact our team today for a free project quotation, lighting calculation and sample kit.
