Anodized Aluminum Honeycomb Panel | Lightweight Cladding & Ceiling Composite
- Product Description
Anodized aluminum honeycomb panel is our flagship premium decorative aluminum material. It is constructed with 5005 and 3003 aluminum face sheets, a hexagonal aluminum honeycomb core, and aerospace-grade structural adhesive, bonded via high-temperature hot pressing. The face panels undergo a full electrochemical anodizing treatment, forming an integrated protective oxide layer that distinguishes it from coated honeycomb panels. This makes it the preferred choice for high-end building curtain walls, interior decoration, and railway transportation projects worldwide.

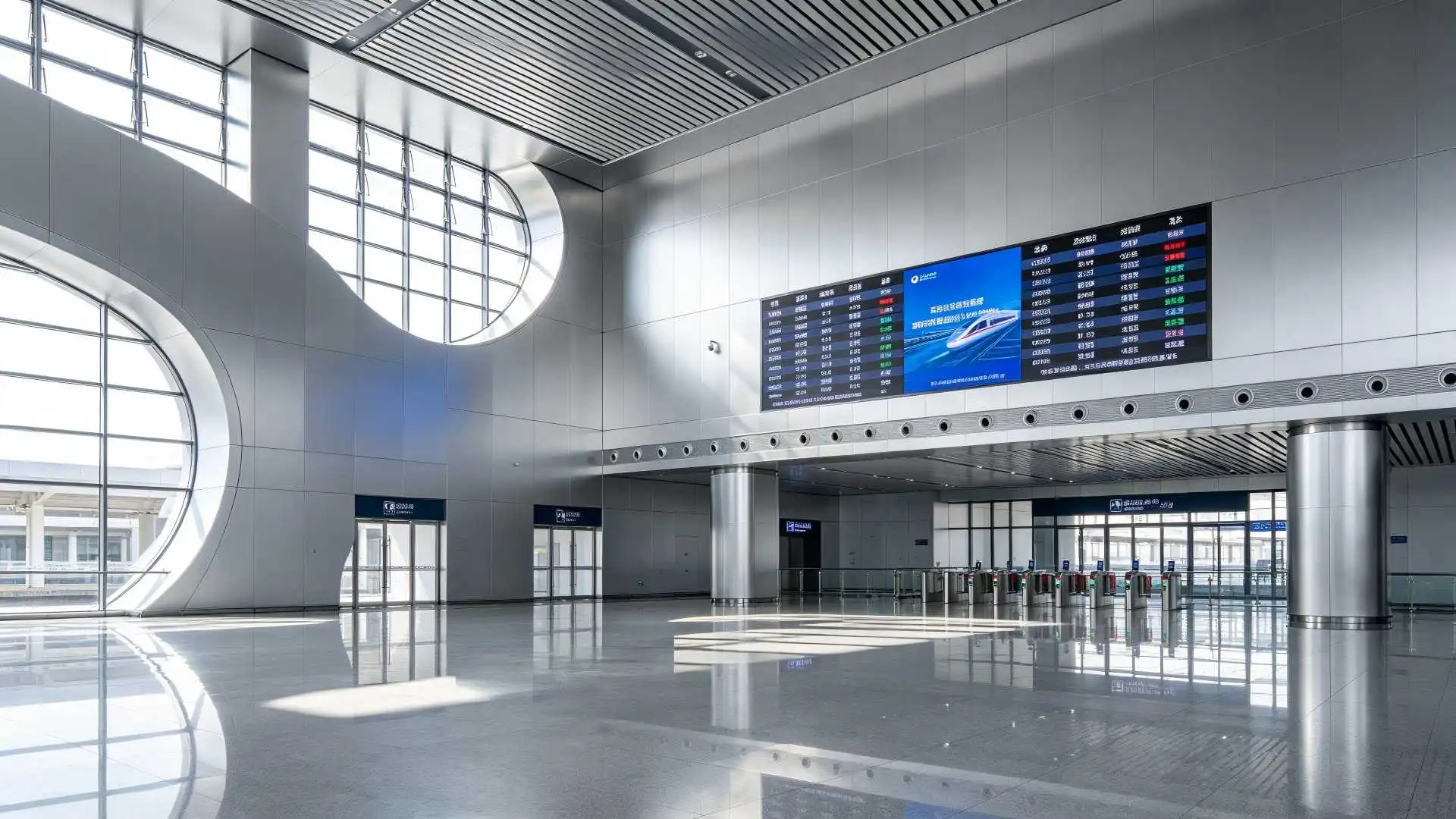

Anodized Aluminum Honeycomb Panels for High‑Speed Railway Station Wall Cladding
1. Technical Specifications
| Parameter | Standard Options | Customization Range |
|---|---|---|
| Face/Back Sheet | 0.6–1.5mm 5005 aluminum alloy | 3003/5052 aluminum alloy |
| Anodized Film Thickness | 10–15μm (standard) | 18–25μm (marine-grade for coastal areas) |
| Honeycomb Core | Hexagonal aluminum, cell size 6–12mm, core foil 0.06–0.1mm | Cell size 3–25mm, core foil 0.05–0.15mm |
| Total Panel Thickness | 10mm, 15mm, 20mm, 25mm | 30–100mm |
| Standard Panel Size | 1220×2440mm, 1500×3000mm | Max 1850×6000mm |
| Fabrication | Flat panels | Curved, perforated, and custom-shaped |
| Anodized Finishes | Natural silver, champagne gold, bronze, titanium grey, matte black | Custom RAL anodized colors |
2. Key Advantages
Superior Scratch & Abrasion Resistance The anodized surface achieves 9H pencil hardness, far exceeding the 2H hardness of standard powder-coated finishes. It resists scratches and impacts from daily use in high-traffic public areas, with zero risk of peeling or chipping.
Ultra-Lightweight Yet High Strength Weighing only 3–7 kg/m², these panels are 65% lighter than solid aluminum panels. This significantly reduces building structural loads while maintaining excellent wind resistance, making them ideal for high-rise facade applications.
Exceptional Long-Term Weather Resistance The dense, non-porous anodized film forms a permanent barrier against salt spray, acid rain, and UV radiation. Panels maintain their original appearance for over 20 years in humid coastal climates and feature natural rain self-cleaning properties.
Excellent Acoustic & Fire Performance Sealed honeycomb cells effectively block heat transfer and reduce noise transmission (STC 35–40 dB). All panels achieve A2 non-combustible rating, fully complying with international fire safety codes for commercial and public buildings.
100% Eco-Friendly & Recyclable The anodizing process produces zero volatile organic compounds (VOCs), and all aluminum components are fully recyclable. This aligns with global green building and carbon neutrality standards.
Schematic diagram of honeycomb aluminum panel structure
3. Primary Applications
Exterior curtain walls for high-rise offices, urban renewal projects, and TOD complexes
Interior ceilings, elevator cabs, and feature walls for shopping malls and luxury hotels
Interior linings for metro stations, high-speed trains, marine vessels, and cleanrooms
Equipment enclosures and decorative panels for industrial and commercial facilities

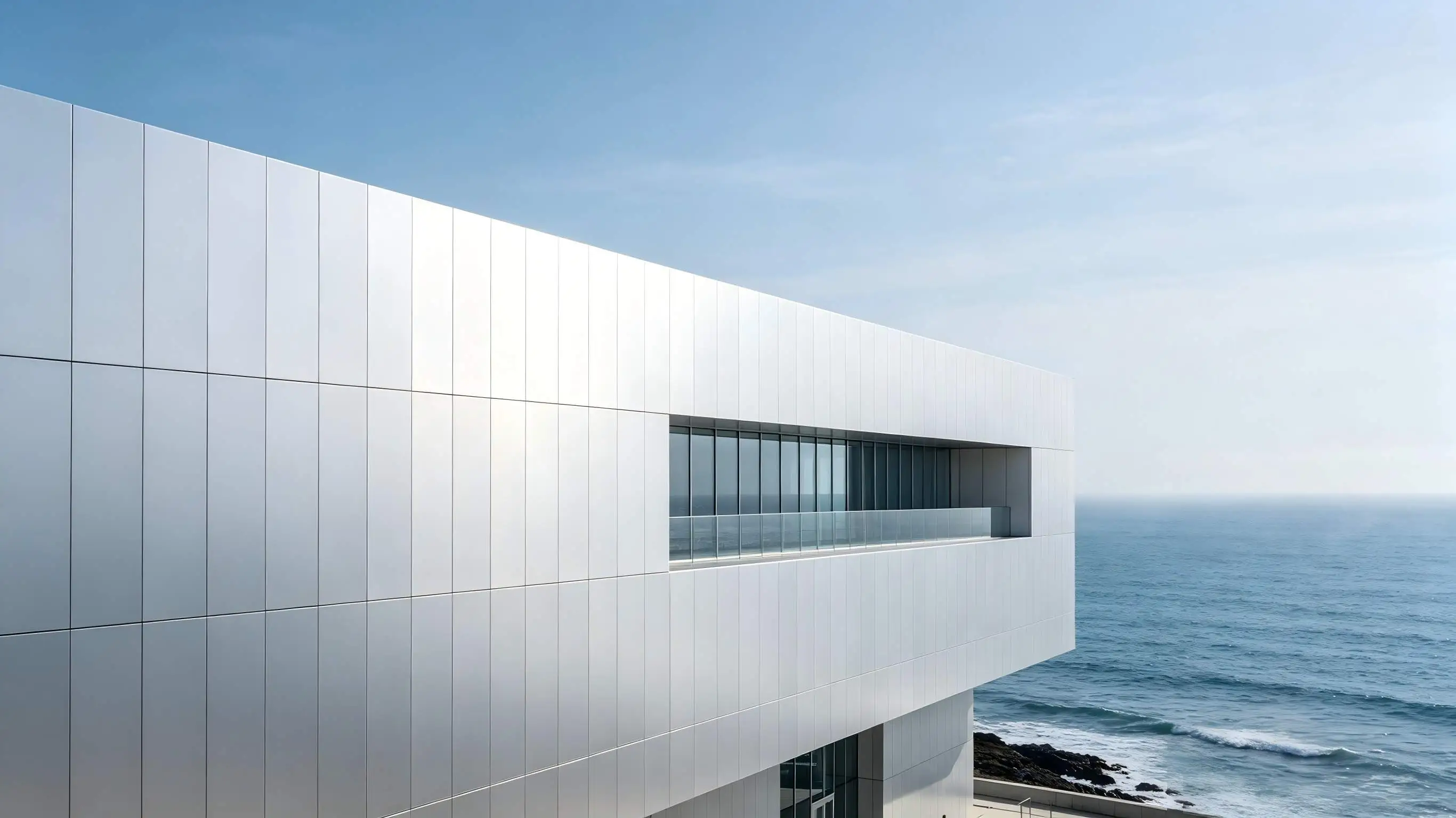

Marine-Grade Anti-Corrosion Aluminum Curtain Wall
4. Our Custom Services
As a leading Chinese aluminum manufacturer with in-house anodizing facilities and advanced CNC processing lines, we offer full customization of anodized aluminum honeycomb panels to meet your project specifications. We provide free samples, competitive project quotations, and comprehensive technical support for installation.
