Exterior Wall Aluminum Honeycomb Panel | Curtain Wall Manufacturer
- Product Description

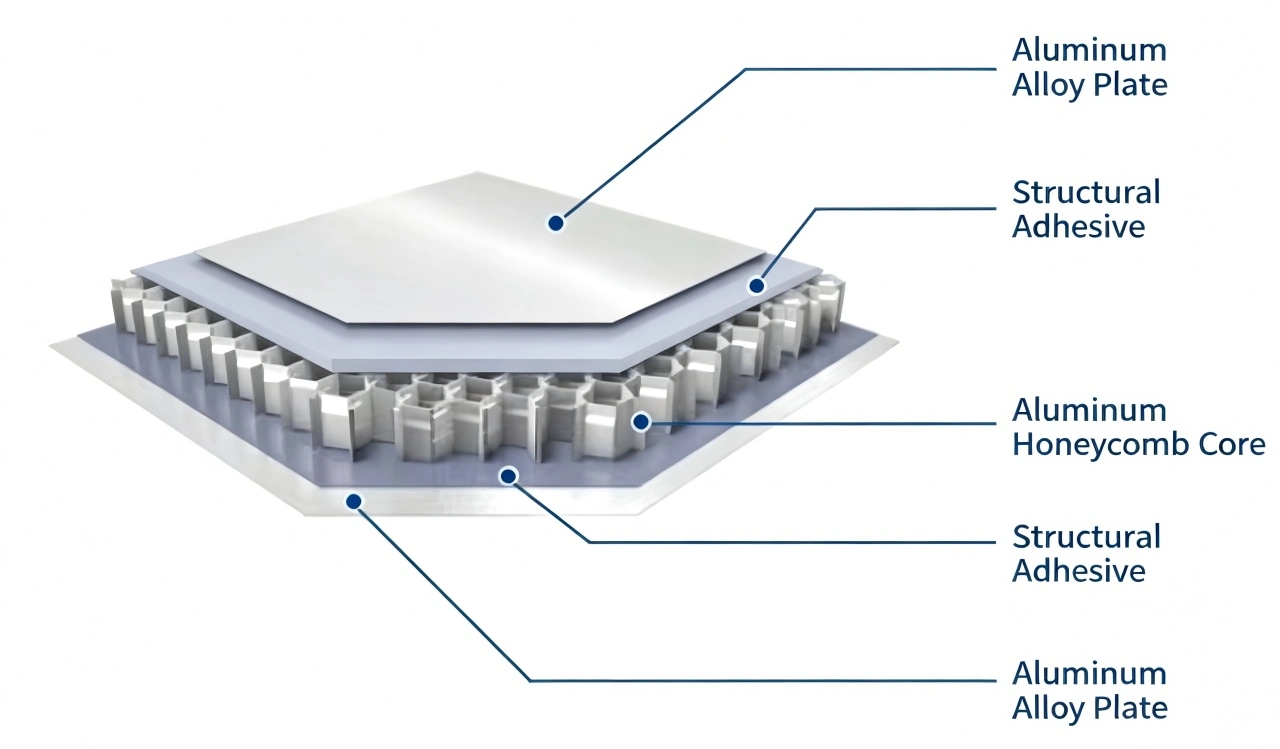

Exterior wall aluminum honeycomb panel is a high-end composite decorative material specially designed for building facades. It consists of two layers of aluminum alloy face sheets and a hexagonal aluminum honeycomb core, bonded together with aerospace-grade epoxy resin under high temperature and pressure. Compared with traditional solid aluminum panels, exterior wall aluminum honeycomb panels significantly reduce weight while maintaining high strength, perfectly solving the load and wind resistance problems of high-rise building curtain walls.

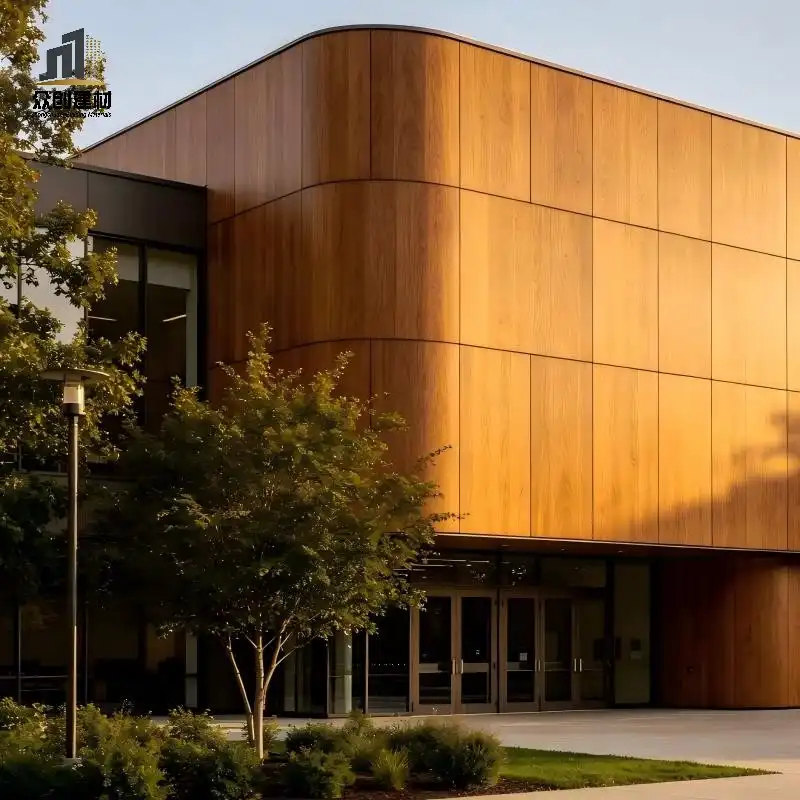

The two-tone combination of the exterior aluminum honeycomb panels gives it a more sophisticated look.
1. Technical Specifications
| Parameter | Standard Specification | Customization Range |
|---|---|---|
| Face/Back Sheet | 3003/5005 aluminum alloy | 5052/5754 high-strength aluminum alloy |
| Sheet Thickness | 0.8mm/1.0mm | 0.6mm-1.5mm |
| Honeycomb Core | Hexagonal aluminum, cell size 6mm, foil 0.06mm | Cell size 3mm-25mm, foil 0.05mm-0.15mm |
| Total Panel Thickness | 10mm/15mm/20mm/25mm | 30mm-100mm |
| Standard Size | 1220×2440mm, 1500×3000mm | Max 1850×6000mm |
| Surface Finish | PVDF coating (25-year weather resistance) | Anodizing, wood grain, stone grain |
| Fire Rating | A2 non-combustible | - |
| Wind Load Resistance | ≥9.0kPa | Customizable up to 12kPa+ |
2. Key Advantages
Ultra-light & High Strength Weighing only 5-8kg/m², 60% lighter than solid aluminum panels of the same thickness, significantly reducing the load on building structures and keels, ideal for curtain walls of high-rise buildings over 100 meters.
Excellent Wind Resistance & Flatness The honeycomb structure forms numerous closed cells that effectively distribute wind loads, maintaining excellent flatness even in strong typhoon areas without deformation or bulging.
Long-term Weather Resistance Coated with AkzoNobel PVDF fluorocarbon coating, resistant to UV rays, acid rain and salt spray, maintaining color stability for over 25 years outdoors, perfectly adapting to various harsh climates.
Thermal & Acoustic Insulation The honeycomb cavity structure effectively blocks heat transfer and air convection, providing 3 times better thermal insulation than solid aluminum panels, and reducing noise by 30-40dB.
A2 Fire Rating Made of 100% aluminum, achieving A2 fire rating, non-combustible and non-toxic in case of fire, complying with fire safety requirements for all types of public buildings.
Easy Installation & Low Maintenance Dry-hanging installation system ensures fast construction and shortens project duration. The smooth surface is easy to clean with natural rain, requiring minimal maintenance.
3. Typical Applications
Curtain walls for high-rise offices, hotels and apartments
Exteriors of large commercial complexes and shopping malls
Airport terminals, high-speed railway stations and metro stations
Public buildings such as exhibition centers, stadiums and museums
Urban renewal and old building facade renovation projects

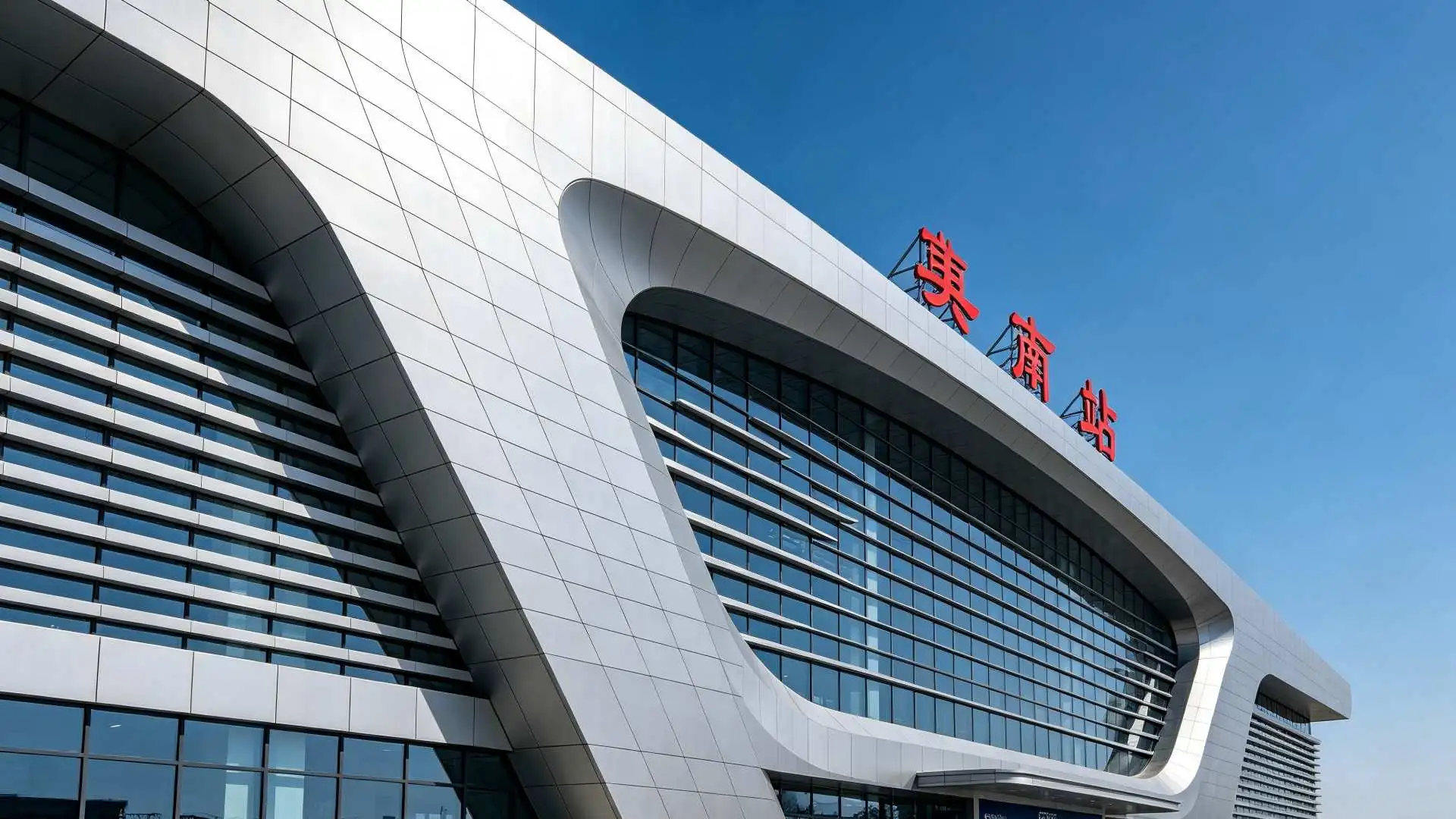

Aluminum honeycomb panels for the exterior walls of high-speed railway stations
4. Our Services
As a professional exterior wall aluminum honeycomb panel manufacturer, we have complete production lines and extensive experience in large-scale projects. We provide one-stop services from design development and production to installation guidance. We support custom curved, double-curved, perforated and carved panels, offer free samples and project quotations, and provide 15-year coating warranty and 25-year structural warranty for all products.
