20mm Aluminum Honeycomb Panel

Product Overview

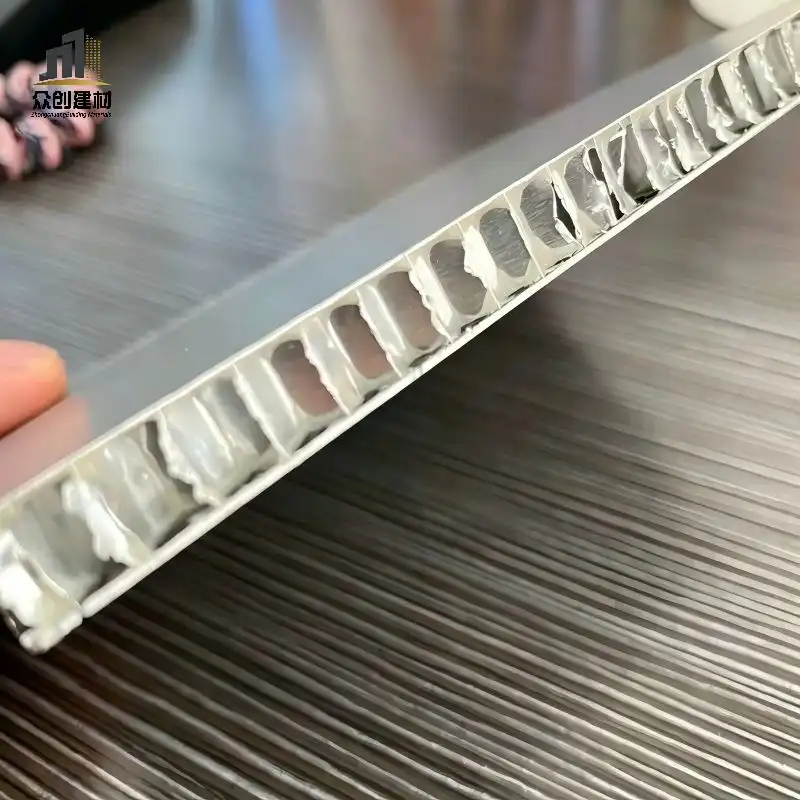

Our 20mm aluminum honeycomb panel (also called 20mm aluminum honeycomb core panel, 20mm honeycomb aluminum cladding) is the industry gold standard thickness for large-span commercial projects, manufactured with 0.8-1.5mm aluminum face sheet, 0.05mm aluminum honeycomb core and 0.5-1.0mm aluminum back sheet, total thickness 20mm. After 100+ project verification, 20mm is the perfect balance point between stiffness and weight: it achieves the same rigidity as 3mm solid aluminum panel at only 1/2 of the weight, with flatness 10x better than standard solid aluminum panels, no waviness on large 6m spans without extra stiffeners. It solves the core industry pain points of solid aluminum panel waviness on large ceilings, heavy weight of stone cladding, and poor fire rating of aluminum composite panels. Our 20mm honeycomb panels are widely used for large-span ceilings, high-rise facades, airport terminals, exhibition centers and high-end commercial interiors, with modular hook-on installation system for fast construction.

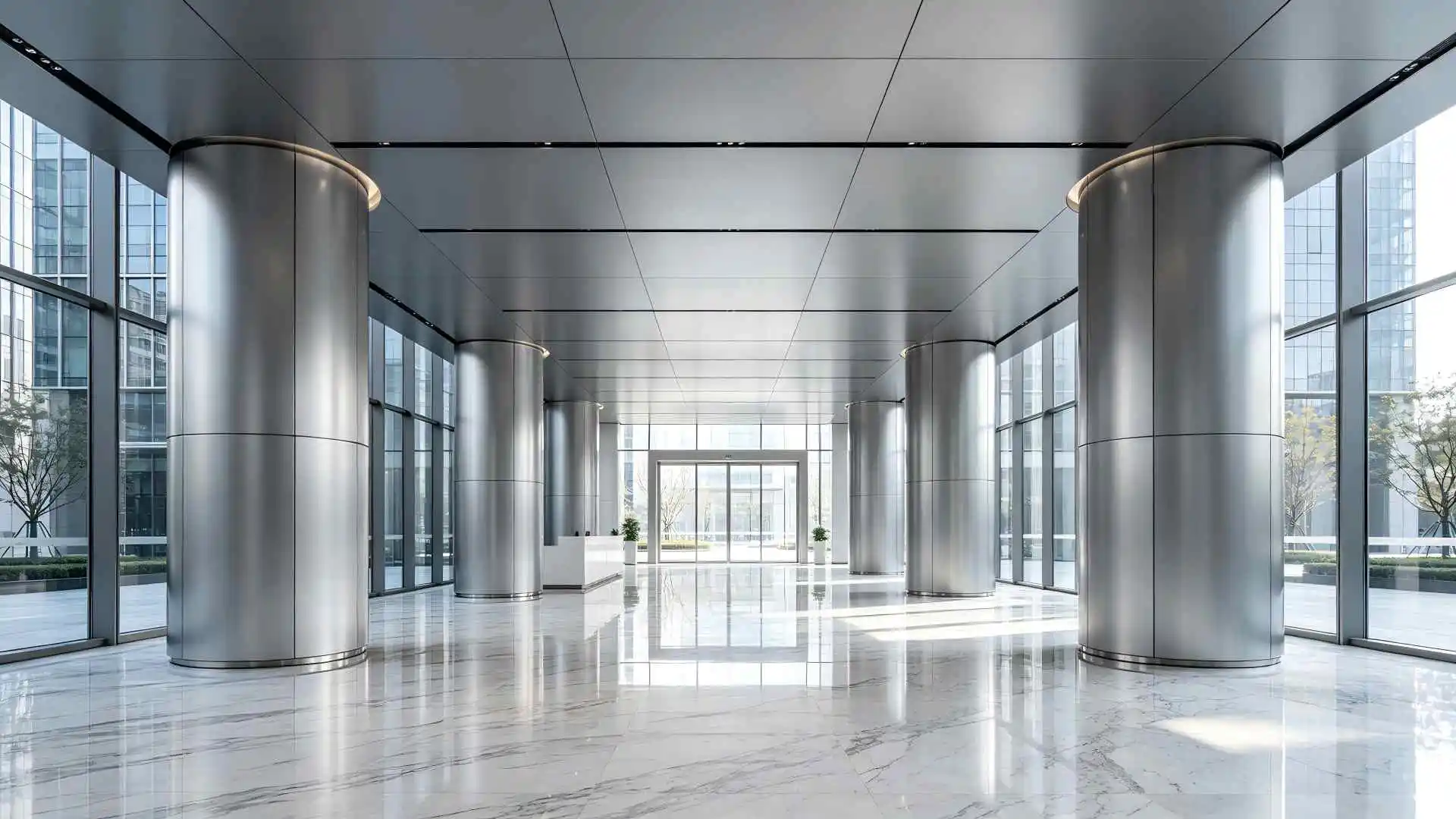

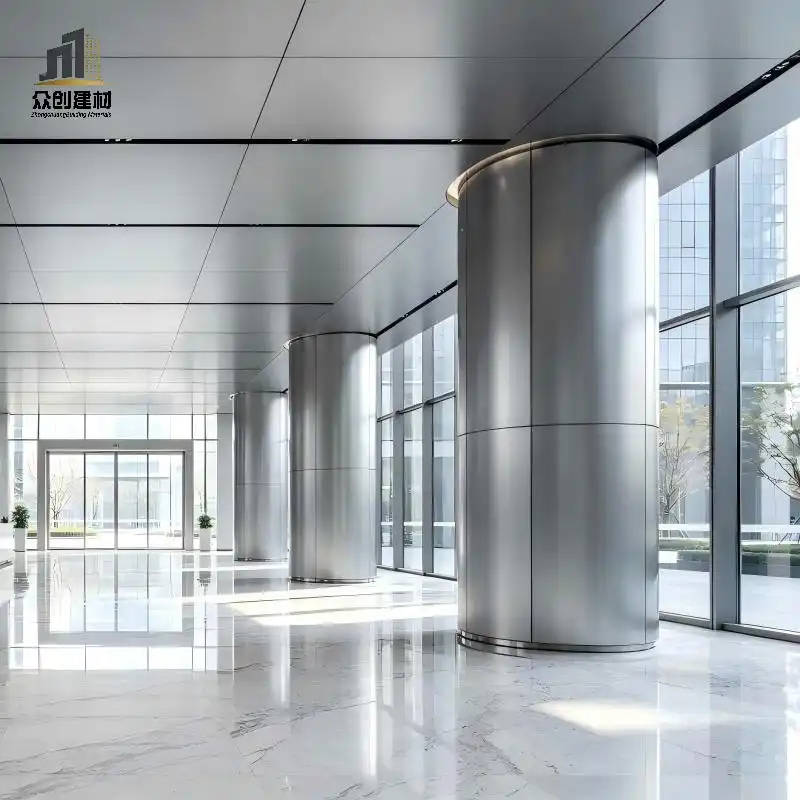

Silver 20mm aluminum honeycomb panel, office lobby round column cladding project

7 Core Advantages of 20mm Aluminum Honeycomb Panel

Golden Stiffness-Weight Ratio At only 5-6kg/㎡ (1/2 the weight of 3mm solid aluminum panel, 1/5 the weight of 25mm stone), 20mm honeycomb structure achieves equal or higher rigidity, reducing building structural load by 65% for high-rise and large-span projects.

10x Better Flatness, No Waviness The honeycomb core evenly supports the face sheet, achieving flatness ≤0.5mm/m, 10x flatter than standard 2.5mm solid aluminum panels. 6m long panels stay perfectly flat with no waviness, making it ideal for seamless large-span ceilings and facades.

29dB High Sound Insulation 20mm honeycomb sandwich structure achieves 29dB airborne sound insulation, 15dB higher than solid aluminum panels of the same weight, effectively reducing echo and noise transmission in public spaces.

A2 Non-Combustible Fire Rating 100% aluminum structure achieves A2 non-combustible rating (EN 13501-1), meeting the strictest fire codes for high-rise buildings, transport hubs and public spaces, eliminating fire risks of ACP and plastic core panels.

6m Large Format, No Extra Stiffeners Maximum size up to 6000*2000mm, no welded stiffeners required on the back, saving 100% of stiffener material and labor cost, with completely flat back for easy installation.

30% Faster Modular Installation Standard 20mm thickness matches universal hook-on keel systems, no custom keels required. Installation speed is 30% faster than solid aluminum panels and 70% faster than stone cladding, shortening project timelines.

20 Years Outdoor Durability Finished with AkzoNobel PVDF coating, the panels resist UV, salt spray and extreme weather, with 20 years outdoor warranty, same service life as solid aluminum panels at 1/2 the weight.

Technical Specifications (20mm Standard)

Application Scenarios

Large-span ceilings: Airport terminals, high-speed rail stations, exhibition centers, convention halls, shopping mall atriums

High-rise facades: Super high-rise building cladding, coastal project facades, lightweight curtain wall

High-end interiors: Five-star hotel lobbies, Grade A office ceilings, hospital clean rooms, laboratory walls

Special applications: Ship interior decoration, prefabricated building walls, sound insulation partitions, large column covers

Customization & Installation Process

Provide project dimensions, application and design requirements

Our team provides free shop drawings and layout plans within 48 hours, including keel layout and joint details

Confirm drawings, approve physical sample (7 days lead time)

Factory production: CNC cutting → edge folding → honeycomb core gluing → hot press curing → coating → flatness inspection

Professional protective packaging with numbered panels for easy on-site installation

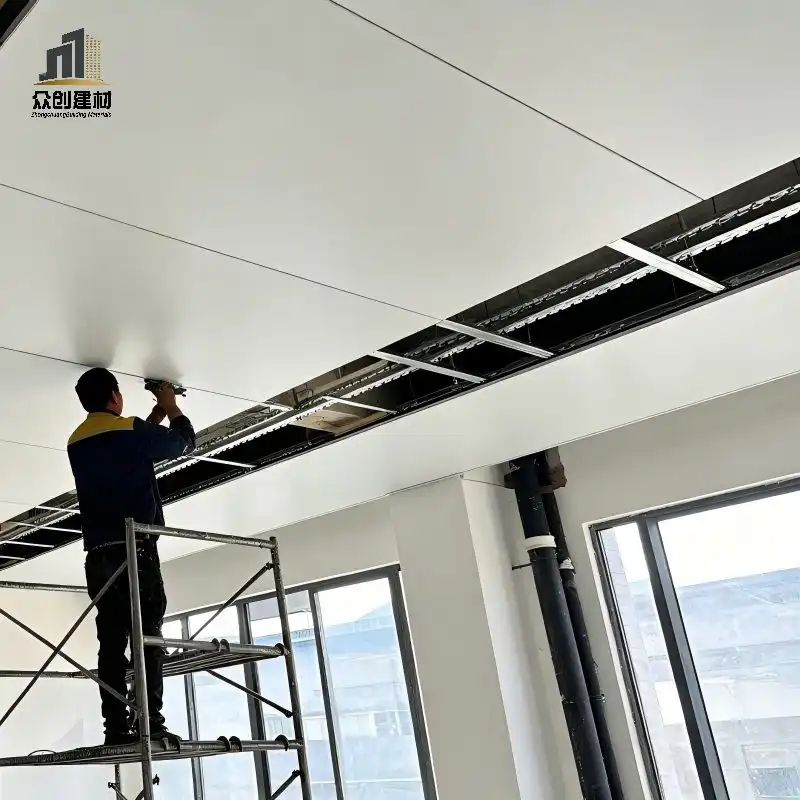

On-site installation: Install standard universal keels → hang panels in numbered order → finish trim; remote installation guidance available

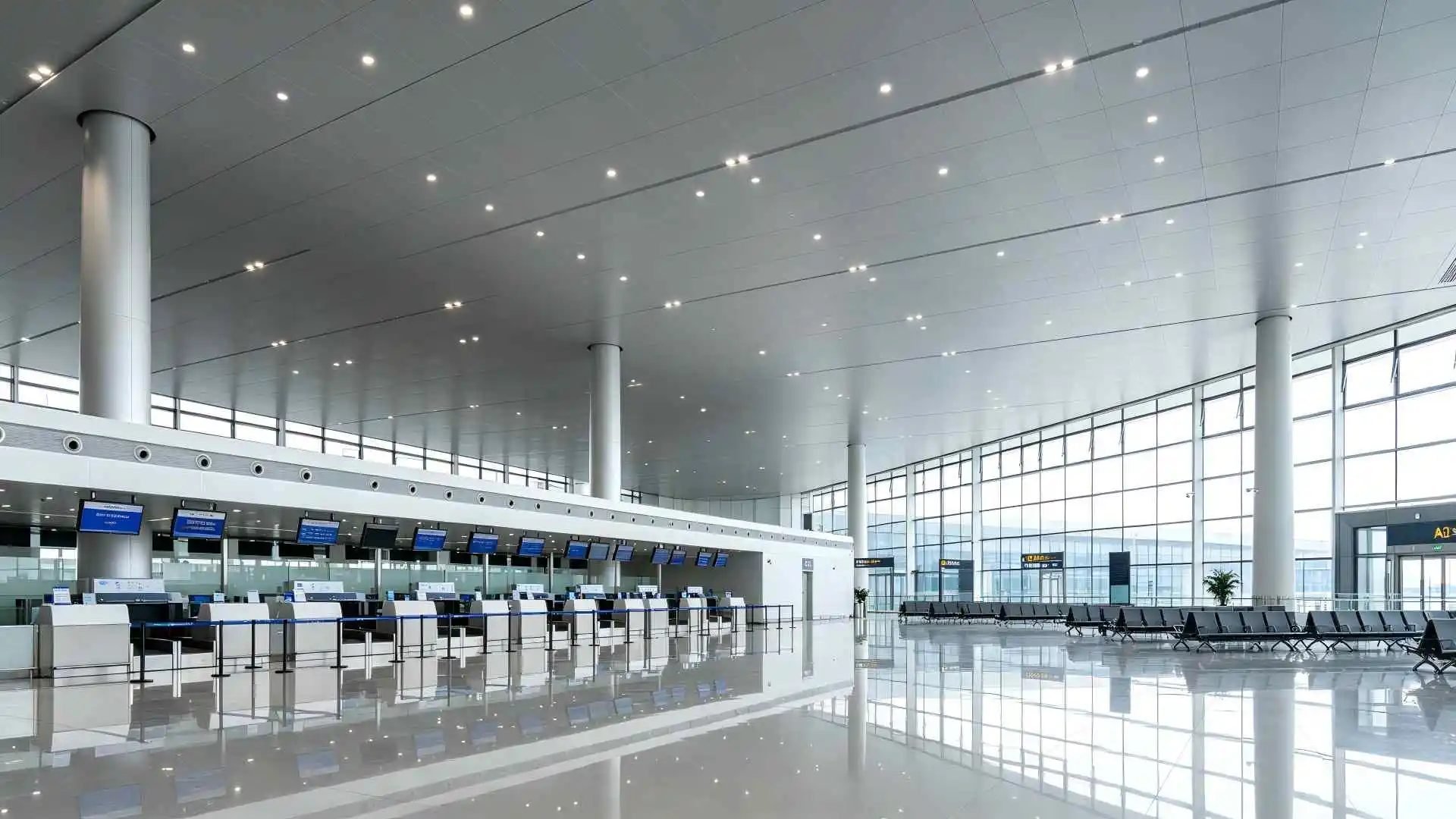

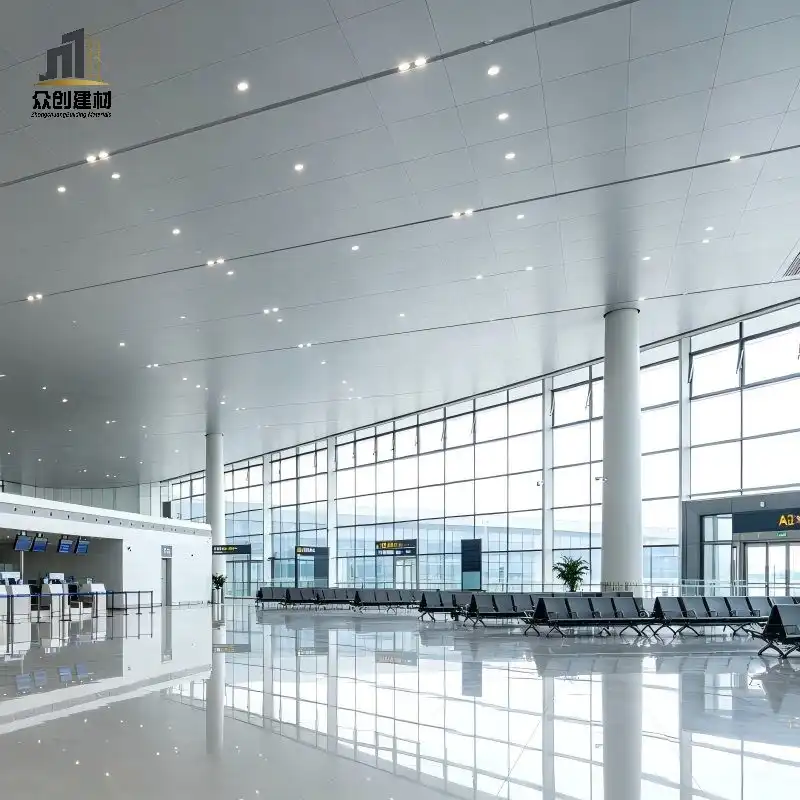

Silver 20mm aluminum honeycomb panel, airport check-in hall large span ceiling project

Frequently Asked Questions

Why choose 20mm thickness instead of 15mm or 25mm?

20mm is the verified gold standard: 15mm panels have lower stiffness and may deform on spans over 4m; 25mm panels are 25% heavier and cost 18% more with no meaningful stiffness gain for most projects. 20mm works for 90% of commercial wall and ceiling applications.

What is the maximum size for 20mm honeycomb panels?

We can produce up to 6000*2000mm single panels without splicing, with no waviness or deformation across the full span.

Can 20mm honeycomb panels be curved?

Yes. We can produce single-curved and double-curved 20mm honeycomb panels for special shaped ceilings and facades, with the same flatness and stiffness as flat panels.

Do I need special keels for installation?

No. Standard 20mm honeycomb panels are compatible with universal aluminum panel hook-on keels, no custom keel system required, reducing material cost.

How good is the sound insulation? S

tandard 20mm honeycomb panels achieve 29dB airborne sound insulation; perforated acoustic honeycomb panels with sound-absorbing cotton can reach NRC 0.85 for high-noise spaces.

Can 20mm honeycomb panels be used outdoors?

Yes. Outdoor models use 1.2/1.5mm face sheet with AkzoNobel PVDF coating, achieving 20 years outdoor durability, suitable for high-rise and coastal facades.

Do panels need back stiffeners for large sizes?

No. The 20mm honeycomb structure provides full support across the entire panel, no welded stiffeners are needed even for 6m long panels, saving material and labor cost.

What is production lead time?

Sample lead time is 7 days, mass production lead time is 15-20 days depending on order quantity.
