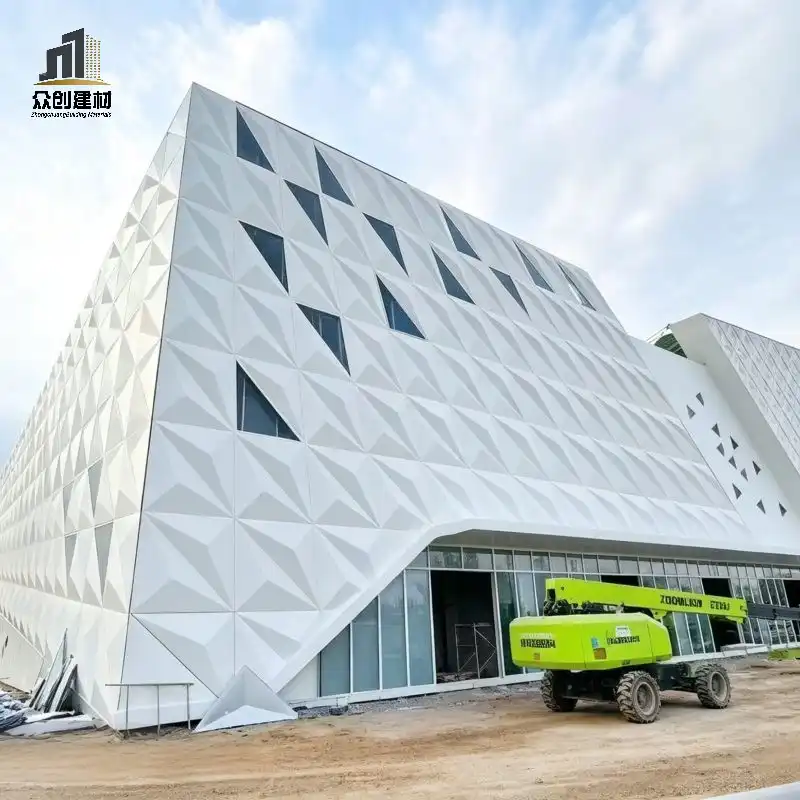

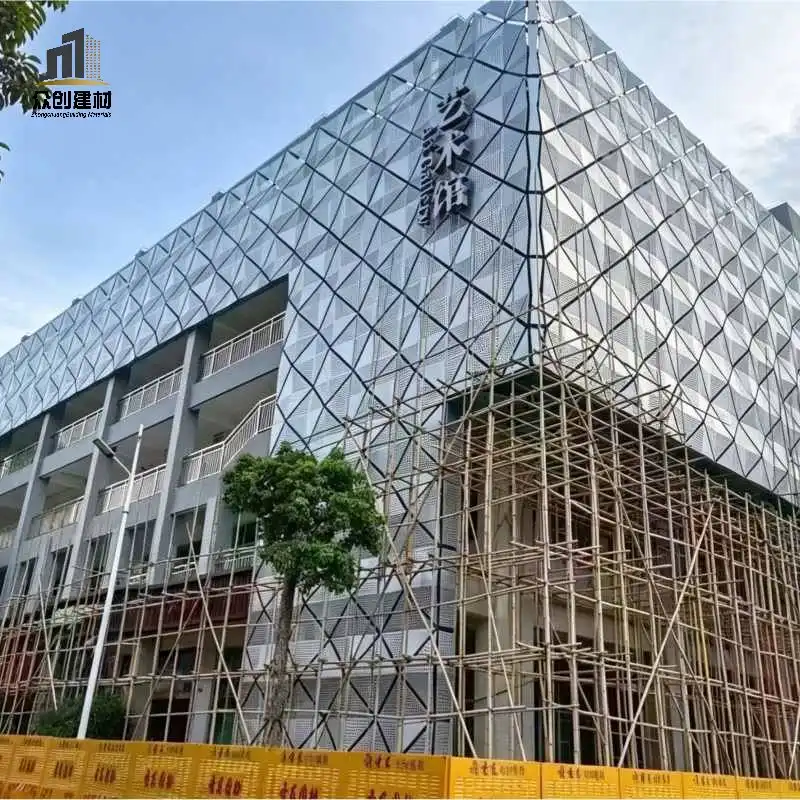

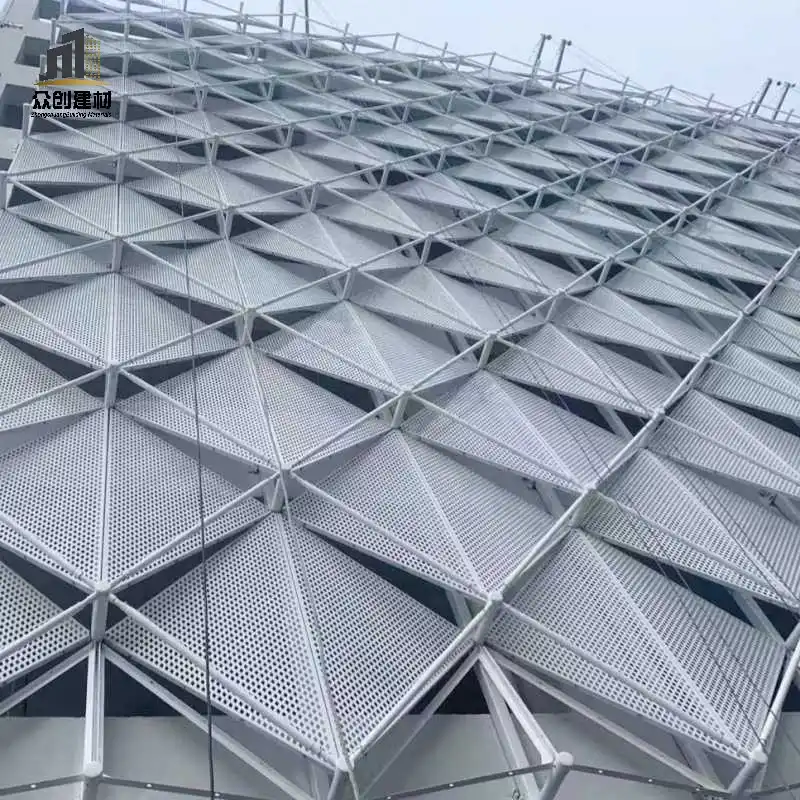

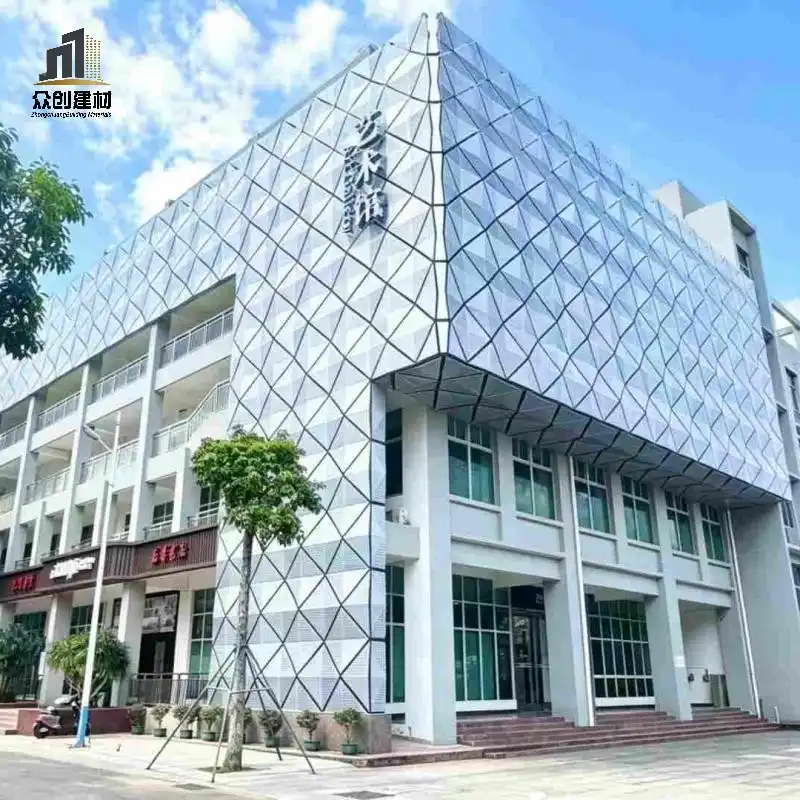

A2 Non-Combustible Folded Aluminium Cladding

Product Overview

Guangdong Zhongchuang fire rated folded aluminum panels are purpose-engineered for high-rise and high-occupancy buildings with strict fire safety requirements. Manufactured with 100% non-combustible aluminum alloy base material and precision press-braked folding technology, these panels combine geometric architectural aesthetics with A2 class fire safety performance, fully complying with international commercial building fire codes.

The panels are available in custom single-fold, multi-fold and angular faceted designs, with sizes up to 6000mm × 1500mm. Standard PVDF fluorocarbon coating delivers 20 to 30 years of outdoor weather resistance, making them ideal for commercial complexes, public venues, transportation hubs and high-rise office projects where fire safety is a mandatory requirement.

6 Core Advantages of Fire Rated Folded Aluminum Cladding

A2 Class Non-Combustible Fire Safety

Made from 100% solid aluminum alloy, the panels achieve A2 class non-combustible rating per EN 13501-1 and Class A per ASTM E84 standards. The material produces no toxic fumes and no molten drips during fire events, protecting occupant safety and fully meeting the mandatory fire safety requirements for high-occupancy public and commercial buildings.

Precision Press-Braked Folding Process

CNC four-axis press brake technology achieves ±0.1° bending angle accuracy and ≤0.5mm/m panel flatness. The folded edge structure increases overall panel rigidity by 30% compared to flat panels, with tight, uniform joints between installed panels for a seamless architectural appearance.

Long-Term Outdoor Weather Durability

High-grade PVDF fluorocarbon coating provides excellent resistance against UV fading, acid rain corrosion and industrial pollution. The finish maintains consistent color and gloss for 20 to 30 years, reducing long-term facade maintenance costs for property owners.

Flexible Geometric Design Customization

Support for custom single-fold, multi-fold, zig-zag and 3D faceted folding designs, with unlimited color and finish options. Architects can create unique angular geometric facades with dynamic light and shadow effects, perfectly matching the design language of landmark commercial and public buildings.

Lightweight Structure Reduces Building Load

Weighing only 3-5kg per square meter, folded aluminum panels are roughly 1/5 the weight of natural stone cladding. This drastically reduces structural load on high-rise buildings, lowering foundation and structural engineering costs while improving seismic and wind resistance performance.

Universal Code Compliance for Public Projects

The fire rated panel system meets all major international fire safety standards including EN 13501-1, ASTM E84 and GB 8624 A2, making it suitable for global public construction projects including schools, hospitals, transportation hubs and government buildings with strict fire code requirements.

Technical Specifications

Typical Application Scenarios

High-rise commercial complexes and Grade A office towers

Stadiums, exhibition halls and other large public venues

High-speed rail stations, airports and metro transportation hubs

Schools, hospitals and government institutional buildings

Hotel and retail building facade renovation projects

Industrial park and factory building exterior cladding

Fire Safety Certifications & Compliance

Our fire rated folded aluminum panels have passed third-party testing for all major global fire safety standards:

EN 13501-1: A2 class non-combustible (European Union standard)

ASTM E84: Class A flame spread rating (North American standard)

GB 8624-2012: Class A2 non-combustible (Chinese national standard)

Full smoke toxicity and molten drip resistance testing

Custom Project Delivery Process

Project consultation: Confirm fire code requirements, design specifications, project timeline and budget

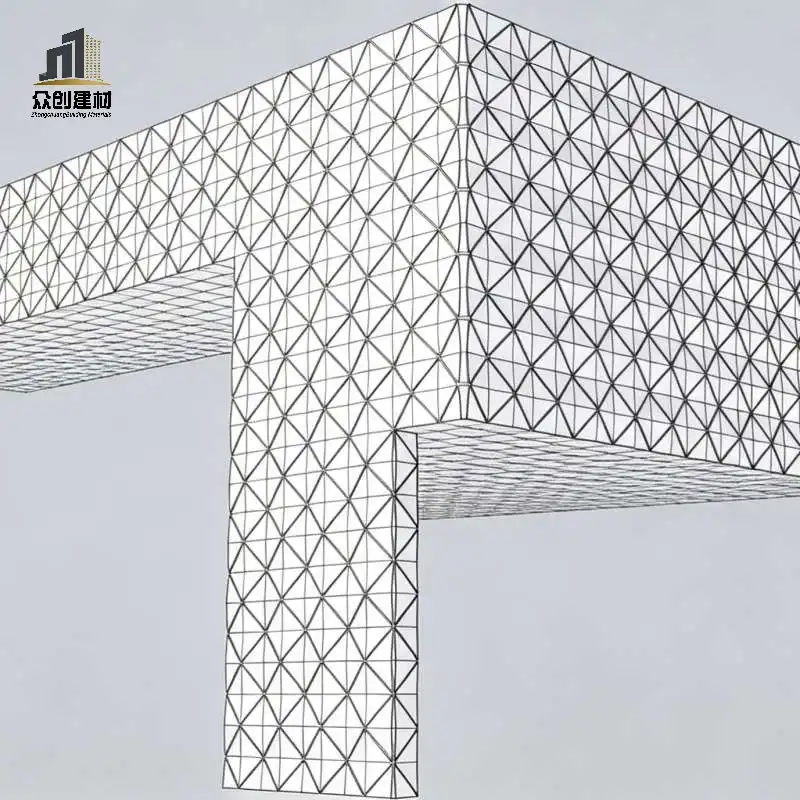

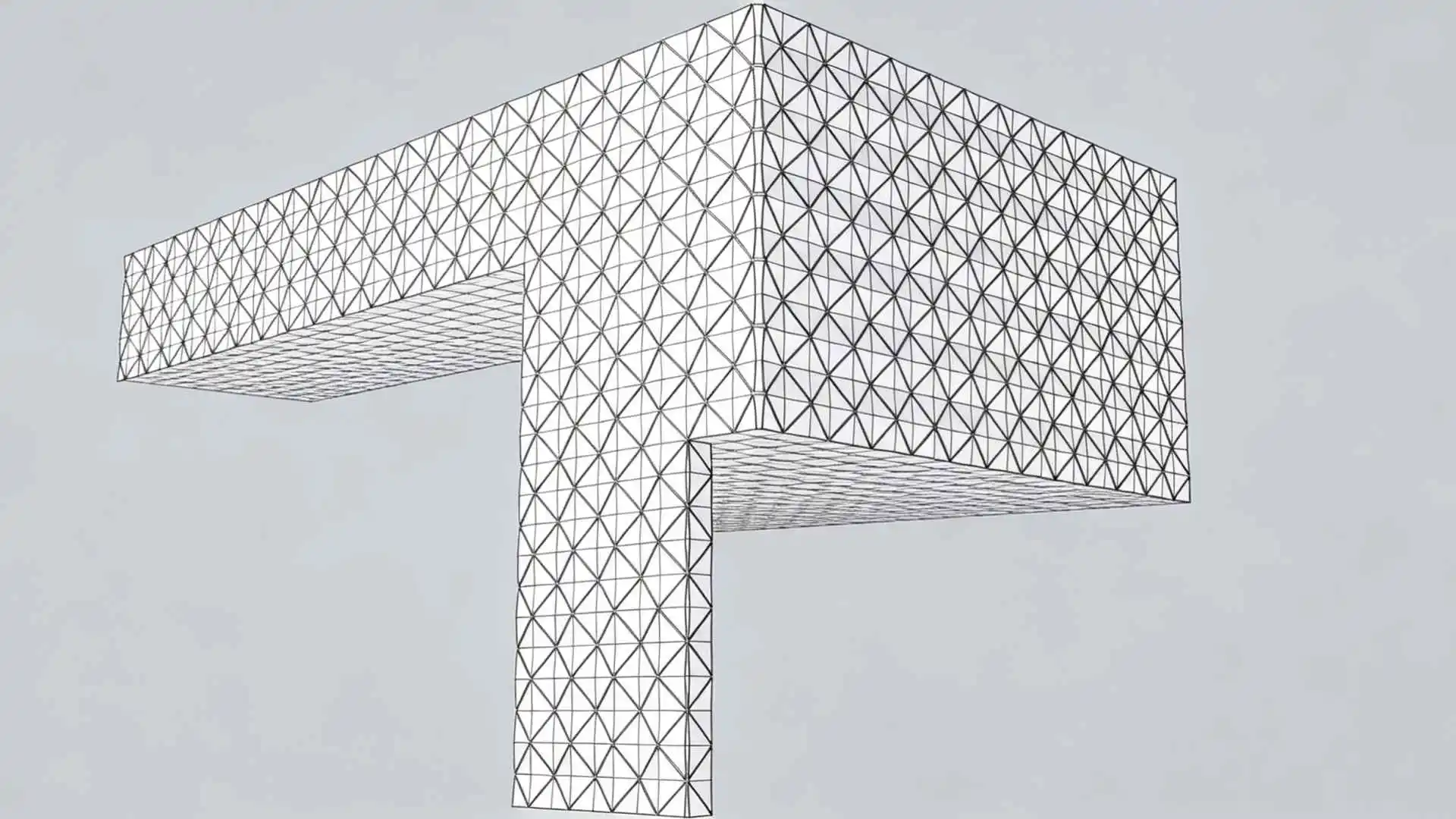

Deepening design: Technical team provides structural calculation, panel layout and folding detail drawings

Sample confirmation: Produce custom folded sample panels for fire performance and appearance verification

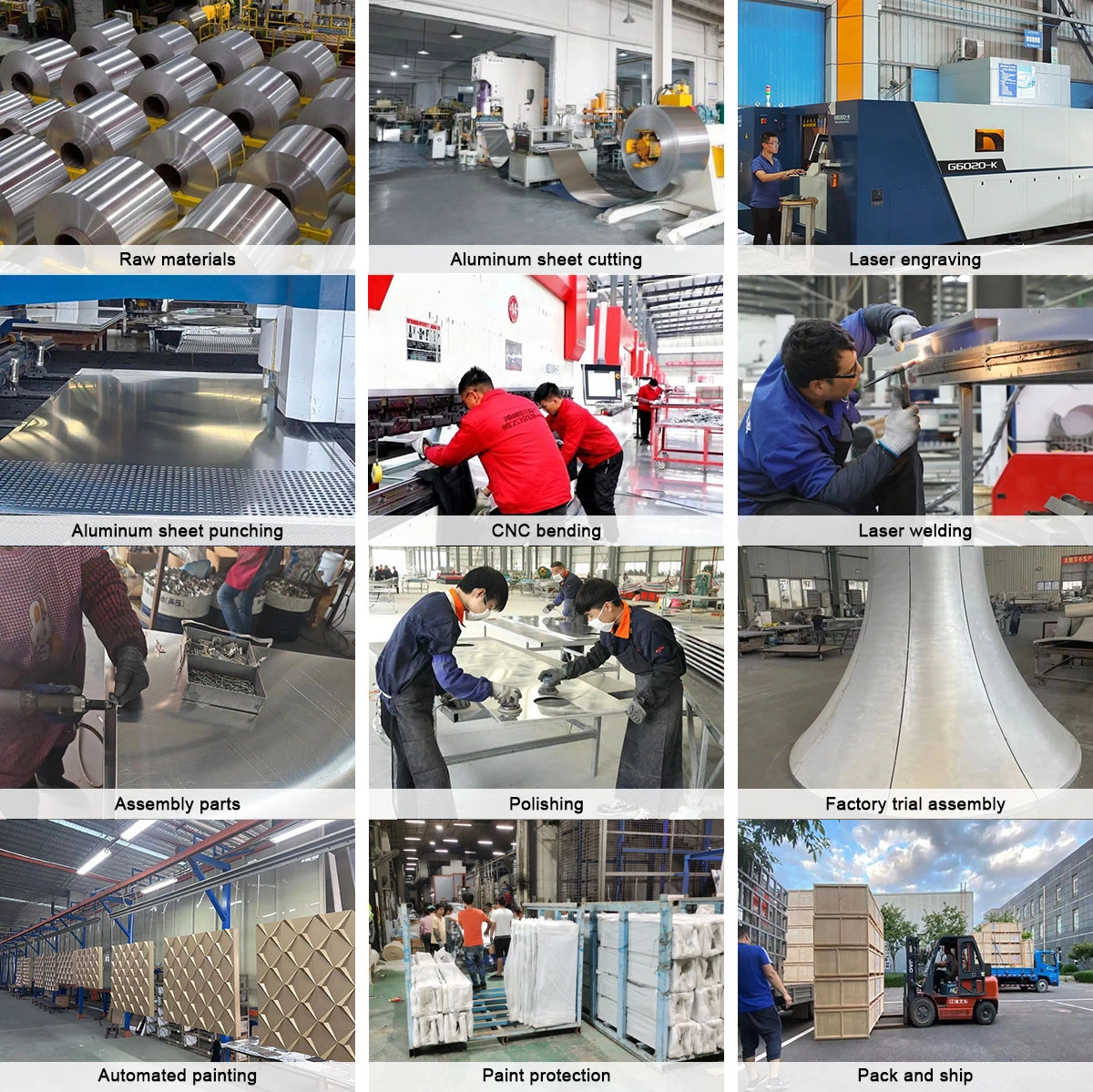

Factory production: CNC precision fabrication with batch quality inspection and fire performance spot checks

Delivery & installation: On-time delivery with professional on-site installation guidance

After-sales support: Completion acceptance and long-term product warranty service

Frequently Asked Questions

Q: What fire rating do these folded aluminum panels have? A: Our fire rated folded aluminum panels achieve

A2 class non-combustible rating per EN 13501-1 and Class A per ASTM E84, the highest fire safety rating for decorative architectural cladding materials, fully compliant with commercial and public building fire codes.

Q: What is the difference between fire rated folded panels and standard folded aluminum panels?

A: Fire rated panels use high-purity aluminum alloy base material and fire-resistant coating formulations, with full third-party fire safety certification. Standard folded panels have the same structural performance but do not carry formal fire rating certification, and are not suitable for projects with mandatory fire code requirements.

Q: Can these panels be used for high-rise building facades above 100 meters?

A: Yes. The A2 non-combustible rating and lightweight structure make the panels fully suitable for high-rise building facade applications. We provide custom structural wind load calculation support for super high-rise projects.

Q: Is the installation method the same as regular aluminum cladding?

A: Yes. Fire rated folded aluminum panels use the same standard hook-on keel installation system as conventional aluminum facade panels, requiring no special additional structural modifications for installation.
