aluminium cladding panels
Aluminum curtain wall is a widely used exterior enclosure system in modern architecture.
Name:Aluminium cladding panels
Application scenarios:shopping malls, hotels, airports, high-speed rail stations, office buildings, etc
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-20 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description
Aluminium Cladding Panels - Premium Building Solutions for Modern Architecture
When you're looking for the culminate adjust of toughness, aesthetics, and usefulness, aluminium cladding panels offer the perfect arrangement for your engineering ventures. These lean, level aluminum items are particularly planned to cover outside and insides building surfaces with uncommon execution and style.
Our aluminum boards are made from high-quality aluminum combination sheets utilizing progressed handling strategies counting rolling, cutting, and bowing. You'll appreciate their lightweight however high-strength characteristics that make establishment direct whereas conveying long-lasting assurance for your building structure.
Why Choose Our Aluminum Cladding Solutions?
Superior Material Innovation
Our boards highlight premium aluminum combinations counting 1100, 3003, 5005, and 6063 grades. You can select from thickness alternatives extending from 1.5mm to 5.0mm to meet your particular extend prerequisites. The PVDF and PE surface medicines guarantee extraordinary climate resistance and color retention.
Customization That Fits Your Vision
Every venture is interesting, and we get it that. You can select from RAL colors and other customized wraps up to superbly coordinate your engineering fashion. Whether you're planning advanced moderate exteriors or classic conventional buildings, our boards adjust consistently to your imaginative vision.
Proven Performance Standards
Our coating quality meets thorough industry benchmarks. The film thickness midpoints ≥50μm with least neighborhood thickness ≥34μm. You'll advantage from prevalent attachment (review 0 cross-cut test), hardness ≥2H, and fabulous corrosive resistance. These aluminium cladding panels keep up their appearance and auxiliary judgment for decades.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|

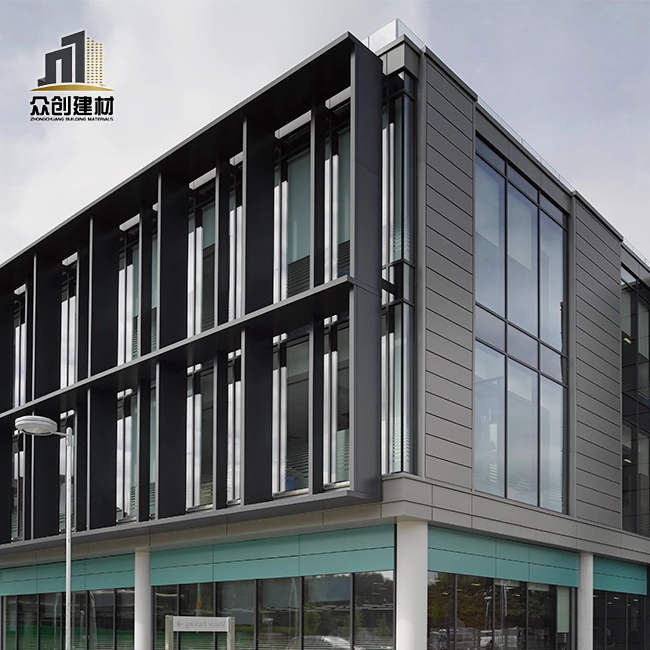

Applications Across Diverse Building Types
Commercial and Public Spaces
- Shopping malls requiring attractive, low-maintenance exteriors
- Hotels needing sophisticated facade solutions
- Airports demanding high-performance, fire-resistant materials
- High-speed rail stations requiring durable, weather-resistant cladding
- Office buildings seeking energy-efficient envelope systems
Renovation and New Construction
Our panels work excellently for both old building renovations and new construction projects. You can transform aging structures with modern, energy-efficient cladding or create stunning new facades that stand the test of time.
Professional Installation and Support
Complete Project Support
We provide comprehensive support throughout your project lifecycle. Our services include CAD 3D modeling, material mechanics simulation, and factory pre-assembly. You'll receive detailed construction drawings and on-site technical guidance ensuring installation precision within ≤0.5mm tolerance.
Quality Certifications
Our products carry CE, UL, SASO, and ISO 12944-6 certifications, giving you confidence in quality and compliance. These certifications demonstrate our commitment to international quality standards and building safety requirements.
Surface Treatment Excellence
Our advanced coating systems provide exceptional protection against environmental factors. The surface treatments resist UV radiation, temperature fluctuations, and moisture infiltration. You'll enjoy consistent color appearance and protection from sunlight, rain, and seasonal weather changes.
The coating maintains gloss levels between 31.0-33.9 with excellent abrasion resistance rated at 6.6L/μm. This ensures your products retain their attractive appearance throughout their service life.
Production process
Get Started with Your Project
Ready to transform your building with premium aluminum cladding solutions? Our experienced team is here to help you select the perfect panels for your specific requirements. We'll work with you from initial design concepts through final installation.
Contact us today at [email protected] to discuss your project needs and receive a customized quote for your aluminium cladding panels.
