aluminium composite panel wall cladding
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-51 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description
Aluminium Composite Panel Wall Cladding: Premium Building Solutions
Transform Your Building's Exterior with Professional Cladding Systems
When you're looking for the perfect balance of aesthetics, performance, and cost-effectiveness, aluminium composite panel wall cladding delivers exceptional results for your building projects. Our advanced cladding systems consist of two thin aluminum sheets bonded to a specially engineered core, creating lightweight yet durable panels that transform any structure. You'll appreciate how these panels combine strength with affordability while offering endless design possibilities. Whether you're working on commercial buildings, retail outlets, or residential complexes, our product provides the perfect solution for modern architectural requirements.
Why Choose Our Premium Wall Cladding Solutions?
Superior Material Innovation
You get get to to cutting-edge materials built for execution. Our boards highlight aluminum sheets extending from 0.5 to 1.5mm thickness, fortified to either polyethylene (PE) centers for cost-effectiveness or mineral-filled (MF) centers for improved fire resistance. The result? Boards that are 30% lighter than strong aluminum choices whereas keeping up predominant basic integrity.
Comprehensive Thickness Options
We offer boards extending from 1.5mm to 5.0mm thickness. You can select the idealize detail for your venture prerequisites. Our materials incorporate premium aluminum combinations such as 1100, 3003, 5005, and 6063 grades.
Advanced Surface Treatments
Your boards get proficient PVDF or PE surface medications for greatest strength. These coatings guarantee your building keeps up its shocking appearance for decades. Our surface quality meets strict universal benchmarks with film thickness averaging ≥50μm.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Extensive Customization Capabilities
Color and Finish Options
You have access to RAL colors plus unlimited custom color matching for aluminium composite panel wall cladding. Choose from matte, glossy, or metallic finishes to achieve your exact design vision. Our color consistency ensures uniform appearance across your entire project.
Flexible Sizing Solutions
We give totally customized measuring to meet your particular necessities. Standard boards ordinarily degree 4x8 feet, but we oblige any measurements your venture requests. Our exactness fabricating guarantees establishment blunders stay ≤0.5mm.
Design Flexibility
Our panels can be bent and curved to follow architectural contours. You'll love how easily they adapt to complex building designs while maintaining structural integrity.
Performance Features That Matter
Energy Efficiency Benefits
The core's moo warm conductivity progresses your building's vitality execution. You'll take note diminished warming and cooling costs much appreciated to upgraded cover properties.
Weather Resistance
Our PVDF coatings give remarkable security against unforgiving climate conditions. Your venture remains ensured with corrosive resistance tried at 5% HCl for 24 hours appearing no changes.
Long-Term Durability
You get a comprehensive 30-year guarantee on our premium boards. Surface coatings keep up their appearance for over 10 a long time beneath typical conditions.
Professional Installation Support
Complete Technical Guidance
Our team provides detailed construction drawings and on-site technical support. You get CAD 3D modeling, material mechanics simulation, and factory pre-assembly services.

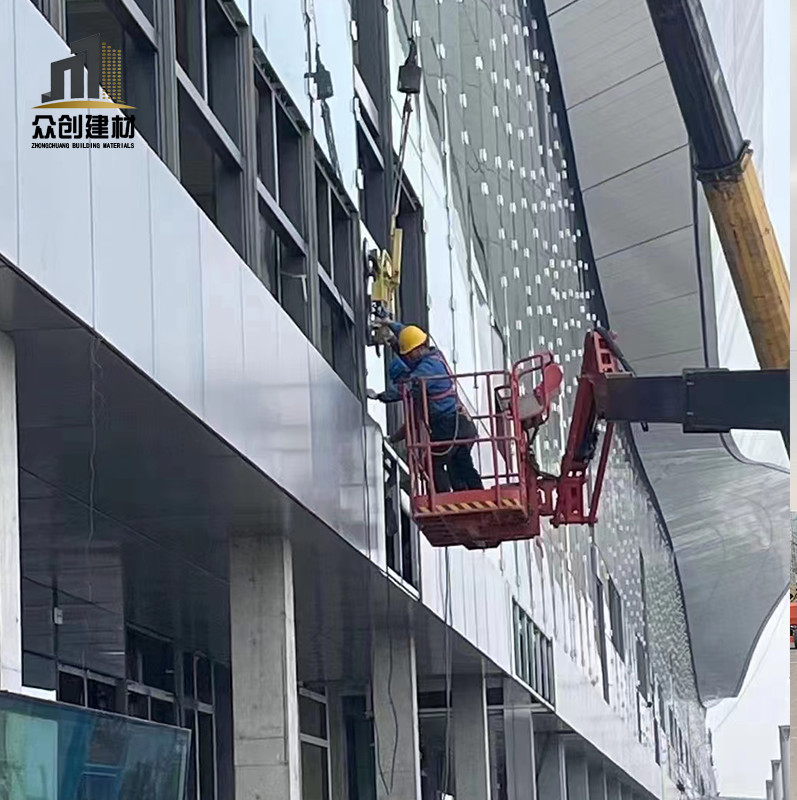

Installation Efficiency
The lightweight design reduces structural load requirements and installation costs. Our clip-attachment system allows for thermal expansion while ensuring secure mounting.
Quality Certifications You Can Trust
Your project benefits from internationally recognized certifications including CE, UL, SASO, and ISO 12944-6 standards. These certifications guarantee quality and compliance with building codes worldwide.
Ideal Applications
Perfect for mid-rise commercial buildings, retail outlets, and residential complexes. Our product excels in applications where you need to balance aesthetics, performance, and budget considerations.
Ready to Transform Your Building?
Contact our expert team today for personalized project consultation. We'll help you select the perfect aluminium composite panel wall cladding solution for your specific requirements. Reach out to [email protected] to discuss your project and receive detailed specifications.
