Aluminum Exterior Trim

Product Overview

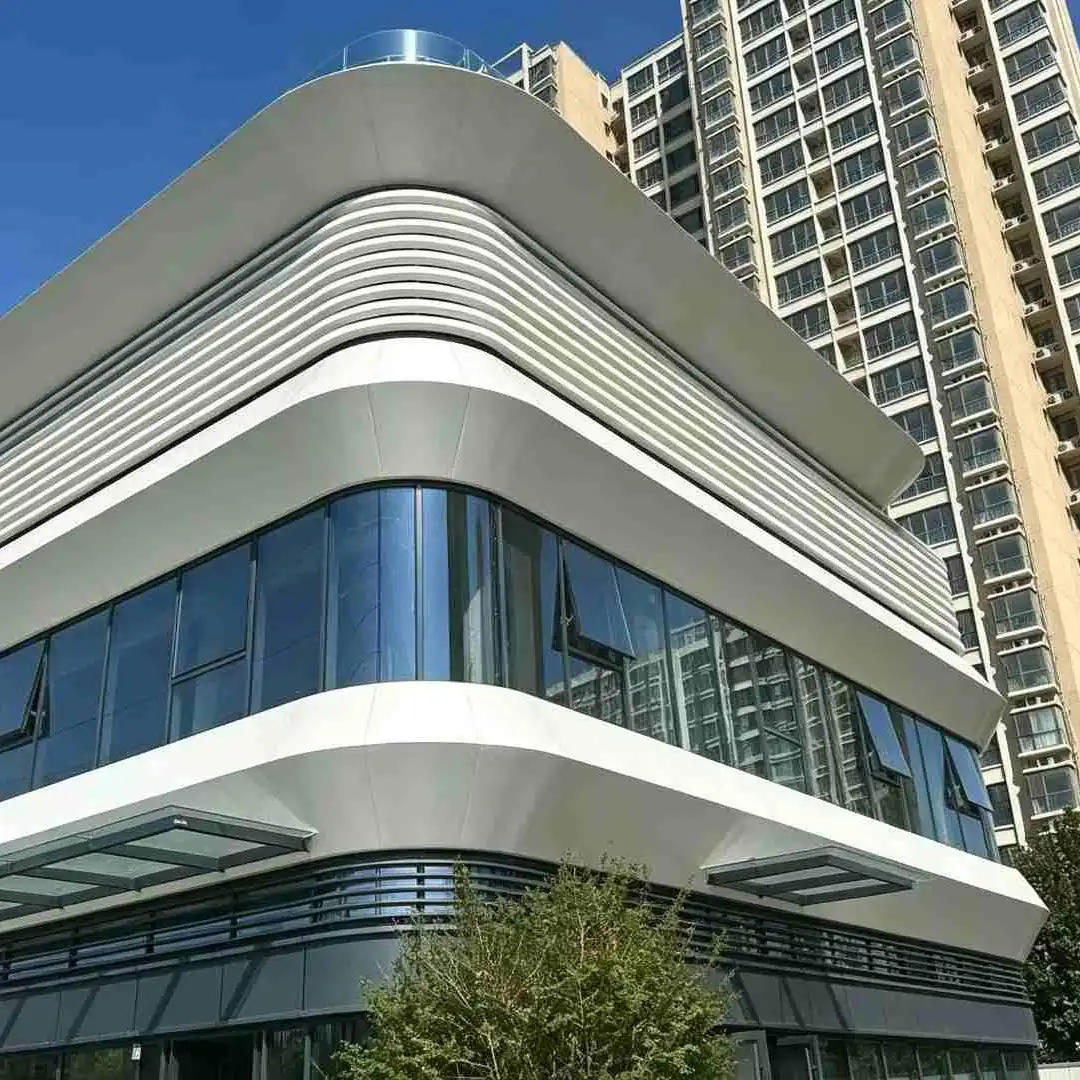

Aluminum exterior trim is fabricated from high-grade aluminum alloy profiles through extrusion or brake forming, creating continuous, uniform decorative cross-sections installed on horizontal and vertical building facade locations. From classical European cornice molding to modern minimalist belt courses, from warm wood tones to cool metallic finishes, aluminum trims are replacing traditional GRC, plaster, solid wood, and PVC — thanks to their light weight, durability, and design flexibility.

Aluminum exterior trims not only give building facades a distinctive silhouette and layering, but also perform functional roles such as water shedding, edge finishing, and moisture protection. Whether for detached villas, commercial complexes, or high-rise residential buildings, aluminum trims are the key detail that elevates building quality.

Why Choose Aluminum Exterior Trim

Exterior trims are permanently exposed to sun and rain, making the durability of traditional materials a persistent problem. Compared with GRC, solid wood, PVC, and plaster, aluminum trims offer irreplaceable advantages:

Never Cracks: GRC and plaster crack under temperature cycles and settlement; aluminum trims never crack or delaminate.

Rot & Insect Proof: Solid wood decays and is attacked by insects in humid environments; aluminum is completely unaffected.

Lightweight & Safe: Aluminum trims weigh just one-fifth of GRC, making high-rise installation safer and imposing no additional structural load.

Color Retention: PVDF coating lasts 20 years without fading, compared to 3–5 years for wood paint.

High Precision: Extruded profiles hold tolerances of ±0.1mm, producing seamless joints far superior to hand-cast GRC.

Water Shedding: Drip-edge design effectively channels rainwater, preventing wall erosion from surface runoff.

Recyclable: 100% recyclable, supporting green building and LEED certification.

Core Product Series

We offer six trim series tailored to different building facade locations:

Custom Design Capabilities

Every building facade is unique, and standard trims rarely meet the architect's intent. We provide end-to-end customization:

Any Cross-Section: Extruded aluminum profiles can be tooled to any cross-section — from simple straight lines to elaborate European moldings.

Cut-to-Length: Standard 6m lengths can be cut to your wall dimensions, minimizing on-site joints.

Two-Tone Design: Different faces of the same trim can be finished in different colors for added dimensionality.

Wood-Grain Transfer: Realistic wood-grain trims replace solid wood for log-home or Neo-Chinese style buildings.

Coordinated Design: Cornices, belt courses, window casings, and door casings can be designed as a unified facade language.

Drip Function Integration: Drip grooves can be integrated into the cross-section, combining decoration with waterproofing.

Technical Specifications

Surface Finishes

The trim finish directly shapes the overall quality of the building facade. We offer multiple finish technologies covering everything from classical European to modern minimalist styles:

PVDF Fluorocarbon: 20-year fade warranty, ideal for exterior use, full RAL color range.

Wood-Grain Transfer: Realistic oak, walnut, and teak textures replacing solid wood — for log-home style buildings.

Anodizing: Silver, champagne, and bronze metallic finishes — for modern minimalist buildings.

Powder Coating: Matte, semi-matte, and gloss options — cost-effective, ideal for budget-conscious projects.

Brushed / Satin: Fine textured surface elevating the refinement — for high-end buildings.

Installation System

The installation precision of trims directly determines the overall building facade appearance. We provide a proven, reliable installation approach:

Hidden Fixing: Fasteners are concealed in trim grooves, invisible from the front for a clean look.

Adhesive + Mechanical: Structural adhesive combined with mechanical fixing for dual security on flat surfaces.

Expansion Joints: Leave gaps at trim joints filled with color-matched sealant to prevent thermal expansion cracking.

Pre-fabricated Corners: Factory-made 45° miter corners or dedicated corner profiles for direct on-site installation.

Drip Installation: Drip edges are installed at a proper incline to ensure rainwater sheds along the drip groove.

Typical Applications

Aluminum exterior trims are widely used in:

Detached Villa Exteriors: Complete trim system of window casings, cornices, belt courses, and door casings.

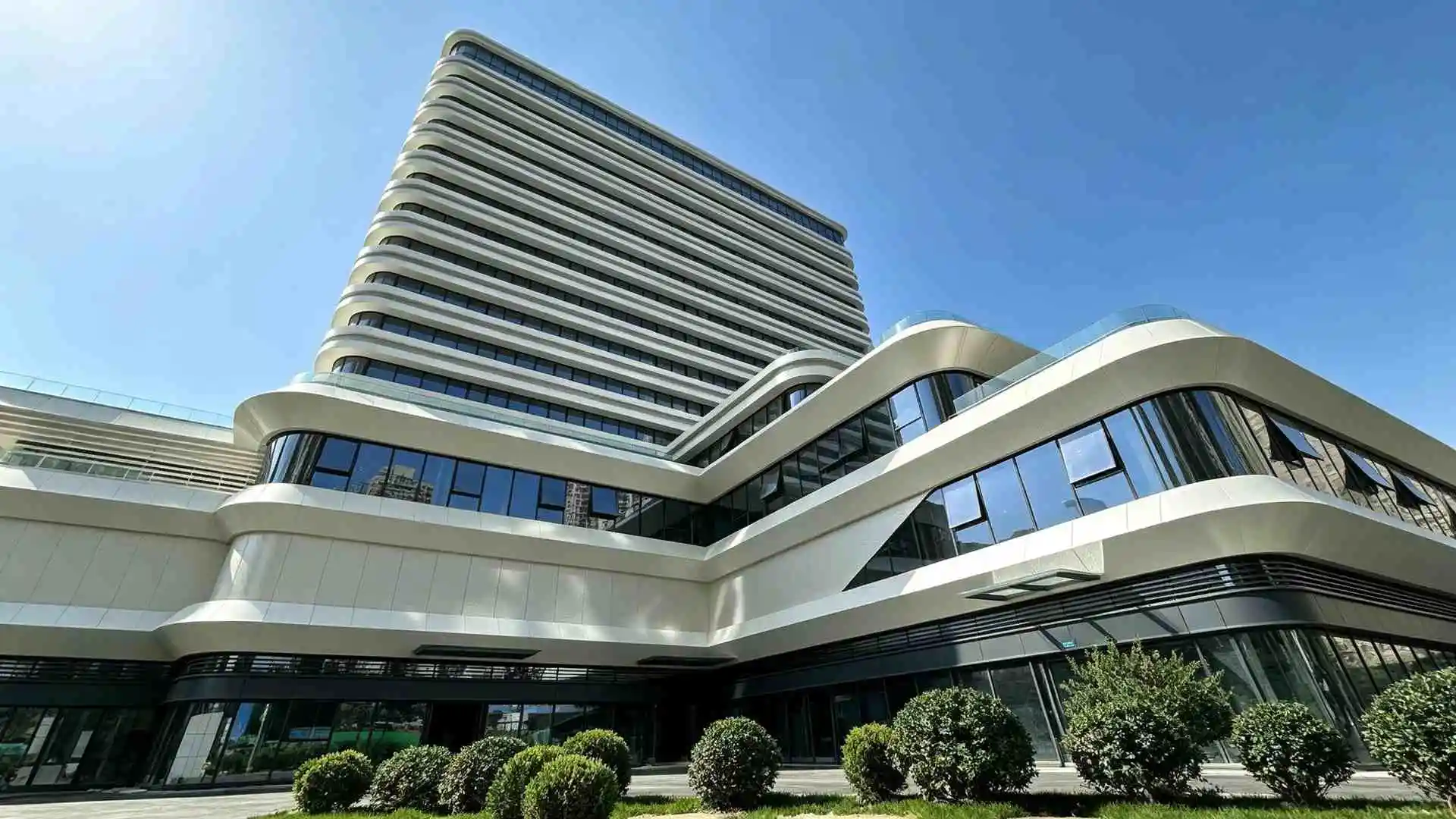

Commercial Complexes: Large-scale belt courses and cornice moldings shaping a modern commercial image.

High-Rise Residential: Unified facade style, enhancing the overall community quality.

Hotels & Resorts: Entrance fascia and window trim elevating the property's image.

Schools / Hospitals: Durable, low-maintenance exterior trims for public buildings.

Building Renovation: Quick exterior facelift that dramatically improves curb appeal.

Quality Assurance & Certifications

Our aluminum exterior trims are manufactured to international standards. Key certifications include:

ISO 9001 Quality Management System

CE Marking (EU Construction Products Regulation CPR compliant)

ASTM E84 Fire Certification (surface burning characteristics)

AAMA 2605 (highest aluminum coating weatherability grade)

SGS Test Reports (coating adhesion, impact resistance, salt spray, etc.)

All exterior products come with a 15–20 year warranty against fading, chalking, and delamination.

Frequently Asked Questions

Q1: Is aluminum trim more expensive than GRC?

A: The initial purchase price of aluminum trim is indeed slightly higher than GRC, but considering 20 years of zero maintenance, never cracking, and lightweight safety, the total lifecycle cost is actually lower. GRC typically needs repair and refinishing every 5–8 years.

Q2: Can custom cross-sections be tooled?

A: Yes. We offer extrusion tooling for custom profiles; tooling fees depend on cross-section complexity and are refundable on volume orders. Brake-formed sheet does not require tooling and is fabricated directly from drawings.

Q3: How long does wood-grain transfer last outdoors?

A: Wood-grain transfer panels with a PVDF topcoat maintain their appearance for 15+ years outdoors. We recommend the PVDF version for coastal or high-sunlight regions.

Q4: Do exterior trims require frequent maintenance?

A: Basically none. PVDF-coated trims are maintenance-free for 20 years; only periodic rinsing of surface dust with clean water is needed. Compared to solid wood trims requiring repainting every 3–5 years, maintenance costs are nearly zero.

Q5: Can samples be provided?

A: Yes. We provide free A4-size color swatches and cross-section samples; clients only cover international courier costs.
