aluminum plate cladding
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-41 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description

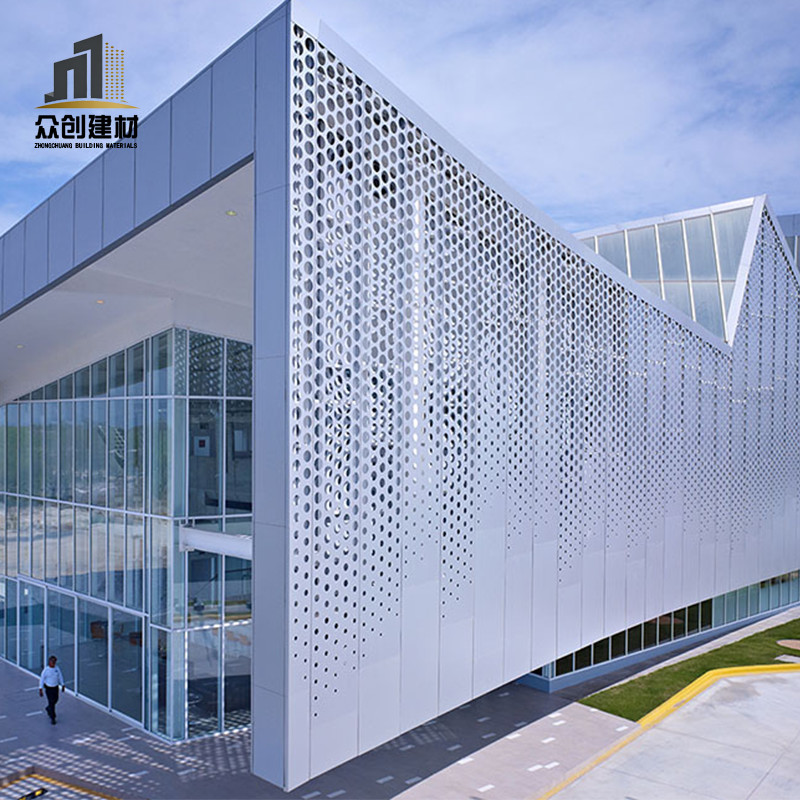

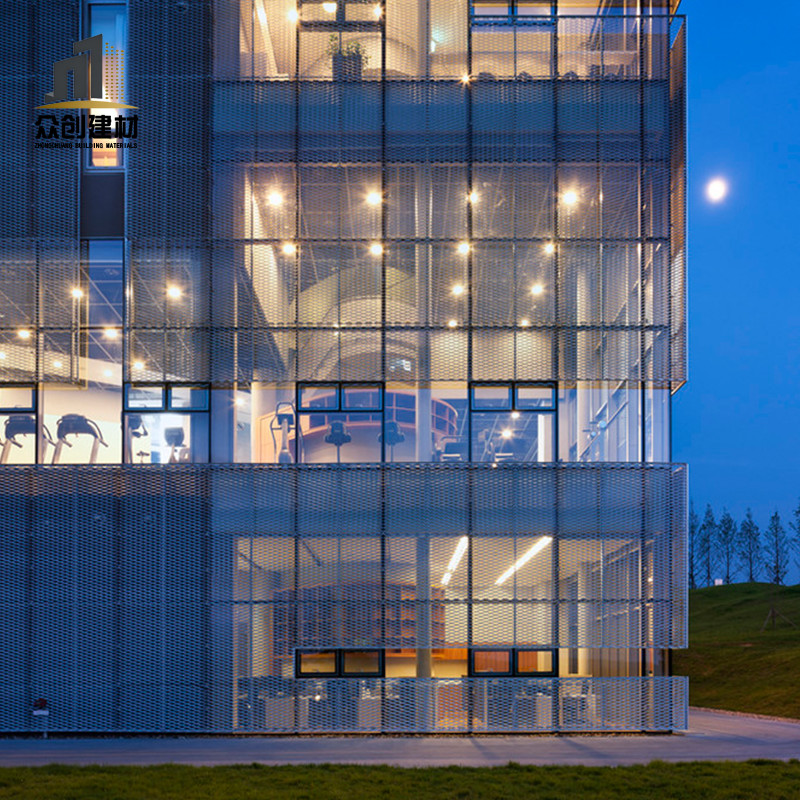

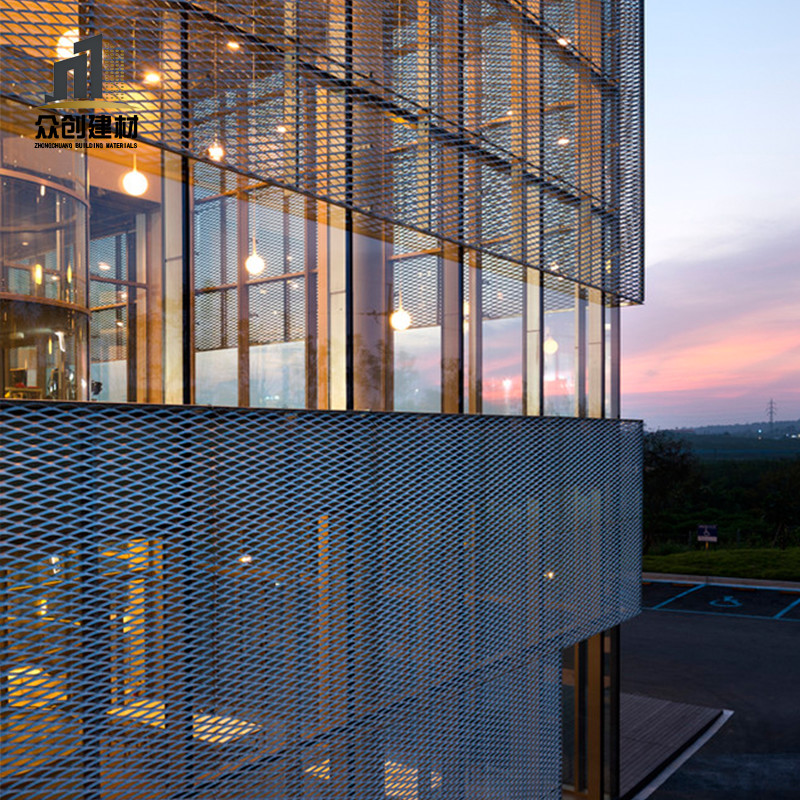

Premium Aluminum Plate Cladding Solutions
Looking for durable exterior cladding that combines exceptional strength with sleek aesthetics? Our aluminum plate cladding offers the perfect solution for your commercial and industrial projects. These thick, flat aluminum plates provide superior protection and create a bold, monolithic appearance that stands the test of time. Unlike standard panels, our product delivers unmatched durability for heavy-duty applications.
What Makes Our Aluminum Cladding Different?
Our thick-gauge aluminum plates range from 1.5mm to 5.0mm in thickness. This substantial construction provides superior impact resistance compared to thin panels. You'll appreciate how these solid plates resist deformation and maintain their appearance even in challenging environments.
We manufacture our cladding from high-grade aluminum alloys including 1100, 3003, 5005, and 6063 materials. Each plate undergoes precise milling to achieve perfect flatness. Your project benefits from surfaces that can be polished, brushed, or coated to meet your exact specifications.
The absence of a composite core eliminates delamination risks. This solid construction makes our aluminum plate cladding ideal for industrial facilities, power plants, and high-security buildings where reliability is non-negotiable.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Professional Installation and Support
Installation gets to be clear with our comprehensive back framework. We give point by point CAD 3D modeling and development drawings for your extend. Our fabric mechanics recreation guarantees culminate fit some time recently fabricating begins.
Factory pre-assembly testing ensures exactness inside 0.5mm resilience. This consideration to detail minimizes on-site alterations and diminishes establishment time. Our specialized direction group underpins you all through the establishment process.
The significant weight of thick aluminum plates requires legitimate affixing frameworks. We prescribe heavy-duty jolts or stays suitable for your particular application. Our designing group makes a difference indicate the adjust connection strategies for your structure.
Sustainable and Certified Quality
Environmental duty drives our fabricating prepare. Our aluminum cladding is completely recyclable, supporting your supportability objectives. The 30-year guarantee period reflects our certainty in long-term performance.
Multiple certifications approve our quality measures. CE, UL, SASO, and ISO 12944-6 certifications guarantee compliance with universal necessities. These accreditations grant you certainty in indicating our items for requesting applications.
Our month to month generation capacity of 50,000 square meters guarantees dependable supply for expansive ventures. Conveyance times extend from 15 to 41 days, depending on customization prerequisites and venture scope.

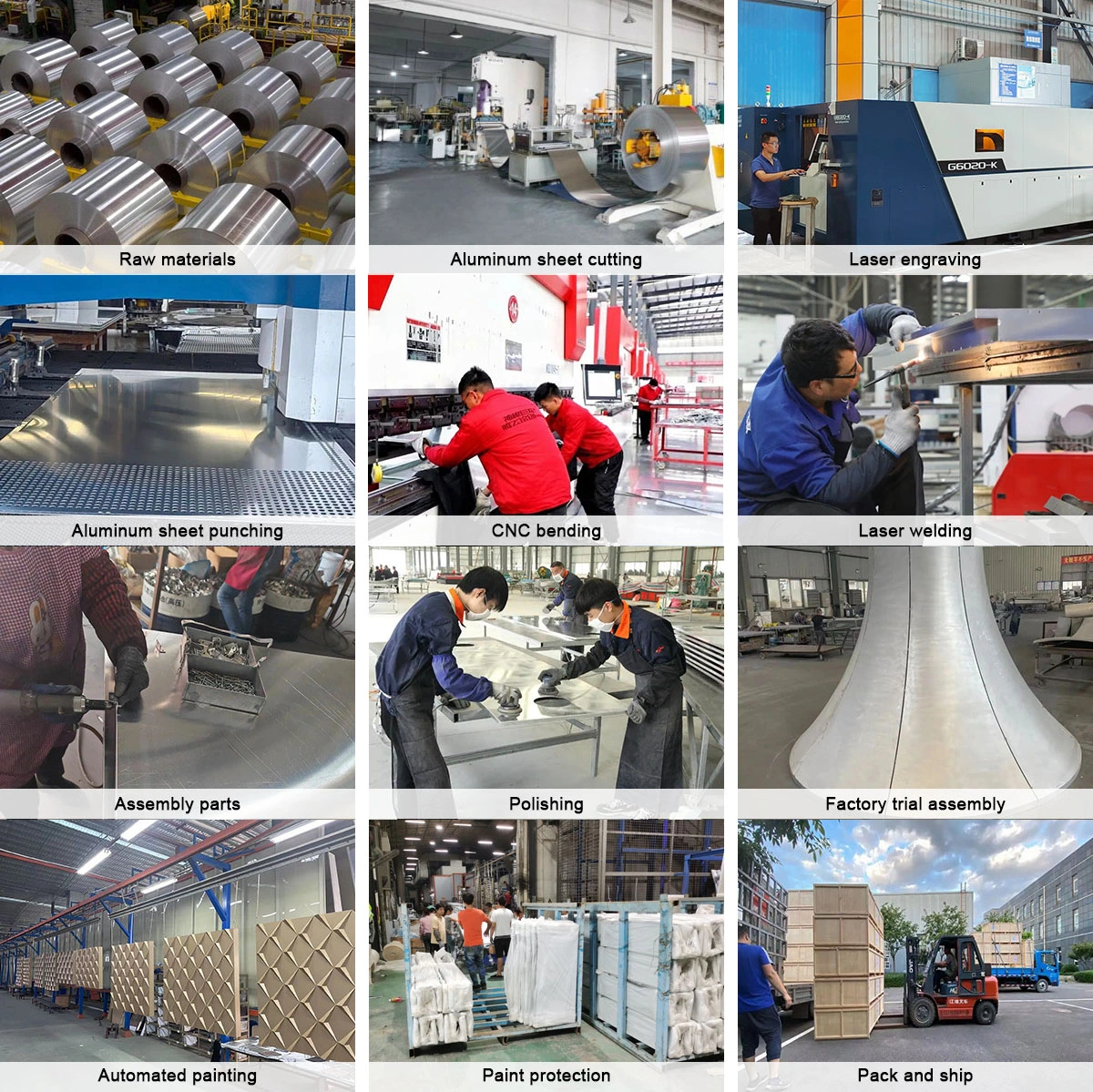

Production process
Custom Solutions for Your Project
Each venture has special necessities. Our customization capabilities amplify from conceptual plan through establishment and upkeep bolster. Whether you require particular measurements, colors, or execution characteristics, we adjust our items to meet your needs.
The minimum order quantity of 30 square meters makes our premium product accessible for both large installations and smaller specialized applications. Contact our team at [email protected] to discuss your specific requirements and receive expert guidance for your next project.
Transform your building's exterior with our premium aluminum plate cladding solutions. Experience the perfect combination of durability, aesthetics, and professional support. Contact [email protected] today to start your project consultation.
