aluminum wall panel systems
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-68 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description

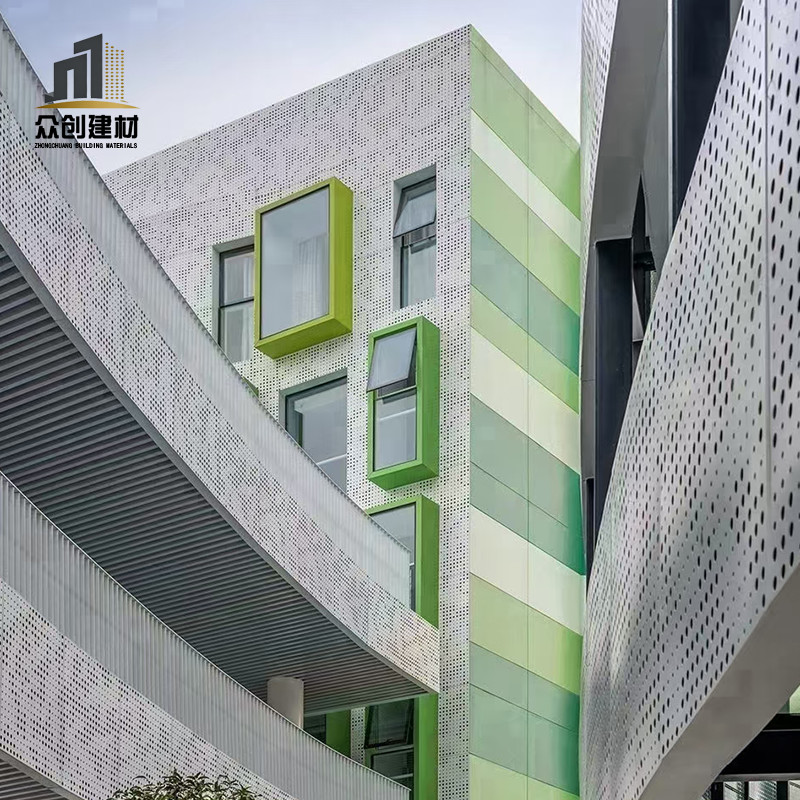

Premium Aluminum Wall Panel Systems - Engineered for Modern Construction
Are you searching for reliable, high-performance cladding solutions? Our aluminum wall panel systems deliver exceptional quality and efficiency for your construction projects. As modular collections of aluminum panels, tracks, and fasteners, these systems are engineered for quick, consistent installation of wall cladding on both interior and exterior applications. With over 30 years of industry expertise and proven track record, we provide solutions that meet the demanding requirements of modern architecture.
What Makes Our Aluminum Wall Panel Systems Superior
Advanced Material Innovation
Our panels feature premium aluminum alloys including 1100, 3003, 5005, and 6063 grades. The thickness ranges from 1.5-5.0mm, providing optimal strength-to-weight ratios. Each panel receives professional PVDF or PE surface treatment, ensuring long-lasting protection against weathering and UV exposure.
The coating quality exceeds industry standards. We maintain average film thickness ≥50μm with minimum local thickness ≥34μm. This attention to detail guarantees your investment performs reliably for decades.
Comprehensive Customization Options
Each extend is special. That's why we offer completely customized measuring to coordinate your particular necessities. Select from RAL colors or ask custom color coordinating. Our plan group works with you to make arrangements that flawlessly complement your engineering vision.
With our 50,000㎡ month to month generation capacity, we handle ventures of any scale whereas keeping up steady quality guidelines.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Quality Certifications and Standards
Your peace of mind matters. Our products carry CE, UL, SASO, and ISO 12944-6 certifications. These internationally recognized standards validate our commitment to quality and safety.
Environmental Responsibility
Sustainability drives our manufacturing approach. Our eco-friendly production processes for aluminum wall panel systems minimize waste while maximizing material efficiency. Aluminum's recyclability means your project contributes to circular economy principles.
The durable nature of our systems reduces long-term maintenance requirements, lowering your total cost of ownership.
Applications and Project Versatility
Our systems excel in large-scale construction projects with repetitive wall designs. Perfect applications include:
- Apartment complexes and residential towers
- Hotels and hospitality facilities
- Educational campuses and institutions
- Commercial office buildings
- Healthcare facilities
The scalable design accommodates projects of any size while maintaining consistent quality throughout.
Easy Replacement and Maintenance
Harmed boards? No issue. Person boards can be effortlessly supplanted without influencing encompassing establishments. This adaptability amplifies your building's life expectancy whereas keeping up stylish appeal.
Factory-made accuracy guarantees substitution boards coordinate superbly in color, measure, and wrap up quality.
Project Timeline and Delivery
We get it development plans are basic. Our conveyance time allotment ranges from 15-68 days depending on customization prerequisites and arrange volume. With a least arrange amount of fair 30㎡, we oblige both expansive improvements and littler specialized ventures.
Get Started Today
Ready to transform your next project with premium aluminum wall panel systems? Our experienced team stands ready to discuss your specific requirements and provide detailed technical specifications.
Contact us at [email protected] to schedule your consultation and receive a customized proposal tailored to your project needs.
