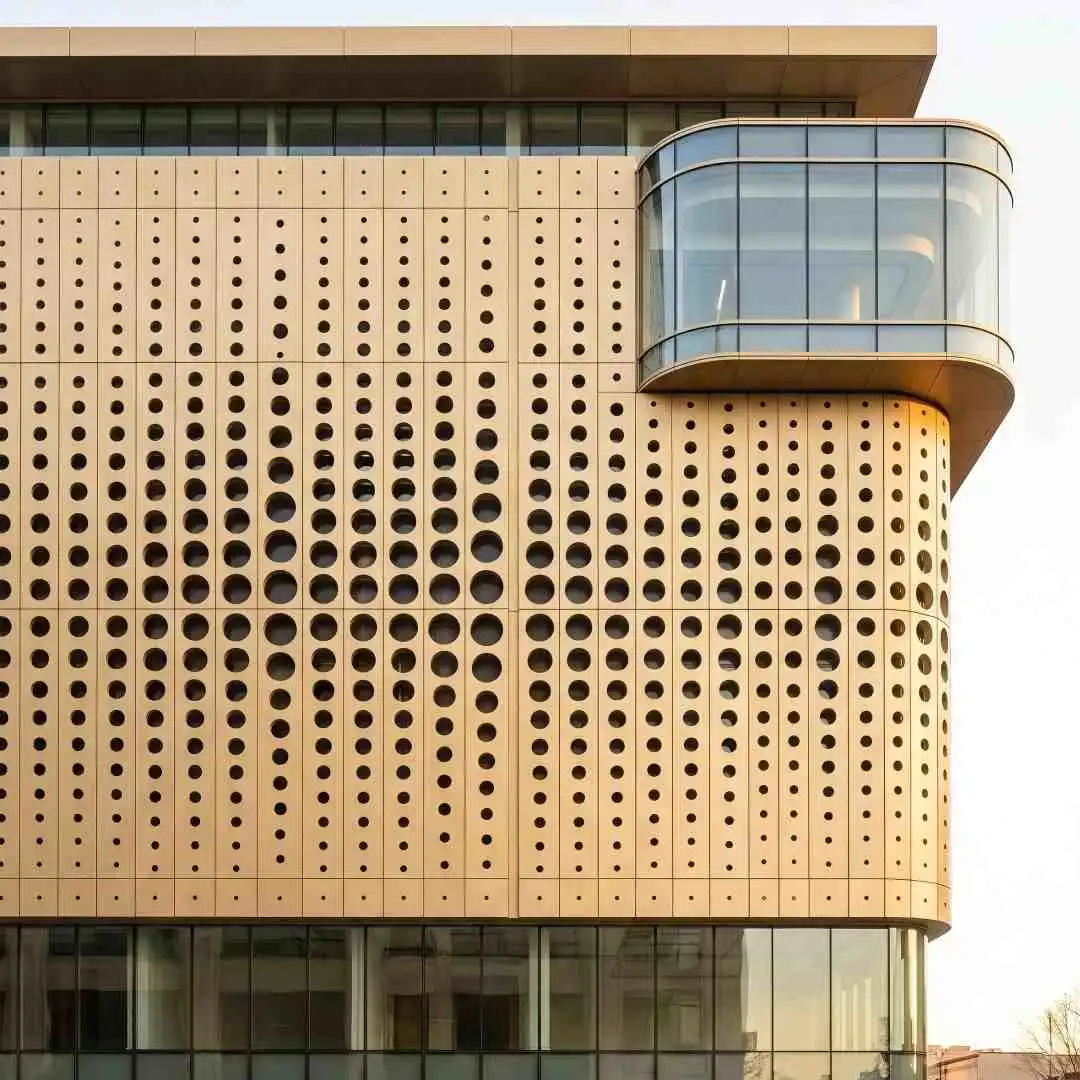

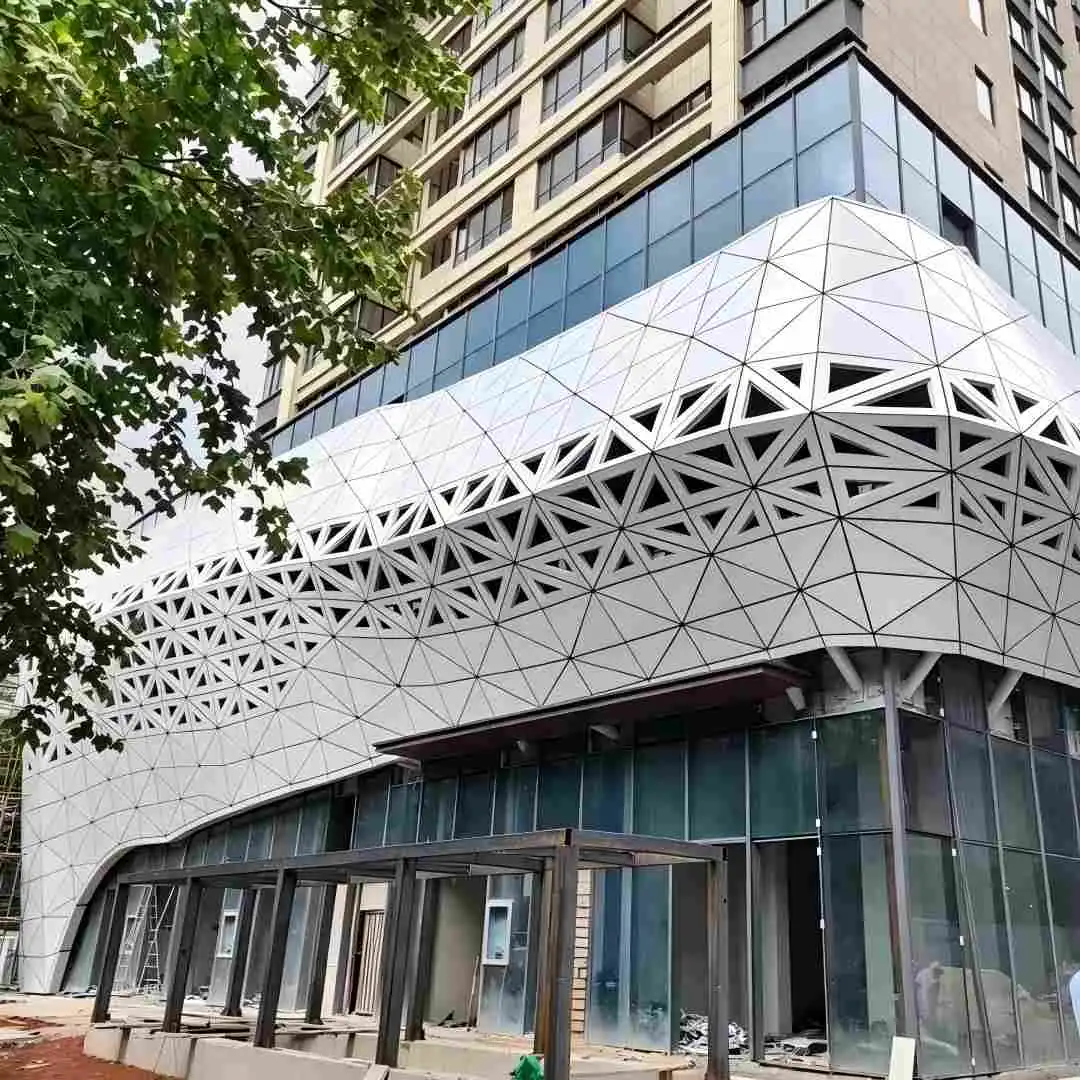

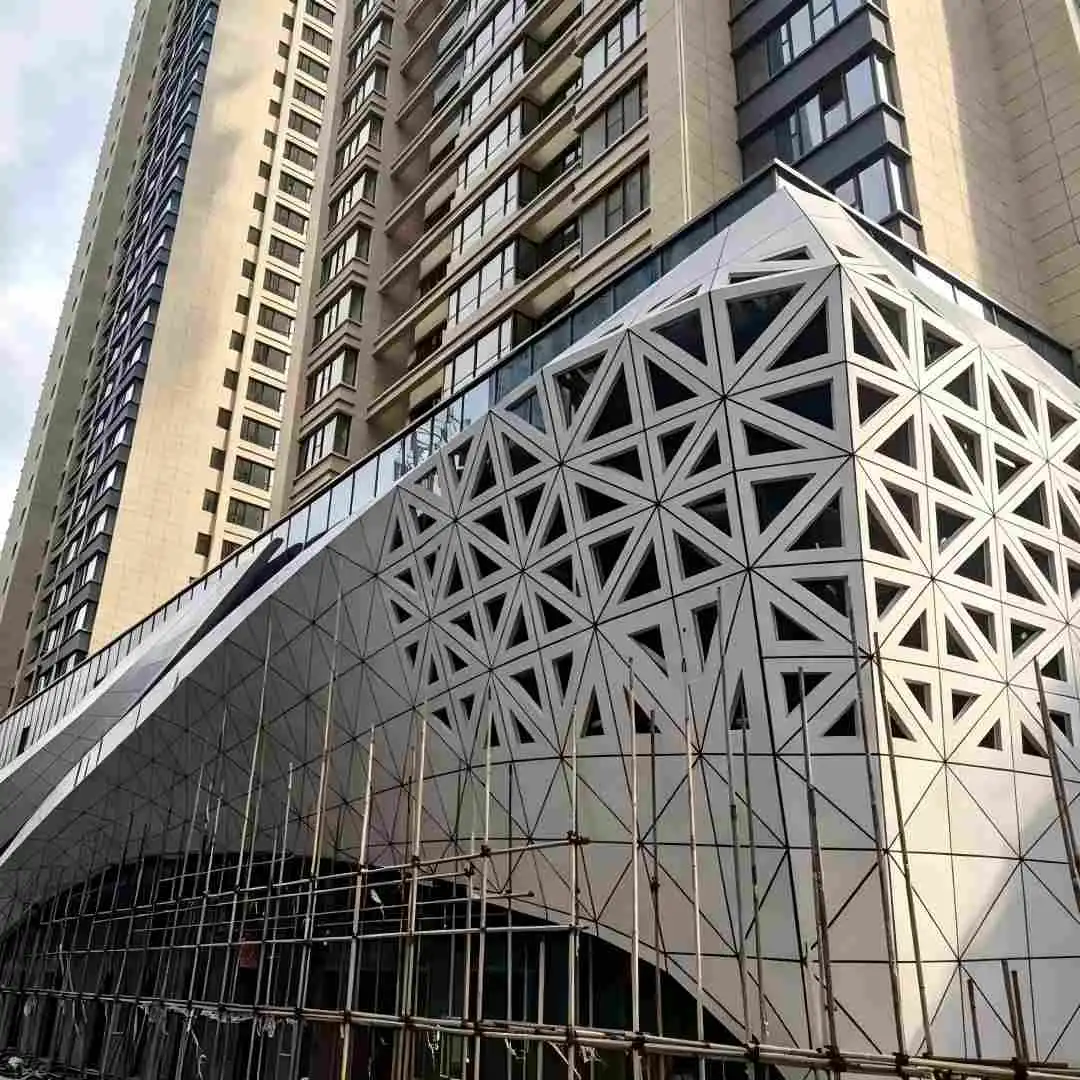

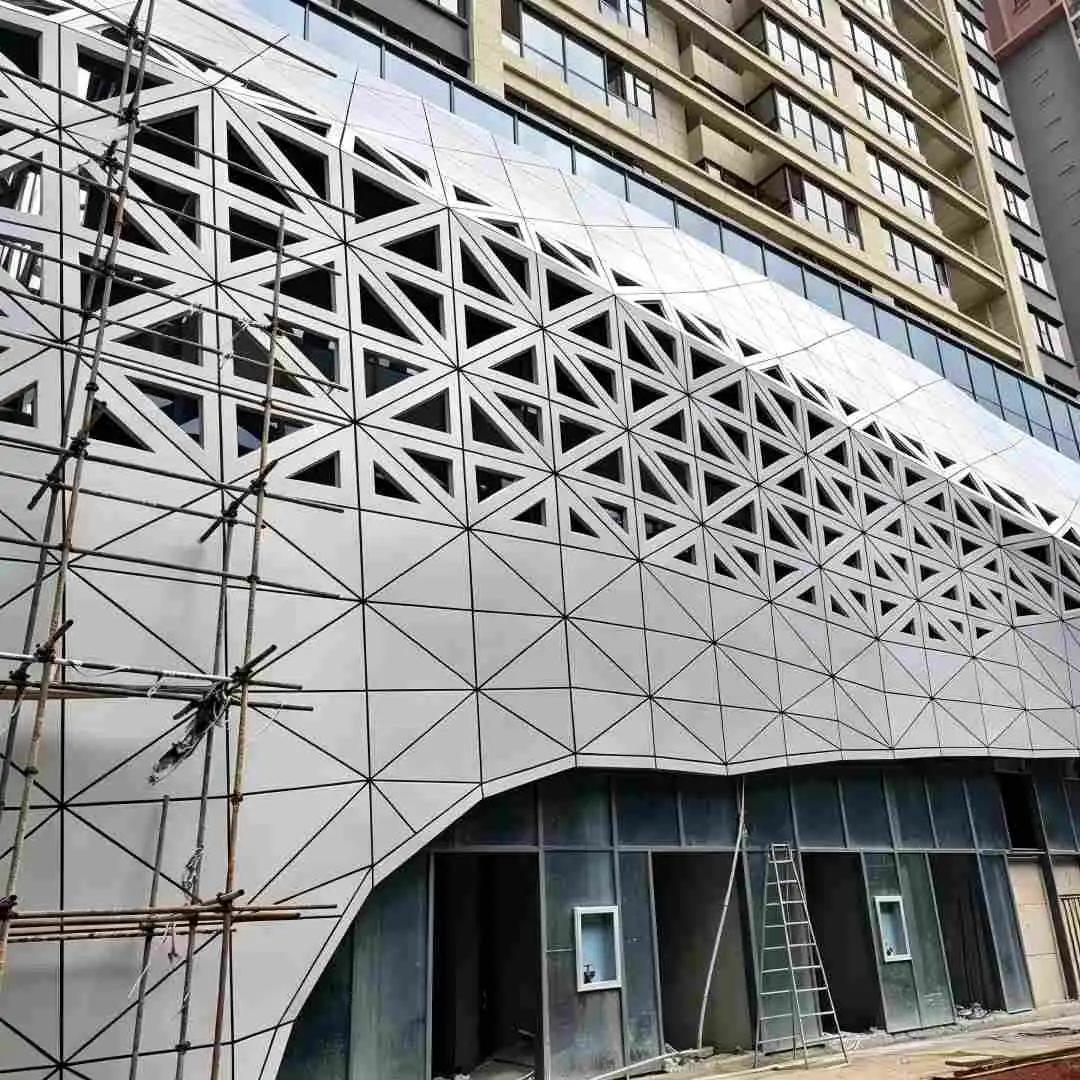

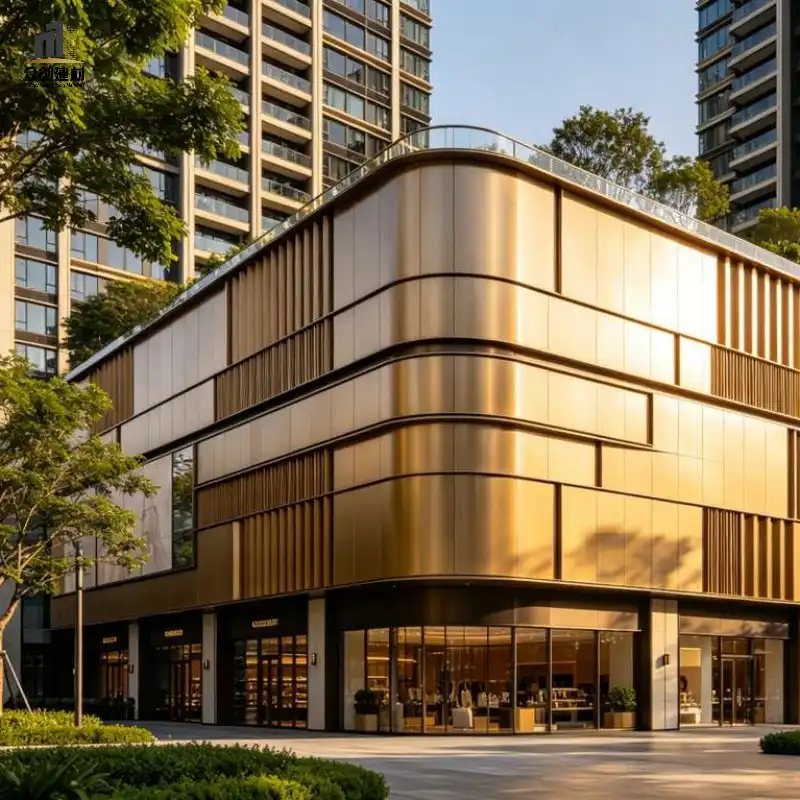

Architectural Storefront Aluminum Veneer Panel

The building storefront (or entrance facade) is the first window a building presents to the outside world — its visual impact directly determines the commercial value and brand image of the property. Architectural storefront aluminum veneer panels are fabricated from high-grade aluminum alloy, using brake forming, perforation, and surface coating to deliver customized exterior cladding solutions for retail stores, hotel entrances, office building lobbies, and brand showrooms.

From simple flat sign backboards to complex curved storefront shapes, from solid-color powder coating to wood-grain transfer and UV printing, aluminum panels have become the preferred material for architectural storefront decoration worldwide, thanks to their superior fabrication flexibility and weather resistance.

Why Choose Aluminum Veneer for Storefronts

Building storefronts are permanently exposed to outdoor sun and rain, requiring materials with exceptional weather resistance, fire performance, and forming capability. Compared with traditional storefront materials, aluminum veneer offers the following key advantages:

• Ultra-Long Weatherability: PVDF-coated aluminum panels maintain color integrity for 15–20 years outdoors — far superior to paint or composite boards.

• Lightweight & Strong: 2.5mm thick panels weigh only about 6.8 kg/m², reducing structural load on storefront framing and improving installation safety.

• Design Freedom: Can be formed into any angle or radius, supporting curved, folded, and double-curved shapes.

• Class A Fire Rating: Non-combustible, meeting strict fire codes for commercial buildings and public spaces.

• Recyclable: Aluminum is 100% recyclable, aligning with green building and sustainability trends.

• Low Maintenance: The dense, smooth surface is self-cleaning under rain; occasional rinsing is all that is needed.

Core Product Types

Based on storefront design style and functional requirements, we offer four product series:

Custom Design Capabilities

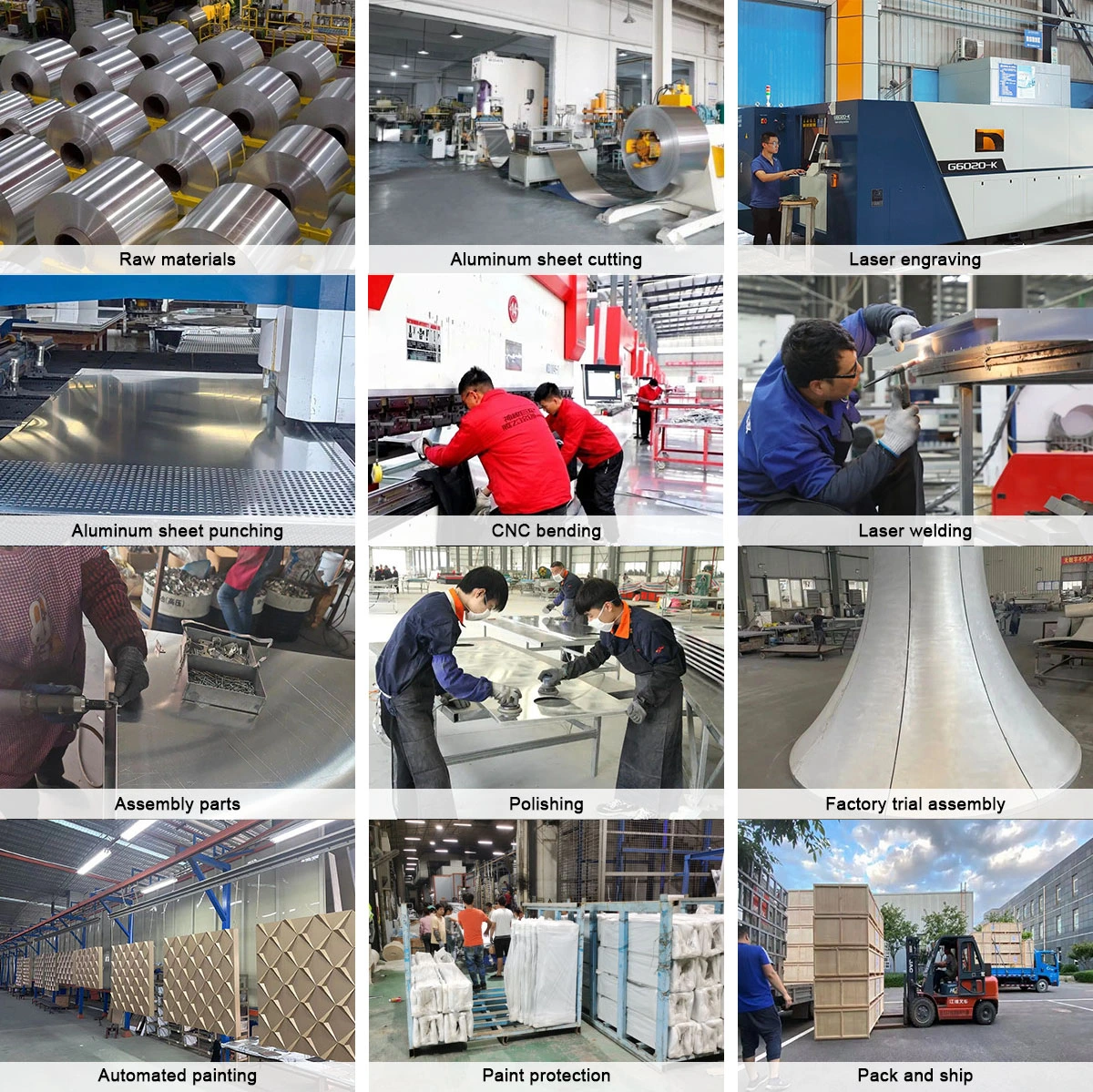

The storefront is the concentrated expression of brand identity; standard products rarely meet design intent. We provide end-to-end customization from design development to delivery:

• Custom Brake Forming: Any angle from 0° to 180°, with minimum bend radius R0.5mm for precise corner details.

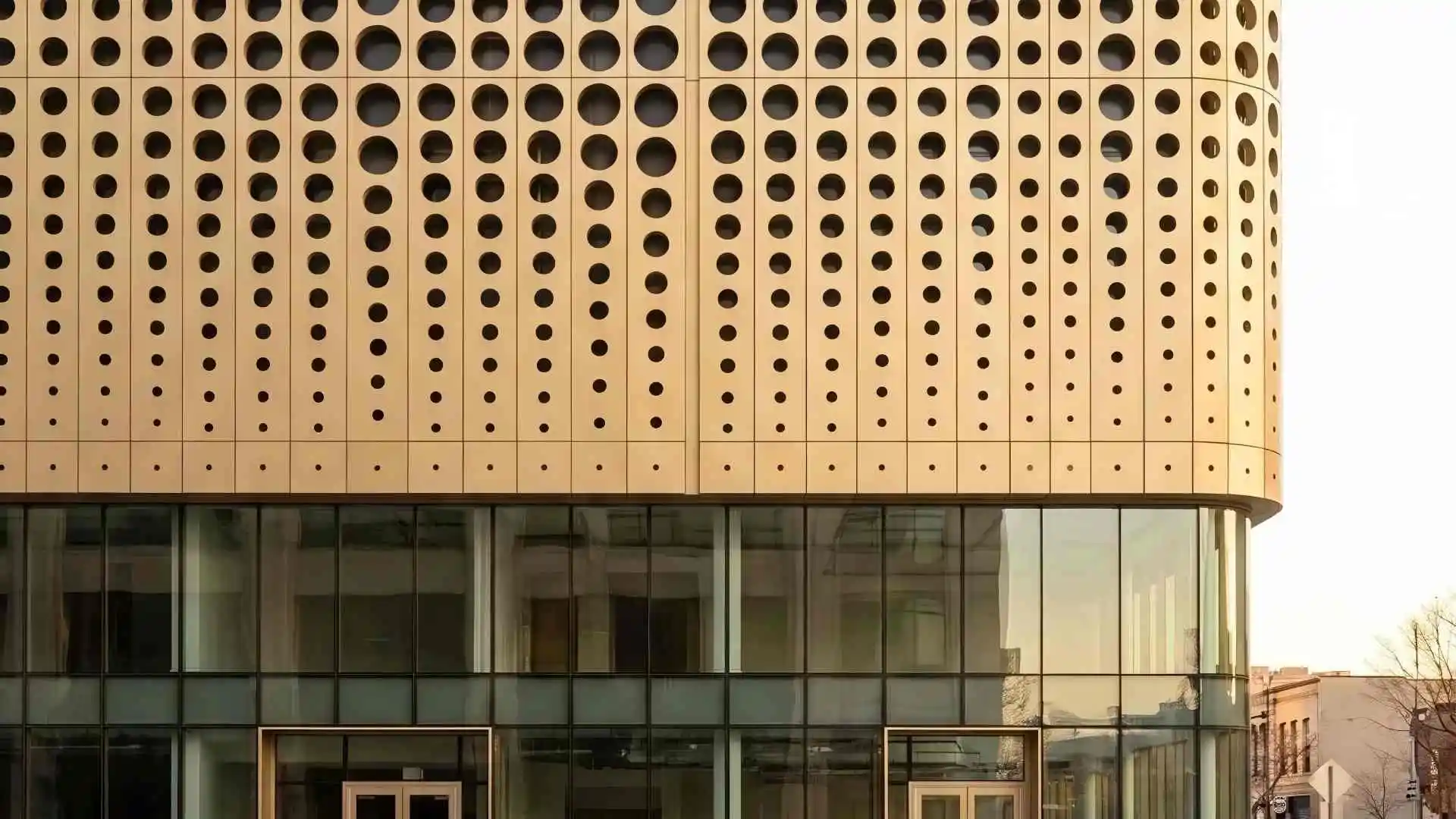

• Artistic Perforation: Custom perforation layouts based on logos, motifs, or design concepts — hole diameters from Ø1.0mm to Ø20mm.

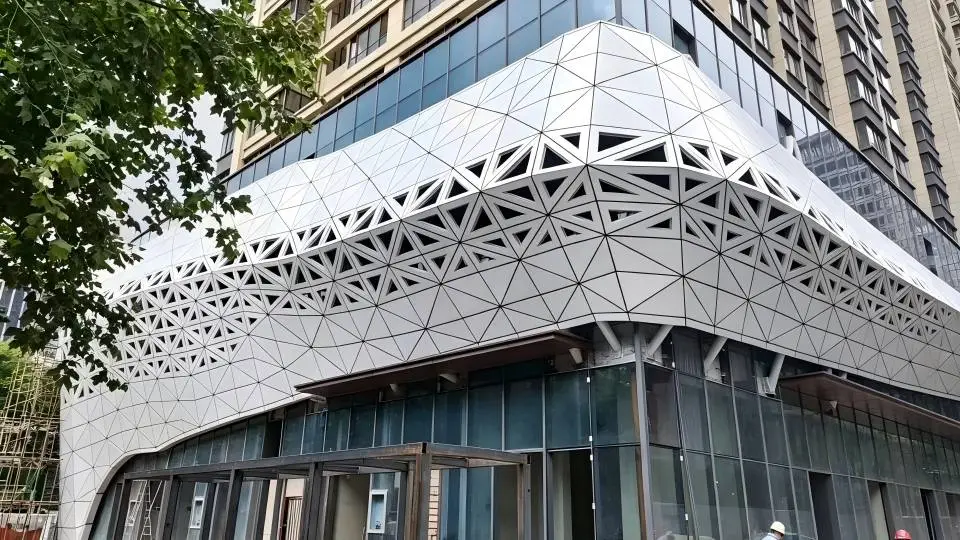

• Double-Curvature Forming: Roll-formed and stretch-formed double-curve panels for fluid storefront geometries.

• HD UV Printing: Any image, photograph, or brand mural printed directly on the panel for a truly one-of-a-kind storefront.

• LED Integration: Light channels and LED module mounting positions prefabricated into panels for unified design.

Technical Specifications

Surface Finishes

The storefront finish directly shapes the building's first impression. We offer multiple finish technologies covering everything from minimalist modern to premium natural styles:

• Powder Coating: Full RAL color range with matte, semi-matte, and gloss options — cost-effective, ideal for chain stores.

• Fluorocarbon (PVDF) Coating: Ultra-durable finish with a 20-year fade warranty — recommended for coastal or high-exposure outdoor storefronts.

• Wood-Grain Transfer: Over 95% realism reproducing oak, walnut, and teak — perfect for upscale restaurants and hotel entrances.

• Anodizing: Strong metallic luster in silver, champagne, bronze, and titanium black — for minimalist modern architecture.

• HD UV Printing: Any image, landscape, or brand graphic — for artistic storefronts and themed retail.

Installation System

Installation quality directly affects the overall appearance and service life of storefront panels. We provide a proven, reliable installation system:

• Clip-in Installation: Factory-prefabricated hanging clips for on-site installation — high efficiency, adjustable flatness.

• Adhesive + Mechanical Fixing: For storefronts without subframes, combining structural adhesive with mechanical anchors for dual security.

• 3-Way Adjustment: Hanging clips allow three-dimensional fine-tuning to ensure uniform joints across large storefronts.

• Waterproof Sealing: Expansion gaps between joints sealed with weatherproof silicone to prevent water ingress.

Typical Applications

Architectural storefront aluminum veneer panels are widely used in:

• Retail Storefronts: Entrance signs and facades for retail brands, restaurants, and coffee shops.

• Hotel Entrances: Canopy undersides, portico shapes, and entrance feature walls.

• Office Building Lobbies: Ground-floor entrances and corporate headquarters feature walls.

• Brand Showrooms: Car dealerships, furniture showrooms, and tech company showroom entrances.

• Commercial Complex Entrances: Shopping mall main entrances, breezeways, and pedestrian street facades.

Quality Assurance & Certifications

Our storefront aluminum veneer panels are manufactured to international standards. Key certifications include:

• ISO 9001 Quality Management System

• CE Marking (EU Construction Products Regulation CPR compliant)

• ASTM E84 Fire Certification (surface burning characteristics)

• AAMA 2603 / 2604 / 2605 (aluminum coating weatherability grades)

• SGS Test Reports (coating adhesion, impact resistance, salt spray, etc.)

All products come with a 10–20 year warranty against fading, chalking, and delamination.

Frequently Asked Questions

Q1: What is the lead time for storefront aluminum panels?

A: Standard products take approximately 15–20 days. Custom shaped panels, including design development, take 25–35 days. Large project volumes are confirmed per order.

Q2: Can samples be provided?

A: Yes. We provide free A4-size color swatches and finish samples; clients only cover international courier costs. Small mock-ups of custom perforation patterns are also available.

Q3: What panel thickness should I choose for a storefront?

A: 2.5mm is recommended for most storefronts. Large cantilevered or coastal high-wind projects should use 3.0mm. Interior feature walls can use 1.5–2.0mm. Final thickness should be determined based on structural span and wind load calculations.

Q4: Will the wood-grain finish fade over time?

A: Our wood-grain transfer process embeds the texture within the powder coating layer. When paired with a PVDF topcoat, it maintains color integrity for 15+ years outdoors.

Q5: Can you process drawings from our design team?

A: Yes. Our in-house engineering team works from CAD or Rhino models to produce shop drawings, layout optimization, fabrication drawings, and material-saving recommendations.
