Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE,UL,SASO,ISO 12944-6
Delivery time:15-34 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description

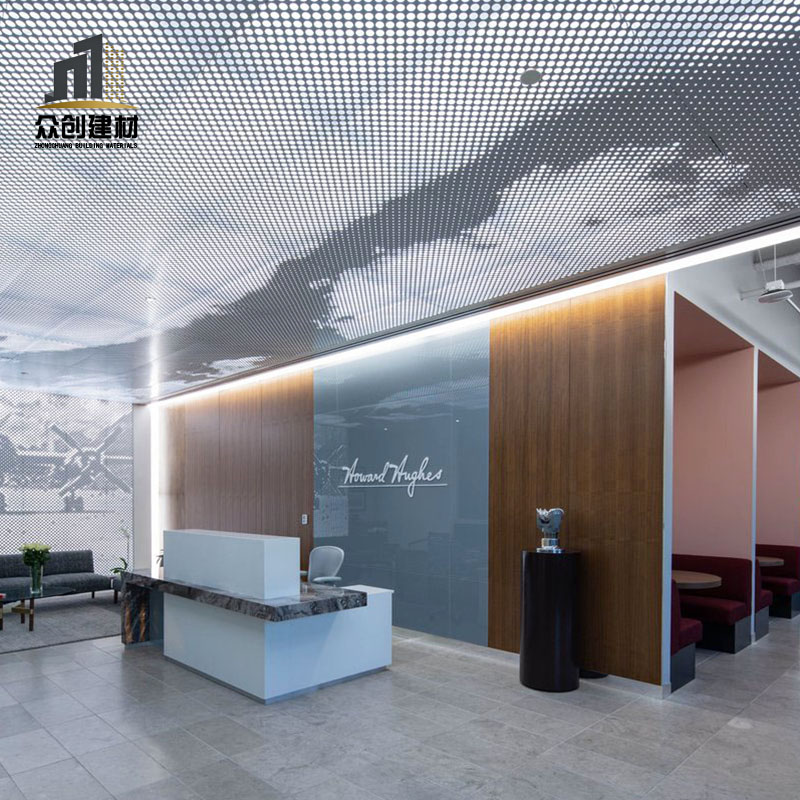

Artistic Perforated Aluminum Wall Panels: Transform Your Space with Functional Art
Looking for a building material that combines durability with stunning visual appeal? Artistic Perforated Aluminum Wall Panels offer the perfect solution for modern architectural projects. These inventive boards change conventional dividers into captivating imaginative articulations whereas keeping up remarkable usefulness. With custom-designed holes extending from geometric designs to theoretical craftsmanship, you get consistent integration of down to earth cladding with creative expression that makes mesmerizing light and shadow impacts all through the day.
What Makes Our Perforated Aluminum Panels Special?
Our boards are created from premium aluminum combinations counting 1100, 3003, 5005, and 6063, guaranteeing ideal quality and formability. The laser cutting and CNC machining handle makes exact holes from 0.5mm to 50mm in distance across, organized in designs custom fitted to your project's interesting prerequisites.
Superior Performance Standards
Your panels undergo rigorous quality control with certifications including CE, UL, SASO, and ISO 12944-6. Our PVDF coating delivers:
- Film thickness ≥50μm average (≥34μm minimum)
- Hardness rating ≥2H for scratch resistance
- Grade 0 adhesion in cross-cut testing
- Excellent acid resistance (5% HCl, 24h exposure)
- 10+ year coating warranty
Applications That Inspire
Social and Commercial Ventures: Historical centers, theaters, retail stores, and lodgings utilize these boards to make striking veneers that reflect their brand character. The punctured plans include profundity whereas keeping up the building's basic integrity.
Public Spaces: Parks, transportation center points, and community centers advantage from both sun shading and visual intrigued. The boards change utilitarian dividers into locks in craftsmanship installations.
Interior Highlights: Anterooms, atriums, and include dividers pick up sensational central focuses that connected delightfully with both normal and manufactured lighting.
Why Choose Our Manufacturing Expertise?
We provide comprehensive one-stop solutions from conceptual design to final installation. Our services include:
- CAD 3D modeling for precise visualization
- Material mechanics simulation
- Factory pre-assembly testing
- On-site technical guidance
- Project precision ≤0.5mm tolerance
With 50,000㎡ monthly production capacity, we handle projects of any scale while maintaining consistent quality standards.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0~33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
The Art of Light and Shadow
What sets artistic perforated aluminum wall panels apart is their dynamic interaction with light. Amid sunshine hours, daylight streams through the holes, casting perplexing shadow designs that move all through the day. At night, insides lighting changes your exterior into a brilliant canvas unmistakable from the road.
This interplay creates living architecture that changes character with time and viewing angle, ensuring your building remains visually engaging year-round.
Installation and Maintenance Advantages
Establishment adaptability permits for standalone cladding or layered applications over existing surfaces. The punctured structure advances common discuss circulation, making these boards perfect for muggy climates or spaces requiring detached cooling.
Maintenance necessities are negligible – intermittent washing expels clean and flotsam and jetsam whereas the corrosion-resistant aluminum base guarantees decades of solid execution without blurring or debasement.
Start Your Artistic Transformation
Ready to elevate your project with Artistic Perforated Aluminum Wall Panels? Contact us at [email protected] to discuss your vision and receive a customized quote tailored to your specific requirements.
