Concealed Fastener Wave Facade for Modern Buildings

Concealed Fastener Wave Facade for Modern Buildings

Hidden corrugated aluminum panel features concealed fastening, seamless wave design, PVDF coating, lightweight & fireproof. Ideal for office, commercial & hotel facades. Factory direct, customizable sizes/colors.

Send Inquiry

Product Description

Product Overview

Our hidden corrugated aluminum panel (also known as concealed fastener wave aluminum facade panel) is a premium architectural cladding solution designed for modern commercial and office buildings. It adopts a hidden interlocking installation system with no exposed screws, delivering a seamless, sleek wave texture that enhances building aesthetics while ensuring superior structural performance.

Made of high-grade AA3003/AA5005 aluminum alloy, the panel integrates lightweight properties, high strength, corrosion resistance, and weather durability. The unique corrugated core structure improves rigidity, while the concealed fixing design eliminates rust risks from exposed fasteners, reducing long-term maintenance costs. Perfect for office towers, corporate headquarters, shopping malls, hotels, and facade renovation projects.

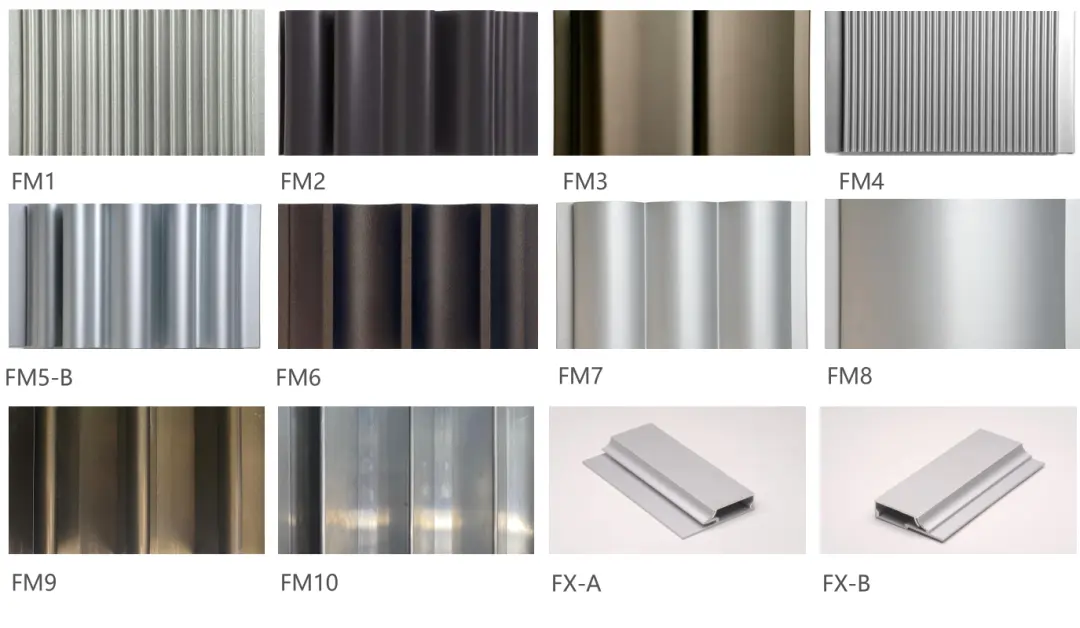

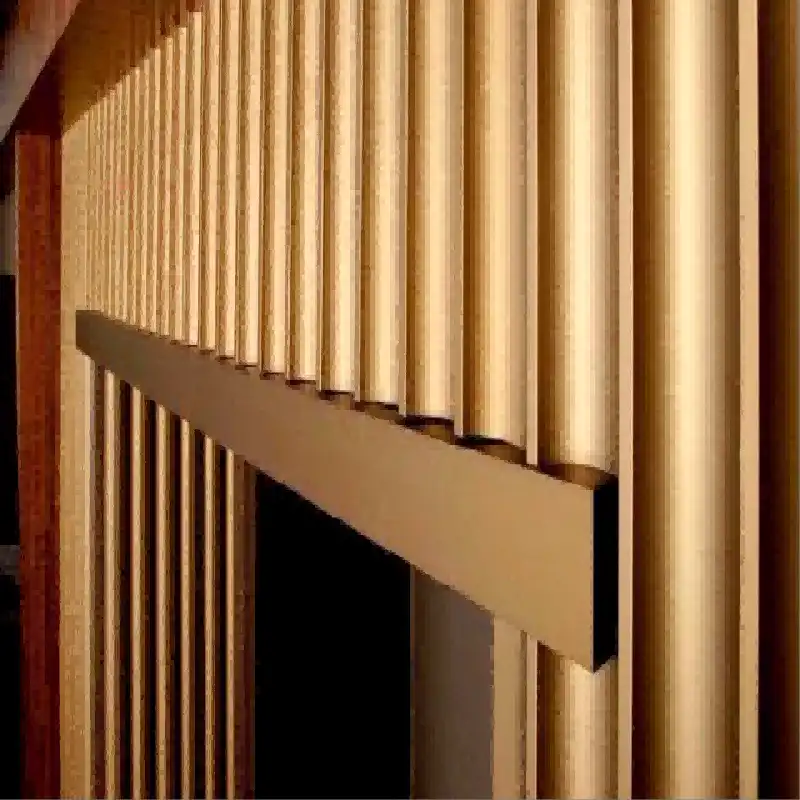

hidden corrugated aluminum panel style

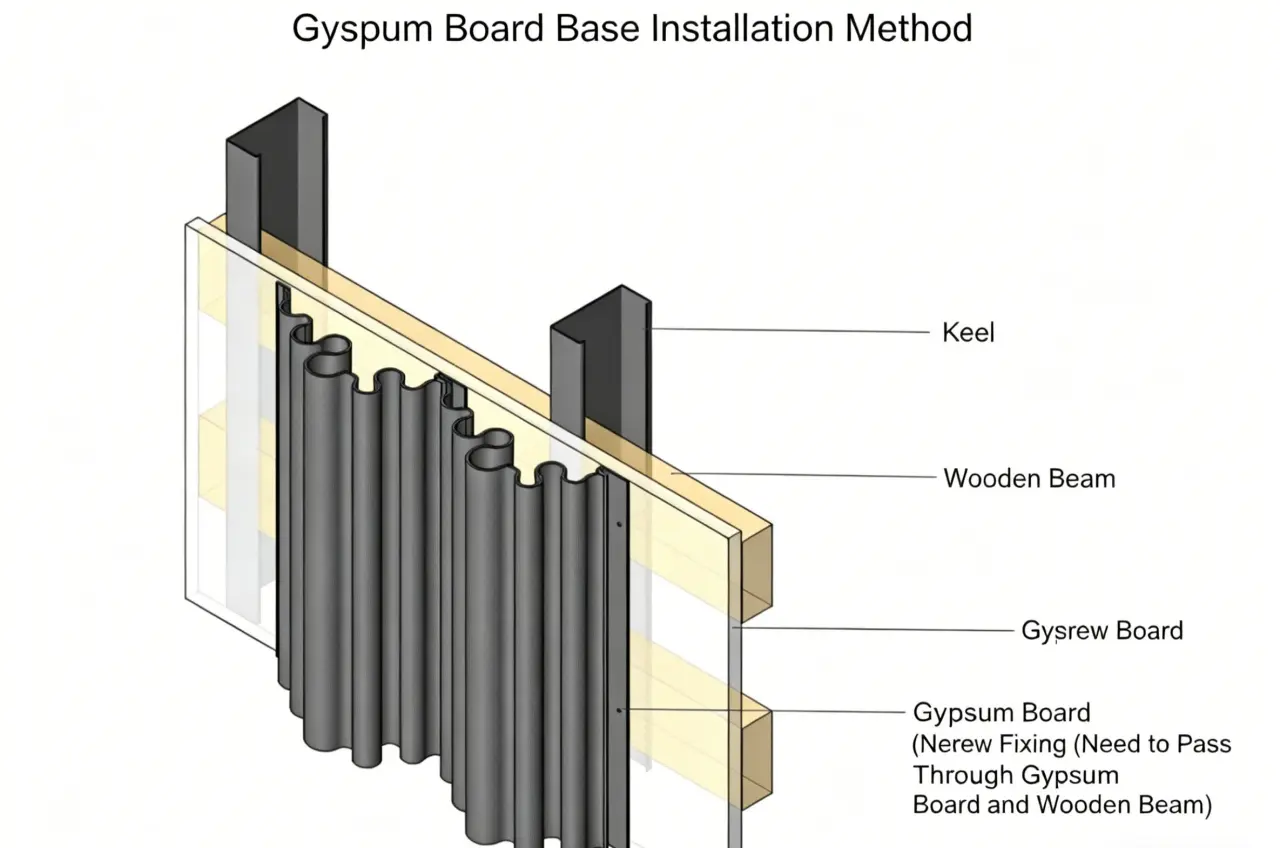

Installation Diagram of Concealed-Fastener Corrugated Aluminum Panel with Gypsum Board Substrate

Core Specifications

Parameter	Details
Alloy Substrate	AA3003 H24 (Standard), AA5005 H24 (Marine Grade)
Panel Thickness	2.0mm, 2.5mm, 3.0mm; Custom 1.5–4.0mm
Corrugation Height	10mm,15mm, 20mm, 25mm (Customizable)
Max Size	1000mm × 6000mm (Seamless splicing available)
Surface Coating	PVDF Fluorocarbon (20+ years), Polyester (10+ years), Anodizing
Color Options	Full RAL/Pantone, Metallic, Matte, Wood Grain
Fire Rating	ASTM E84 Class A, EN 13501-1 A2-s1,d0 (Non-combustible)
Installation System	Hidden interlocking / Concealed back-bolt system

Key Advantages

Seamless Hidden Installation: No exposed screws or rivets; interlocking design creates a continuous wave surface for a modern, high-end look.
Superior Weather Resistance: PVDF coating resists UV rays, acid rain, and salt spray; 20+ year outdoor lifespan with self-cleaning properties.
Lightweight & High Rigidity: 1/3 the weight of steel; corrugated structure boosts stiffness, suitable for high-rise and coastal areas.
Enhanced Thermal & Acoustic Insulation: Wave core traps air, reducing heat transfer and noise transmission for energy efficiency.
Fire Safety & Sustainability: Class A non-combustible; 100% recyclable aluminum, meeting green building standards.

Application Scenarios

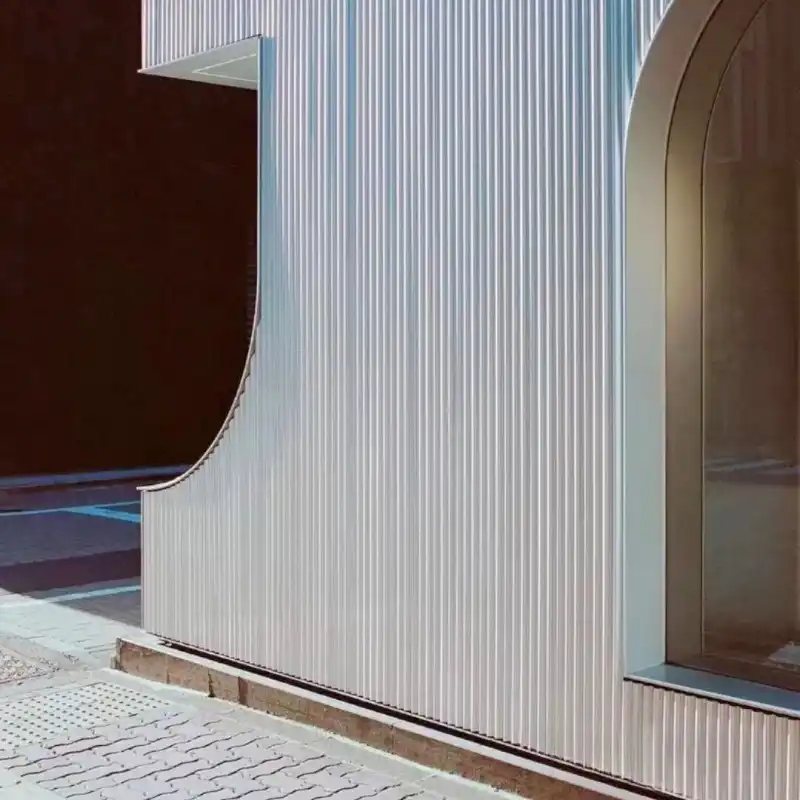

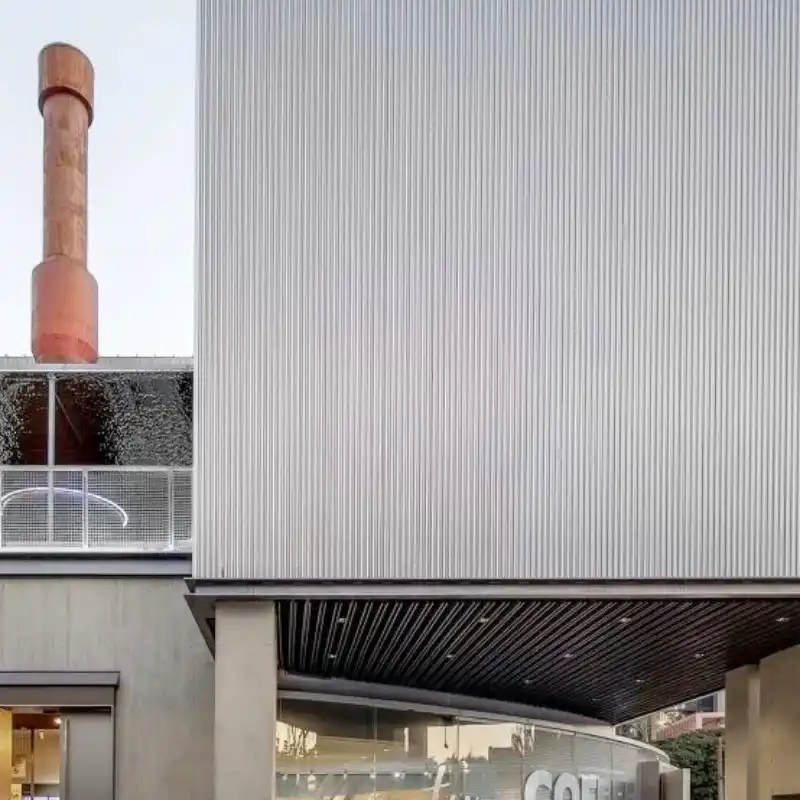

Office building facades & high-rise corporate towers
Commercial plazas, shopping malls & retail storefronts

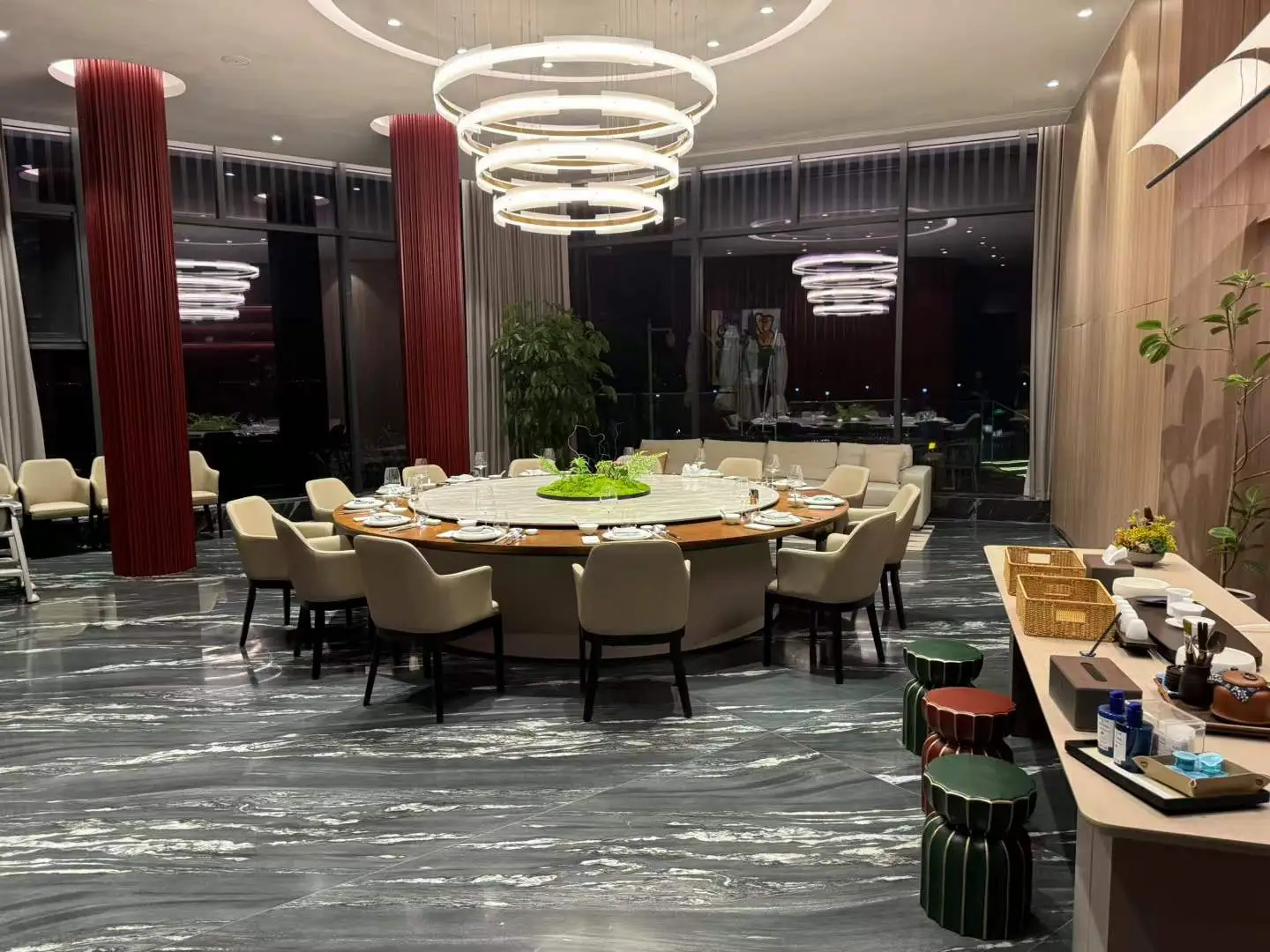

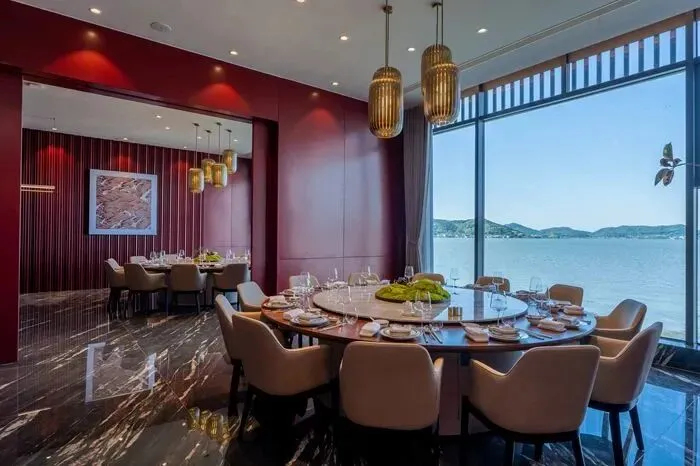

Hotel & resort exterior cladding

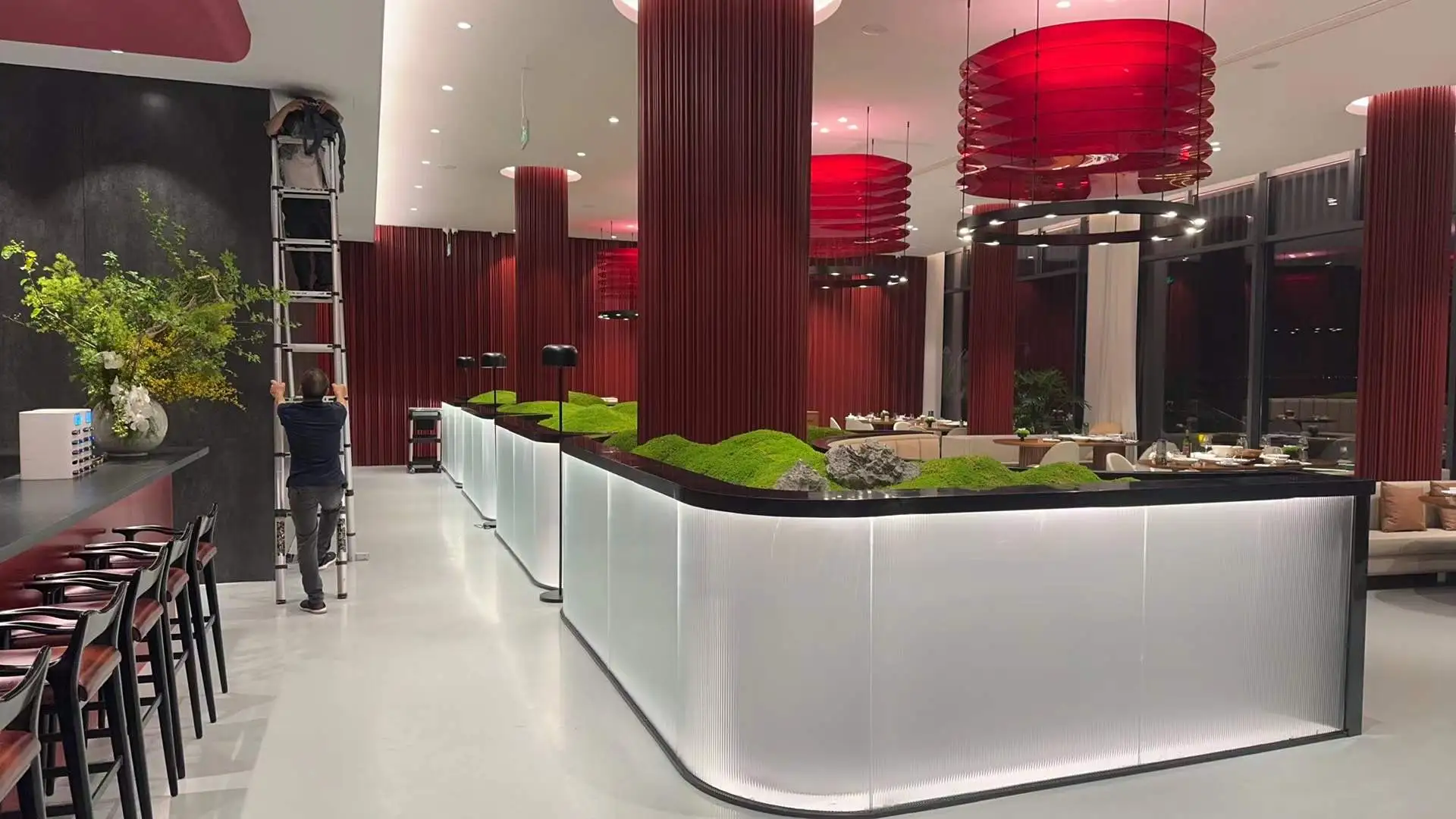

Interior feature walls, ceilings & partitions
Old building facade renovation & upgrading

FAQ

Q1: How long does the hidden corrugated aluminum panel last?A: PVDF-coated panels offer 20+ years of outdoor service life; indoor use exceeds 30 years with minimal maintenance.

Q2: Is custom sizing and wave shape available?A: Yes. We provide full customization for dimensions, corrugation height, curvature, colors, and finishes to match project designs.

Q3: How is the concealed installation done?A: Panels interlock via hidden edges and are fixed to aluminum keels with back bolts; no exposed fasteners, ensuring a seamless look.

Contact Us

We are a professional hidden corrugated aluminum panel manufacturer with 15+ years of experience. We provide one-stop solutions from design, fabrication to installation guidance. Contact us for free samples & quote, reply within 24 hours!
