Faceted Aluminum Facade Panels

Product Overview

Our faceted aluminum facade panels (also called 3D folded aluminum cladding, geometric angular aluminum panels, diamond faceted aluminum siding) are purpose-engineered for landmark buildings, cultural centers, commercial facades and public architecture, manufactured from high-grade 3003-H24 or 5005-H14 aluminum alloy with CNC precision folding and premium PVDF exterior coating. Unlike flat aluminum panels, our faceted panels create dynamic, changing light and shadow effects as sunlight moves across the facade through the day, without requiring additional dynamic lighting or moving parts. They solve core geometric facade pain points: the extremely high cost of custom double-curved panels, on-site folding distortion and uneven angles, long lead times for custom shapes, and poor long-term shape retention. Our faceted panels are used in 22 landmark projects globally, with ±0.1mm folding precision, zero angle distortion, 40% lower cost than double-curved aluminum panels, and a 30-year exterior warranty.

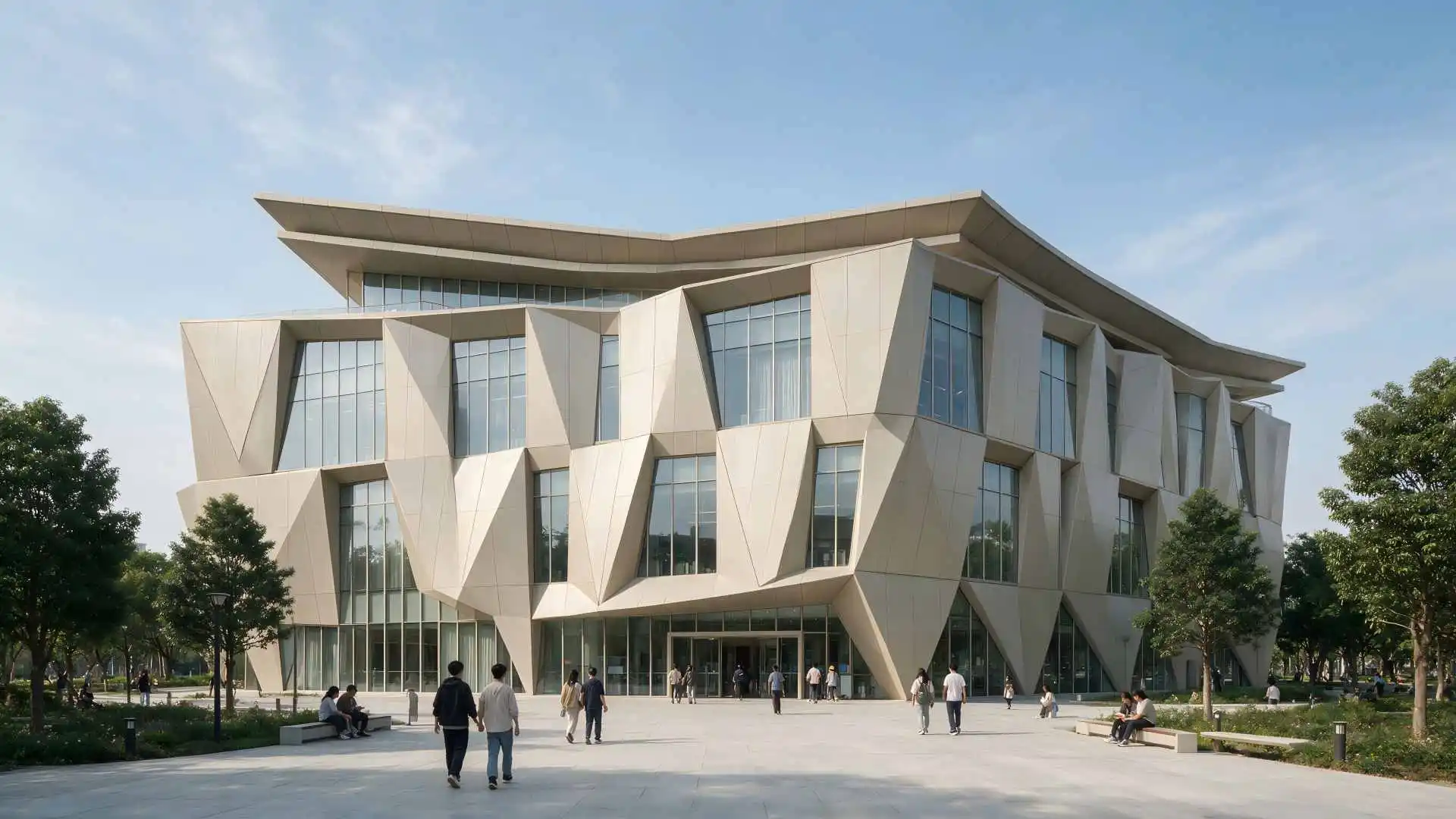

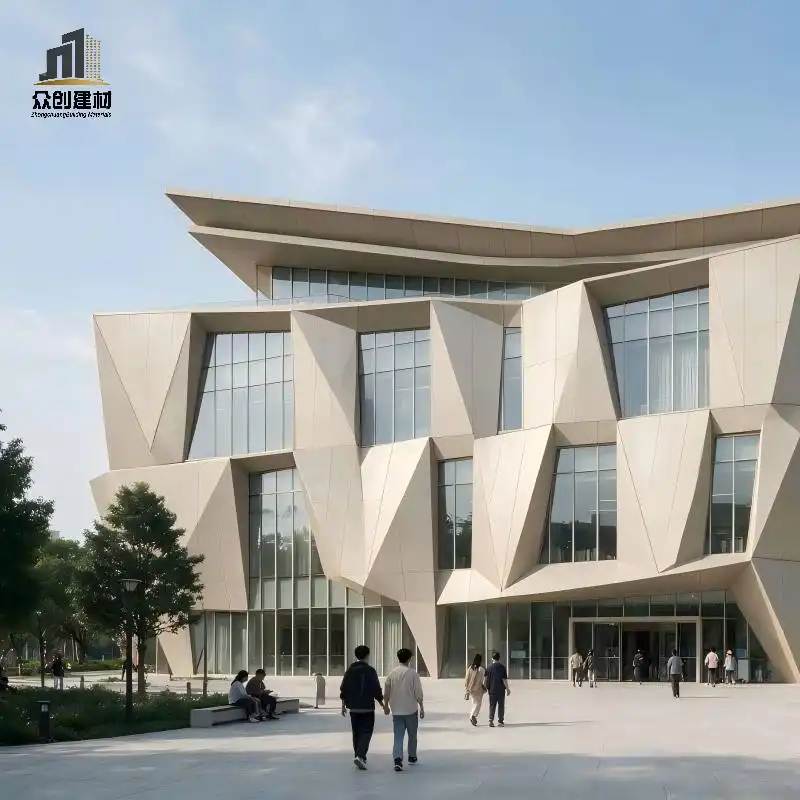

Matte beige-grey trapezoidal folded aluminum solid panels, low-gloss coating finish, for the front square of municipal public library

Core Advantages of Faceted Aluminum Facades

CNC Precision Folding, Zero Distortion Full CNC controlled folding with ±0.1mm angle precision, consistent straight fold lines across all panels, zero on-site distortion or angle error, creating a seamless geometric facade effect that matches architectural renderings exactly.

Dynamic Natural Light & Shadow Effect Angled facets catch sunlight at different angles throughout the day, creating automatically changing shadow patterns that give the facade a dynamic, living appearance with zero energy use or moving components.

40% Lower Cost Than Double Curved Panels Faceted folded design achieves a similar bold 3D geometric effect as custom double-curved panels at 40% lower cost, with shorter lead times and easier installation, making landmark-level design accessible for more projects.

Fully Customizable Geometry Custom fold angles (15°–165°), facet sizes, shapes (triangle, diamond, trapezoid, custom polygon), colors and perforation options to match any architectural design vision, from subtle texture to bold, eye-catching landmark shapes.

30-Year Exterior Weather Resistance Premium AkzoNobel PVDF coating (AAMA 2605 standard) resists UV, acid rain, salt spray and extreme temperature changes, with zero fading, chalking or corrosion for 30 years, even in harsh coastal or high-altitude climates.

Lightweight Low Structural Load Weighing only 7–10kg/㎡, 75% lighter than natural stone geometric cladding, reducing structural requirements and installation cost, suitable for both new construction and existing building renovations.

Modular Dry Installation Pre-fabricated numbered panels with adjustable dry-hang system, 30% faster installation than custom stone or curved panel facades, with easy individual panel removal and replacement for maintenance.

A2 Non-Combustible Fire Rating All aluminum panels and installation materials are A2 non-combustible, meeting the strictest high-rise and public building fire safety requirements worldwide.

Technical Specifications for Faceted Panels

Suitable Project Types

Cultural centers, museums, art galleries

Landmark commercial buildings and corporate headquarters

Public architecture: libraries, stadiums, transport hubs

High-end retail facades and global flagship stores

University and public institution buildings

Renovation projects requiring a distinctive modern appearance

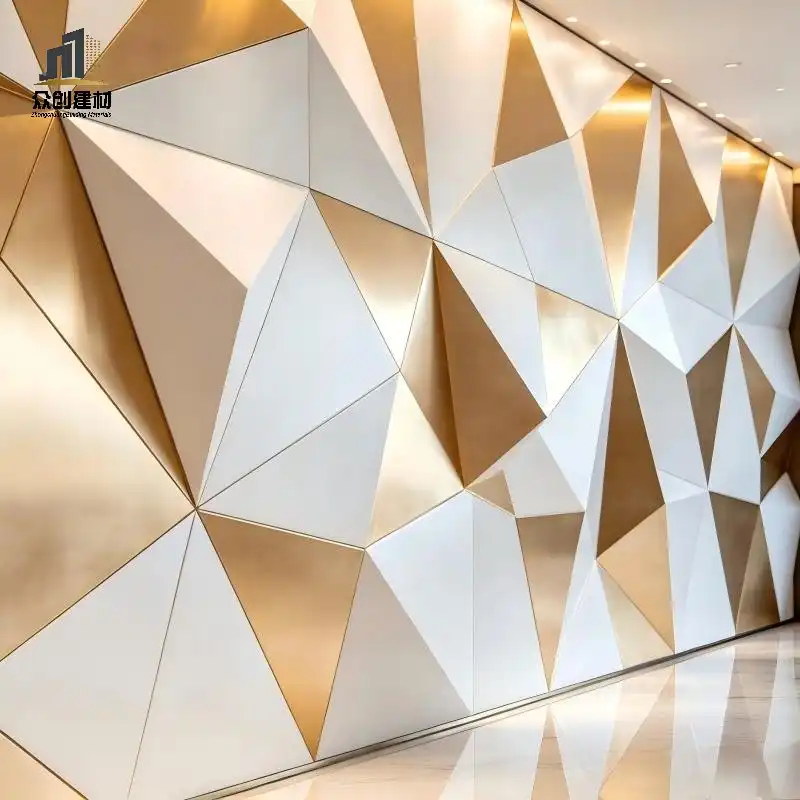

Real-life scene of triangular folded aluminum wall panel

Project Delivery & Installation Process

Share architectural drawings, 3D renderings and design requirements

Our technical team provides shop drawings, 3D facade modeling, fold angle details and physical color samples within 10 working days

Approve drawings, 3D model and physical samples (12-day lead time for custom shapes/colors)

Factory production: CNC cutting → precision CNC folding → welding & grinding → surface pretreatment → PVDF coating → 100% angle quality inspection → numbered protective packaging

All panels are numbered per installation layout, with dedicated on-site technical guidance available for complex geometric facades

On-site installation: Install adjustable keel → hang panels per numbering → adjust seam alignment → clean; installation speed reaches 10–12㎡ per worker per day

Faceted Panel Project Frequently Asked Questions

Can you match any custom geometric design from our architect?

Yes. We work directly from architectural 3D models to produce panels with exact fold angles and shapes, matching design renderings with zero visible error.

Will the fold lines distort or change angle over time?

No. We use high-temper aluminum alloy and post-folding stress relief processing, so panels hold their exact angle and shape for 30+ years with zero distortion.

Can we add backlighting to faceted panels?

Yes. We can pre-cut channels for LED backlighting behind facets to create dynamic night lighting effects, with fully hidden wiring for a clean, premium appearance.

What fold angles are possible?

We can produce any fold angle from 15° to 165°, with sharp or rounded fold edges per design requirement.

How do you ensure consistent angles across thousands of panels?

All folding is completed with automated CNC equipment, and every panel is inspected for angle accuracy before leaving the factory, ensuring 100% consistency across the entire facade.

Can faceted panels be used for curved building facades?

Yes. Faceted panels can approximate smooth curved surfaces with small facet sizes, creating a geometric curved appearance at much lower cost than true double-curved panels.

What warranty do you provide for faceted facade projects?

We provide a 30-year exterior warranty for PVDF coated faceted panels, covering coating performance, shape retention and structural integrity.

Contact Us

Factory processing photos

For faceted aluminum panel quotes, custom design samples or 3D modeling support, contact our architectural project team:

WhatsApp: +86 18870727253 | Email: [email protected]
