Perforated Aluminum Fence

Perforated aluminum fences are fabricated from high-grade aluminum alloy panels, using CNC laser or mechanical perforation to create regular or artistic hole patterns, paired with aluminum alloy posts and rails to form a complete fencing system. Unlike traditional fences, the hole density and arrangement of perforated aluminum fences can be flexibly customized according to privacy needs, ventilation requirements, and design style.

Perforated aluminum fences are more than security barriers — they are part of the architectural landscape. Proper open area ratio ensures privacy while allowing air and light to pass through, avoiding the oppressive feel of traditional solid walls. Artistic perforation patterns can become a visual focal point, forming a unified design language with the building facade.

Why Choose Perforated Aluminum Fences

Compared with wrought iron, wood, PVC, and glass fences, perforated aluminum fences offer significant advantages in the following dimensions:

Privacy & Transparency Balance: By controlling open area and hole size, a one-way see-through effect can be achieved — outsiders cannot see in, while insiders can see out.

Ventilation & Light: The perforated structure ensures air circulation and natural daylight, reducing the enclosed feel and lowering HVAC energy consumption.

Lightweight & High Strength: Weighs just one-third of wrought iron, with strong wind load resistance — safer for high-rise and typhoon-prone areas.

Never Rusts: Aluminum is naturally corrosion-resistant; PVDF coating lasts 20 years without fading, no periodic repainting required.

Artistic Expression: Any pattern can be translated into perforation language — from brand logos to natural motifs — turning the fence into artwork.

Class A Fire Rating: Aluminum is non-combustible, meeting fire codes for public spaces.

Recyclable: 100% recyclable, supporting green building and LEED certification.

Core Product Series

Based on functional focus and perforation pattern, perforated aluminum fences fall into five series:

Custom Design Capabilities

The core value of perforated aluminum fences lies in customization. We provide end-to-end service from pattern design to installation:

Pattern Development: We develop perforation patterns from client-supplied CAD, AI, or image files, ensuring precision and visual impact.

Hole Size Customization: Diameters from Ø1.5mm to Ø30mm, with multiple hole sizes combinable on a single panel.

Open Area Control: Perforation ratio adjustable from 5% to 50%, determined by privacy, ventilation, and structural requirements.

Panel Shape Customization: Flat, folded, and curved panels can all be perforated for curved fences and irregular spaces.

Height Customization: Standard heights 1.2m, 1.5m, 1.8m, 2.0m; custom up to 3.0m+.

Colored Backing: Colored backing panels can be installed behind perforated panels, creating a dual-layer "base color + holes" visual effect.

Lighting Integration: We design around LED light sources to achieve backlit projection and contour lighting effects at night.

Technical Specifications

Surface Finishes

Perforated aluminum fences are permanently exposed to outdoor conditions, so surface treatment directly determines durability and appearance retention. We offer multiple finish technologies:

PVDF Fluorocarbon: 20-year fade warranty, the outdoor first choice, full RAL color range plus custom colors.

Wood-Grain Transfer: Realistic oak, walnut, and teak textures for natural-style courtyards and resorts.

Anodizing: Silver, champagne, and bronze metallic finishes for modern minimalist styles.

Powder Coating: Matte, semi-matte, and gloss options — cost-effective for budget-conscious projects.

Two-Tone Design: Front and back of the fence can be finished in different colors for differentiated interior/exterior design.

Installation System

Our installation system balances aesthetics, safety, and maintainability:

Post Embedding: Aluminum posts are embedded in concrete foundations 300–500mm deep, ensuring wind stability.

Rail Connection: Top and bottom rails connect to posts with stainless steel bolts; panels hook onto the rails.

Hook-on Panels: Individual panels are removable for maintenance and replacement.

Drainage: Drain holes at post bases prevent water accumulation and corrosion.

Gate Integration: Matching swing gates, sliding gates, and electric gates available for unified style.

Seismic Design: Connectors allow movement to accommodate minor building deformation.

Typical Applications

Perforated aluminum fences are widely used in:

Villa Courtyards: High-privacy perforated fences protecting intimacy while maintaining transparency.

Commercial Plazas: Standard ventilated perforated fences dividing space without blocking views.

Brand Flagship Stores: Logo perforated fences reinforcing brand identity.

Hotels & Resorts: Artistic pattern or wood-grain perforated fences creating a resort atmosphere.

Building Facades: Gradient density perforated fences serving as both shading and decoration.

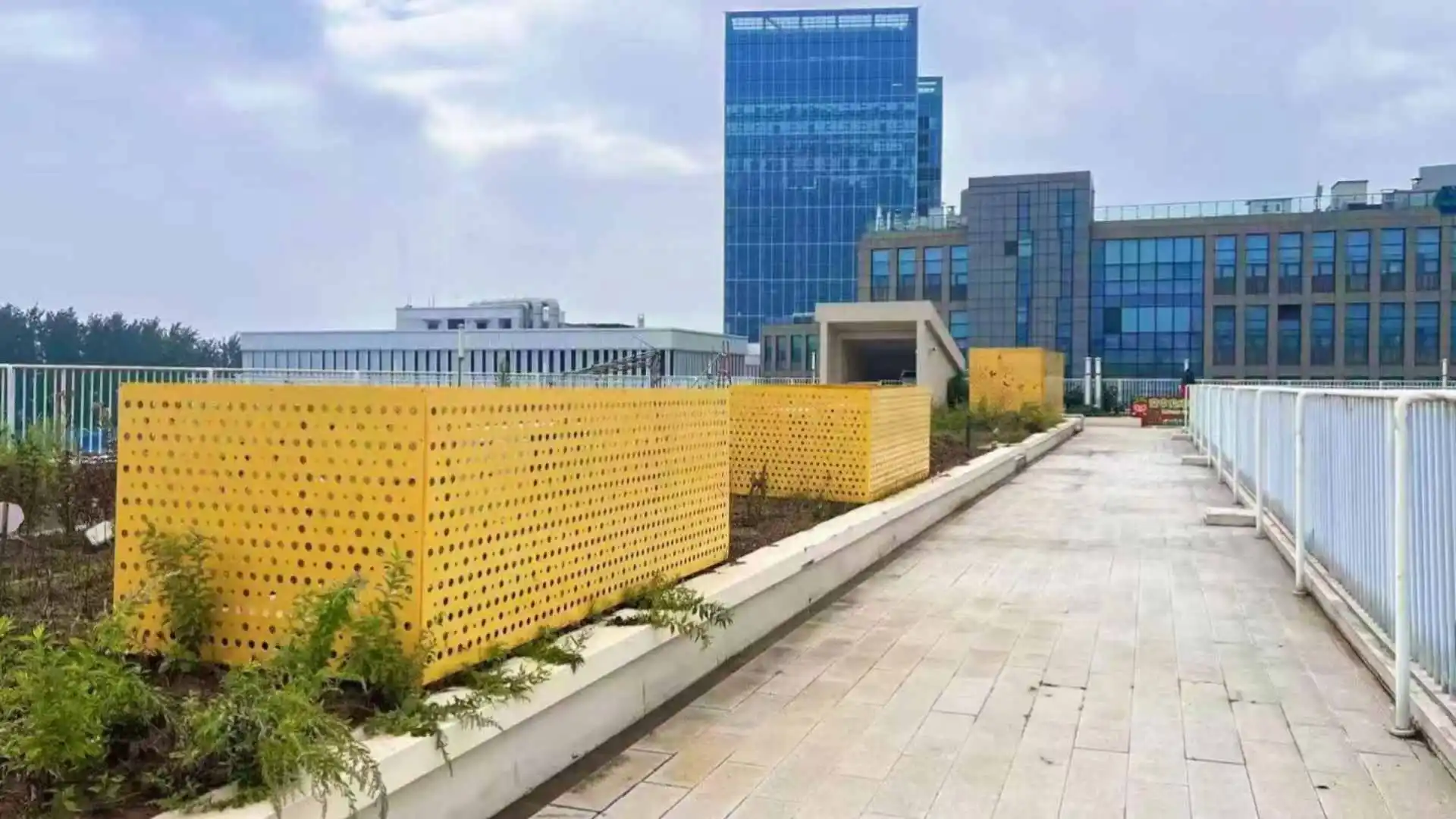

Parking Lots & Industrial Yards: High-ventilation perforated fences for safe isolation without compromising airflow.

Municipal Landscapes: Artistic perforated enclosures elevating urban public space quality.

Schools & Hospitals: Class A fire-rated perforated fences meeting public building safety requirements.

Quality Assurance & Certifications

Our perforated aluminum fences are manufactured to international standards. Key certifications include:

ISO 9001 Quality Management System

CE Marking (EU Construction Products Regulation CPR compliant)

ASTM E84 Fire Certification (surface burning characteristics)

AAMA 2605 (highest aluminum coating weatherability grade)

SGS Test Reports (coating adhesion, impact resistance, salt spray, wind load, etc.)

All exterior products come with a 15–20 year warranty against fading, chalking, and delamination.

Frequently Asked Questions

Q1: How effective is the privacy of perforated fences? Can they achieve one-way see-through?

A: Yes. By controlling hole size (Ø2–4mm) and open area (10%–15%), combined with the light differential behind the panel, a one-way see-through effect can be achieved — outsiders cannot see in, while insiders can see out. We provide the optimal perforation  based on the project's orientation and light conditions.

Q2: Can I provide my own pattern?

A: Yes. Clients can provide patterns in CAD, AI, or PNG format. Our engineers develop the perforation工艺 to ensure the pattern is manufacturable and visually effective. Complex patterns are prototyped for confirmation first.

Q3: Can they be used in coastal areas? Will they corrode?

A: Yes. For coastal regions, we recommend 5052-H32 aluminum alloy with PVDF coating plus an additional epoxy primer to improve salt-spray resistance. We have successful project references in multiple coastal locations with over 15 years of corrosion-free performance.

Q4: How is the wind resistance? Can they be used in typhoon areas?

A: Standard configuration resists wind loads ≥2.0kPa (approximately Category 12 typhoon). For typhoon-prone areas, wind resistance can be upgraded by increasing panel thickness, densifying posts, and reinforcing connectors — up to 4.0kPa+. All designs undergo structural verification.

Q5: What is the lead time? Is installation included?

A: Standard fences take approximately 20–25 days. Custom artistic patterns, including design development and prototyping, take 30–45 days. We provide product supply and installation guidance; for overseas projects, we can dispatch technical supervisors or provide comprehensive installation manuals. Exact timelines depend on order volume and customization complexity.
