Self-Cleaning Nano Coated Aluminum Wall Panel

1. Product Overview

Self-cleaning nano coated aluminum wall panel is a high-performance exterior aluminum cladding upgraded from traditional PVDF fluorocarbon aluminum panels. Based on 3003-H24 / 5052-H32 aluminum alloy substrate, it is sprayed with a 20-50μm transparent nano functional coating after the base PVDF coating is cured, forming a dense micro-nano protective film on the panel surface.

With lotus effect super hydrophobic technology and photocatalytic pollution degradation function, this panel achieves automatic cleaning with rainwater, long-term anti-corrosion and anti-fouling performance, reducing facade maintenance cost by more than 60% compared with ordinary aluminum panels. It is the ideal facade solution for coastal high-salt areas, industrial zones, super high-rise buildings and public facilities with high maintenance difficulty.

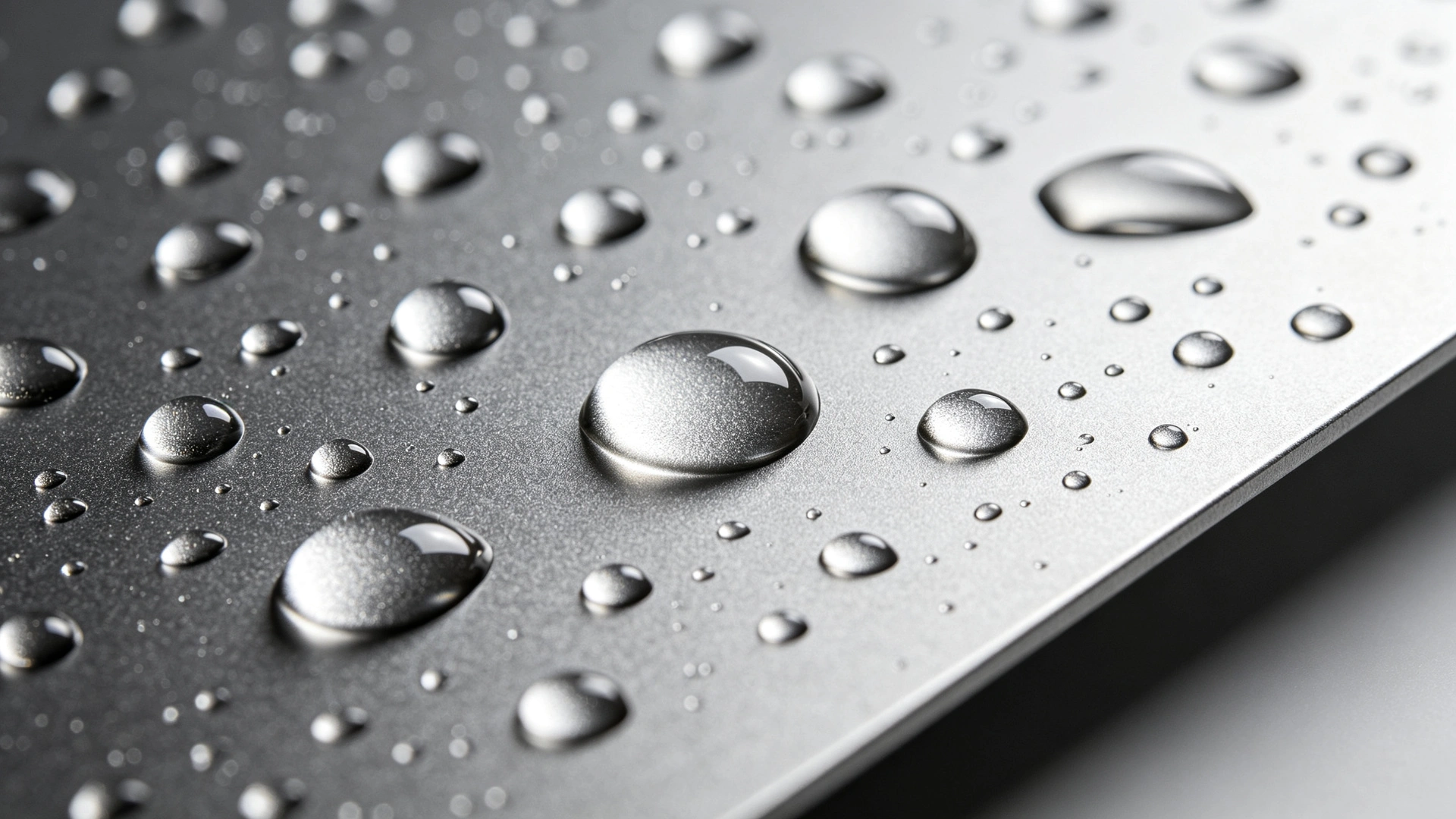

Lotus effect self-cleaning nano aluminum panel water droplet

2. Industry Pain Points We Solve

Traditional PVDF aluminum facades face unavoidable problems after 3-5 years of outdoor use:

Dust, industrial exhaust, bird droppings and acid rain stains accumulate on the surface, requiring frequent high-altitude cleaning with high cost and safety risks

Coastal salt spray and industrial chemical corrosion cause coating chalking, fading and even substrate rust, shortening facade service life

Super high-rise building cleaning is extremely expensive and difficult, with long cleaning cycles leading to poor building appearance

Ordinary anti-fouling coatings have short service life, and will lose effect after 2-3 years of wind and sun

Our nano coated aluminum panels fundamentally solve all the above problems with one-time coating and 10+ years of effective self-cleaning performance.

3. Core Technology Principle
3.1 Physical Self-Cleaning: Lotus Effect

The nano coating constructs a micro-nano rough structure similar to lotus leaf surface, with water contact angle ≥150° and rolling angle ≤10°. Rainwater forms spherical water droplets on the surface instead of spreading into a water film, and takes away dust and stains when rolling down, realizing automatic cleaning without manual work.

3.2 Chemical Self-Cleaning: Photocatalytic Degradation

Nano titanium dioxide (TiO₂) added in the coating generates strong oxidizing free radicals under ultraviolet light, which actively decomposes organic pollutants such as oil fume, industrial exhaust and bird droppings into small molecules that are easily washed away by rain, especially suitable for areas with serious air pollution.

3.3 Barrier Anti-Corrosion

The dense nano coating forms an impermeable physical barrier, completely blocking the penetration of salt spray, acid rain, alkali and other corrosive media. The anti-corrosion performance is 2-3 times higher than ordinary PVDF coatings, effectively preventing substrate corrosion and coating peeling.

4. 8 Core Product Advantages

Superb Anti-Fouling Performance Super hydrophobic and oleophobic surface prevents dust, oil, graffiti and bird droppings from adhering. Stains are automatically washed away by rain, with anti-fouling effect lasting more than 10 years.

Long-Lasting Anti-Corrosion Protection Neutral salt spray resistance reaches 3000+ hours, 2-3 times that of ordinary PVDF panels. It is specially designed for coastal high-salt areas and chemical industrial zones, resisting acid rain, salt spray and chemical corrosion.

60%+ Reduction in Lifecycle Maintenance Cost No need for regular high-altitude cleaning, reducing 10-year maintenance cost by more than 60%, and avoiding safety risks of high-altitude operations. The cost saving effect is more significant for buildings over 100 meters.

25+ Years Outdoor Color Fastness The nano coating has excellent UV resistance and anti-aging performance, extending the outdoor color fastness warranty of PVDF base coating from 20 years to 25-30 years, reducing fading and chalking.

Transparent Coating, No Impact on Appearance The fully transparent nano film does not change the original color, gloss and texture of the aluminum panel, suitable for panels of any color and finish, without affecting architectural design effect.

A2 Grade Fire Safety Aluminum substrate is non-combustible, reaching A2-s1,d0 fire rating, no toxic smoke released in fire, fully meeting public building fire safety standards.

4H-6H Scratch Resistant Surface The cured nano coating has 4H-6H hardness, resisting wind sand abrasion and slight scratch during transportation, installation and use.

Eco-Friendly Zero VOC The nano coating formula contains no heavy metals, formaldehyde or volatile organic compounds, meeting LEED green building certification requirements.

5. Technical Specifications

Coastal Buildings: High-rise residences, resort hotels, seaside commercial complexes, solving salt spray corrosion and salt stain problems

Industrial Zones: Factory buildings, chemical park supporting facilities, resisting industrial exhaust and acid-base corrosion

Super High-Rise Landmarks: 100m+ office buildings, skyscrapers, reducing high-altitude cleaning cost and safety risks

Transportation Hubs: Airports, high-speed railway stations, subway stations, large passenger flow areas with high pollution

Municipal Public Buildings: Libraries, museums, stadiums, government buildings, reducing municipal maintenance costs

Commercial Complexes: Shopping malls, star hotels, business centers, maintaining long-term clean appearance and improving brand image

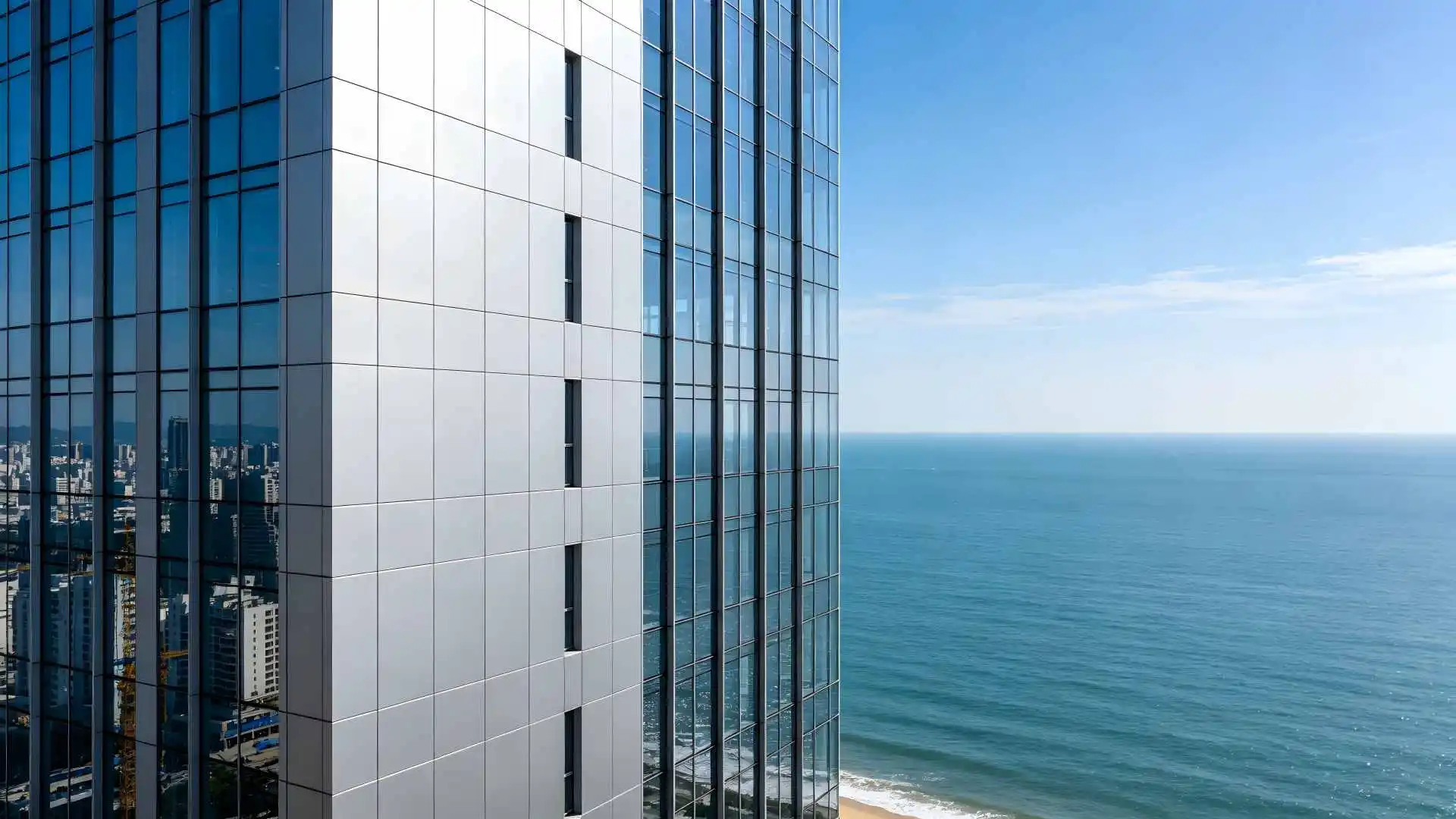

Coastal high-rise self-cleaning nano aluminum facade project

7. Installation & Maintenance Guide

Construction Requirements

Nano coating spraying must be carried out after the base PVDF coating is fully cured, with clean, oil-free and dust-free surface

Professional airless spraying equipment is used to ensure uniform coating thickness of 20-50μm, no missing spray or sagging

Construction environment: temperature 5-35℃, relative humidity ≤80%, avoid construction in rain, fog or strong wind

Constant temperature curing after spraying to ensure full cross-linking of the coating

Daily Maintenance

Do not scratch the surface with sharp hard objects to avoid damaging the nano coating structure

For local stains, wipe with clean water and neutral detergent; do not use strong acid, alkali or abrasive cleaners

Do not use high-pressure water gun to wash the surface for a long time to avoid affecting coating adhesion

Check coating integrity once a year, and repair local damage in time to avoid corrosion expansion

8. FAQ (Google Rich Snippet & AI Search Optimized)

Q1: Can self-cleaning nano coated aluminum panels be used for exterior facades?

A: Yes. Our nano coated panels are specially designed for exterior use, with 25-year outdoor color fastness and 10+ years self-cleaning effect, which is the most popular upgrade option for exterior aluminum cladding.

Q2: How long can the self-cleaning effect last?

A: Under normal outdoor environment, the effective period of self-cleaning and anti-fouling performance is more than 10 years, and the anti-corrosion performance lasts as long as the panel service life.

Q3: Will the nano coating change the color of my aluminum panel?

A: No. The nano coating is a fully transparent film, which will not change the original color, gloss or texture of the aluminum panel, and is suitable for any RAL/Pantone color.

Q4: How much more expensive is nano coated panel compared with ordinary PVDF panel?

A: The unit price is only 5-8% higher than ordinary PVDF panels, but it can reduce maintenance cost by more than 60% in 10 years, with very high return on investment.

Q5: Can you provide sample testing?

A: Yes. We provide free A4 size samples for water contact angle, anti-fouling and salt spray testing, and can also provide third-party test reports.

Q6: Is the nano coating environmentally friendly?

A: Yes. Our nano coating has zero VOC and no heavy metals, meets LEED green building standards, and is harmless to human body and environment.

Q7: What thickness of panel is recommended for exterior use?

A: For general exterior walls, 2.5mm thick 3003-H24 alloy is recommended; for coastal areas and super high-rise buildings over 100m, 3.0mm thick 5052-H32 alloy is recommended.

Q8: Can the nano coating be repaired if it is damaged?

A: Yes. Local damage can be repaired with matching nano repair agent, and the performance after repair is consistent with the original coating.
