Waterproof Aluminum Facade Panel

Our waterproof aluminum facade panel is a professional exterior building envelope material exclusively developed for rainy, coastal, and high-humidity areas. Made of premium AA3003/5005 aluminum alloy, combined with a multi-stage waterproof system design, precision factory prefabrication, and hidden drainage structure, it achieves industry-leading water tightness performance, fully complying with ASTM E331 and EN 12154 international water tightness standards. As a professional manufacturer with 15+ years of facade engineering experience, we provide fully customized waterproof aluminum facade solutions for high-rise buildings, commercial complexes, hotels, and coastal projects worldwide.

What is Waterproof Aluminum Facade Panel?

Waterproof aluminum facade panel is a solid aluminum cladding panel with a dedicated waterproof system design, optimized for the core pain points of water penetration in exterior building facades. Unlike ordinary aluminum facade panels, it adopts a rainscreen principle design, with equal pressure cavity, hidden drainage channel, double-stage EPDM sealing, and anti-capillary groove structure, forming a multi-stage waterproof and drainage system, which can completely block wind-driven rain from penetrating into the interior of the building, even in extreme storm and typhoon environments.

With high-grade PVDF fluorocarbon coating and marine-grade aluminum alloy options, it has excellent weather resistance and corrosion resistance, and is widely used in coastal buildings, high-rise residential buildings, commercial complexes, hotels, and industrial facilities in rainy and high-humidity areas.

Core Advantages of Our Waterproof Aluminum Facade Panel

Industry-Leading Multi-Stage Waterproof System, Zero Water PenetrationOur waterproof aluminum facade panel adopts a 4-stage waterproof design based on the rainscreen principle:

Equal Pressure Cavity Structure: Balances the internal and external air pressure, eliminating the pressure difference that drives rainwater penetration

Hidden Drainage Channel: Collects and discharges a small amount of infiltrated rainwater in time, with no water accumulation

Double-Stage EPDM Sealing: High-elasticity weather-resistant EPDM sealing strips, with a service life of more than 20 years, ensuring long-term sealing performance

Anti-Capillary Groove Design: Blocks capillary water penetration, further enhancing waterproof performance

The system has passed ASTM E331 water tightness test under 1200Pa static pressure, and EN 12154 Class 9A highest water tightness grade, completely eliminating the risk of water penetration in extreme weather.

Superior Wind Load Resistance, Suitable for High-Rise & Coastal Typhoon AreasThe panel is reinforced with integral back ribs, with a structural design optimized through finite element analysis, passing ASTM E330 wind load test up to ±2.4kPa, fully meeting the wind load requirements of high-rise buildings and coastal typhoon areas. The anti-loosening hidden fixing system ensures that the panel will not fall off under extreme wind load, with a safety factor of more than 3 times, fully complying with EN 13116 wind load resistance standards.

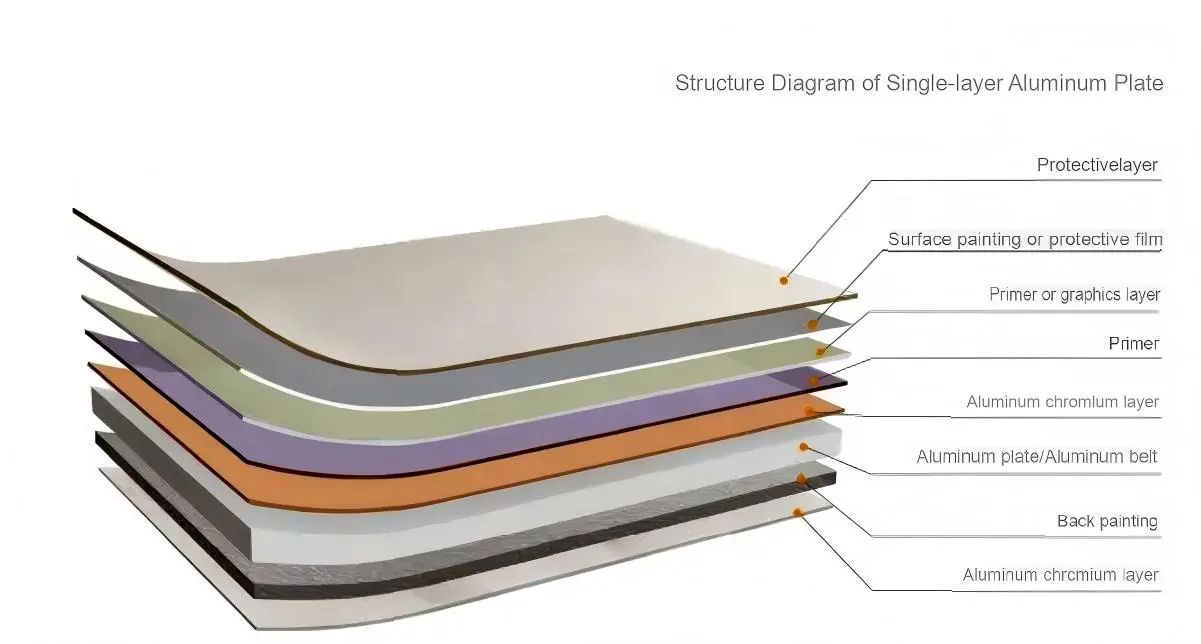

Excellent Corrosion & Weather Resistance for Harsh EnvironmentsThe panel adopts AkzoNobel/PPG PVDF fluorocarbon coating (2-4 coats), with a coating thickness of 50μm-80μm, passing ASTM G155 5000+ hours of weather resistance testing and ASTM B117 2000+ hours of salt spray testing. Marine-grade AA5005 aluminum alloy substrate is available for coastal areas, with excellent resistance to salt spray, acid rain, and industrial pollution, maintaining color stability and structural integrity for more than 25 years in outdoor harsh environments.

Class A Fire Safety, Global Standard ComplianceMade of non-combustible aluminum alloy substrate, meets ASTM E84 Class A, EN 13501-1 A2-s1,d0 fire rating standards, with no toxic fumes released in case of fire, fully complying with the mandatory fire safety requirements of high-rise buildings and public facilities worldwide.

Factory Prefabrication, Fast Installation, Reduced On-Site RiskAll waterproof nodes, sealing structures, and drainage channels are prefabricated in the factory with high precision, with a dimensional tolerance of ±0.5mm, avoiding on-site construction errors that affect waterproof performance. The modular clip-in installation system improves on-site installation efficiency by 40% compared with traditional facade systems, greatly shortening the construction period, and reducing on-site labor costs and waterproof failure risks.

Easy Maintenance, Long Service Life, Low Whole-Life CostThe smooth PVDF coating has excellent self-cleaning performance, with only regular water washing needed to keep it clean. The waterproof system is maintenance-free for 20 years, and the aluminum substrate has a service life of more than 50 years. Compared with traditional stone and ceramic curtain walls, it has lower whole-life cost, higher safety, and better decorative effect.

Unlimited Design Flexibility, Perfectly Restore Architectural DesignWe support full customization of panel shape, size, color, and finish: flat panel, single/double curved panel, perforated panel, carved panel, special-shaped panel, with solid color, metallic color, wood grain, stone grain, brushed finish options. It can be perfectly integrated with windows, lighting, and sunshade systems, meeting the creative design needs of architects.

Standard & Custom Specifications (Optimized for Google Featured Snippets)

Wide Application Scenarios

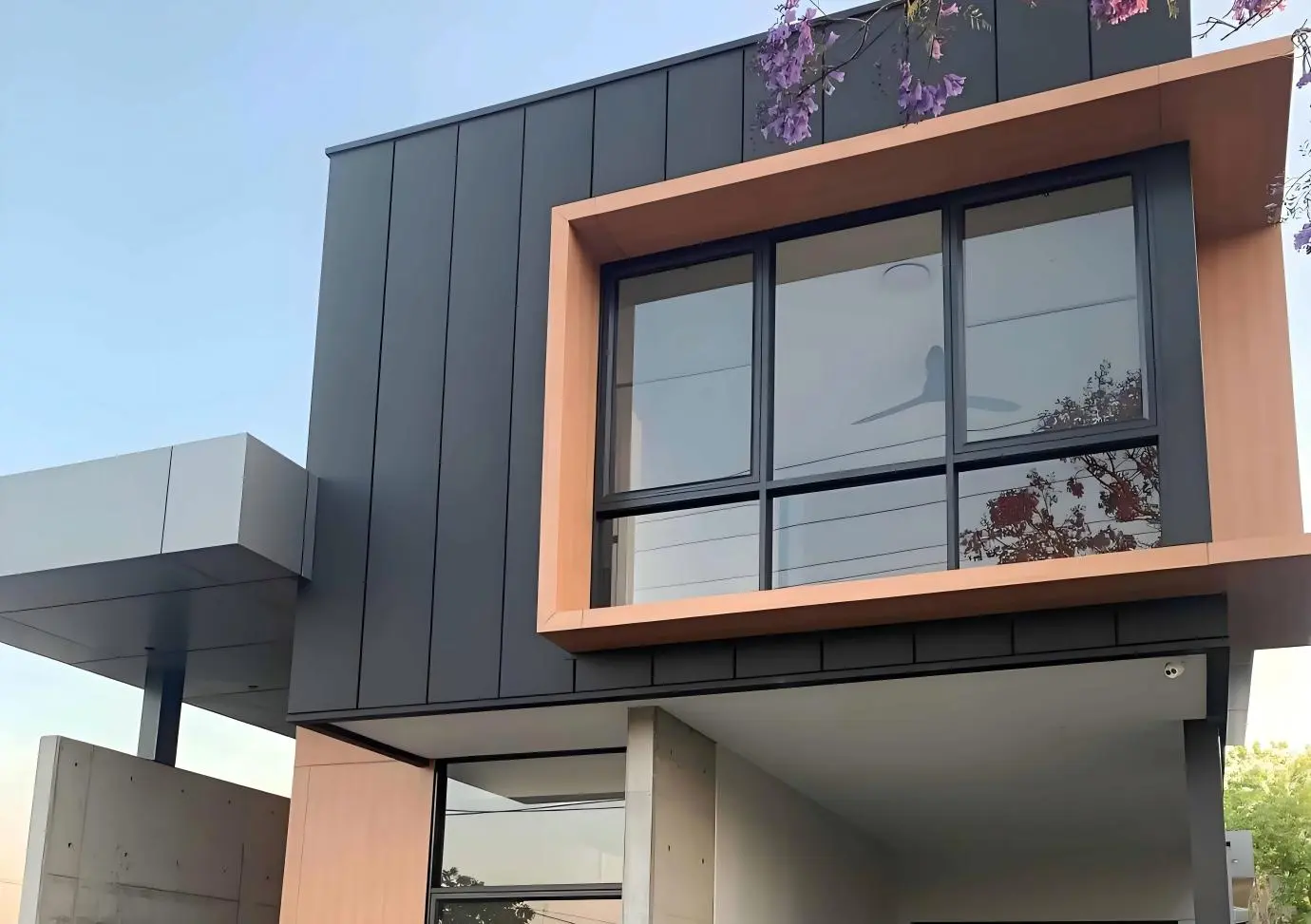

Coastal & High-Salt Spray Areas: High-rise residential buildings, hotels, commercial complexes, seaside villas, port facilities

Rainy & High-Humidity Areas: Commercial buildings, office towers, hospitals, schools, industrial facilities in tropical and subtropical regions

High-Rise Buildings: Super high-rise office towers, residential apartments, with strict wind load and waterproof requirements

Public Facilities: Airports, railway stations, stadiums, convention centers, museums, with high safety and durability requirements

Facade Renovation Projects: Old building facade renovation, waterproof upgrade, and appearance renewal

Special Applications: Building canopies, eaves, sunshade systems, balcony enclosures, with high waterproof requirements

Strict Quality Control & Performance Testing

To ensure the long-term stable waterproof performance of each panel, we have established a strict quality control and performance testing system:

Raw Material Inspection: 100% inspection of aluminum coil composition, mechanical properties, and coating raw material quality to ensure compliance with international standards.

Waterproof Structure Design Verification: For each project, we conduct professional structural calculation and waterproof system design, verified by BIM simulation to ensure no design defects.

Factory Prefabrication Precision Control: CNC precision machining of all waterproof nodes and panel dimensions, with 100% inspection of each panel's dimensional tolerance, ensuring perfect matching on site.

Performance Testing: Each batch of products undergoes mandatory water tightness test (ASTM E331), wind load test (ASTM E330), salt spray test, and weather resistance test in an authoritative third-party laboratory.

On-Site Installation Guidance: We send professional technical engineers to provide on-site installation guidance and waterproof node acceptance, ensuring that the on-site installation fully restores the design waterproof performance.

Full Life Cycle Warranty: We provide a 10-year warranty for the panel coating and a 20-year warranty for the waterproof system, with full after-sales service support.

FAQ

Q: What is the waterproof principle of your waterproof aluminum facade panel?A: Our waterproof aluminum facade panel adopts the rainscreen principle with equal pressure cavity design: it balances the internal and external air pressure to eliminate the core driving force of rainwater penetration, and is equipped with a hidden drainage channel to discharge a small amount of infiltrated rainwater in time, plus double-stage EPDM sealing and anti-capillary groove structure, forming a multi-stage "blocking + draining" waterproof system, which can completely block wind-driven rain penetration even in extreme storms.

Q: Can the waterproof aluminum facade panel be used in coastal typhoon areas?A: Yes. Our marine-grade waterproof aluminum facade panel adopts AA5005 aluminum alloy substrate, 3.0mm+ panel thickness, reinforced back rib structure, and 1500Pa water tightness grade, which can withstand super typhoon wind load and high salt spray corrosion, and has been successfully applied in many coastal projects in Southeast Asia, Australia, and the Middle East.

Q: What is the warranty period of the waterproof system?A: We provide a 20-year warranty for the waterproof system of our aluminum facade panel, and a 10-year warranty for the PVDF coating. During the warranty period, we are responsible for any water penetration, coating peeling, or fading caused by product quality or manufacturing defects.

Q: What is the difference between waterproof aluminum facade panel and ordinary aluminum veneer?A: The core difference is the waterproof system design: ordinary aluminum veneer only focuses on decorative performance, with no dedicated waterproof and drainage structure, relying solely on on-site sealant for waterproofing, which is prone to failure over time; our waterproof aluminum facade panel has a factory-prefabricated multi-stage waterproof and drainage system, with equal pressure cavity and hidden drainage channel, which fundamentally eliminates the risk of water penetration, with more reliable long-term waterproof performance, and is specially designed for exterior facade scenarios with high waterproof requirements.

Get Your Custom Waterproof Aluminum Facade Solution

As a professional waterproof aluminum facade panel manufacturer with 15+ years of global facade engineering experience, we provide one-stop customized services from waterproof system design, structural calculation, factory prefabrication to on-site installation guidance, with full international certification compliance and factory-direct pricing. Whether you are building a new high-rise project, renovating an old facade, or undertaking a coastal building project, we can deliver the most reliable waterproof aluminum facade solution for you.

Contact us now to get a free project quote, free waterproof system design, and professional technical consultation, our engineering team will reply to you within 24 hours.
