aluminum diamond mesh
- Product Description
Aluminum diamond mesh (also known as expanded aluminum diamond mesh) is a versatile metal material produced by simultaneously slitting and stretching aluminum alloy sheets into a continuous diamond-shaped pattern. Unlike welded or woven mesh, this unique manufacturing process creates a unified, joint-free structure with superior strength-to-weight ratio and zero material waste.
Our aluminum diamond mesh is manufactured from high-grade 1060, 3003, 5005 and 5052 aluminum alloys, offering exceptional corrosion resistance, durability and aesthetic appeal. It is widely used in architectural decoration, industrial protection, ventilation systems and security applications worldwide.

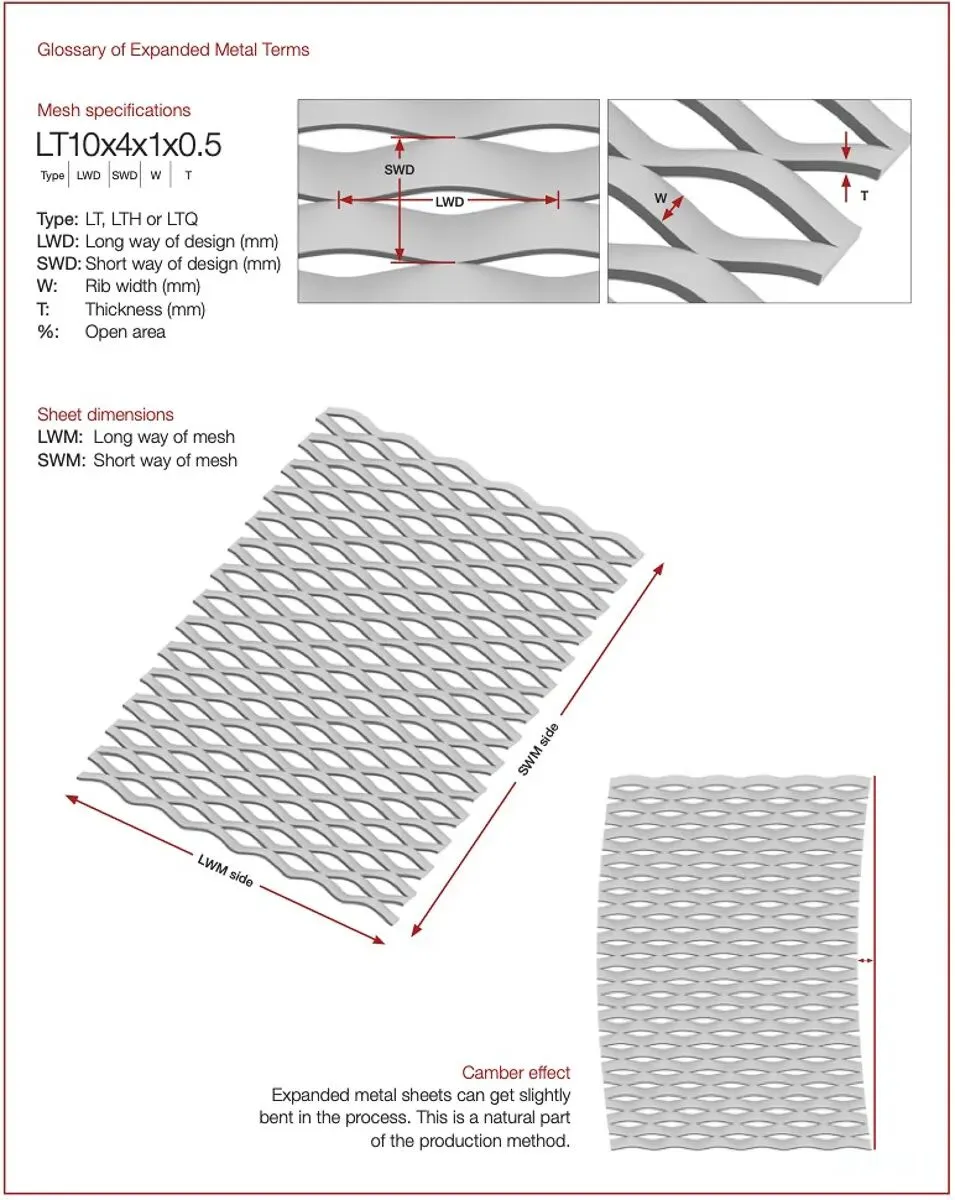

Aluminum diamond mesh product overview showing expanded metal structure
1.1 Technical Specifications
| Parameter | Standard Specification | Customization Range |
|---|---|---|
| Material | 1060 pure aluminum, 3003/5005 aluminum alloy | 5052-H32, 6061-T6 high-strength aluminum alloy |
| Sheet Thickness | 0.8mm, 1.0mm, 1.5mm, 2.0mm，3.0mm | 0.5mm-5.0mm |
| Mesh Size (SWD × LWD) | 8×16mm, 10×20mm, 15×30mm, 22×50mm | 2×3mm to 150×300mm |
| Strand Width | 1.2mm-3.0mm | 1.0mm-12.0mm |
| Opening Rate | 50%-75% | 30%-80% |
| Standard Panel Size | 150×150mm to 1500×3000mm | Max 2000×6000mm |
| Surface Finish | Mill finish, anodized, powder coating | PVDF fluorocarbon coating, wood grain transfer |
| Surface Type | Raised (standard), flattened (smooth) | Both types available |
| Weight | 0.8kg/m²-2.5kg/m² | 0.6kg/m²-2.9kg/m² |
| Standards | ISO 9001, ASTM B209, EN 573-3 | Custom certifications available |
1.2 Key Advantages
Exceptional Strength-to-Weight Ratio Aluminum diamond mesh is 68% lighter than steel mesh of equivalent strength, significantly reducing structural load and installation costs. Its integrated diamond structure distributes loads evenly, providing superior rigidity without added weight.
Natural Corrosion Resistance Aluminum forms a protective oxide layer naturally, making it rust-proof even without additional coatings. This makes it ideal for coastal areas, humid environments and outdoor applications, with a typical lifespan of 25+ years.
Excellent Ventilation & Light Transmission With 65%-75% opening rate, aluminum diamond mesh allows optimal airflow and natural light penetration while providing privacy and protection. It reduces solar heat gain by up to 40% when used as sunshades.
No Welded Joints The one-piece expansion process eliminates weak welded points, resulting in a stronger, more durable structure that resists cracking and breaking under stress.
High Material Efficiency The manufacturing process uses 100% of the raw material with no waste, making aluminum diamond mesh an environmentally friendly and cost-effective solution.
Aesthetic Versatility Available in a wide range of colors, finishes and mesh patterns, aluminum diamond mesh offers endless design possibilities for modern architectural projects. It can be easily cut, bent and formed into complex shapes.
1.3 Typical Applications

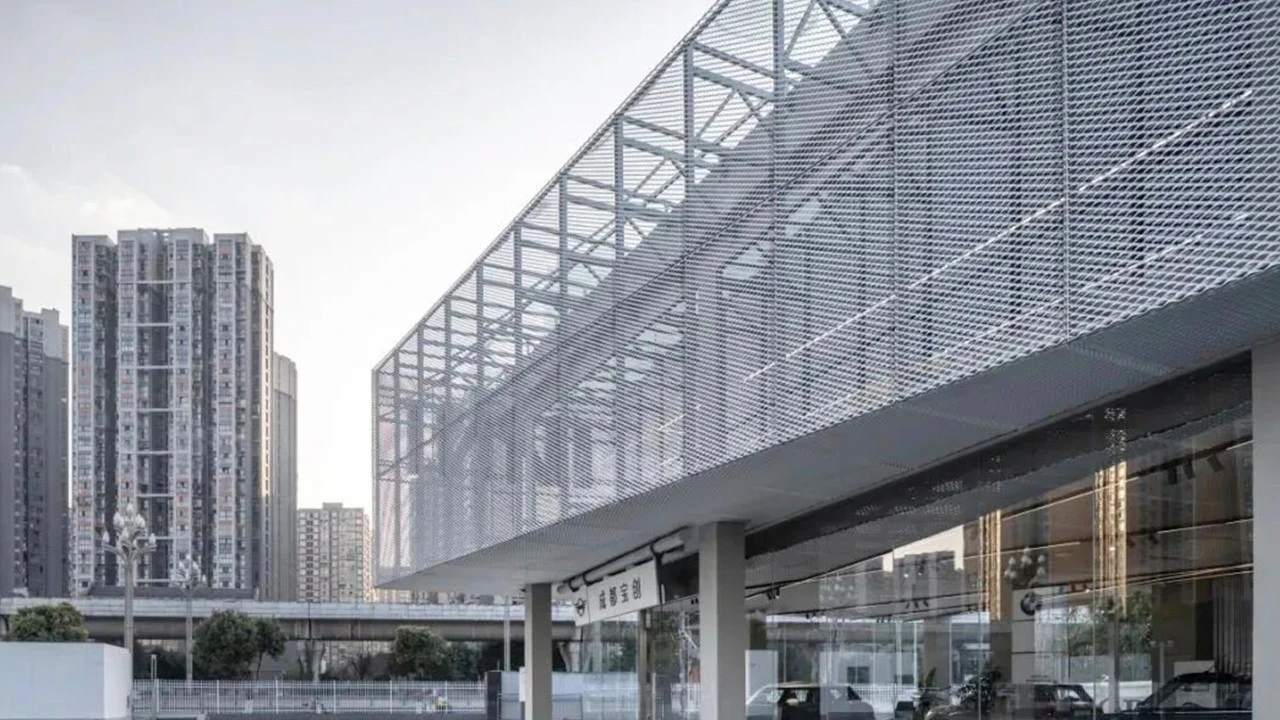

Aluminum diamond mesh applications in building facades
Architectural: Building facades, sunshades, ceiling panels, balcony railings, partition walls
Security: Window guards, fencing, machine guarding, perimeter barriers
Industrial: Walkways, stair treads, platform flooring, ventilation grilles, filters
Transportation: Automotive grilles, truck body panels, ship railings
Renewable Energy: Solar panel frames, battery cooling systems, wind turbine components
1.4 Our Services
As a professional aluminum diamond mesh manufacturer with over 15 years of experience, we provide comprehensive one-stop services from design to delivery:
Custom size, pattern and finish manufacturing
Precision cutting, bending and fabrication
Professional technical support and project consultation
Fast worldwide shipping with secure packaging
10-year product warranty against manufacturing defects
