Expanded Aluminum Mesh Ceiling | One-Piece Stretched Weld-Free Architectural Ceiling System

Product Overview

Guangdong Zhongchuang expanded aluminum mesh ceilings are manufactured with advanced CNC one-piece stretching technology, forming uniform mesh structures from solid whole aluminum sheets without any welding or splicing. Unlike traditional assembled mesh ceilings, our one-piece stretched panels feature consistent structural strength, no weak weld points, and smooth clean edges, making them the preferred choice for modern commercial, industrial and public architectural projects.

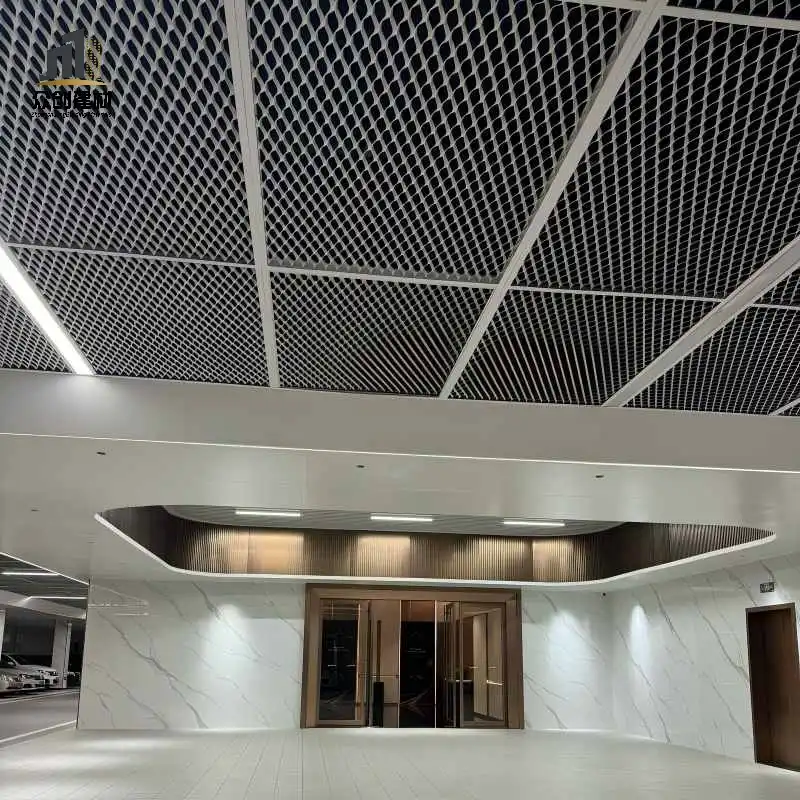

Available in diamond, hexagonal and custom mesh openings, with thickness ranging from 1.5mm to 4.0mm and maximum single panel size up to 6 meters, these ceiling systems deliver excellent natural ventilation, light transmission, and modern industrial aesthetic appeal. They support PVDF coating, powder coating and anodized finishes, suitable for both indoor and semi-outdoor applications with 10 to 25 years of warranty.

8 Core Advantages of One-Piece Stretched Aluminum Mesh Ceilings

1. Zero Weld Joint Structural Safety

One-piece stretching from solid aluminum sheet eliminates all welding points, removes corrosion and fracture risks at weld positions, increases overall structural safety by 45% compared with spliced mesh products, and meets long-term load requirements for large span spaces.

2. 85% High Ventilation & Light Transmittance

Uniform mesh structure delivers up to 85% ventilation rate, improves air circulation in large spaces, reduces HVAC energy consumption, and allows natural light to pass through evenly, creating bright and open space perception.

3. Lightweight Self-Load-Bearing Design

High strength-to-weight ratio allows 6-meter large span installation without additional intermediate hanging points, reduces ceiling system weight by 60% compared with solid aluminum panels, lowers structural load on buildings, and saves steel keel cost.

4. A2 Grade Non-Combustible Performance

Made of 100% solid aluminum alloy, reaches A2 highest fire rating, complies with strict fire safety codes for public buildings, transportation hubs and industrial facilities, and releases no toxic fumes under high temperature.

5. Multiple Anti-Corrosion Surface Treatments

Supports PVDF fluorocarbon coating, polyester powder coating and anodizing surface treatments, adapts to coastal, industrial and other harsh environments, resists fading, corrosion and dust accumulation, and reduces long-term maintenance cost.

6. Modular Fast Installation

Standard modular panel design reduces on-site construction time by 35% compared with custom welded systems. Each panel can be independently removed and reinstalled, provides convenient access to upper MEP equipment, and lowers later maintenance difficulty.

7. Full Customization Capability

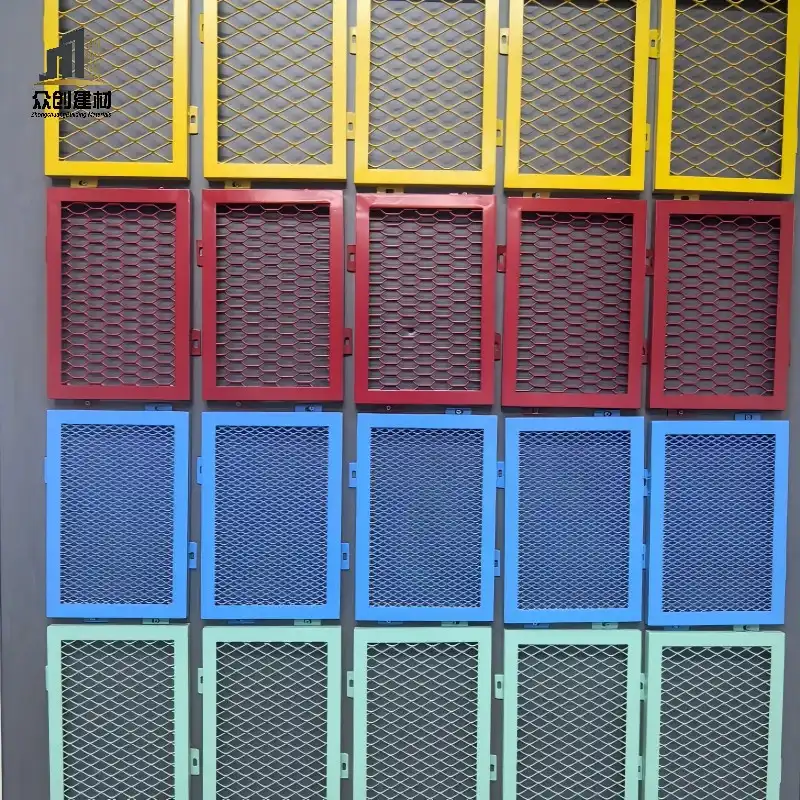

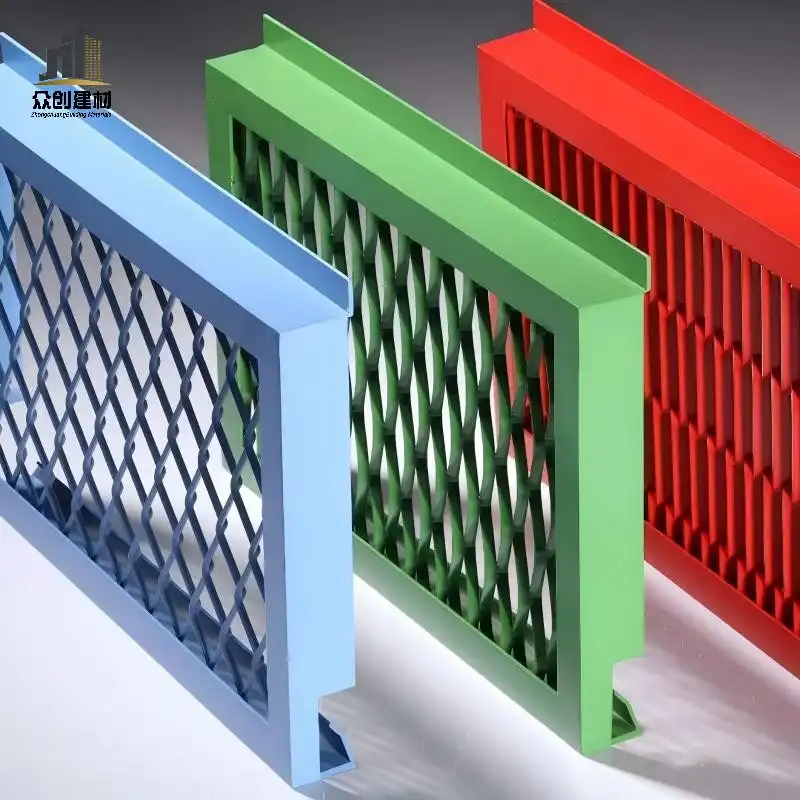

Supports customization of mesh shape (diamond, hexagonal, special-shaped), mesh size, panel thickness, color and surface finish, and can be made into curved, arc and other special shapes to match different architectural design styles.

8. Multi-System Integration Compatibility

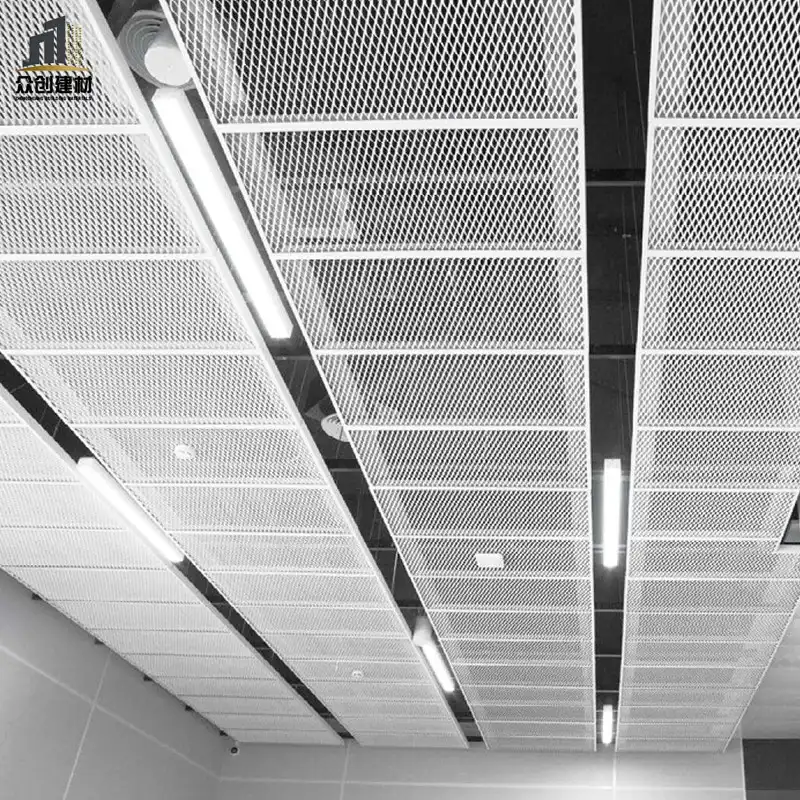

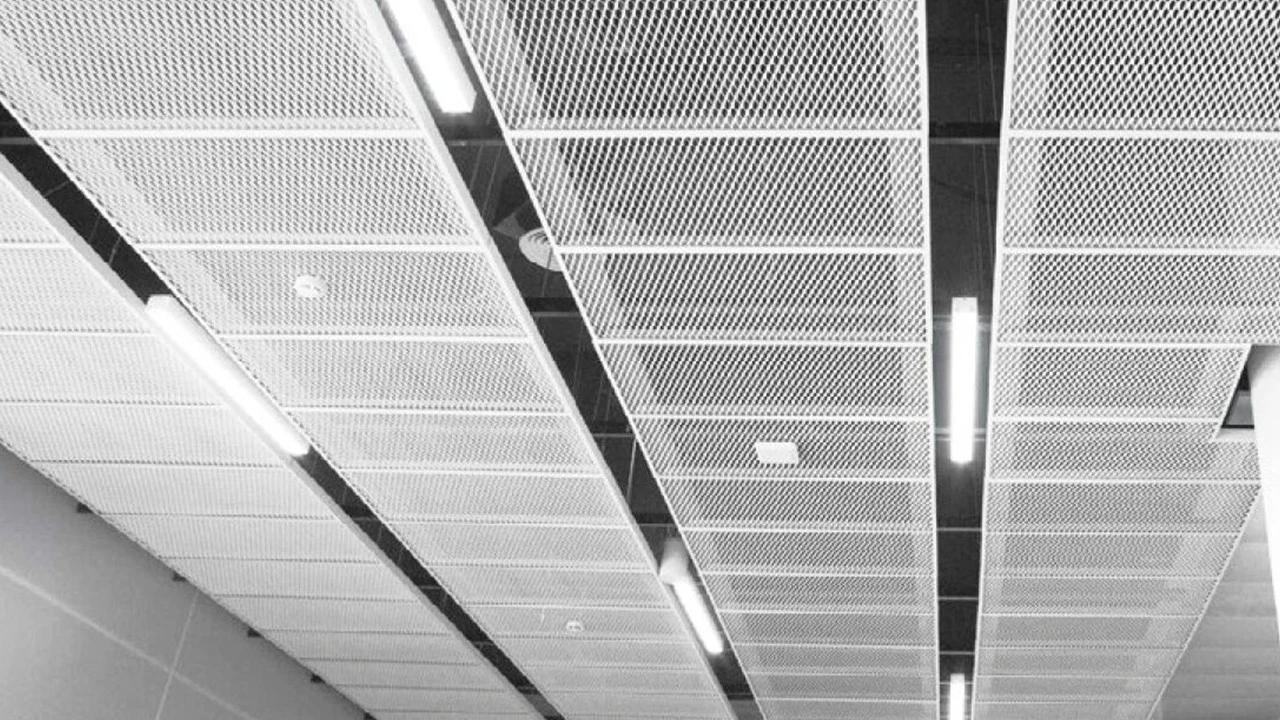

Seamlessly integrates with linear lighting, fire sprinklers, smoke detectors, air vents and other ceiling equipment, eliminates additional opening work, maintains overall visual consistency of ceiling, and improves construction efficiency.

Technical Specifications

Application Scenarios

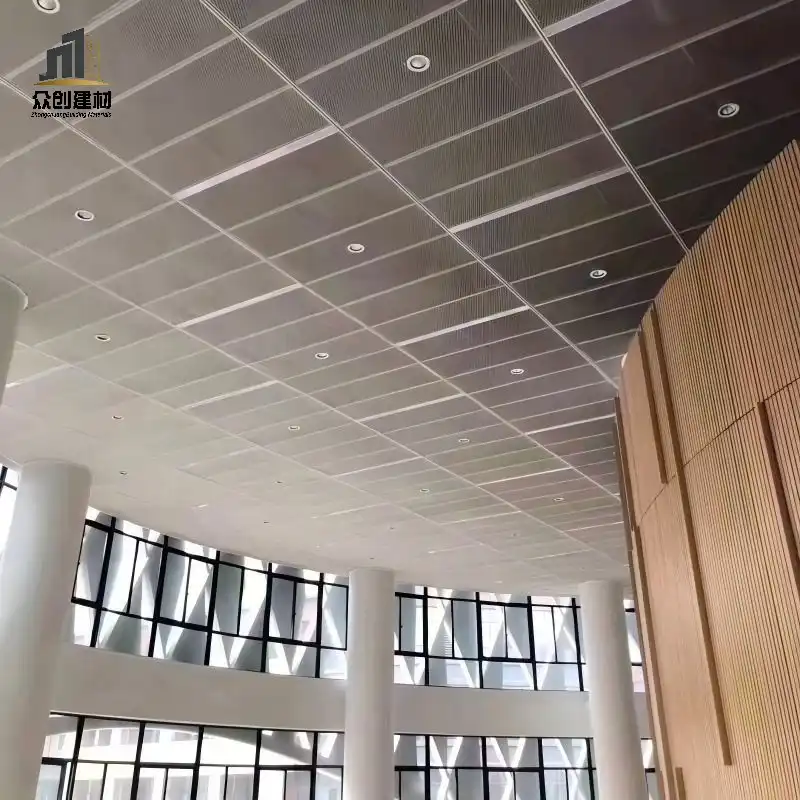

- Commercial spaces: shopping mall atriums, retail stores, exhibition halls, office open areas

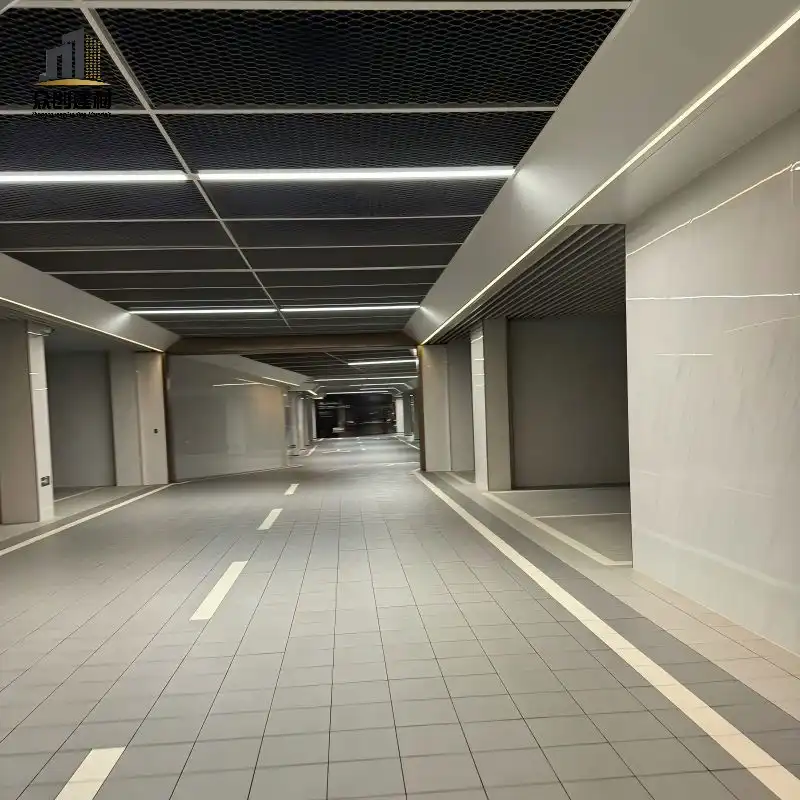

- Industrial facilities: factory workshops, warehouses, equipment rooms, parking garages

- Transportation hubs: metro stations, airport terminals, railway stations, bus terminals

- Public buildings: stadiums, cultural centers, libraries, school buildings

- Semi-outdoor spaces: corridor eaves, canopy ceilings, building facade shading

Customization & Installation Process

1. Demand communication: confirm project size, environment, design requirements and budget

2. Scheme design: provide professional layout drawing, material selection suggestion and quotation

3. Sample confirmation: produce custom sample for color, mesh size and process confirmation

4. Factory production: CNC precision production, factory pre-assembly inspection before delivery

5. Modular installation: professional team on-site installation, short construction period

6. Acceptance & after-sales: completion acceptance, 24-hour after-sales support

8 Frequently Asked Questions

1. What is the difference between one-piece stretched aluminum mesh and welded spliced mesh?

One-piece stretched mesh is formed from a single whole aluminum sheet with zero weld joints, higher structural strength and longer service life. Welded spliced mesh is assembled from small mesh strips with multiple welding points, which carry corrosion and fracture risks at weld positions over time.

2. What is the maximum span for aluminum mesh ceilings without additional hanging points?

With 2.5mm thickness and standard 30×60mm diamond mesh, the maximum span can reach 6 meters without intermediate hanging points. Thicker panels support longer spans, and specific data needs calculation based on actual project parameters.

3. Can expanded aluminum mesh ceilings be used in coastal or outdoor areas?

Yes, with PVDF fluorocarbon coating or anodizing surface treatment, the product can resist salt spray corrosion and UV fading, and is suitable for coastal areas and semi-outdoor canopy applications. Fully outdoor vertical facade use is also supported.

4. How to clean and maintain aluminum mesh ceilings?

The smooth mesh surface is not easy to accumulate dust. For daily maintenance, use high-pressure water gun or soft cloth with neutral detergent for cleaning. No special maintenance is required under normal indoor environment.

5. What is the typical lead time for custom aluminum mesh ceiling orders?

Standard specification orders take 7-10 working days for production, and custom special shape or large volume orders take 15-20 working days, subject to specific order quantity and process complexity.

6. Does aluminum mesh ceiling support integration of lighting and fire fighting equipment?

Yes, the system supports pre-opening and pre-installation of linear lights, spotlights, fire sprinklers, smoke detectors and air outlets in factory, ensuring accurate positions and consistent overall appearance.

7. Is the product fire safety certified?

Yes, our expanded aluminum mesh ceilings have passed A2 grade non-combustible test, comply with national and international public building fire safety standards, and provide third-party test reports.

8. Can curved or special-shaped aluminum mesh ceilings be customized?

Yes, we support custom curved, arc, folded and other special-shaped mesh ceilings through CNC bending and secondary forming process, matching various special architectural design requirements.
