Exterior Wall Decorative Aluminum Mesh Panel
- Product Description
Core Product Advantages
Ultra-light Weight, Reducing Building Structural LoadThe product's self-weight is only 3-5kg/㎡, much lower than stone, glass, traditional aluminum veneer and other exterior wall materials. It can greatly reduce the main structural load and seismic pressure of the building, especially suitable for high-rise, super high-rise buildings and old building renovation projects, effectively reducing the cost of infrastructure construction.
Excellent Weather Resistance, Adapting to Extreme EnvironmentsThe special model for exterior walls preferentially uses 5052/3003 rust-proof aluminum alloy substrate, matched with imported PVDF fluorocarbon coating. It has extremely strong UV resistance, acid and alkali resistance, salt spray resistance, and mildew resistance, with salt spray resistance up to more than 4000 hours. It can be used stably for a long time in the extreme temperature difference environment of -40℃~+80℃, perfectly adapting to various harsh outdoor environments such as coastal high salt spray, industrial high corrosion, and plateau strong ultraviolet rays.
Ventilation and Energy Saving, Optimizing Building Energy ConsumptionThe mesh structure can realize free ventilation and air exchange of the building facade, effectively reduce the wind load of the building envelope, and at the same time realize natural sun shading, heat insulation and noise reduction. In summer, it can significantly reduce the indoor temperature and air conditioning energy consumption, and in winter, it can buffer the invasion of cold wind, taking into account both building energy saving and indoor comfort.
Ultra-high Design Freedom, Empowering Architectural AestheticsSupport full-dimensional customized processing. The mesh shape, aperture size, opening rate, plate thickness, panel shape, color and texture can be customized on demand. It can realize various shapes such as plane, arc, folded surface, special-shaped, etc. With the semi-transparent visual effect, it can create a unique building facade with light and shadow gradient, virtual and real combination, which perfectly meets the personalized creative needs of designers.
Class A Fire Rating, Full Safety PerformanceThe full aluminum alloy substrate complies with the Class A non-combustible standard of GB8624-2012 Classification for Burning Behavior of Building Materials and Products, and also meets the ASTM E84 Class A international fire protection standard. No toxic smoke is released, which eliminates the hidden danger of building exterior wall fire from the source, and adapts to the fire safety requirements of various public and commercial buildings.
Environmentally Friendly and Recyclable, Low Carbon in the Whole Life CycleThe product is 100% recyclable, no harmful waste is discharged during the production process, it meets the RoHS environmental protection standard, no formaldehyde, no radiation. At the same time, the ultra-long service life can greatly reduce the cost of later maintenance and replacement of the building, which perfectly fits the development trend of global green buildings and low-carbon buildings.
Modular Design, Convenient and Efficient InstallationAdopting factory prefabricated modular production, the site can be directly installed through a special dry-hanging system, no complex secondary processing is required. The installation efficiency is much higher than that of traditional exterior wall materials, which greatly shortens the construction period. At the same time, the later maintenance and single block replacement are convenient, reducing the operation and maintenance cost.
Core Technical Parameter Table
| No. | Item Name | Core Technical Parameters | Remarks |
|---|---|---|---|
| 1 | Substrate Material | Rust-proof Aluminum Alloy | 5052-H24, 3003-H24 grades are preferred for exterior walls, 1100, 6061 grades are optional |
| 2 | Substrate Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm | Full thickness range from 0.8mm to 6.0mm can be customized on demand |

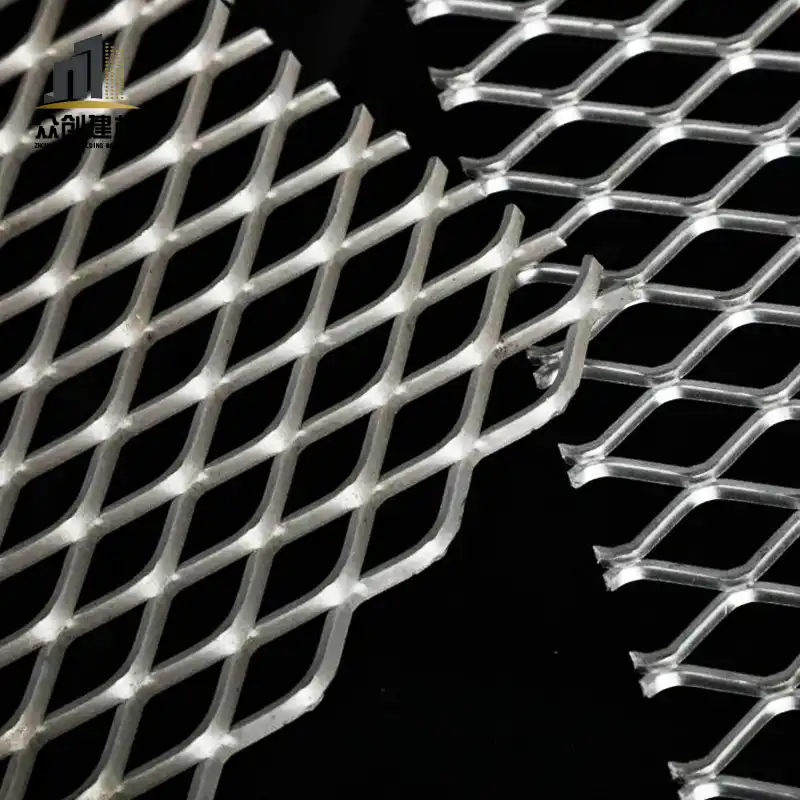

| 3 | Mesh Type | Diamond expanded mesh, round hole, square hole, slotted hole, hexagonal hole, custom special-shaped hole | Expanded mesh is the mainstream model for exterior walls, punched mesh hole type can be customized on demand |

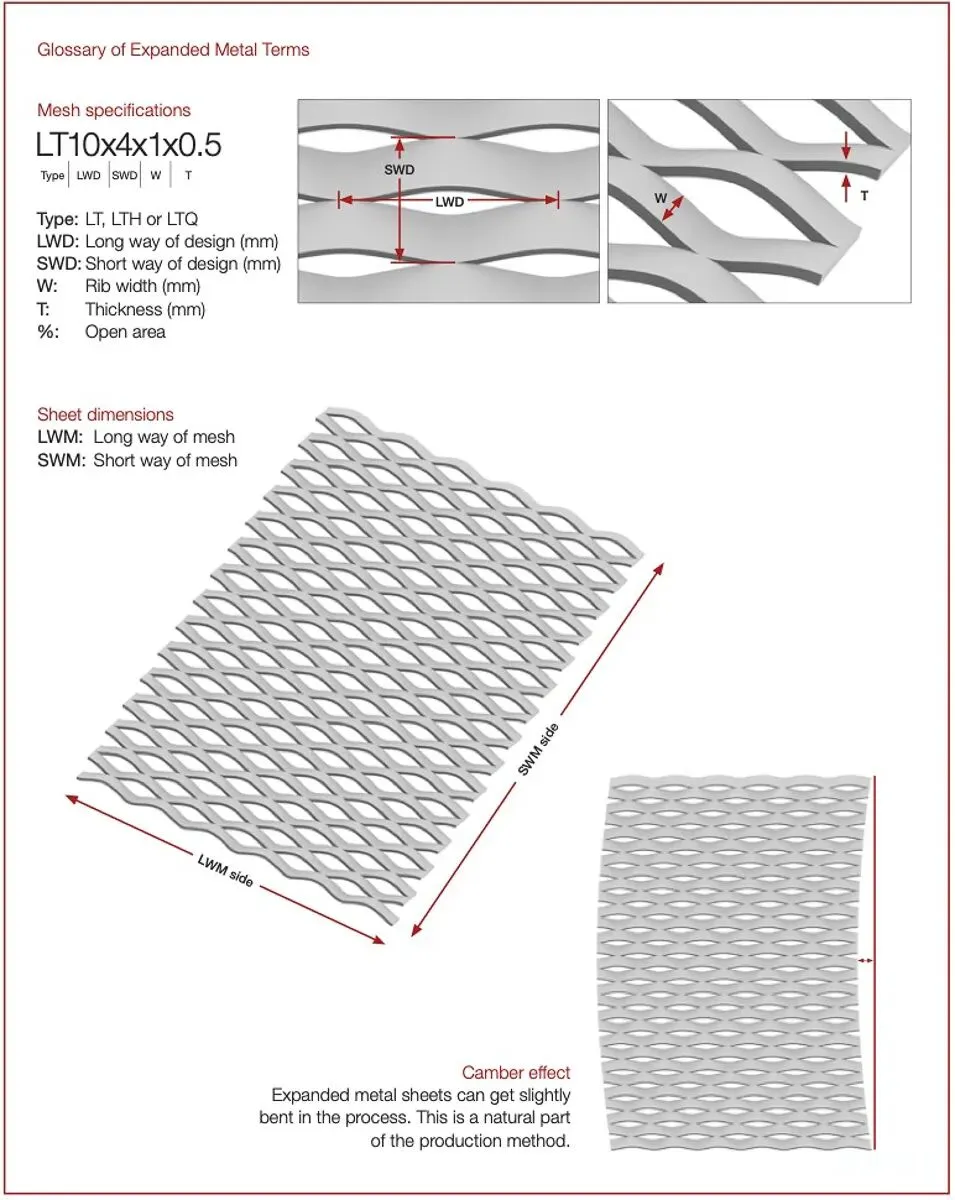

| 4 | Mesh Specification | Diamond mesh: short pitch 10mm-100mm, long pitch 20mm-200mmPunched mesh: aperture 3mm-100mm, hole spacing customized on demand | Customizable opening rate range: 20%-80%, adapting to different ventilation and decoration needs |
| 5 | Standard Panel Size | Width ≤1500mm, Length ≤6000mm | Extra-large format can be customized on demand, maximum processing size 2000mm*8000mm |

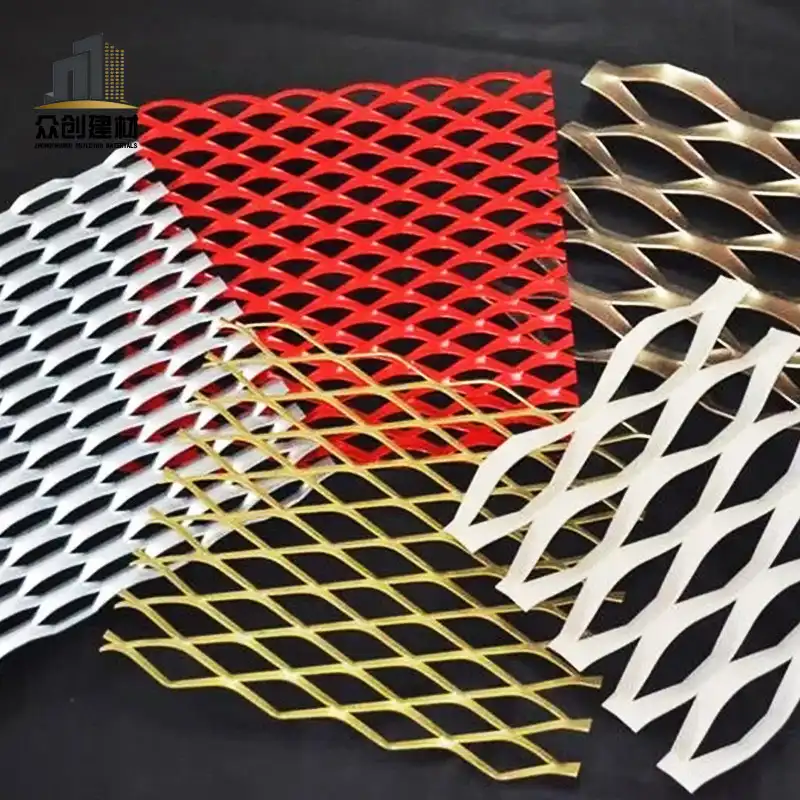

| 6 | Surface Treatment | PVDF fluorocarbon coating (first choice for exterior walls), polyester coating, anodizing, wood/stone/metal transfer printing | Fluorocarbon coating adopts imported brand coatings such as AkzoNobel, PPG to ensure weather resistance |
| 7 | Coating Thickness | PVDF fluorocarbon coating: 25μm-50μmPolyester coating: 50μm-80μmAnodized film: 10μm-25μm | Special PVDF coating for outdoor exterior walls is not less than 25μm, ≥40μm is recommended for coastal high-corrosion environments |
| 8 | Mechanical Properties | Tensile strength ≥110MPa, Yield strength ≥80MPa | Mechanical properties vary with different aluminum alloy grades, tensile strength of 5052 grade ≥170MPa |
| 9 | Wind Pressure Resistance | ≥2.4kPa, up to 10kPa | Special design and checking can be carried out according to the local wind pressure of the project and building height |
| 10 | Weather Resistance | Salt spray resistance ≥4000 hours, artificial weathering resistance ≥3000 hours | Standard for PVDF fluorocarbon coating, can be upgraded to more than 5000 hours on demand |
| 11 | Fire Rating | GB8624-2012 Class A Non-combustible, ASTM E84 Class A | Comply with domestic and international fire protection codes for public buildings |
| 12 | Environmental Standard | Comply with RoHS 2.0 environmental standard, 100% recyclable | No formaldehyde, no heavy metals, no harmful gas release |
Main Application Scenarios

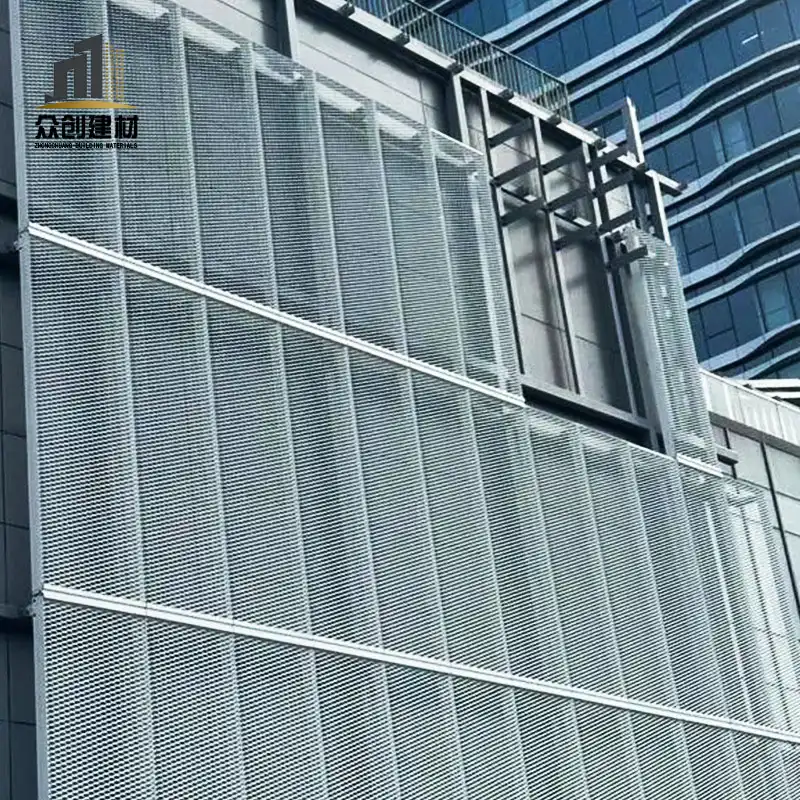

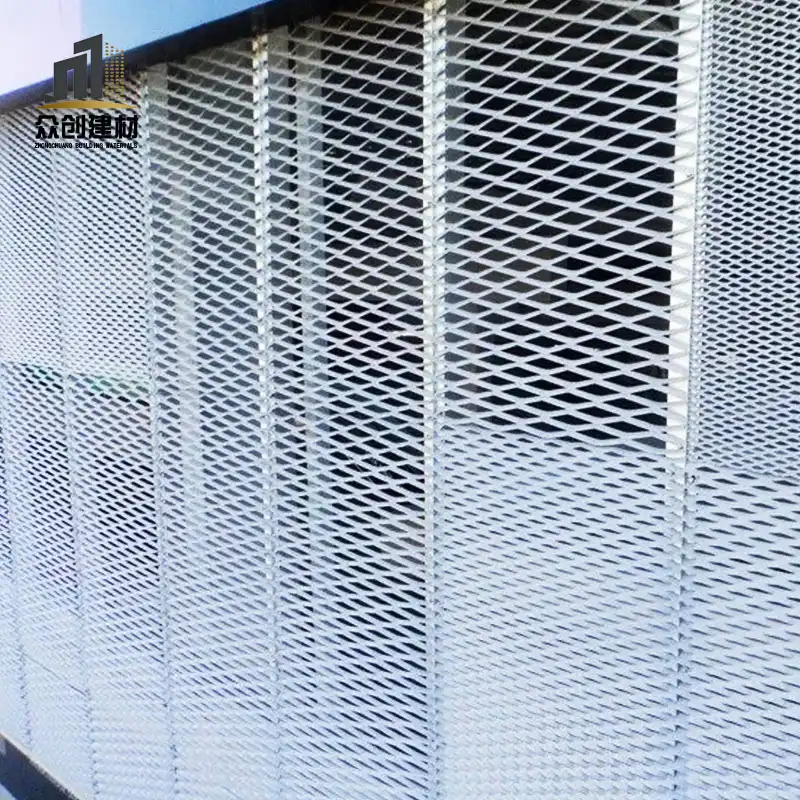

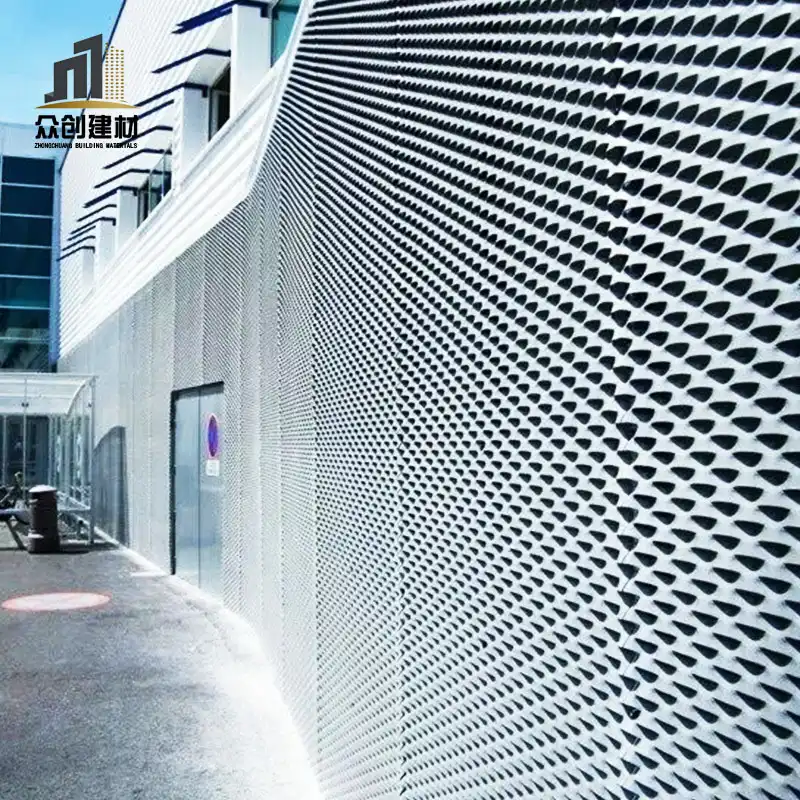

Exterior facades of high-end commercial buildings such as commercial complexes, Grade A office buildings, star hotels, convention and exhibition centers
Building envelopes of large public transportation and cultural & sports buildings such as airports, high-speed railway stations, subway stations, stadiums
Exterior facade decoration and sun shading systems of high-end residences, apartments, villas and other residential buildings
Exterior wall ventilation and decoration integrated projects of industrial plants, data centers, industrial parks and other buildings
Renovation of old building facades, upgrading and renovation of existing curtain wall projects

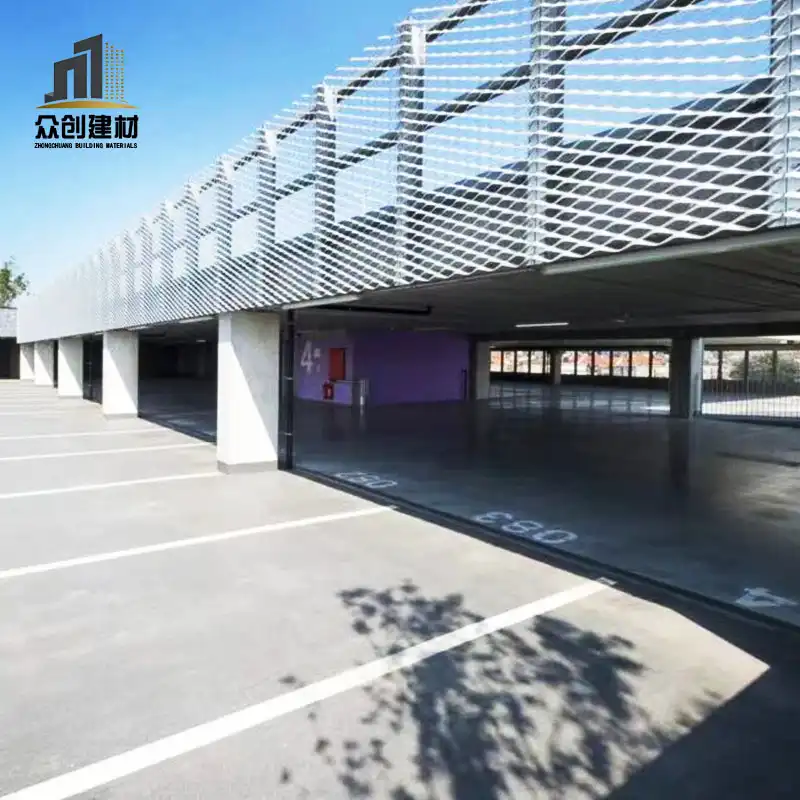

Supporting scenarios such as building facade sun shading grilles, air conditioner outdoor unit shielding, fence enclosures, landscape decoration
Customized Service
We have a full-process CNC processing production line and a professional design and R&D team, and can provide full-dimensional customized solutions for different project needs:
Full parameter customization of material, thickness, hole type, opening rate and panel size
Customized processing of complex shapes such as plane, arc, folded surface, spherical, special-shaped, etc.
Customization of surface treatment for thousands of colors and textures, supporting sample color matching
Design and supporting supply of matching special dry-hanging installation system and keel system
Technical services such as project special detailed design, mechanical checking, BIM modeling docking, etc.
Quality Standards and Certifications
Sustainable Building Solutions
Environmental responsibility drives our product development and manufacturing processes. The aluminum material offers excellent recyclability while providing decades of reliable service.
Energy efficiency improvements through natural shading contribute to green building certifications and reduced operating costs. Your project meets sustainability goals without compromising performance.
The lightweight design reduces structural loads compared to traditional cladding materials. This efficiency extends to transportation and installation, minimizing your project's environmental impact.
Ready to explore how our mesh cladding like aluminium mesh facade can enhance your next project?Contact us at [email protected] for personalized consultation and detailed specifications. Let's create something extraordinary together.
