PVDF Coated Aluminum Expanded Mesh Facade | Custom Architectural Metal Cladding

PVDF Coated Aluminum Expanded Mesh Facade System is a cutting-edge architectural solution that combines stunning visual aesthetics with exceptional functional performance. Manufactured from high-grade AA3003/AA5005 aluminum alloy through a precision punching and stretching process, our expanded mesh panels create a unique semi-transparent, three-dimensional effect that transforms ordinary building exteriors into works of art.

Finished with premium Akzo Nobel PVDF fluorocarbon coatings, our aluminum expanded mesh offers unmatched weather resistance, UV protection and color retention, making it ideal for exterior applications in even the harshest environmental conditions. The lightweight, ventilated design reduces structural load and improves energy efficiency, while the modular system allows for fast installation and easy maintenance.

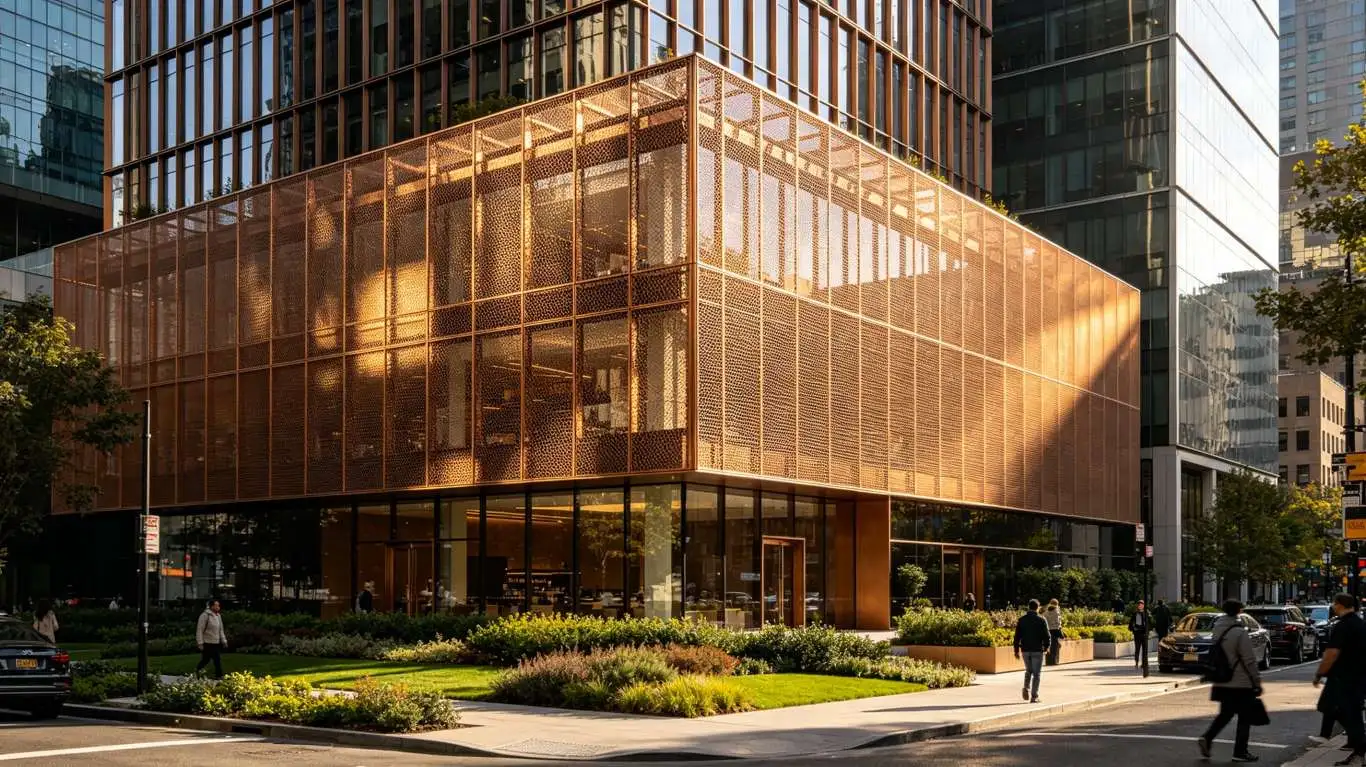

The modern commercial building features a facade made of gold-plated PVDF-coated aluminum alloy mesh.

Key Features at a Glance:

• ✅ A1 fire-rated (EN 13501-1) non-combustible construction
• ✅ 25-year PVDF coating warranty against fading and chalking
• ✅ Unique semi-transparent, three-dimensional visual effect
• ✅ Lightweight design reduces structural load by 60% compared to solid panels
• ✅ Excellent ventilation and natural light transmission
• ✅ Superior corrosion resistance for coastal and industrial areas
• ✅ 100% recyclable and sustainable

Core Advantages

1. Stunning Architectural Aesthetics

Aluminum expanded mesh creates a dynamic, ever-changing appearance that interacts with light throughout the day:

• Three-dimensional depth: The stretched mesh structure creates subtle shadows and highlights
• Semi-transparency: Balances privacy with natural light and views
• Design versatility: Available in various mesh patterns, sizes and colors
• Custom patterns: Can be customized to create logos, images or artistic designs
• Layered effects: Can be used in multiple layers to create complex visual textures

2. Exceptional Durability and Weather Resistance

Our PVDF coated aluminum expanded mesh is engineered to withstand the harshest environmental conditions:

• UV resistance: PVDF coatings provide superior protection against sun damage
• Corrosion resistance: Passes 5000-hour salt spray test, ideal for coastal areas
• Temperature resistance: Performs flawlessly from -40°C to +80°C
• Impact resistance: Flexible mesh structure absorbs impact energy from hail and wind-borne debris
• Wind resistance: Open structure allows wind to pass through, reducing wind load on the building

3. Energy Efficient and Sustainable

Our aluminum expanded mesh facade systems contribute to green building certification:

• Natural ventilation: Allows air to circulate freely behind the facade, reducing cooling costs
• Solar shading: Blocks up to 70% of solar radiation while maintaining natural light
• 100% recyclable: Aluminum can be recycled indefinitely without losing properties
• Low VOC emissions: All coatings meet strict international environmental standards
• Lightweight: Reduces the amount of structural material required for the building

4. Practical and Functional

Beyond aesthetics, our aluminum expanded mesh offers significant practical benefits:

• Conceals utilities: Hides building services and equipment while maintaining ventilation
• Easy maintenance: Simply wash with water and mild detergent annually
• Individual panel replacement: Damaged panels can be replaced without removing adjacent ones
• Fast installation: Modular system allows for quick, efficient installation
• Low lifecycle cost: Long lifespan and minimal maintenance requirements

Detailed Technical Specifications

System Structure

 PVDF coated aluminum expanded mesh facade system structure diagram

Our aluminum expanded mesh facade system consists of four main components:

1. Aluminum Expanded Mesh Panels: The main decorative and functional elements, framed with aluminum alloy
2. Subframe System: Galvanized steel or aluminum alloy framework
3. Insulation Layer: Optional rock wool or EPS insulation for thermal performance
4. Fasteners: Hidden stainless steel fasteners for a seamless appearance

The installation process:

• Install vertical brackets to the building structure
• Attach horizontal subframe to the brackets
• Install insulation layer (if required)
• Mount aluminum expanded mesh panels using hidden fasteners
• Seal joints with weather-resistant silicone (if required)

Surface Finish Options

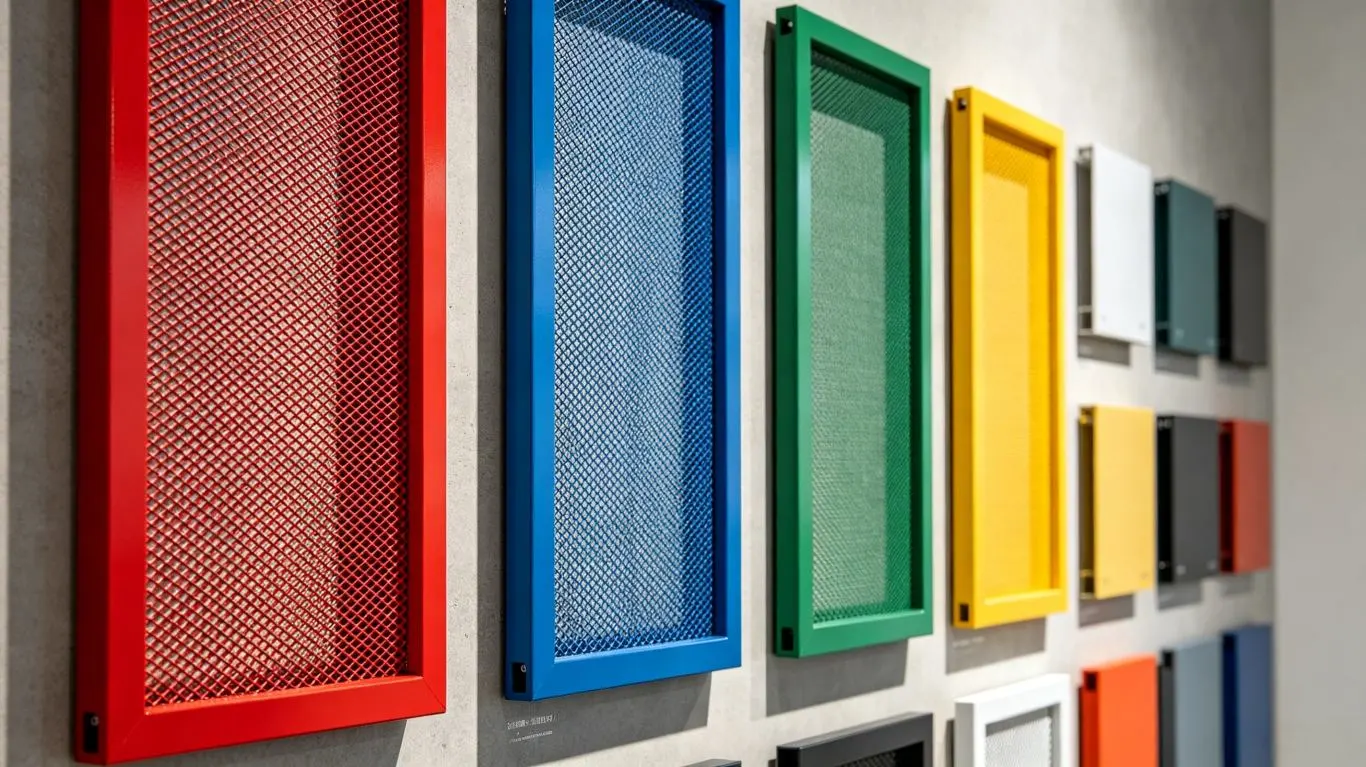

 Various surface finishes for aluminum expanded mesh facade

• PVDF Coating (Recommended for Exterior): The gold standard for exterior applications. Provides exceptional UV resistance and weatherability. Available in matte, satin, and gloss finishes.
• Powder Coating: Economical option for low-exposure areas. Offers good durability and a wide range of colors.
• Anodizing: Creates a hard, protective oxide layer. Available in natural silver, black, bronze, and champagne.
• Metallic Finishes: Add a touch of luxury with gold, silver, bronze, and copper finishes.
• Custom Colors: Full RAL and Pantone color range plus custom color matching.

Application Scenarios

Our aluminum expanded mesh facade systems are perfect for:

• Commercial Buildings: Office towers, shopping malls, hotels, restaurants
• Public Buildings: Airports, train stations, museums, stadiums
• Residential Projects: Luxury villas, apartment buildings
• Industrial Buildings: Factories, warehouses, data centers
• Special Applications: Parking garages, sunshades, balustrades, screening walls

FAQ

Q: What is the difference between aluminum expanded mesh and perforated aluminum?

A: Aluminum expanded mesh is made by punching and stretching a single sheet of aluminum, creating a continuous, seamless structure with no waste. Perforated aluminum is made by punching holes in a sheet, resulting in waste material. Expanded mesh is stronger, more flexible, and has a more three-dimensional appearance.

Q: How long does PVDF coated aluminum expanded mesh last?

A: With proper maintenance, our PVDF coated aluminum expanded mesh will last 50+ years. The PVDF coating is guaranteed for 25 years against fading and chalking.

Q: Can aluminum expanded mesh be used in coastal areas?

A: Yes! Our marine-grade PVDF coated aluminum expanded mesh passes 5000-hour salt spray tests, making it ideal for coastal and marine environments.

Q: Is aluminum expanded mesh fire-safe?

A: Yes! All our aluminum expanded mesh products are A1 fire-rated (non-combustible), meeting the strictest international safety standards for public buildings.

Q: Can you create custom mesh patterns and designs?

A: Yes! We specialize in custom fabrication. We can create panels in any mesh pattern, size, or finish to meet your specific project requirements, including custom logos and artistic designs.
