Aluminum Wave Trim Selection Guide

2026-10-26 08:39:42

Four Categories of Wave Profiles

Understanding wave profile categories is the first step in selection. Wall aluminum wave trim can be divided into four types by amplitude, pitch, and arrangement:

Type	Amplitude	Visual Feature	Application
Shallow wave	5–15mm	Fine texture, understated elegance	Residential feature walls, offices
Deep wave	20–50mm	Strong dimensionality, dynamic feel	Commercial spaces, lobbies, showrooms
Gradient wave	Gradient pitch	Flowing, rhythmic	Art spaces, brand stores, corridors
Wave grille	Multiple combined	Transparent partition, rich light	Entryways, ceilings, facades

Wave Trim vs. Flat Trim vs. GRC

When designing wall features, designers typically weigh three options: flat aluminum trim, aluminum wave trim, and GRC wave moldings. Key differences:

Dimension	Flat Al Trim	Wave Al Trim	GRC Wave
Dimensional effect	Weak	Strong (flowing light)	Strong
Weight	Light	Light	Heavy (~5×)
Durability	20+ years	20+ years	Cracks in 5–8 years
Precision	Very high (±0.1mm)	Very high (±0.1mm)	Low (hand-cast)
Fire rating	Class A	Class A	Class A
Cost	Medium	Medium-high (tooling)	Low

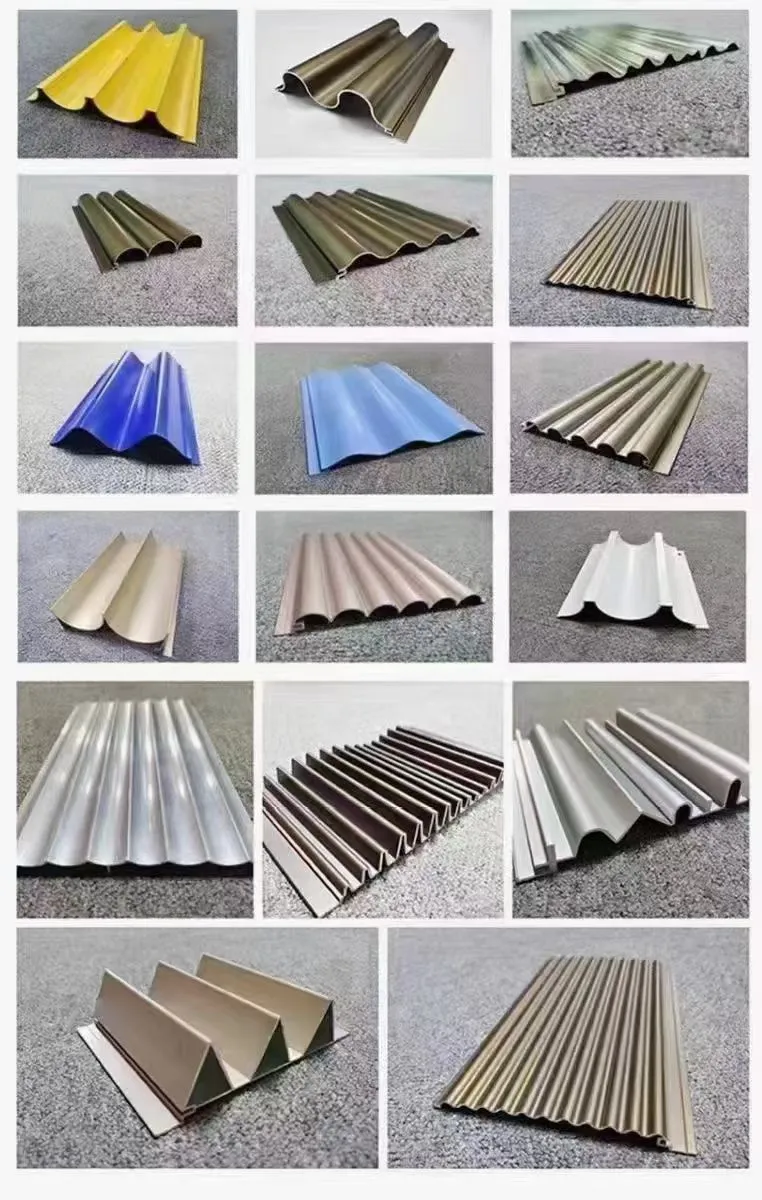

Various styles of wavy aluminum alloy moulding, different wave shape aluminum trim for facade decoration

Three Points of Wave Parameter Design

The visual effect of wave trim is determined by amplitude, pitch, and wavelength. Note the following during design:

Amplitude Determines Dimensionality: Larger amplitude means stronger dimensionality and light variation, but the trim protrudes farther from the wall — consider clear space.
Pitch Determines Rhythm: Wider pitch makes waves gentler; narrower pitch makes waves tighter with faster visual rhythm.
Gradient Creates Focus: Gradient pitch from wide to narrow guides the eye and creates a focal point, ideal for art spaces.

Surface Coating Selection Guide

The coating of wall wave trim determines spatial texture and service life. Three mainstream options:

Coating	Warranty	Best Environment	Recommended For
PVDF Fluorocarbon	20 years	Interior/exterior, coastal	Facades, long-term use spaces
Wood-Grain + UV	15 years	Interior, design-driven	Residential, clubs, Neo-Chinese
Powder Coating	10 years	Interior, low sunlight	Budget-sensitive projects

Common Installation Issues & Solutions

Although wall wave trim installation seems straightforward, the following issues are frequently overlooked:

Wall Flatness: Wave trims are highly precise, but an uneven wall will show through. Check wall flatness before installation.
Thermal Expansion: For exterior trims, leave expansion gaps every 6m, filled with neutral-cure weatherproof sealant.
Grille Spacing: Determine wave grille spacing in advance based on light, ventilation, and privacy needs, using dedicated connectors to ensure uniformity.
Color Consistency: Order all trims for one space in a single batch to avoid batch-to-batch color variation.
Edge Finishing: Use dedicated end caps and corner profiles for perfect finishing at ends and inside/outside corners.

How to Evaluate a Supplier

When selecting a wall wave trim supplier, consider the following:

Tooling Capability: A reputable factory completes wave cross-section tooling within 2–3 weeks; longer than 4 weeks indicates limited capacity.
Profile Design Capability: A professional supplier should produce wave cross-section fabrication drawings from your design renderings.
Complete Certifications: AAMA 2605, CE, and ISO 9001 are basic guarantees of quality.
Export Experience: Factories with export experience are more familiar with packaging, customs, and international logistics requirements.
