Curved Aluminum Ceiling Baffle Selection Guide

2026-10-28 14:32:08

Four Categories of Arc Shapes

Understanding arc shape categories is the first step in selection. Curved aluminum ceiling baffle can be divided into four types by curvature and arrangement:

Type	Shape Feature	Visual Feature	Application
Large-arc	Large radius, gentle curve	Flowing and grand, modern	Lobbies, atriums, airports
Small-arc	Small radius, pronounced curve	Lively and refined, rich layering	Corridors, showrooms, cafés
Gradient-arc	Curvature transitions large to small	Flowing rhythm, visual guidance	Art spaces, brand stores
Wave baffle	Multiple arcs forming a wave	Dynamic undulation, strong dimensionality	Commercial spaces, stadiums

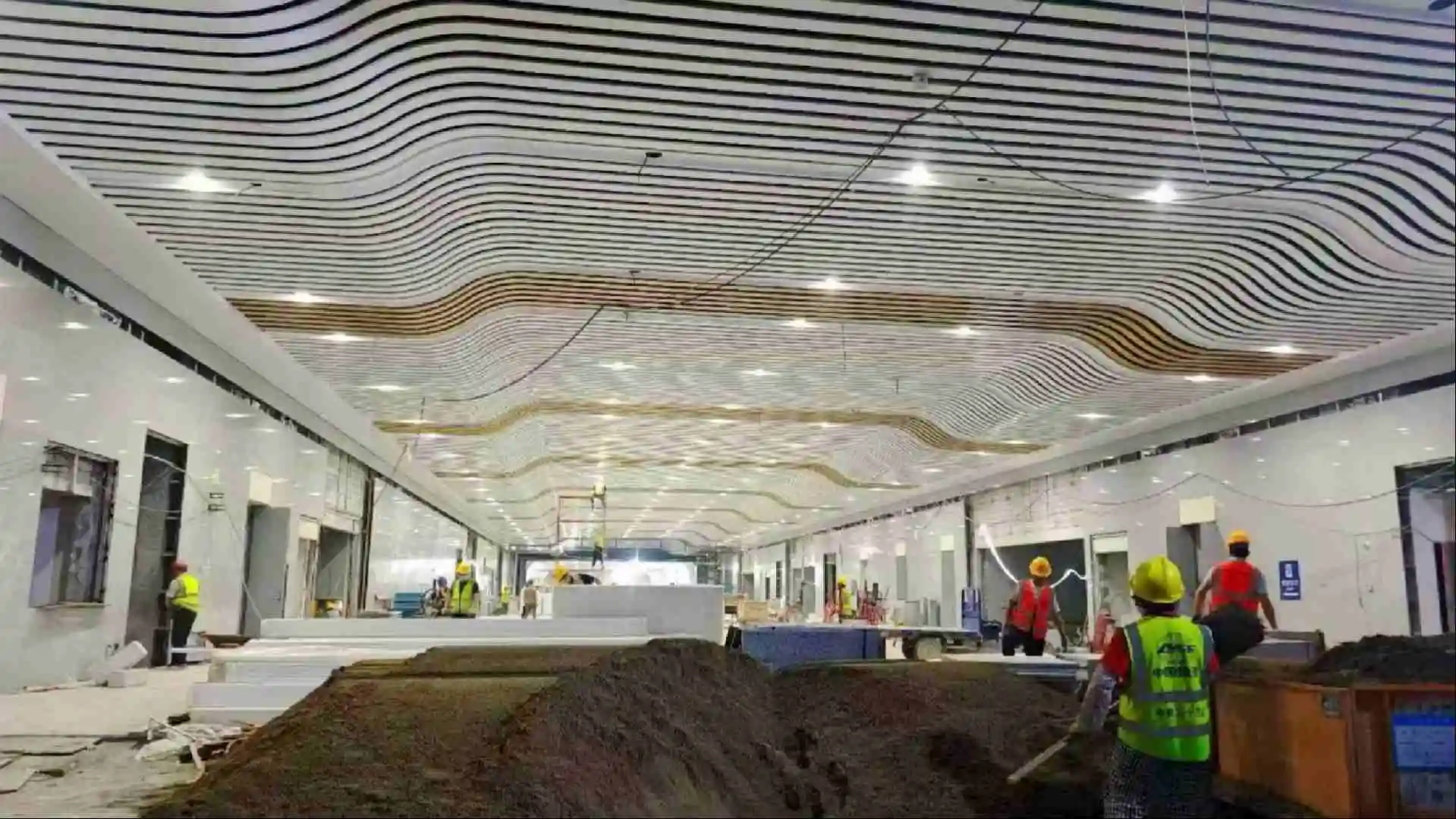

Custom curved aluminum square tube ceiling

Curved Baffle vs. Straight Baffle vs. Plasterboard

When designing ceiling shapes, designers typically weigh three options: straight-line aluminum baffle, curved aluminum baffle, and plasterboard curved ceiling. Key differences:

Dimension	Straight Al Baffle	Curved Al Baffle	Plasterboard Curved
Curve effect	None	Strong (flowing curve)	Strong
Weight	Light	Light	Heavy
Durability	20+ years	20+ years	Cracks in 5–8 years
Precision	High	High	Low (field-built)
Installation time	Short	Short	Long (on-site plastering)
Cost	Low	Medium-high	Medium

Three Points of Arc Design

The visual of curved aluminum baffle is determined by curvature, radius, and cross-section. Note the following during design:

Curvature Determines Style: Large arcs are gentle and modern; small arcs are pronounced and refined — choose based on spatial positioning.
Span Requires Load Consideration: Large-span arc baffles need reinforced grids and hangers to ensure stability.
Gradient Creates Rhythm: Gradient curvature from large to small guides the eye and creates a focal point, ideal for art spaces.

Surface Coating Selection Guide

The coating of curved ceiling baffle determines spatial texture and service life. Three mainstream options:

Coating	Warranty	Best Environment	Recommended For
PVDF Fluorocarbon	20 years	Interior/exterior, coastal	Lobbies, long-term use spaces
Wood-Grain + UV	15 years	Interior, design-driven	Clubs, hotels, Neo-Chinese
Powder Coating	10 years	Interior, low sunlight	Budget-sensitive projects

Common Installation Issues & Solutions

Although curved aluminum baffle installation seems straightforward, the following issues are frequently overlooked:

Grid Levelness: Ceiling flatness depends on grid installation precision — calibrate grid level and spacing before installation.
Arc Splicing: Multiple arc baffles need continuous splicing with dedicated connectors to ensure smooth, unbroken curves.
Thermal Expansion: For exterior or high-temperature-difference spaces, leave expansion gaps at baffle joints filled with color-matched weatherproof sealant.
Service Openings: Reserve positions for lighting, air vents, and access hatches in advance to avoid post-cutting that damages the coating.
Color Consistency: Order all baffles for one space in a single batch to avoid batch-to-batch color variation.

How to Evaluate a Supplier

When selecting a curved aluminum ceiling baffle supplier, consider the following:

Arc Fabrication Capability: Check whether the supplier has arc bending machines or dedicated forming molds, and whether curvature precision is guaranteed.
Detailed Design Capability: A professional supplier should produce arc development and installation drawings from your ceiling renderings.
Complete Certifications: AAMA 2605, CE, and ISO 9001 are basic guarantees of quality.
Export Experience: Factories with export experience are more familiar with packaging, customs, and international logistics requirements.
