Joint Treatment and Flatness Control Technology of Aluminum Ceiling

The installation quality of aluminum ceilings is ultimately reflected in joint treatment and flatness control. A high-quality aluminum ceiling not only requires excellent material and surface treatment of individual panels, but also requires all panels to be spliced to form a flat, straight, and uniformly jointed overall surface. Problems such as uneven joints, excessive height difference, panel waviness, and varying gap widths will seriously affect the overall visual effect and refinement of the ceiling, even if the quality of individual panels is good. This article will comprehensively analyze the technical points of aluminum ceiling joint treatment and flatness control from the perspectives of joint types, sealing treatment, flatness standards, control methods, and common defect prevention.

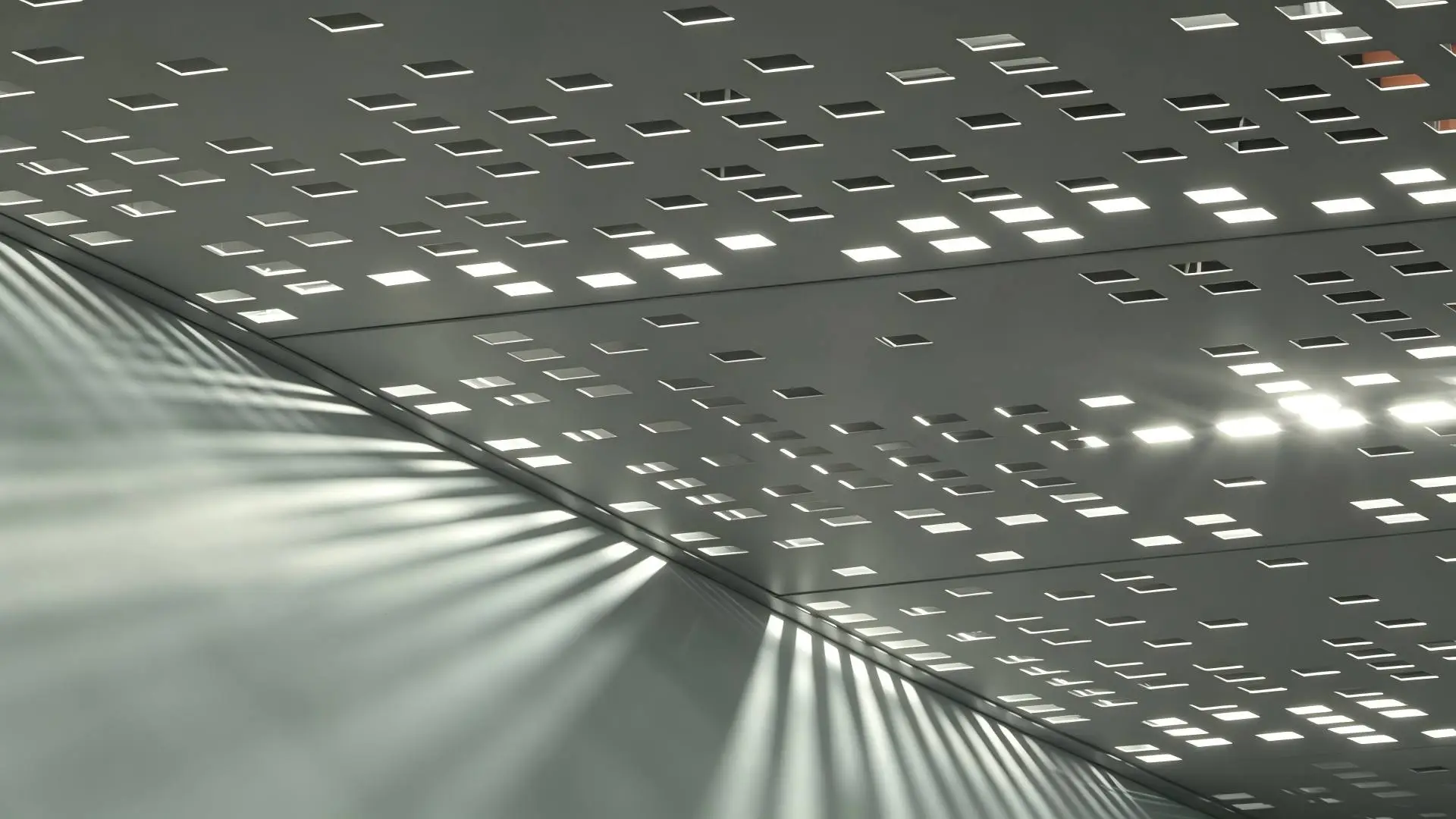

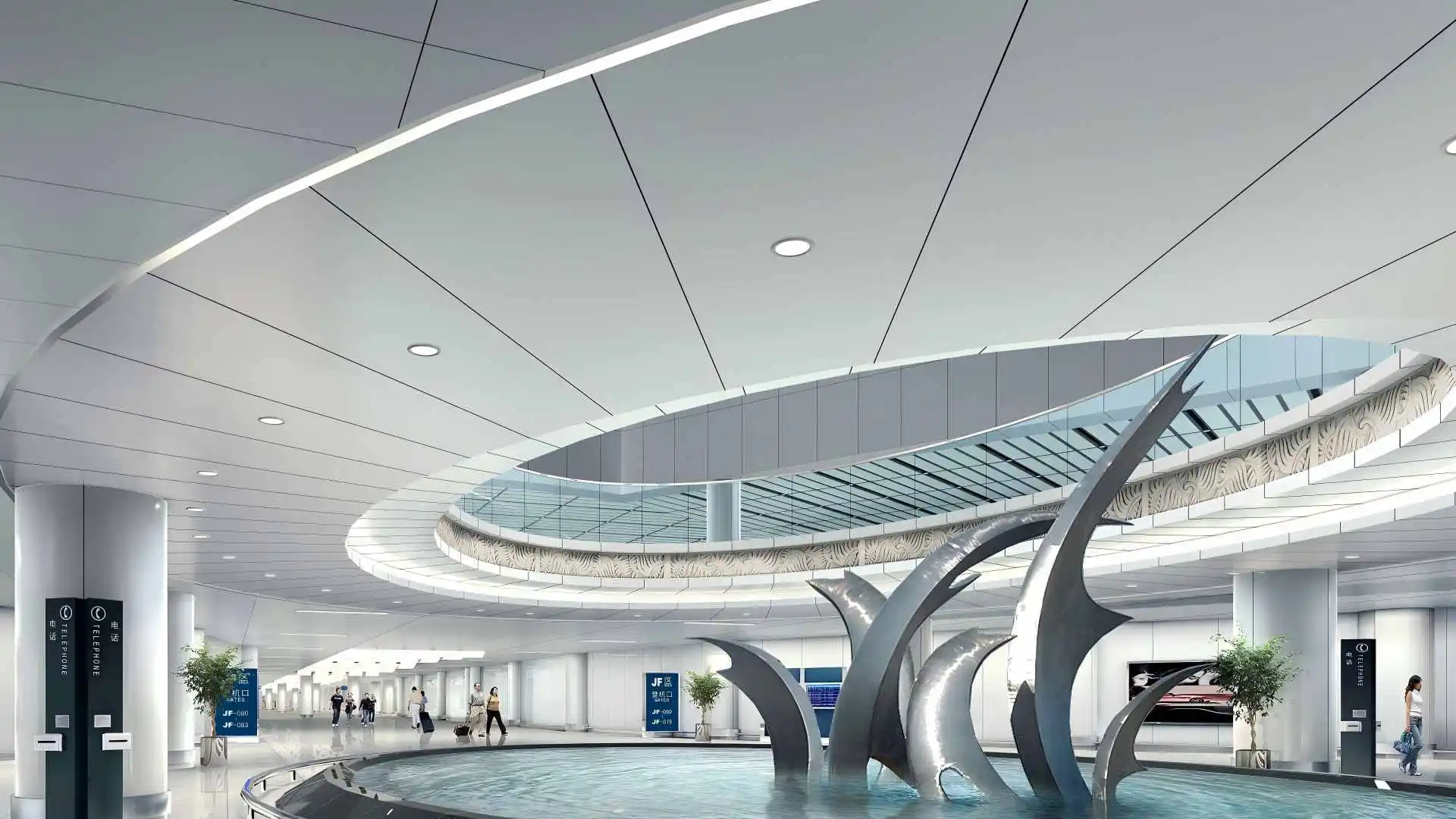

Understanding the joint types of aluminum ceilings is the premise of conducting proper joint treatment. According to different installation methods, the joints of aluminum ceilings are mainly divided into the following types. First, exposed frame joints (also called exposed keel joints). When adopting T-shaped exposed keel installation, panels are directly placed on the flanges of T-shaped keels, and the keel flanges are exposed, forming exposed joints with a width of approximately 10–15mm. This jointing method features simple installation, convenient disassembly and low cost, while its disadvantages lie in the compromised overall aesthetic and dust accumulation on exposed keel surfaces. The key to exposed frame joint treatment is ensuring the straightness and levelness of T-shaped keels as well as the tight fitting between panels and keel flanges. Second, concealed frame joints (also called hidden joints). When installing with triangular keels or slotted keels, panel folded edges are clipped into keel slots, with keels completely hidden behind panels, forming fine joints of 0.3–1mm in width between adjacent panels. This method delivers strong integrity and exquisite visual effects, making it the preferred option for high-end projects, yet it poses higher installation difficulty and stricter requirements for panel dimensional accuracy and keel flatness. The core of concealed frame joint treatment is controlling consistent gap width and overall panel flatness. Third, close splicing joints. Supported by high-precision panel processing and specialized keel design, the gaps between panels are controlled within 0.2mm, achieving an almost seamless visual effect. This jointing method demands extremely high standards for panel dimensional accuracy, flatness and installation craftsmanship, and is generally applied in high-end spaces with strict overall consistency requirements. Fourth, shaped joints. For irregularly shaped ceilings, panel joints may adopt curved lines, polylines or other special forms, which require targeted treatment in accordance with design specifications.

Joint sealing treatment is an easily overlooked yet critical procedure in engineering construction. The main purposes of sealing treatment include preventing dust, mosquitoes and unpurified air from penetrating the ceiling into indoor spaces, blocking water vapor infiltration to avoid keel and suspension rod corrosion, maintaining pressure difference and air tightness in clean rooms, and preventing sound wave transmission through gaps to guarantee acoustic performance. The mainstream sealing treatment methods are summarized as follows. First, the sealing strip method. Elastic sealing strips (such as EPDM rubber strips and silicone strips) are pasted on panel folded edges or keel contact surfaces. After panel installation, the strips are compressed to fill gaps between panels and keels to achieve effective sealing. This method allows repeated panel disassembly and delivers durable sealing performance, but increases material and installation costs. Second, the sealant method. After panel installation, neutral silicone sealant or special clean-room sealant is injected into panel gaps for full closure. This approach features low cost and favorable sealing effects, yet it prevents individual panel disassembly unless the sealant is cut off. Additionally, the sealing quality is highly dependent on workers’ operational proficiency, frequently causing defects such as uneven glue lines, bubbles and cracked joints. Third, the structural sealing method. By optimizing the structural design of panels and keels, a labyrinth sealing structure is naturally formed after installation without additional sealing materials. This method requires no extra construction work and does not affect panel disassembly, but it imposes high requirements on processing accuracy and offers limited sealing performance. In practical engineering, sealing solutions should be selected based on spatial airtightness requirements, maintenance demands and budget constraints. General commercial and office spaces usually require no special sealing treatment. Spaces with strict airtightness standards, such as clean operating rooms, laboratories and food processing workshops, shall be tightly sealed with sealing strips or sealant. For spaces requiring frequent disassembly and maintenance, the sealing strip method is prioritized.

Flatness serves as the core indicator for evaluating aluminum ceiling installation quality, with clear national and industrial acceptance standards. In accordance with the provisions of the Standard for Quality Acceptance of Building Decoration Engineering (GB 50210) and Aluminum Alloy Ceilings for Buildings (GB/T 23444), the allowable flatness deviations for aluminum ceilings are specified as follows: surface flatness deviation ≤2mm (tested with a 2m straightedge and feeler gauge); joint straightness deviation ≤1.5mm (tested with a 5m stretched line and steel ruler, or full-length line measurement for spans shorter than 5m); joint height difference ≤0.5mm (tested with a steel ruler and feeler gauge); joint width deviation ≤0.5mm (tested with a steel ruler). These criteria form the basic acceptance basis for aluminum ceiling projects. High-standard engineering projects usually adopt stricter enterprise internal standards (e.g., surface flatness ≤1.5mm, joint height difference ≤0.3mm). It is worth noting that flatness inspection shall be conducted after the completion of ceiling installation, full installation of auxiliary equipment such as lamps and air outlets, and complete stabilization of ceiling deformation. Temporary deformation during construction and load-induced deformation in subsequent stages will interfere with flatness measurement accuracy.

Flatness control requires systematic quality management covering materials, keel systems, installation processes and acceptance procedures. First, material flatness control. The inherent flatness of panels is the foundation of overall ceiling flatness. High-quality aluminum ceiling panels shall be leveled before factory delivery, with the flatness error controlled within 0.5mm per meter. Random inspection of panel flatness is mandatory during incoming acceptance, and deformed or warped panels shall be rejected. Panel thickness is another key factor affecting flatness. Panels with insufficient thickness are prone to downward deflection under self-weight and temperature variation. Substrate thickness shall be reasonably selected according to panel dimensions and service environment. Second, keel system flatness control. As the supporting structure of ceiling panels, keels directly determine the overall flatness of the ceiling. After main keel installation, overall levelness shall be calibrated by stretching control lines, with the levelness error limited to ≤2mm per 2m and the overall elevation deviation controlled within ±5mm. The spacing of secondary keels (triangular keels, T-shaped keels, etc.) shall strictly comply with panel dimensions, with a spacing error of ≤±2mm and a straightness error of ≤1.5mm per 5m. The spacing and specifications of suspension rods shall meet design requirements, ensuring vertical installation, firm fixation and no looseness. For large-span ceilings, camber construction (usually 1/1000–3/1000 of the span) shall be implemented as required to offset downward deflection caused by ceiling self-weight. Third, installation process flatness control. Panel installation shall be carried out sequentially in a single direction. Flatness shall be inspected with a 2m straightedge after installing every 3–5 rows of panels, with timely adjustment of defective parts. For concealed ceiling panels, uniform force shall be applied to ensure full clamping of four edges into keel slots and avoid panel tilting caused by incomplete embedding. For exposed ceiling panels, careful handling is required to prevent keel deformation from collision. Large-area ceilings shall be constructed in zones, with flatness acceptance conducted upon the completion of each zone before proceeding to subsequent construction. Fourth, temperature deformation control. Aluminum alloy features a relatively high linear expansion coefficient (approximately 23×10⁻⁶/°C), leading to thermal expansion and contraction deformation under temperature changes. Expansion joints shall be reserved every 10–15m for large-area ceilings, with specialized edge treatment applied at joint positions to allow free thermal expansion and contraction, thus preventing panel arching and deformation induced by temperature stress. Fifth, load control. Ceiling-mounted equipment (lamps, air outlets, access panels, etc.) shall be independently suspended and shall not be directly fixed on ceiling panels or secondary keels to avoid local load-induced deformation. Over-ceiling pipelines and equipment shall be fixed on building structural floors or specialized brackets instead of pressing on ceiling keel systems.

Prevention and rectification of common joint and flatness defects are essential links in engineering practice. The typical defects and corresponding prevention and treatment measures are summarized as follows.

(1) Uneven joint width: Main causes include panel dimensional deviation, secondary keel spacing error and misalignment during installation. Prevention measures: Strictly control panel dimensional accuracy with a deviation of ≤±0.3mm, calibrate keel spacing by stretching control lines during secondary keel installation, and align panels one by one during construction. Treatment measures: Correct minor width deviation by adjusting panel positions; replace unqualified panels or readjust keel layout for severe deviation.

(2) Joint height difference: Main causes consist of poor keel flatness, inconsistent panel folded edge height and incomplete clamping of panels into keels. Prevention measures: Strictly control keel flatness, conduct random inspection of folded edge height for incoming panels, and ensure full embedding of panels during installation. Treatment measures: Tap raised panels gently with a rubber hammer for positioning; adjust keel height for keel-induced unevenness; replace panels with inconsistent folded edge dimensions.

(3) Panel wavy deformation: Main causes include insufficient panel thickness, excessive keel spacing, temperature stress and local overloading. Prevention measures: Select panels with qualified thickness, standardize keel spacing, reserve expansion joints, and implement independent suspension for ceiling equipment. Treatment measures: Rectify slight wavy deformation by adding auxiliary keels or suspension points; replace with thicker panels for severe deformation.

(4) Panel downward deflection: Main causes cover oversized panel dimensions, insufficient thickness, excessive keel spacing and over-ceiling load pressure. Prevention measures: Match panel thickness and keel spacing with panel specifications, and separate over-ceiling load suspension. Treatment measures: Add intermediate keels or suspension points; replace with thicker panels if deformation persists.

(5) Sealed joint cracking: Main factors include inferior sealant quality, uncleaned gap substrates before sealing, and adhesive layer tearing caused by thermal deformation. Prevention measures: Adopt high-quality neutral silicone sealant, thoroughly clean and dry joint gaps before gluing, and reserve expansion joints for large-area ceilings. Treatment measures: Remove cracked residual sealant, re-clean gaps and re-apply qualified sealant.

(6) Exposed frame keel skewing: Main causes involve uneven main keel installation, lack of straightness calibration for secondary keels, and construction collision. Prevention measures: Calibrate main keel levelness strictly after installation, control secondary keel straightness with stretched lines, and avoid keel collision during construction. Treatment measures: Adjust the position of skewed secondary keels and reinstall if necessary. Systematic prevention and timely rectification can effectively eliminate the above common defects and ensure the joints and flatness of aluminum ceilings meet high-quality engineering standards.

In conclusion, joint treatment and flatness control of aluminum ceilings are systematic technical tasks that require strict quality supervision throughout the whole process, including material selection, keel installation, panel assembly, sealing treatment and final acceptance. Only by standardizing every construction link can a high-quality ceiling effect with uniform, straight joints and smooth, flat panel surfaces be achieved. In engineering projects, it is recommended to cooperate with experienced professional installation teams, adopt high-quality materials and accessories, and implement construction and acceptance in strict accordance with relevant specifications and quality standards to guarantee the overall installation quality of aluminum ceilings.
