Processing Technology of Curved Aluminum Baffles: Full Process Reveal from Stretch Bending to Forming

Curved aluminum baffle is the category with the highest technical content and the greatest processing difficulty in aluminum baffle products. Its production process involves multiple precision processes, and problems in any process will affect the final modeling accuracy and decorative effect. Many customers do not understand the processing process of curved aluminum baffles, thinking that it is just bending straight baffles. In fact, high-quality curved aluminum baffles require more than a dozen precision processes to complete, and the processing accuracy and quality control requirements are much higher than ordinary straight aluminum baffles.

The first step in the production of curved aluminum baffles is profile extrusion. Different from ordinary straight aluminum baffles, the aluminum rod material and extrusion process used for curved aluminum baffles have special requirements. Aluminum rods must use 6063-T5 or 6061-T6 grade aluminum alloy, which has better elongation and strength balance than ordinary 3003 aluminum alloy, and is not prone to cracking, wrinkling and other problems during stretch bending. During the extrusion process, the quenching speed and cooling time of the profile must be strictly controlled to ensure uniform hardness of the profile, with Vickers hardness controlled between HV80-90. Too high hardness is easy to crack during stretch bending, and too low hardness is easy to spring back and deform after stretch bending. The extruded profiles need to be subjected to natural aging or artificial aging treatment, and placed for more than 48 hours until the performance is stable before stretch bending processing. The profiles just extruded are too soft, and direct stretch bending will cause serious springback and deformation.

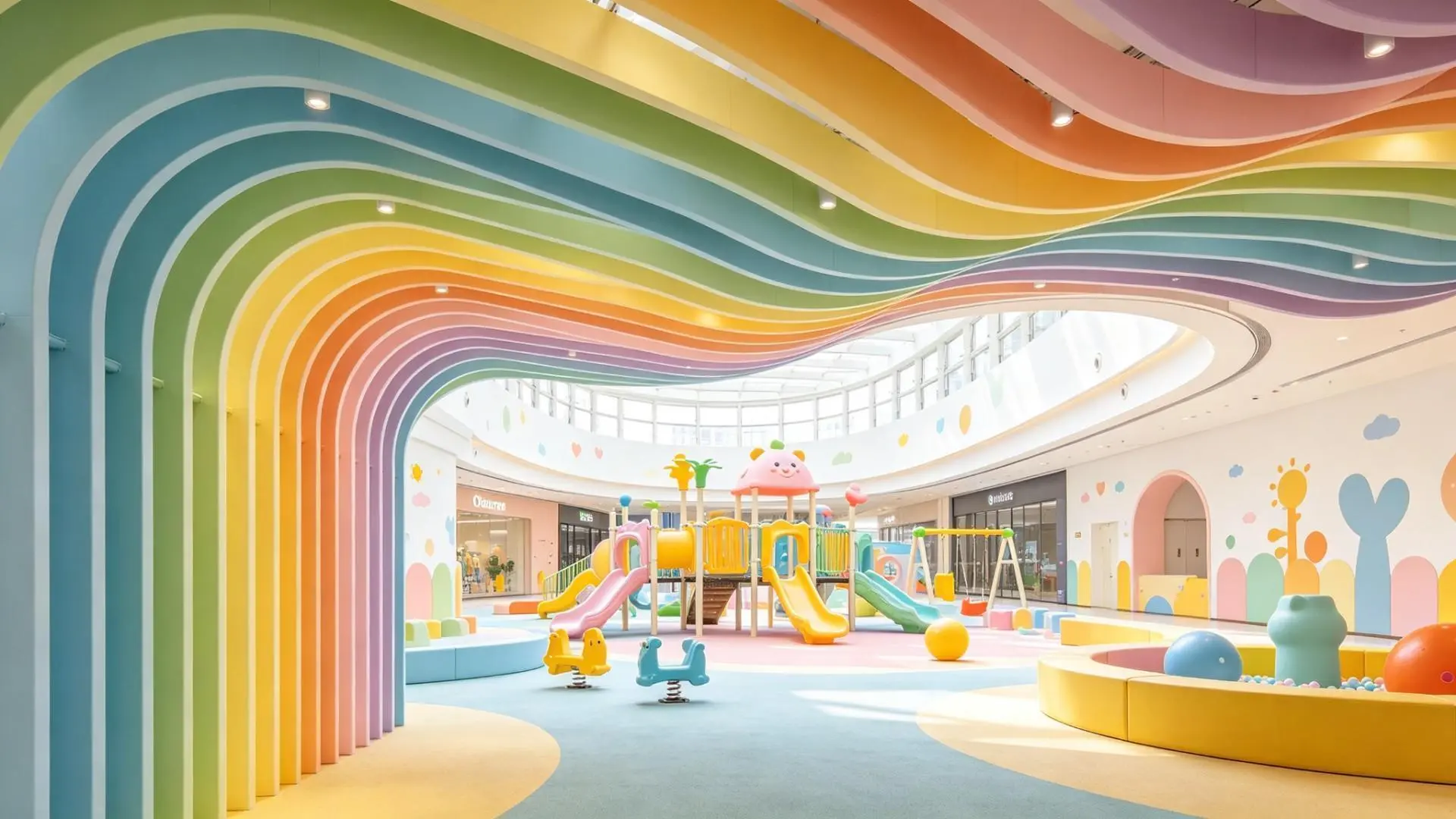

​​​​​​​Colorful Curved Aluminum Baffle Ceiling Panels for Children Playground Decoration

The second step is CNC stretch bending processing, which is the core process of curved aluminum baffle forming. Professional manufacturers use CNC rotary table stretch bending machines, whose equipment tension and bending angle can be precisely controlled. Before stretch bending, special stretch bending molds need to be made according to the radian, length and section specification of each baffle. The mold radian is accurately compensated according to the material springback amount, because aluminum profiles will have certain springback after stretch bending, usually the springback amount is between 3-5 degrees. The mold radian needs to be 3-5 degrees smaller than the design radian, and it will just spring back to the design radian after stretch bending. During stretch bending, both ends of the profile are fixed on the chucks of the stretch bending machine, axial tension is applied to make the section stress of the profile exceed the yield point, then the rotary table is rotated to bend the profile along the mold. The tension remains constant throughout the process to avoid defects such as section deformation, wrinkling and depression of the profile. After stretch bending, keep the tension for 10-15 seconds to fully release the profile stress and reduce later springback. For products with continuous radians such as S-shaped and wavy, CNC roll bending machines are used for processing. Continuous radians are realized through continuous rolling of three sets of adjustable rollers. During the roll bending process, the roller position and feed speed need to be adjusted repeatedly, and the radian is detected section by section to ensure that the radian of the whole profile is continuous and smooth without breakpoints.

The third step is shaping and cutting. The stretched profile will have slight section deformation and clamping margins at both ends, which requires manual shaping. Special tools are used to trim the deformed section to standard size to ensure that the opening size of the baffle is consistent, and it can be smoothly clamped on the keel during installation. Then cut both ends according to the arc length and angle required by the drawing. The cutting uses a CNC sawing machine to ensure accurate cutting angle and flat cut without burrs. For long arc products that need to be spliced, welding grooves need to be processed at both ends to ensure welding strength and flatness.

The fourth step is welding and polishing. For products with too small curvature radius that cannot be formed by stretch bending, or hyperbolic and three-dimensional twisted shapes, welding process is required. Before welding, the aluminum plate is cut into unfolded shape with CNC turret punch or laser cutting machine, then folded into baffle section with CNC bending machine, and then welded with argon arc welding process. 5356 aluminum-magnesium welding wire is used for welding, and the welding current is controlled at 100-120A to avoid welding penetration or weak welding. The welded products need to be polished. First, use a coarse grinding wheel to grind off the weld bead, then gradually polish with fine sandpaper and flap disc, and finally polish with a polishing wheel until the welding place is flat and transitional with the base metal, and no welding traces can be seen by naked eyes. During the polishing process, pay attention to controlling the strength to avoid excessive polishing leading to profile deformation or wall thickness thinning.

The fifth step is surface treatment. The surface treatment of curved aluminum baffles is usually carried out after forming, because if surface treatment is done before stretch bending, the coating will have micro-cracks due to stretching during stretch bending, affecting weather resistance and appearance. Before surface treatment, pretreatment processes such as degreasing, pickling, and chromating are required to ensure coating adhesion. During fluorocarbon spraying or powder coating, special hangers are used to ensure that all surfaces of curved products can be evenly sprayed, with consistent coating thickness and no color difference. Curved products with wood grain transfer need to use elastic transfer paper to ensure that the transfer paper can completely fit the curved surface, avoiding problems such as missing transfer and pattern deformation. After surface treatment is completed, it needs to be baked and cured, and the baking temperature and time are strictly controlled according to the coating requirements to avoid over-baking or under-baking of the coating.

The sixth step is full inspection and numbering. After each curved aluminum baffle is processed, it must be placed on a special radian detection jig for inspection, measuring radian, chord length, section size, surface quality. Products with radian error exceeding ±2mm, section deformation exceeding 1mm, surface scratches or color difference must be reworked or scrapped. Qualified products are numbered according to the installation position on the drawing, and products with the same radian should also be clearly marked with the installation direction to avoid errors during on-site installation. Finally, a protective film is pasted on the surface of the product, and each product is individually packaged with bubble film. Curved products require custom special wooden packaging boxes to avoid extrusion deformation during transportation.

The processing loss rate of high-quality curved aluminum baffles is 3-5 times that of ordinary straight baffles, with high technical requirements and long processing cycle, so the price is relatively high. When choosing a curved aluminum baffle manufacturer, you must inspect whether the manufacturer has CNC stretch bending equipment, professional radian detection capabilities, and curved product processing experience for large projects. Small manufacturers usually use manual stretch bending or simple mold stretch bending, with poor radian accuracy, which is prone to problems such as uneven gaps and unsmooth lines after installation, seriously affecting the decorative effect.
