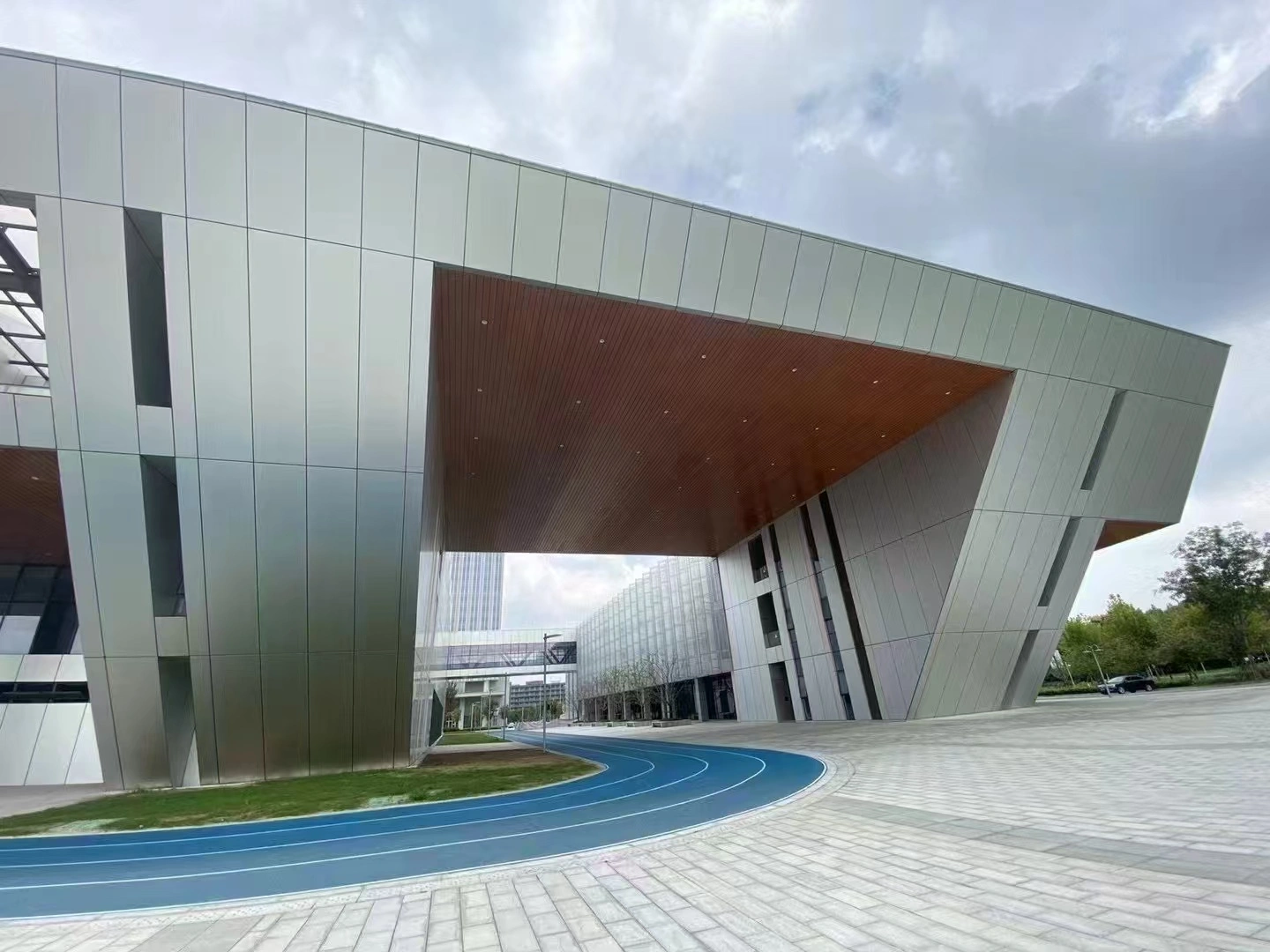

Waterproof and Sealing System Solution for Aluminum Veneer Curtain Wall

The waterproof and sealing performance of aluminum veneer curtain wall is the core index that determines the use function, service life and indoor environmental safety of the curtain wall. More than 80% of curtain wall project quality complaints come from leakage problems. The design of the curtain wall waterproof and sealing system must follow the core principle of pressure-equalized rain screen principle + multi-layer waterproof defense, and build a complete and reliable waterproof system through the whole-process control of material selection, structural design and construction technology to eliminate potential leakage risks.

Core Design Principle of Curtain Wall Waterproofing

The waterproof design of aluminum veneer curtain wall abandons the traditional single idea of "full sealing and water blocking", and adopts the internationally accepted pressure-equalized rain screen principle, dividing the curtain wall system into three lines of defense: external decorative layer, middle pressure equalization cavity, and internal sealing layer:

• The first line of defense: the glue joint of the panel joint of the external decorative layer, blocking most of the rainwater from entering;
• The second line of defense: the middle pressure equalization cavity. By setting drainage holes, the air pressure in the cavity is kept balanced with the external atmospheric pressure, eliminating the power of rainwater being sucked into the cavity due to the air pressure difference. At the same time, a small amount of rainwater entering the cavity is discharged out of the room in an orderly manner through the drainage system;
• The third line of defense: the internal sealing layer, which seals the key parts such as the junction between the curtain wall and the main structure, inter-floor, and nodes to prevent residual rainwater from seeping into the room.

Through the coordinated action of the three waterproof lines, a waterproof system of "blocking and draining combined, draining first" is realized, which solves the curtain wall leakage problem from the root.

Core Composition and Solution of Curtain Wall Waterproof and Sealing System

1. Panel Joint Waterproof and Sealing SystemThe panel joint is the main channel for rainwater to enter the curtain wall, and also the core link of the waterproof system. Differentiated sealing schemes should be adopted according to the climatic conditions of the area where the building is located:

   • Neutral Silicone Weather Sealant Sealing Scheme for Conventional Areas: Suitable for inland rainy and less typhoon areas, adopting the wet sealing scheme of "foam rod + neutral silicone weather sealant". The design width of the panel joint is not less than 10mm, the thickness of the glue joint is not less than 6mm, and the width-thickness ratio is controlled at 2:1 to ensure that the glue joint has sufficient expansion and deformation capacity to adapt to thermal expansion and cold contraction and structural displacement. The sealant must be neutral silicone weather sealant compatible with aluminum alloy base material and protective film, complying with Structural Silicone Sealants for Building (GB 16776, aligned with ASTM C920). Acid sealant is strictly prohibited to avoid corrosion of aluminum plate and affecting bonding performance.
   • Pressure Equalization Cavity Waterproof Scheme for Coastal Typhoon Areas: Suitable for coastal high wind pressure and heavy rainfall areas, adopting the dry sealing scheme of "open rain screen + pressure equalization cavity + internal sealing". The panel joint adopts an open design without weather sealant. Rainwater can directly enter the pressure equalization cavity and be quickly discharged through the drainage holes at the bottom of the cavity. A continuous waterproof back panel is set inside the pressure equalization cavity, which is sealed with the keel system by waterproof sealant to form the second waterproof line. At the same time, it ensures the air pressure balance inside and outside the cavity, and completely solves the problem of rainwater backflow under high wind pressure.
   • Freeze-Thaw Resistant Waterproof Scheme for Severe Cold Areas: Suitable for severe cold areas such as Northeast and Northwest China. Select weather sealant with excellent low-temperature flexibility, reserve larger expansion margin for glue joint design, and set thermal insulation layer inside the pressure equalization cavity to avoid condensation and icing in the cavity, which will damage the sealing system. The drainage holes adopt anti-freezing design to ensure smooth drainage in winter and eliminate sealing failure and leakage caused by freeze-thaw cycles.

2. Inter-floor and Main Structure Junction Waterproof SystemThe inter-floor of the curtain wall, the junction between the floor slab and the curtain wall, and the junction between the wall and the curtain wall are high-incidence areas of curtain wall leakage. A multi-layer waterproof defense scheme must be adopted:

   • A continuous galvanized steel waterproof lining board is set at the inter-floor position. The lining board is densely sealed with the floor slab and wall by waterproof sealant. The lap joint of the lining board adopts downstream lap joint with a lap length of no less than 100mm, and the lap joint is sealed with sealant;
   • The outer edge of the floor slab is set with an outward drainage slope of no less than 5% to avoid water accumulation. At the same time, a water retaining sill with a height of no less than 100mm is set at the edge of the floor slab to prevent rainwater from flowing back into the room;
   • The junction between the curtain wall and the expansion joint and settlement joint of the main structure adopts a composite sealing scheme of flexible waterproof membrane + deformable waterproof sealant to ensure that the waterproof system can still remain intact when the structure is displaced.

3. Special Waterproof Solution for Special NodesFor high-leakage nodes such as internal and external corners, door and window openings, parapet walls, expansion joints, corners, and equipment penetration, special waterproof design must be carried out to ensure that the waterproof system has no dead corners:

   • Internal and External Corner Nodes: Adopt integral internal and external corner aluminum plates formed by bending. On-site splicing is strictly prohibited. The lap joint at the corner adopts downstream lap joint with a lap length of no less than 150mm, and the joint is sealed with double sealant. The waterproof lining board at the internal and external corner positions must be continuously bent and formed without splicing joints to form a complete waterproof cavity.
   • Door and Window Opening Nodes: The gap between the door and window frame and the curtain wall aluminum plate is densely filled with waterproof foaming agent. The outer side is continuously sealed with weather sealant, and the inner side is edged with waterproof sealant. A drip line is set on the upper edge of the door and window opening, and an outward drainage slope and drip trough are set on the lower edge to prevent rainwater from seeping into the room along the gap.
   • Parapet Wall and Coping Nodes: The aluminum plate coping on the top of the parapet wall is integrally bent and formed, with an outward drainage slope of no less than 3%, and a water retaining flange with a height of no less than 50mm is set on the inner side. The lap joint between the coping aluminum plate and the facade aluminum plate is set on the facade, and it is strictly prohibited to set on the top surface. The lap joint is sealed with double sealant to prevent water accumulation and leakage on the top surface.
   • Expansion Joint/Seismic Joint Nodes: Adopt special aluminum plate bending with scalability, matched with flexible waterproof membrane and high-elasticity weather sealant, to ensure that the waterproof and sealing performance is not affected when the joint width expands and deforms within the design range. A continuous waterproof lining board is set in the joint to form a complete waterproof cavity and prevent rainwater from seeping in.
   • Equipment/Pipeline Penetration Nodes: At the position where equipment and pipelines pass through the aluminum plate, a special waterproof sleeve is used. The sleeve and the aluminum plate are densely sealed with sealant. The pipeline and the sleeve are double sealed with a waterproof sealing ring + sealant. A water retaining flange is set at the penetration position to prevent accumulated water from seeping into the room along the pipeline.

4. Drainage System DesignA complete drainage system is an important part of the curtain wall waterproof system. Drainage holes and drainage paths must be reasonably set according to the curtain wall grid and building height:

   • A drainage hole is set every 2 grids at the bottom of the pressure equalization cavity. The diameter of the drainage hole is not less than 6mm, and a special drainage cap is used to prevent blockage by mosquitoes and dust;
   • For super high-rise building curtain walls, a layered drainage system must be set to avoid siphon effect caused by vertical falling of rainwater, resulting in poor drainage;
   • Continuous drainage troughs and outlets are set at positions prone to water accumulation such as the bottom of the curtain wall, window sills, and copings to ensure rapid discharge of accumulated water and prevent water accumulation and leakage.

Construction Quality Control and Common Problem Treatment of Waterproof and Sealing System

1. Core Control Points of Construction Quality
   • Before the sealant construction, the dust, oil and moisture in the panel joint must be thoroughly cleaned to ensure that the bonding surface is dry and clean. It is strictly prohibited to apply glue on a wet or dust-contaminated interface;
   • The diameter of the foam rod should be 2-3mm larger than the width of the panel joint to ensure that it is closely fitted with both sides of the joint after insertion, with uniform depth, to provide uniform support for the sealant and avoid bubbles and hollows in the glue joint;
   • The gluing construction must be carried out at an ambient temperature of 5℃-35℃. It is strictly prohibited to carry out outdoor gluing operations in rainy, snowy, windy weather;
   • After the gluing is completed, the glue joint must be trimmed to ensure that the glue joint is smooth, continuous and full, without bubbles, breaks or glue leakage. Before the glue layer is completely cured, the finished product must be well protected to avoid touching and pollution.
2. Causes and Solutions of Common Leakage Problems

   Leakage Problem	Core Cause	Solution
   Cracking and leakage of panel glue joint	Improper sealant selection, unreasonable glue joint width-thickness ratio, incomplete interface cleaning, unsuitable ambient temperature for construction	Remove the invalid sealant, clean the interface again, select the matching weather sealant, control the glue joint width-thickness ratio according to the design requirements, and construct in a standardized manner
   Rainwater backflow under high wind pressure	No pressure equalization cavity design, blocked drainage holes, invalid sealing system	Optimize the pressure equalization cavity design, unclog the drainage holes, add an internal waterproof lining board, and improve the multi-layer waterproof defense
   Inter-floor/door and window opening leakage	Discontinuous waterproof lining board, reverse lap joint, incomplete sealing, no drainage slope set	Re-lay the continuous waterproof lining board, adopt downstream lap joint, dense sealing, adjust the drainage slope, and add water retaining sill and drip line
   Internal and external corner/corner leakage	On-site splicing, insufficient lap length, non-standard sealant construction	Replace the integrally bent internal and external corner aluminum plates, increase the lap length, and adopt double sealant for standardized construction
