Common Installation Methods for Exterior Aluminum Wall Panels

FOSHAN, China – August 2026 – As exterior aluminum wall panels become the fastest growing facade material for commercial and residential buildings, improper installation method selection has become the leading cause of facade quality issues. Guangdong Zhongchuang Building Decoration Materials Co., Ltd., a leading Chinese manufacturer of architectural aluminum facade systems, today released a standardized guide to the four most common aluminum wall panel installation methods, alongside an upgraded full-system installation solution that helps architects and contractors select the right fixing system for each project type.

Industry data shows that over 60% of aluminum facade after-sales issues — including water leakage, panel fall, buckling and rattling — are caused by incorrect installation method selection, not panel material quality. Zhongchuang's new standardized system addresses this gap by matching each installation method to specific project requirements, with pre-engineered components and full installation support.

Industry Pain Point: Installation Method Often Overlooked

Many project teams focus only on panel color, thickness and finish, while paying little attention to the fixing system behind the panels. "The panel is only 20% of facade performance; the installation system determines 80% of service life and safety," said Gavin Wen, International Sales Director at Guangdong Zhongchuang. "We see too many projects use cheap adhesive fixing on high-rise buildings, or wet cement fixing in coastal areas, leading to expensive failures within 5-10 years."

The four main installation methods each have distinct advantages, limitations and ideal project scenarios. Selecting the right method based on building height, climate, panel type and budget is critical for long-term performance.

Four Common Installation Methods & Ideal Applications

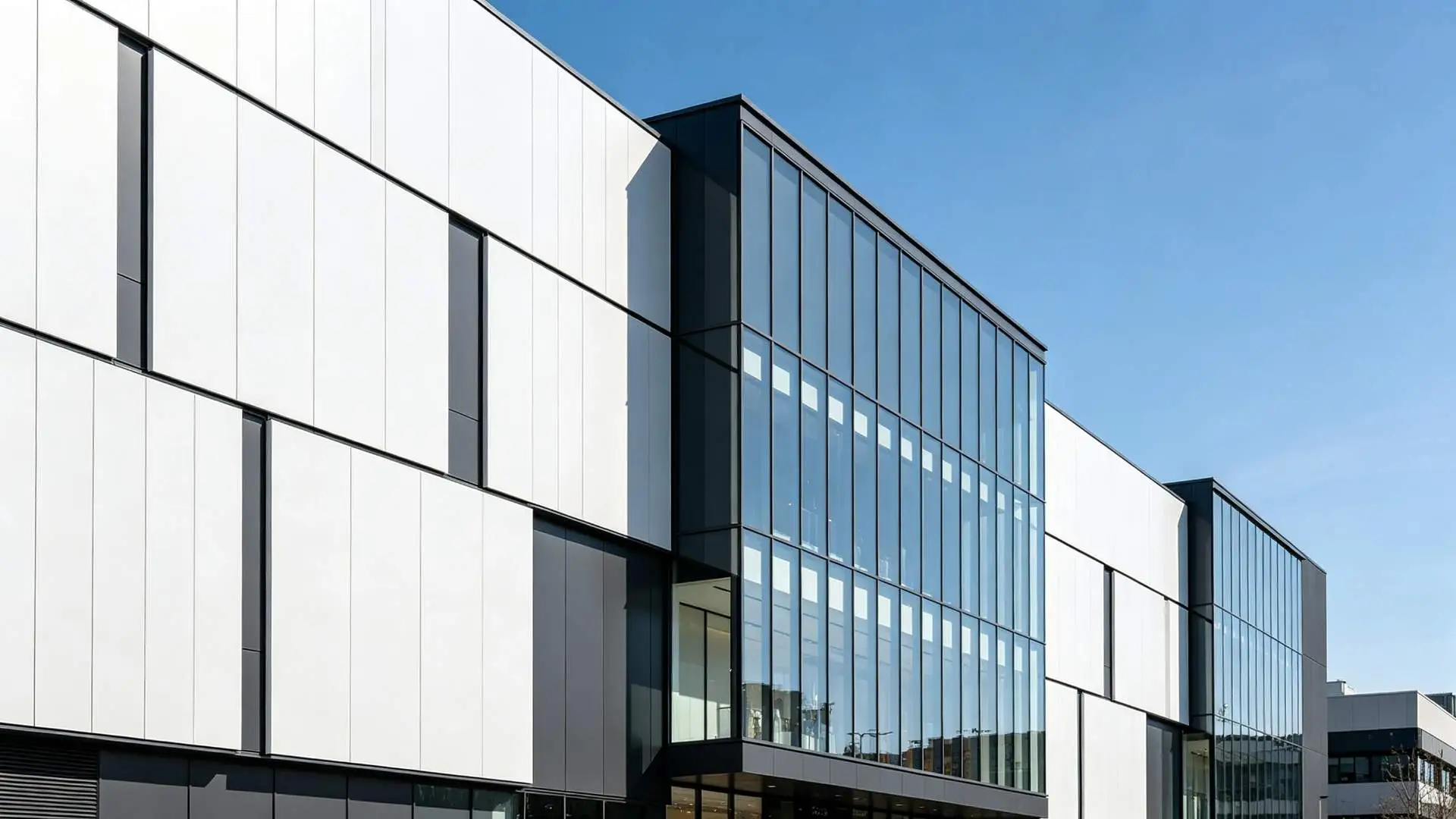

1. Dry-Hung Rear-Ventilated Rainscreen System

The dry-hung system uses aluminum keels and stainless steel mechanical hangers to fix panels, with a 20-50mm ventilated cavity behind panels. It is the safest and most durable method, with zero adhesive and pressure-equalized waterproofing.

• Best for: High-rise buildings over 24m, coastal and high rainfall regions, large temperature difference areas, commercial and public buildings
• Advantages: Zero fall risk, excellent waterproofing, independent thermal expansion, single panel removable, 25-30 year service life
• Limitations: 20-30% higher upfront cost than basic systems

2. Undercut Back Bolt Anchor System

The undercut anchor system drills precision holes in the back of panels and fixes them with threaded back bolts connected to the keel. It provides the strongest fixing force for large format and heavy panels.

• Best for: Large format panels over 1.5m width, aluminum honeycomb panels, stone honeycomb panels, high-end custom facades
• Advantages: Highest fixing strength, no visible fixings, suitable for heavy and large panels, excellent wind load resistance
• Limitations: Higher fabrication cost, requires precision back drilling

3. Clip-In / Snap-In Fast Fix System

The clip-in system uses pre-formed panel edges that snap directly into matching keel profiles, with no screws or bolts visible. It is the fastest installation method for standard format panels.

• Best for: Low-rise commercial buildings, shopfronts, renovation projects, projects with tight schedules
• Advantages: 50% faster installation than dry-hung, clean no-visible-fix look, simple for contractors to install
• Limitations: Not recommended for buildings over 15m or high wind regions

4. Adhesive Bonded / Structural Glazing System

The adhesive system uses structural adhesive to bond panels directly to a backing substrate, creating a seamless look with no visible joints or fixings.

• Best for: Small area feature walls, curved and irregular shapes, interior-exterior transition areas, projects requiring seamless monolithic look
• Advantages: Completely seamless appearance, suitable for complex curved shapes, lowest material cost
• Limitations: Not for high-rise or exterior primary facades, adhesive has 10-15 year service life, difficult to repair

Upgraded Standardized Installation System

Zhongchuang has upgraded all four installation systems with standardized pre-fabricated components:

• Universal aluminum keel system compatible with all four fixing methods
• Pre-marked connection points for perfect alignment and faster installation
• Integrated EPDM gasket and drainage design for all systems
• Thermal expansion allowance built into all hanger and clip designs
• Full material traceability and 25 year system warranty

The upgraded system reduces on-site installation time by 30% and eliminates common installation errors, with consistent quality across all project types.

Project Validation & Client Feedback

Over the past 6 months, Zhongchuang has supplied the four installation systems for 57 projects across 18 countries:

• 28 high-rise commercial projects used dry-hung rainscreen systems, with zero post-installation issues
• 12 large format honeycomb panel projects used undercut anchor systems
• 11 shopfront and renovation projects used clip-in fast fix systems, completing installation 40% ahead of schedule
• 6 custom feature wall projects used adhesive bonded systems for seamless curved designs

Client feedback averages 9.6/10, with 100% of clients stating that clear installation method guidance helped them avoid costly specification mistakes.

Global Installation Support & Selection Service

Zhongchuang provides free end-to-end installation support for all global clients:

• Free installation method selection based on project height, climate and panel type
• Full system design with structural wind load calculation
• Detailed installation manuals and 3D installation drawings
• On-site technical support for large projects
• 25 year full system warranty for dry-hung and undercut anchor systems

The company is also launching a free online installation selection tool in Q4 2026, allowing clients to input project parameters and receive recommended installation methods with cost and performance comparisons.

Guangdong Zhongchuang is a China-based specialist in high-performance architectural aluminum facade and ceiling systems, with 18 years of experience serving commercial, residential and public building projects worldwide. The company operates a 50,000 sqm modern production facility with full in-house fabrication, coating and system engineering capabilities, providing fully custom building decoration solutions certified to international fire, safety and quality standards.
