New Aluminum Mesh Launch: Expanded Metal Mesh for Facade & Ceiling

April 18, 2026 – We are excited to announce the official launch of our new architectural expanded aluminum mesh series, a versatile decorative and functional material designed for building facades, ceilings, partitions, sunshading, and security screening applications. Made of high-grade 3003/5005 aluminum alloy, the new series combines lightweight structure, high strength, unlimited design flexibility, and superior corrosion resistance, providing architects and designers with an innovative solution for modern architectural projects, fully compliant with ASTM F1267 and CE standards.

What is Expanded Aluminum Mesh?

Expanded aluminum mesh (also known as aluminum stretched mesh, aluminum pull mesh) is made by slitting and stretching a solid aluminum sheet into a uniform mesh pattern, without welding or weaving. Unlike perforated metal sheets, the expanding process produces no material waste, making it a cost-effective and eco-friendly building material. The unique mesh structure provides semi-transparent visual effects, excellent ventilation, and light transmission, while maintaining high structural strength, making it ideal for both exterior and interior architectural applications.

Core Highlights of the New Expanded Aluminum Mesh Series

1. Full Customization for All Architectural Scenarios

Our new aluminum mesh series offers unlimited customization options to meet diverse design needs:

• Material Options: Standard AA3003 aluminum alloy, marine-grade AA5005 aluminum alloy for coastal areas, and high-strength AA5052 for load-bearing applications;
• Thickness Range: 0.5mm - 4.0mm, with standard sizes of 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm;

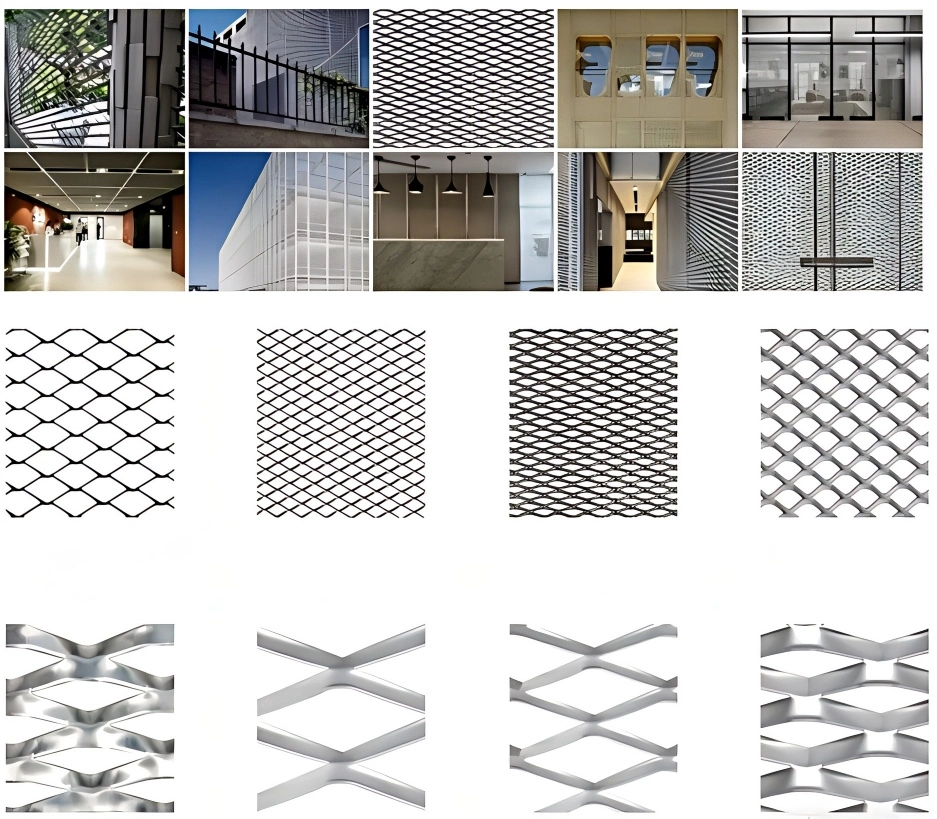

• Mesh Patterns: Classic diamond mesh, square mesh, hexagonal mesh, decorative gothic mesh, and custom special-shaped holes;
• Mesh Specifications: LWD (long way of diamond) from 3mm to 100mm, SWD (short way of diamond) from 2mm to 50mm, strand width from 1mm to 20mm, open area from 30% to 80% customizable;
• Sheet Size: Standard 1220mm×2440mm, 1220mm×3050mm, max size up to 2000mm×6000mm;
• Surface Treatment: PVDF fluorocarbon coating for outdoor use, polyester powder coating, anodizing, wood grain/stone grain transfer, brushed finish, with full RAL/NCS color matching available.

2. Superior Performance for Exterior & Interior Applications

The new expanded aluminum mesh series has excellent comprehensive performance, suitable for the most demanding architectural environments:

• High Strength-to-Weight Ratio: The expanded structure enhances the structural strength of the aluminum sheet, with a weight of only 2-8kg per square meter, greatly reducing the load on the building structure, ideal for high-rise building facades and large-span ceilings;
• Excellent Corrosion Resistance: The high-grade aluminum alloy substrate with professional surface treatment can pass 1500+ hours of salt spray test, suitable for coastal areas, industrial zones, and other harsh environments;
• Fire Safety Performance: Made of non-combustible aluminum alloy, meets ASTM E84 Class A and EN 13501-1 A2-s1,d0 fire rating standards, suitable for public buildings with strict fire safety requirements;
• Eco-Friendly & Sustainable: 100% recyclable aluminum material, no material waste in the production process, fully in line with LEED and BREEAM green building certification requirements.

3. Wide Range of Application Scenarios

Our new expanded aluminum mesh series can be widely used in the following architectural scenarios:

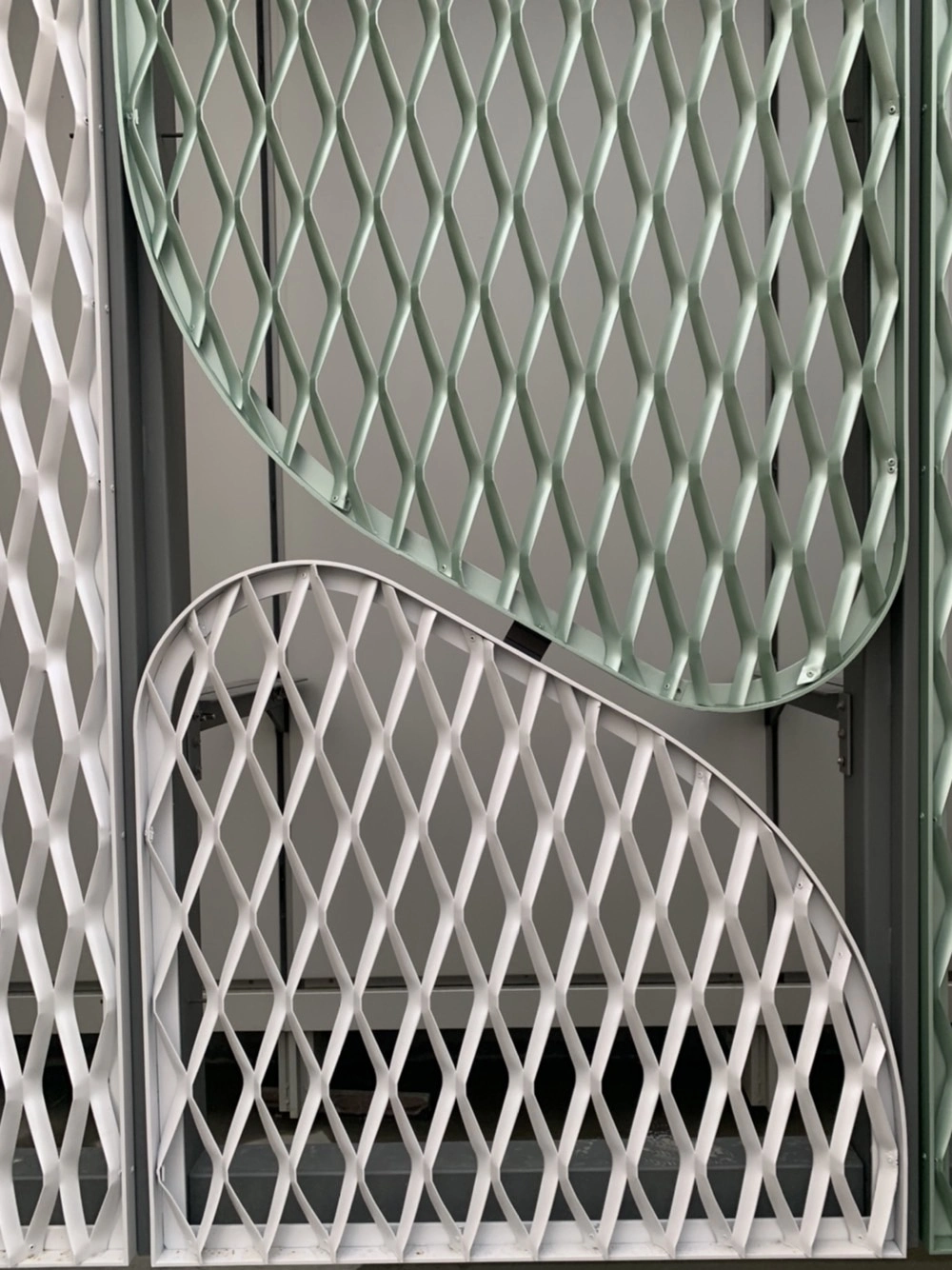

• Building Facades: Semi-transparent curtain walls, decorative cladding, facade renovation, and sunshading systems for commercial buildings, hotels, office towers, and cultural venues;
• Ceilings: Open ceilings for shopping malls, airports, railway stations, exhibition halls, and office buildings, with excellent ventilation and acoustic performance when matched with sound-absorbing materials;
• Interior Partitions: Semi-transparent space dividers for offices, hotels, restaurants, and exhibition spaces, balancing privacy and light transmission;
• Other Applications: Balcony railings, security screens, stair railings, equipment enclosures, and landscape decorative elements.

Pre-launch Project Application

Before the official launch, the new aluminum mesh series has been applied in multiple landmark projects:

• A cultural museum project in Europe: using 3500㎡ of expanded aluminum mesh for the facade, creating a dynamic light and shadow effect with the change of sunlight;
• A commercial complex project in Australia: using the mesh for the ceiling of the public area, with excellent ventilation and acoustic performance;
• A high-end residential project in the Middle East: using custom-colored aluminum mesh for balcony railings and sunshading systems, combining safety and decorative effects.

Order & Customization Service

The new expanded aluminum mesh series is now officially open for global orders. We provide full customization services from design consultation, sample production, precision fabrication to on-site installation guidance, with a standard production lead time of 7-10 working days for standard panels and 15-20 working days for custom special-shaped panels.

Contact us now to get free samples, CAD design support, and a detailed quote for your architectural project.
