Basic Guide to Aluminum Baffles: Definition, Core Properties and Full Application Scenarios

Aluminum baffles are long-strip decorative profiles made of aluminum alloy as the main raw material, processed through extrusion forming, surface treatment and other processes, and are one of the most widely used metal decorative materials in the field of modern architectural decoration. Compared with traditional decorative materials such as wood, gypsum and plastic, aluminum baffles have core advantages such as light weight, high strength, corrosion resistance, high fire rating, convenient installation, and 100% recyclability, which perfectly meet the development needs of modern buildings for green building materials and prefabricated decoration.

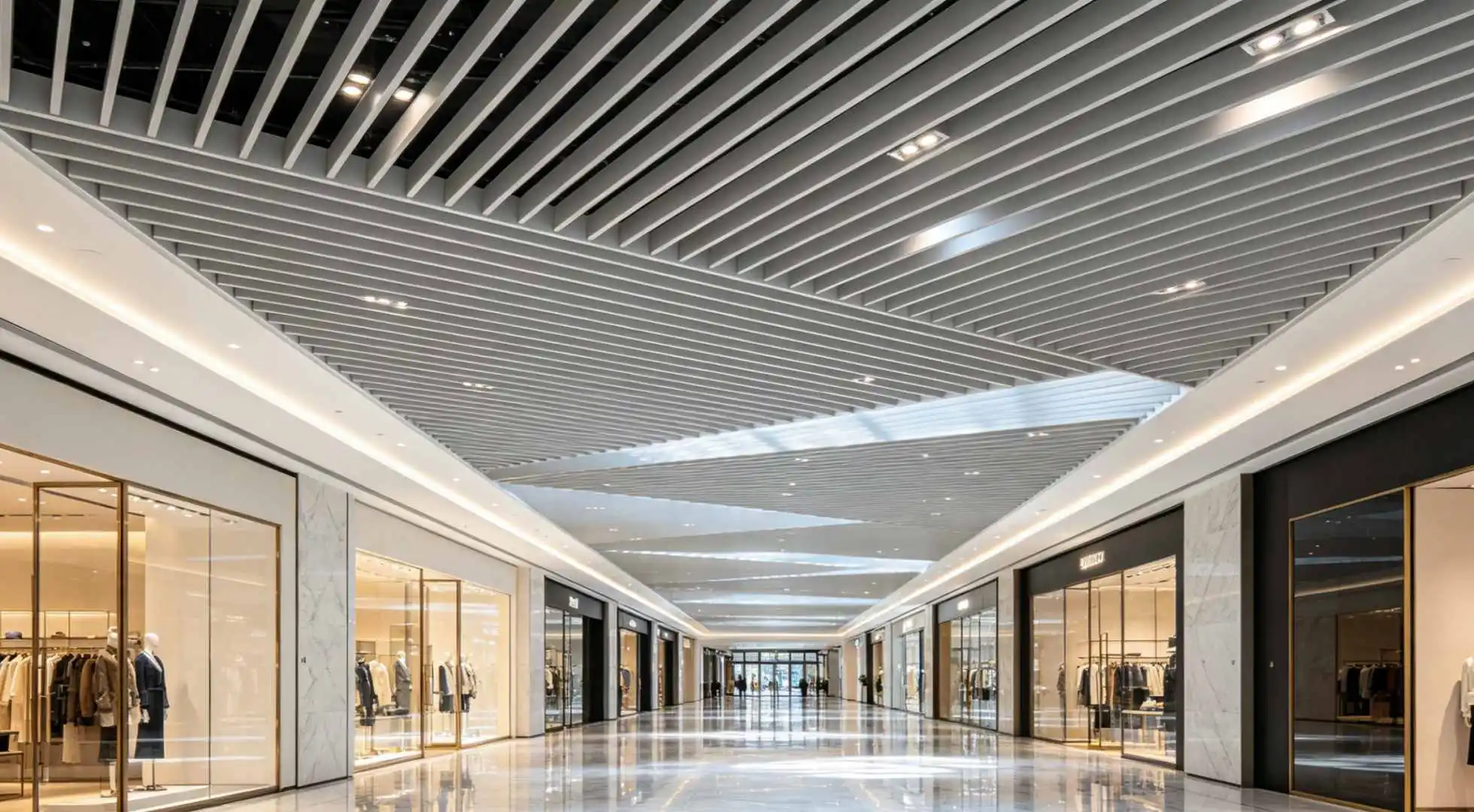

Aluminum square tube ceiling

In terms of material grades, aluminum baffles for architectural decoration usually use 1100, 3003, 5005, 6061 series aluminum alloy substrates. Among them, 3003 series manganese aluminum alloy has become the most widely used substrate model in the market because of its good forming performance, corrosion resistance and moderate cost. The conventional thickness of aluminum baffles ranges from 0.5mm to 3.0mm, the bottom width ranges from 20mm to 200mm, and the height ranges from 30mm to 300mm. Any specification can be customized according to project design requirements. The length is usually controlled within 6 meters according to transportation and installation conditions, and longer sizes can be achieved through seamless welding process for special projects.

Surface treatment process is the core factor determining the decorative effect and service life of aluminum baffles. At present, the mainstream processes include powder coating, polyester paint spraying, fluorocarbon spraying, wood grain thermal transfer, stone grain transfer, anodizing, wire drawing treatment, etc. Among them, fluorocarbon sprayed aluminum baffles contain more than 70% polyvinylidene fluoride resin, which has excellent UV resistance, acid rain resistance and corrosion resistance, can maintain no fading, no chalking and no shedding for more than 15 years in harsh outdoor environments, and is the preferred surface treatment method for exterior wall aluminum baffle projects; wood grain transfer aluminum baffles restore real wood texture on the surface of aluminum profiles through vacuum thermal transfer technology, which combines the decorative effect of wood with the durability of aluminum alloy, and is a popular choice for indoor ceiling and wall decoration.

In terms of product structure classification, aluminum baffles are mainly divided into U-shaped aluminum baffles, groove-shaped aluminum baffles, curved aluminum baffles, profile aluminum baffles, special-shaped aluminum baffles and other categories. Products with different structures correspond to different installation systems and application scenarios. U-shaped aluminum baffle is the most widely used category in the market at present. It is fixed on the keel through a snap-on installation system, which is convenient to install and disassemble, and is suitable for large-area ceiling projects; groove-shaped aluminum baffles have stronger structural strength, with installation grooves on the side, which can be used for both ceilings and exterior wall decoration; curved aluminum baffles are processed into curved shapes with different radians through stretch bending, roll bending or welding processes, and are the core material for realizing special-shaped architectural shapes.

In terms of application scenarios, the use scope of aluminum baffles has extended from traditional indoor ceilings to building exterior walls, airport terminals, subway platforms, high-speed railway stations, commercial complexes, office buildings, hospitals, schools, convention and exhibition centers, stadiums and other public buildings, and has also been increasingly used in civil buildings such as high-end residences, villas, hotels and clubs. In addition to the basic decorative function, the modern aluminum baffle system also integrates ventilation, acoustic noise reduction, lighting integration, fire sprinkler, air conditioning outlet and other functions, becoming a core component of the architectural decoration system that combines functionality and decoration.

With the promotion of prefabricated buildings and green building materials, the aluminum baffle industry has maintained steady growth in recent years. According to industry association data, the domestic aluminum baffle market size has exceeded 18 billion yuan in 2025, with an annual compound growth rate of more than 8%. At the same time, exports continue to grow, and products are exported to Southeast Asia, the Middle East, Africa, Europe, Australia and other global markets. China has become the world's largest aluminum baffle production and export base.
