Exterior Wall Aluminum Honeycomb Panel vs Solid Aluminum Panel
When choosing building exterior materials, exterior wall aluminum honeycomb panels and solid aluminum panels are the two most commonly used metal curtain wall materials. Many customers often struggle to decide which one to choose. In fact, these two materials have their own advantages and disadvantages, and are suitable for different scenarios. Below we will conduct a comprehensive comparison from multiple dimensions to help you make the right choice.

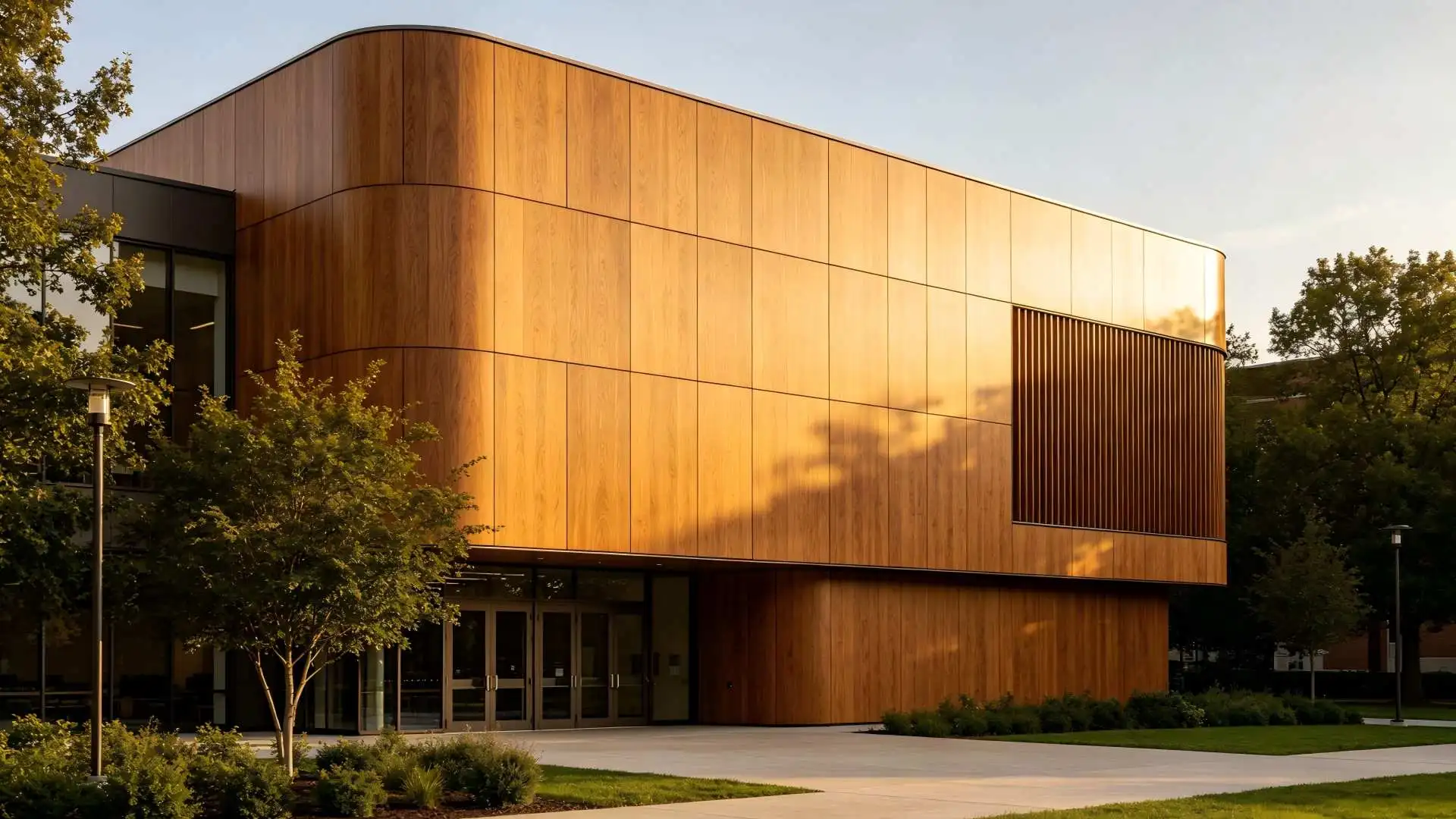

Wood grain honeycomb aluminum panels for exterior walls bring you closer to nature.
1. Performance Comparison
| Performance Indicator | Exterior Wall Aluminum Honeycomb Panel | Solid Aluminum Panel |
|---|---|---|
| Weight | 5-8kg/m² | 8-12kg/m² (3mm thick) |
| Wind Load Resistance | Excellent, ideal for high-rise buildings | Average, needs thickening for buildings over 100m |
| Flatness | Excellent, not easy to deform | Good, large panels tend to deform |
| Thermal Insulation | Excellent | Average |
| Acoustic Insulation | Excellent | Average |
| Fire Rating | A2 non-combustible | A2 non-combustible |
| Weather Resistance | Same with the same coating | Same with the same coating |
2. Price Comparison
In terms of unit price, exterior wall aluminum honeycomb panels are 15%-30% more expensive than solid aluminum panels of the same area and coating. However, when considering the overall project cost, exterior wall aluminum honeycomb panels, due to their light weight, can use lighter keel systems and have faster installation speed, resulting in lower labor costs. Therefore, in large-scale projects, the comprehensive cost may be comparable to or even lower than that of solid aluminum panels.
3. Application Scenario Comparison
-
Choose exterior wall aluminum honeycomb panels if:
- The building height exceeds 100 meters
- The project is located in coastal areas with strong typhoons
- High requirements for thermal and acoustic insulation
- Large panel design (single area over 3㎡)
- High-end projects pursuing perfect flatness and visual effects
-
Choose solid aluminum panels if:
- The building height is below 100 meters
- Projects with complex shapes requiring a lot of special-shaped processing
- Small and medium-sized projects with limited budget
- Local decoration and line molding
4. Procurement Tips
- Choose the right thickness: The total thickness of exterior wall aluminum honeycomb panels should generally be no less than 15mm, and the face/back sheet thickness should be no less than 0.8mm; for coastal areas, it is recommended to choose a thickness of 20mm or more, with face/back sheets of 1.0mm or more.
- Pay attention to surface treatment: PVDF fluorocarbon coating must be used for exterior walls, with a coating thickness of no less than 40μm. Avoid using polyester coatings.
- Inspect manufacturer strength: The production process of exterior wall aluminum honeycomb panels requires high technology. It is recommended to choose regular manufacturers with large project experience and complete production lines.
- Clarify warranty terms: Require the manufacturer to provide at least 15-year coating warranty and 25-year structural warranty.
In conclusion, there is no absolute good or bad between exterior wall aluminum honeycomb panels and solid aluminum panels, only suitable or not. When choosing, you should comprehensively consider factors such as building height, climate conditions, design requirements and budget according to the specific situation of the project, and select the most suitable material.
