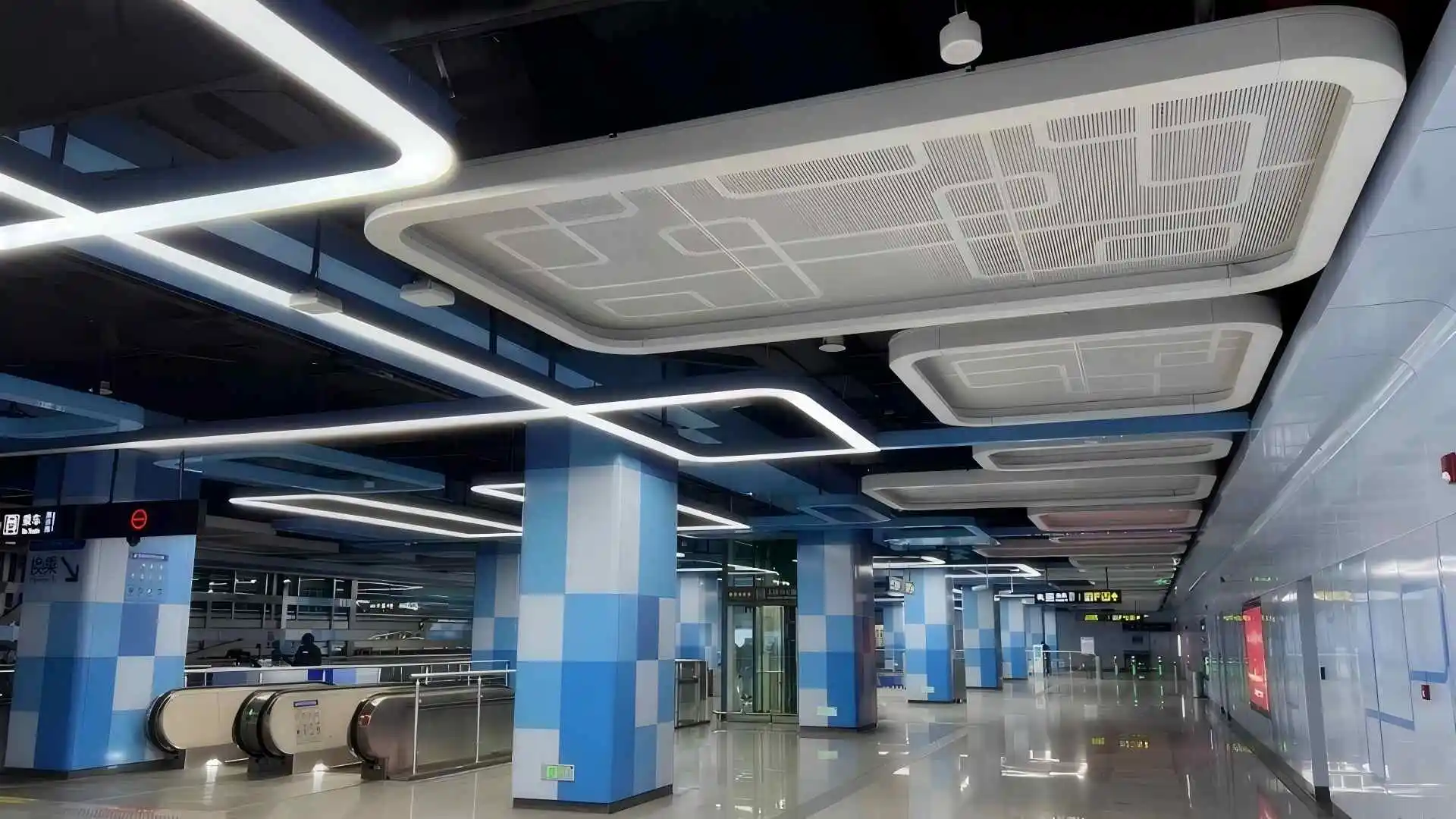

Application of Perforated Aluminum Ceiling in Subway and Airport Transportation Hubs

Large‑scale transportation hubs including subway stations, airport terminals and high‑speed railway stations belong to modern urban public buildings featured by dense pedestrian flow, complex space layout and high‑intensity usage. Their ceiling systems shall not only satisfy basic decoration and aesthetic demands, but also undertake multiple functions: sound absorption and noise reduction, ventilation and heat dissipation, equipment integration, fire safety and long‑term maintainability. Benefiting from the unique porous structure, perforated aluminum ceilings deliver dual performance of sound‑absorbing noise reduction and air permeability. Meanwhile, they possess outstanding properties such as light weight with high strength, Class‑A non‑combustibility, easy‑to‑clean surface, and detachable reusable panels. Hence they have become the preferred ceiling material for large‑scale transportation hubs. Based on the spatial characteristics of transportation hubs, this paper deeply analyzes the key technical points for applying perforated aluminum ceilings in such scenarios.

Understanding the environmental features and ceiling requirements of transportation hubs forms the foundation for applying perforated aluminum ceilings. First, complex noise environment: subway stations contain multiple noise sources including train operation, HVAC systems, public broadcasting and crowd noise. Noise levels on platforms and concourses generally range from 75‑85 dB(A), and even higher in partial zones. For airport terminals, noise sources cover aircraft take‑off & landing noise (transmitted via building envelopes), ventilation system noise, baggage sorting system noise and crowd noise, with typical noise levels of 70‑80 dB(A). Long‑term exposure to high‑noise conditions impairs passenger comfort and may cause hearing damage to on‑site staff. Consequently, ceilings for transportation hubs must provide reliable sound‑absorbing and noise‑reduction performance.

Second, high demand for ventilation and air‑conditioning: transportation hubs feature high floor heights and dense crowds, requiring large volumes of fresh‑air supply and air‑conditioning cooling / heating. Ceiling systems shall cooperate with HVAC systems to realize reasonable air distribution. Certain zones (subway platforms, equipment floors etc.) also need to realize ventilation and heat dissipation through ceiling structures.

Third, intensive equipment integration: numerous electromechanical devices are installed above hub ceilings, such as lighting fixtures, air‑conditioning outlets, fire sprinklers, smoke detectors, loudspeakers, surveillance cameras, WiFi antennas, directional signage, advertising light boxes, airport baggage‑handling systems and subway platform screen‑door systems. Ceiling systems shall facilitate equipment integration and subsequent maintenance access.

Fourth, high usage intensity and strict maintenance constraints: transportation hubs usually operate 16‑20 hours per day all year round. Ceilings are subject to frequent human activities and equipment vibration impacts, while maintenance windows are limited (mostly during night shutdown periods). Therefore ceiling materials are required to be robust, durable, easy‑to‑clean and support rapid inspection & replacement.

Fifth, stringent fire‑safety standards: as densely‑occupied public venues, transportation hubs attach great importance to fire protection. Ceiling materials shall meet Class‑A non‑combustible criteria, and ceiling system design must not interfere with normal operation of fire‑protection facilities.

Sound‑absorbing and noise‑reducing capacity represents one of the core values of perforated aluminum ceilings in transportation‑hub projects. Targeting hub noise characteristics, acoustic design for perforated aluminum ceilings shall cover the following key points. First, perforation rate and aperture selection: mid‑to‑high‑frequency noise (human voice, broadcasting, ventilation noise etc.) dominates in hub spaces. Perforated panels with 15‑25 % perforation rate and φ2‑3 mm hole diameter, fitted with rear‑mounted sound‑absorbing cotton, can effectively absorb mid‑high‑frequency noise and shorten space reverberation time. For extra‑high‑noise zones (track‑side subway platforms, airport baggage‑sorting workshops etc.), higher perforation rates (25‑30 %) together with thicker sound‑absorbing cotton (50‑100 mm) can be adopted to improve sound‑absorption performance.

Second, sound‑absorbing cotton selection: sound‑absorbing materials for transportation hubs shall comply with Class‑A non‑combustible requirements. Centrifugal glass wool (density: 32‑48 kg/m³) or rock wool are commonly adopted, and moisture‑proof treatment (e.g. wrapping with waterproof breathable membrane) is necessary to prevent sagging or bacterial growth under high‑humidity conditions. Cotton thickness is determined by acoustic targets, normally 25‑50 mm; 100 mm thickness is applied where enhanced low‑frequency absorption is needed.

Third, plenum cavity design: after installation of perforated aluminum ceilings, the air cavity formed between panel top surface and structural slab plays a vital role in low‑frequency sound absorption. Deeper cavity delivers better low‑frequency absorption performance. Hub ceiling plenum depth usually ranges from 500‑1500 mm, which provides favorable low‑frequency absorption conditions. During design, avoid over‑crowding pipelines and equipment inside plenum space and maintain cavity continuity to guarantee acoustic performance.

Fourth, acoustic calculation and verification: large‑scale transportation‑hub ceiling acoustic design shall rely on professional acoustic computation. Simulation software such as ODEON and CATT‑Acoustic can be utilized to simulate space reverberation time and sound‑pressure‑level distribution. Optimize perforation rate, sound‑absorbing‑cotton thickness and coverage area according to simulation output, so that space acoustic environment meets design specifications. (Typical targets: reverberation time 1.0‑1.5 s for hub public zones; noise level controlled below 70 dB(A)).

Ventilation and heat‑dissipation performance of perforated aluminum ceilings is equally critical. For subway stations, heat generated by train operation and passenger crowds brings great challenges to temperature control on platforms and concourses. The perforated structure allows hot air to rise into the ceiling‑above return‑air plenum and be exhausted via HVAC systems, meanwhile conditioned cold air is supplied to occupied zones through air outlets to establish reasonable air distribution. In several subway‑station designs, perforated aluminum ceilings also serve as return‑air surfaces for air‑conditioning systems, removing the need for separate return‑air grilles and delivering cleaner ceiling appearance.

For airport terminals, air‑conditioning distribution for high‑volume tall spaces is more complicated. Perforated aluminum ceilings working together with HVAC systems enable stratified air‑conditioning: maintaining comfortable temperature & humidity within human‑occupied zone (below 2 m height), while permitting higher temperature in upper space, so as to reduce air‑conditioning energy consumption. In equipment rooms and substations, perforated aluminum ceilings with high ventilation ratio (up to 30‑50 %) ensure effective equipment heat dissipation and prevent overheating‑caused failures.

Note: for zones requiring both sound absorption and ventilation, sound‑absorbing cotton shall not fully block perforated holes. Adopt rational structural solutions (e.g. reserving gaps between cotton layer and panel, or partial‑area cotton lamination) to balance both functional requirements.

Multiple factors shall be taken into account during system design and material selection of perforated aluminum ceilings for transportation hubs. First, panel‑type selection: strip‑shaped perforated aluminum ceilings (strip width:100‑300 mm, custom‑length available) are widely used in public zones of subways and airports. Their linear visual feature guides pedestrian flow direction; fewer joints brought by large‑size strips also contribute to integral visual effect. Square perforated aluminum panels (600×600 mm) are applicable for equipment rooms and auxiliary zones, featuring lower cost and convenient installation & maintenance.

Second, surface‑treatment selection: powder coating is the common finish for indoor hub ceilings, with main colors including white, light gray and silver‑gray. Light‑toned finishes improve space light reflectance and cut lighting‑energy consumption while showing less dirt accumulation. For coastal‑city transportation hubs (airports, subway stations), fluorocarbon coating is recommended for salt‑spray corrosion resistance.

Third, substrate‑thickness selection: considering high‑usage intensity of hub environments, strip panels shall be minimum 0.7 mm thick; square panels minimum 0.6 mm thick. For wide strips (width＞200 mm) or zones subject to maintenance‑related loads, increase thickness to 0.8‑1.0 mm.

Fourth, keel‑system selection: transportation hubs cover huge ceiling areas with frequent maintenance access. Galvanized light‑steel keels or aluminum‑alloy keels with high bearing capacity and good durability shall be deployed. Hanger‑rod spacing ≤1200 mm; main‑keel spacing ≤1200 mm. For strip‑type ceilings, special clip‑in keels matching strip cross‑sections shall be adopted to secure firm installation and anti‑loosening performance.

Fifth, maintainability‑oriented design: plenty of equipment is arranged above hub ceilings and demands regular servicing. Dedicated access panels or operable ceiling tiles are suggested for equipment‑concentrated zones (above HVAC rooms, adjacent to electrical shafts) for maintenance personnel access. Individual strips of strip‑type ceiling can be detached easily for partial‑zone servicing.

Proper construction‑installation and maintenance management guarantee long‑term reliable operation of perforated aluminum ceilings in transportation hubs.

On construction side: ceiling installation for transportation hubs generally proceeds after completion of most electromechanical works. Carry out comprehensive site survey and layout planning prior to installation, to coordinate panel arrangement with locations of lamps, air outlets, sprinklers and other fixtures. Strictly control ceiling flatness and joint straightness during installation. Given the high ceiling height and wide sight range in hub spaces, minor defects will be visually amplified. For large‑area strip‑ceiling projects, pay attention to strip laying direction and color‑difference control; apply panels from one single production batch within identical zones.

On maintenance side: perforated aluminum ceilings in transportation hubs require periodical cleaning (every 3‑6 months normally) to eliminate surface dust and stains, especially dust trapped inside perforated holes, to avoid blockage degrading sound‑absorbing and ventilation performance. For cleaning, use vacuum‑cleaner soft brush to remove surface dust or wipe with damp cloth. High‑pressure water‑gun direct flushing is strictly forbidden, as it may dampen sound‑absorbing cotton. Inspect sound‑absorbing cotton regularly; replace components timely if sagging, detachment or dampness occurs. For vibration‑prone environments such as subways, regularly check fastening conditions between panels and keels to prevent connector loosening induced by long‑term vibration. With standardized construction and maintenance, perforated aluminum ceiling systems for transportation hubs can keep favorable service performance for 10‑15 years and above.

In conclusion, perforated aluminum ceilings integrate comprehensive strengths including sound‑absorbing noise reduction, ventilation‑heat dissipation, Class‑A non‑combustibility and convenient maintenance. They perfectly satisfy multi‑dimensional ceiling‑system requirements for large‑scale transportation‑hub spaces. In practical engineering projects, perform scientific material‑selection design and system configuration according to specific‑space factors such as noise features, HVAC demands, equipment layout and usage intensity. Combined with standardized construction and strict maintenance regimes, the perforated aluminum ceiling system can deliver optimal long‑term performance for transportation‑hub operation.
