Hole Pattern Design and Visual Art Expression of Perforated Aluminum Ceiling

The hole pattern design of perforated aluminum ceiling is the intersection of acoustic function and visual art. In traditional concepts, perforation is merely a technical means to achieve sound absorption function. However, with the development of CNC punching technology and the improvement of architectural design aesthetic level, hole patterns have become an important language of spatial design. Different hole patterns, arrangement methods, and perforation rate changes can create completely different spatial atmospheres and visual experiences. This article will systematically analyze the hole pattern design art of perforated aluminum ceilings.

Round holes are the most classic and widely used hole pattern, with stable acoustic performance and simple and neutral visual effects. The hole diameter of standard round holes is usually φ1.5mm, φ2mm, φ2.5mm, φ3mm, φ5mm, etc. The arrangement methods are mainly regular triangle arrangement (staggered arrangement) and square arrangement (straight arrangement). The hole positions in regular triangle arrangement are more evenly distributed, with smaller hole spacing at the same perforation rate and better acoustic effects, making it the preferred arrangement method for sound-absorbing ceilings; square arrangement has a stronger sense of order and geometry, with more regular visual effects, suitable for office spaces emphasizing rationality and order. The visual effect of round holes varies with hole diameter and perforation rate: small hole diameter and low perforation rate (such as φ1.5mm, 5% perforation rate) are almost invisible at normal viewing distance, presenting a delicate matte texture; large hole diameter and high perforation rate (such as φ5mm, 25% perforation rate) have a strong sense of transparency and industrial aesthetic characteristics.

Square holes and long strip holes endow the space with stronger directionality and line sense. Common specifications of square holes include 2×2mm, 3×3mm, 5×5mm, 10×10mm, etc. The geometric sense brought by their right-angle edges is stronger than round holes, suitable for modernist style architectural spaces. Long strip holes (also called slot holes) usually have specifications of 3×15mm, 5×20mm, 5×50mm, etc., with clear directionality. When long strip holes are arranged in the same direction, they can visually stretch the spatial depth, especially suitable for long and narrow spaces such as corridors, passages, and waiting halls. Long strip holes can also guide pedestrian flow sight by changing arrangement direction, and have practical wayfinding functions in transportation buildings. In addition, the ventilation performance of long strip holes is better than round holes, making them an ideal choice in equipment rooms, underground garages and other spaces that need to 兼顾 ventilation and sound absorption.

Patterned perforation is a high-end perforation technology that has developed rapidly in recent years. It elevates perforation from a simple functional means to an artistic expression medium. Through CNC punching equipment, any complex patterns can be processed on aluminum plates, including corporate LOGOs, abstract art graphics, plant patterns, portraits, city skylines, etc. The implementation principle of patterned perforation is to use combinations of hole points with different hole diameters or different perforation rates to form the grayscale layers of the image: areas with large hole diameter and high perforation rate correspond to the bright parts of the image, while areas with small hole diameter and low perforation rate correspond to the dark parts. This "perforation halftone" technology can present delicate image effects, especially stunning under backlight illumination. Patterned perforated aluminum ceilings have been widely used in spaces with image display needs such as brand flagship stores, corporate headquarters lobbies, cultural venues, and subway stations. Taking a subway station in Shanghai as an example, its platform ceiling adopts a patterned perforation design themed on urban historical images, presenting flowing urban memories under the lighting, becoming a landmark art installation of the subway station.

Gradient perforation is a special form of patterned perforation. Through the gradual change of perforation rate from high to low or from low to high, it creates a visual transition effect full of rhythm. Gradient perforation can be linear gradient (perforation rate uniformly changes from one end to the other), radial gradient (diffusion change from center to periphery) or free-form surface gradient (change according to design surface). The visual effect of gradient perforation has strong dynamic sense and spatial guidance, often used in atriums, above escalators, entrance canopies and other spaces requiring visual focus. Acoustically, gradient perforation can also achieve differentiated control of spatial reverberation time—using high perforation rate in areas requiring strong sound absorption and low perforation rate in decorative areas, achieving the unity of function and aesthetics.

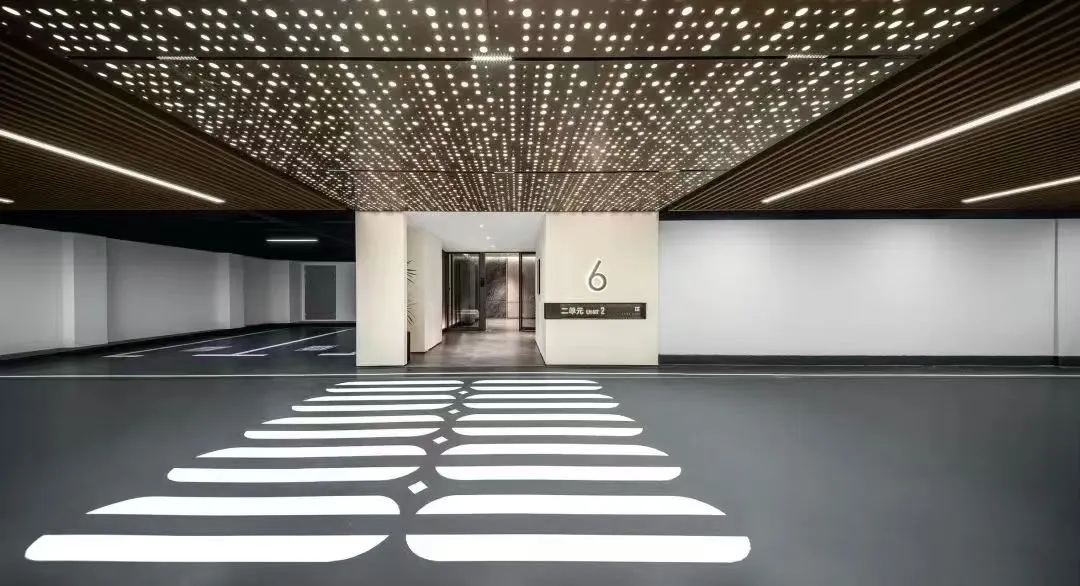

Artistic perforation is a more avant-garde and personalized design form, usually collaborating with architects or artists to use perforation as a creative medium to achieve unique artistic expression. For example, the ceiling of a contemporary art museum adopts irregular perforation patterns inspired by sound wave waveforms. The size and density of holes change with the amplitude of virtual sound waves, which not only echoes the acoustic function of the museum but also creates a unique artistic atmosphere. Another case is the banquet hall ceiling of a high-end hotel, which adopts artistic perforation themed on starry sky. With the colored LED lights on the back, it presents changing effects such as starry sky, aurora, and flower sea under different scene modes, transforming the ceiling into an immersive art installation.

In engineering practice, hole pattern design needs to balance four dimensions: acoustic function, visual effect, structural strength, and cost control. From a structural perspective, perforation will weaken the cross-sectional strength of the aluminum plate. The higher the perforation rate and the larger the hole diameter, the more obvious the strength weakening. Therefore, it is necessary to correspondingly increase the substrate thickness or set reinforcing ribs. From a cost perspective, standard round holes have the lowest processing cost, followed by square holes and long strip holes. Patterned perforation and artistic perforation require programming, sample testing and precision control, so their costs are significantly higher than standard perforation. It is recommended that architects, acoustic consultants and supplier technical teams participate in hole pattern design together at the project design stage. Through sample trial production and acoustic simulation verification, the best visual art effect can be achieved while meeting functional requirements.
