Technical Guide to Aluminum Ceiling Specification Size and Thickness Selection

The specification size and substrate thickness of aluminum ceilings are the most basic and critical parameters in engineering project selection. Many purchasers often only focus on surface treatment and price when selecting, but ignore the profound impact of specification size and thickness on final engineering quality. In fact, unreasonable specification selection may lead to panel deformation, uneven joints, insufficient load-bearing and other problems, while insufficient thickness will directly affect the flatness and service life of the ceiling. This article will analyze the specification size and thickness selection principles of various aluminum ceilings from a technical perspective.

Square panel ceiling is the category with the highest degree of specification standardization, and its core specifications follow the building modulus system. The most commonly used standard specification is 600×600mm, which matches the modulus of most building column grids, lamps, air conditioning outlets and other electromechanical equipment, and is also the standard adaptation size for exposed T-shaped keel systems. Next is 300×300mm, mainly used for small space home decoration markets such as bathrooms and kitchens, as well as clean rooms with high ceiling precision requirements. The 600×1200mm rectangular panel is suitable for long and narrow spaces such as corridors and passages, which can reduce the number of joints and improve overall visual coherence. In high-end projects, non-standard specifications such as 400×400mm, 500×500mm, 800×800mm can also be customized according to design needs, but it should be noted that non-standard specifications will increase mold opening costs and production cycles, and the keel system also needs to be customized accordingly.

The thickness selection of square panels needs to comprehensively consider panel size, use environment and load-bearing requirements. For 600×600mm standard square panels, the substrate thickness is recommended to be no less than 0.6mm for conventional indoor spaces, and high-quality projects usually use 0.7-0.8mm; if the panel size increases to 600×1200mm, the thickness should be correspondingly increased to 0.8-1.0mm, otherwise the middle of the panel may undergo downward deflection deformation under self-weight. For panels that need to carry equipment such as lamps and speakers, or installed in low ceiling spaces where personnel may come into contact, the thickness is recommended to be no less than 1.0mm. Aluminum square panels used for exterior walls (usually called aluminum veneers rather than ceilings) require higher thickness, generally no less than 2.0mm, and high-rise building exterior walls even need 2.5-3.0mm to resist wind loads and temperature deformation.

The specifications of strip ceilings take width and length as core parameters. Common specifications for strip width include 50mm, 75mm, 100mm, 150mm, 200mm, 300mm, etc. Different widths create significantly different visual effects. 50-75mm narrow strips have a delicate and refined linear feel, suitable for high-end hotels, clubs and other spaces with high detail requirements; 100-150mm is the most commonly used medium width with balanced visual effects, suitable for most public spaces such as offices, shopping malls, and subway stations; 200-300mm wide strips have an atmospheric and visual effect, suitable for large-span spaces such as airport terminals and convention centers. The length of strips can theoretically be customized according to space dimensions. Limited by the width of raw material coils, the conventional maximum length can reach 6000mm. Special needs can achieve longer dimensions through welding and splicing, but attention should be paid to the polishing treatment and surface consistency at the welding points.

The thickness selection of strips is closely related to width. Narrow strips below 100mm can use 0.5-0.6mm thickness; medium width 100-200mm recommends 0.6-0.8mm; wide strips above 200mm should use 0.8-1.0mm thickness to ensure the panel is stiff and free of wavy deformation after installation. In addition, the cross-sectional shape of strips (C-type, H-type, V-type, etc.) also affects their structural rigidity. Cross-sections with reinforcing rib design can achieve better flatness at the same thickness.

The specifications of grid ceilings take grid size and grid height as core. Common grid sizes include 50×50mm, 75×75mm, 100×100mm, 150×150mm, 200×200mm, etc. The smaller the grid, the more refined and the higher the cost. Grid heights usually have specifications such as 30mm, 40mm, 50mm, 60mm, etc. The higher the height, the stronger the three-dimensional sense, but the more obstruction to the space above the ceiling. The substrate thickness of the grid is generally 0.4-0.6mm, because the grid is made of thin aluminum plates bent into U-shaped or V-shaped profiles, and the structure itself has good rigidity without requiring excessively thick substrate.

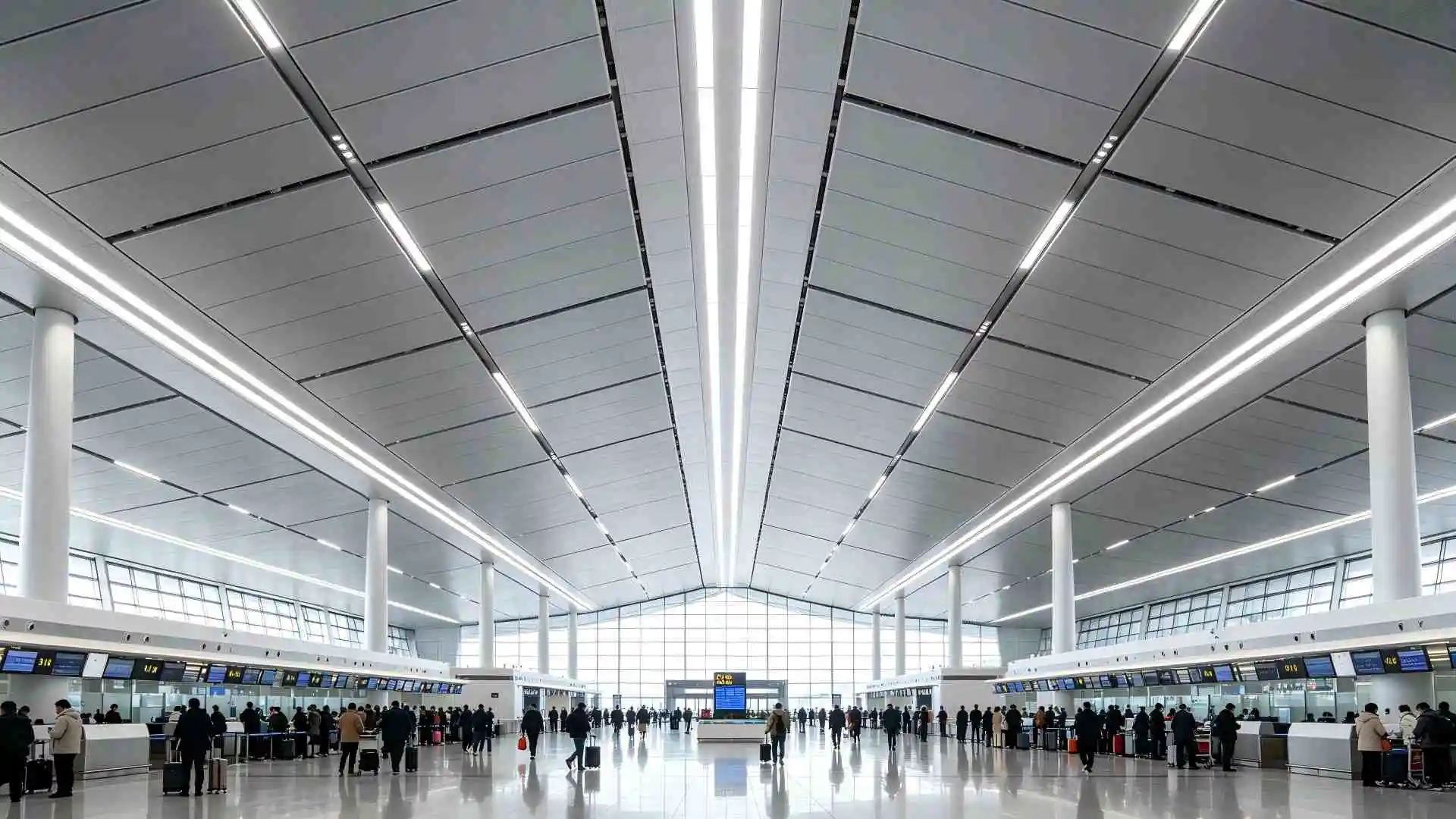

Large-size customization is an important development trend of aluminum ceilings in recent years. With the pursuit of overall seamless visual effects in high-end buildings, the demand for oversized panels exceeding standard specifications is increasing. For example, honeycomb composite aluminum panels can achieve super large sizes of 1500×6000mm, and overall aluminum panels can also achieve specifications of 1200×4000mm through bending reinforcing ribs. However, large-size panels impose higher requirements on substrate thickness, flatness control, transportation and installation, and costs also increase exponentially. When choosing a large-size solution, it is necessary to comprehensively evaluate architectural space scale, design effect, budget cost and construction feasibility, avoiding blind pursuit of large size that leads to engineering quality problems.

Finally, it should be emphasized that the selection of specification size and thickness must match the keel system. Panels of different thicknesses and sizes require corresponding load-bearing capacity keels and hangers. The safety of the entire ceiling system is based on the matching of all components. It is recommended to require suppliers to provide complete system load-bearing capacity calculation sheets and node detail drawings in engineering projects to ensure that the entire system from panels to keels, hangers, and suspension rods has been scientifically designed and verified.
