aluminum ceiling panels
Name:Aluminum ceiling panels
Application scenarios:shopping malls, hotels, airports, high-speed rail stations, office buildings, etc
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size:Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-20 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description
Aluminum Ceiling Panels: Premium Interior Solutions for Modern Spaces
Change your insides spaces with our premium aluminum ceiling panels, outlined to combine usefulness with staggering aesthetics. At Guangdong Zhongchuang Building Beautification Materials Co., Ltd, we specialize in fabricating high-quality ceiling arrangements that meet the requesting prerequisites of advanced development ventures. Our boards offer remarkable toughness, fire resistance, and dampness assurance, making them the culminate choice for your commercial and private applications.
Why Choose Our Aluminum Ceiling Systems?
Superior Material Quality
Our boards are made from premium aluminum alloys including 1100, 3003, 5005, and 6063 grades. This guarantees you get lightweight however strong ceiling arrangements that keep up their appearance for decades. The thickness ranges from 1.5mm to 5.0mm, giving adaptability for different extend requirements.

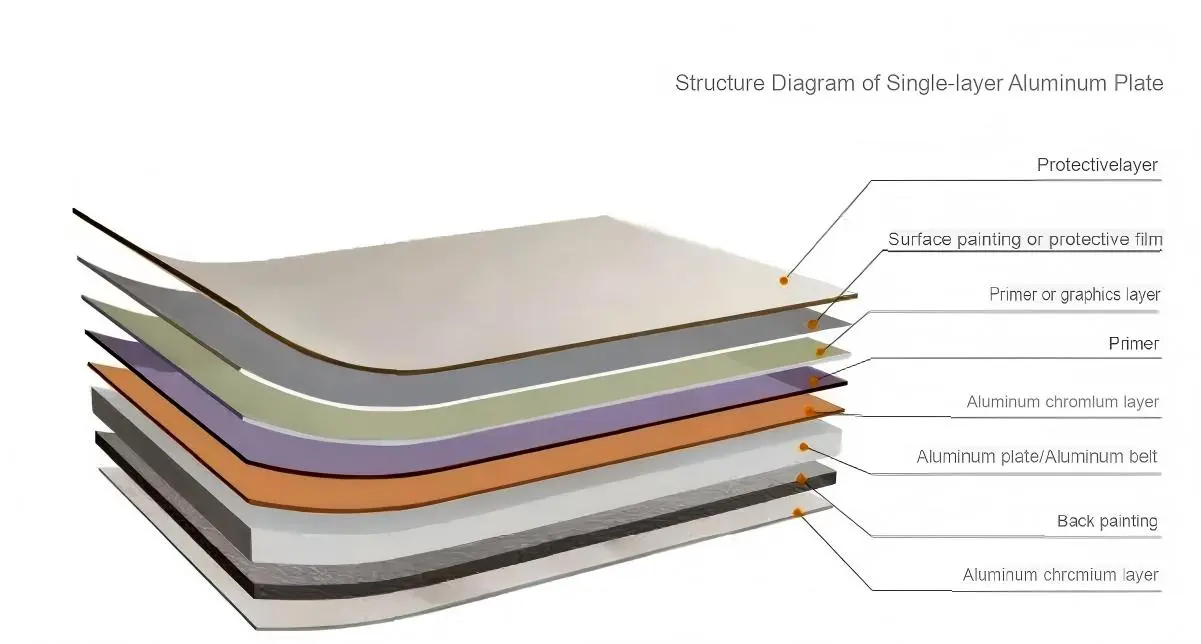

Advanced Surface Protection
We apply PVDF/PE surface medicines that convey extraordinary execution. Your ceiling keeps up its flawless appearance with fabulous resistance to blurring, chalking, and weathering. The coating gives predominant assurance against acids and scraped area, guaranteeing long-lasting magnificence in requesting environments.
Comprehensive Design Flexibility
Choose from an broad extend of RAL colors and custom wraps up to coordinate your plan vision superbly. Whether you require standard sizes or totally customized measurements, our fabricating capabilities oblige your particular extend necessities. We offer different board sorts counting hook-on frameworks, gusset boards, and open-cell plans.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Key Benefits You'll Experience
Fire Safety & Moisture Resistance: Our panels provide excellent fire protection and resist moisture damage, making them ideal for kitchens, bathrooms, and high-humidity environments.
Easy Maintenance: The smooth surface finish allows for effortless cleaning with standard maintenance procedures, reducing your long-term upkeep costs.
Sound & Thermal Performance: Experience improved acoustic comfort and thermal insulation properties that enhance your indoor environment quality.
Quick Installation: Our precision-engineered panels install efficiently, reducing construction time and labor costs for your project.
Professional Support Throughout Your Project
Complete Design Services
We provide comprehensive CAD 3D modeling services to visualize your ceiling design before installation. Our material mechanics simulation ensures optimal performance for your specific application requirements.
Precision Manufacturing
Our factory pre-assembly process guarantees exceptional accuracy with project tolerances maintained at ≤0.5mm. This precision reduces installation complications and ensures perfect fit every time.
Expert Technical Guidance
Receive detailed construction drawings and on-site technical support from our experienced team. We're committed to ensuring your aluminum ceiling panels installation proceeds smoothly from start to finish.
Quality Certifications You Can Trust
Our manufacturing processes meet international standards with CE, UL, SASO, and ISO 12944-6 certifications. These certifications demonstrate our commitment to quality, safety, and environmental responsibility in every panel we produce.
Perfect for Your Application
Our ceiling solutions excel in shopping malls, hotels, airports, high-speed rail stations, and office buildings. The versatility of the products makes them suitable for virtually any interior space requiring durable, attractive overhead coverage.

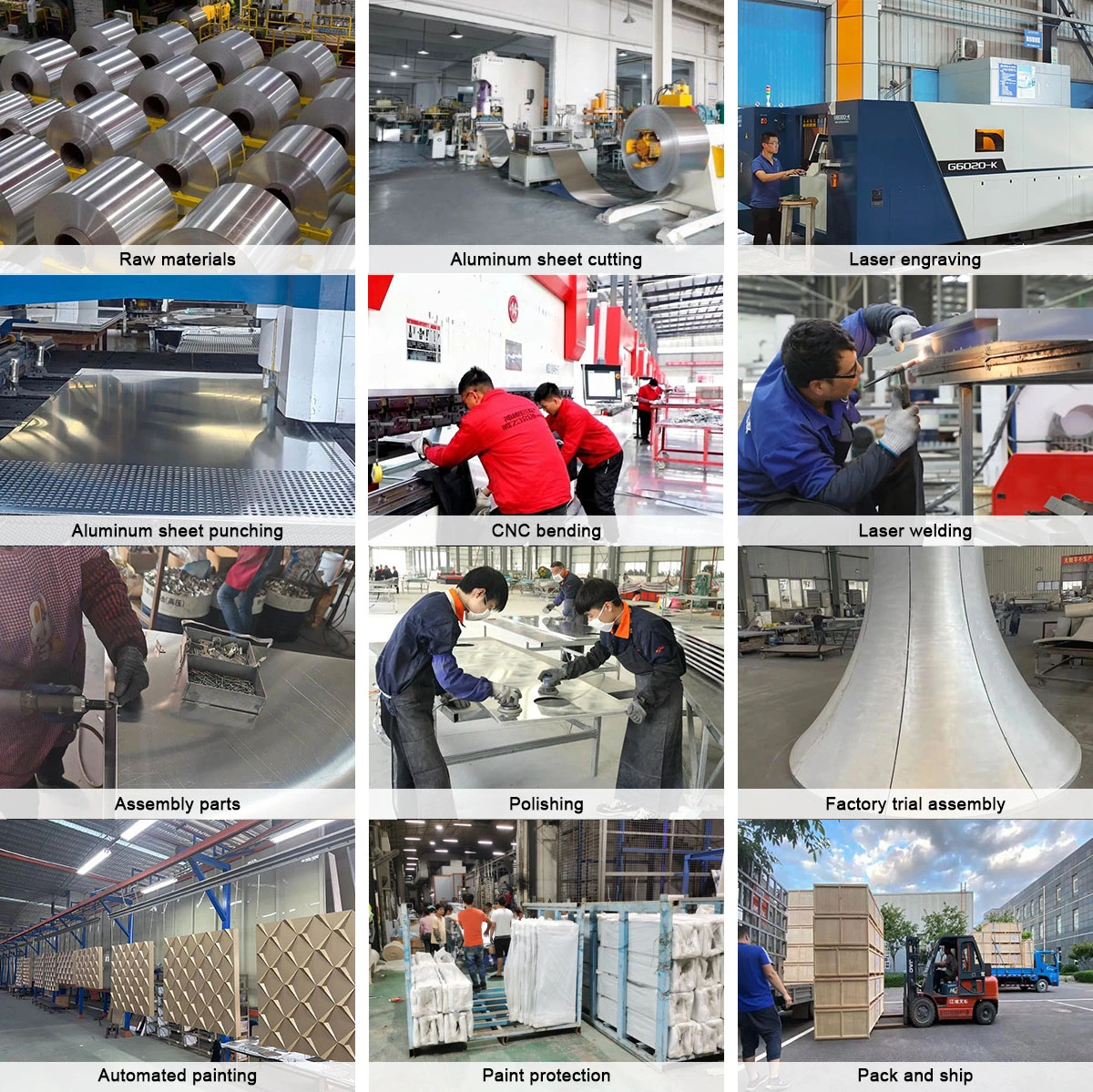

Production process
Service Standards That Set Us Apart
We maintain rigorous quality control with film thickness averaging ≥50μm and superior adhesion ratings. Our coating systems provide excellent hardness (≥2H) and acid resistance, ensuring your investment performs exceptionally over time.
Ready to elevate your next project with premium ceiling solutions? Contact our team at [email protected] to discuss your requirements. We'll provide expert consultation and customized aluminum ceiling panels solutions tailored to your specific needs.
