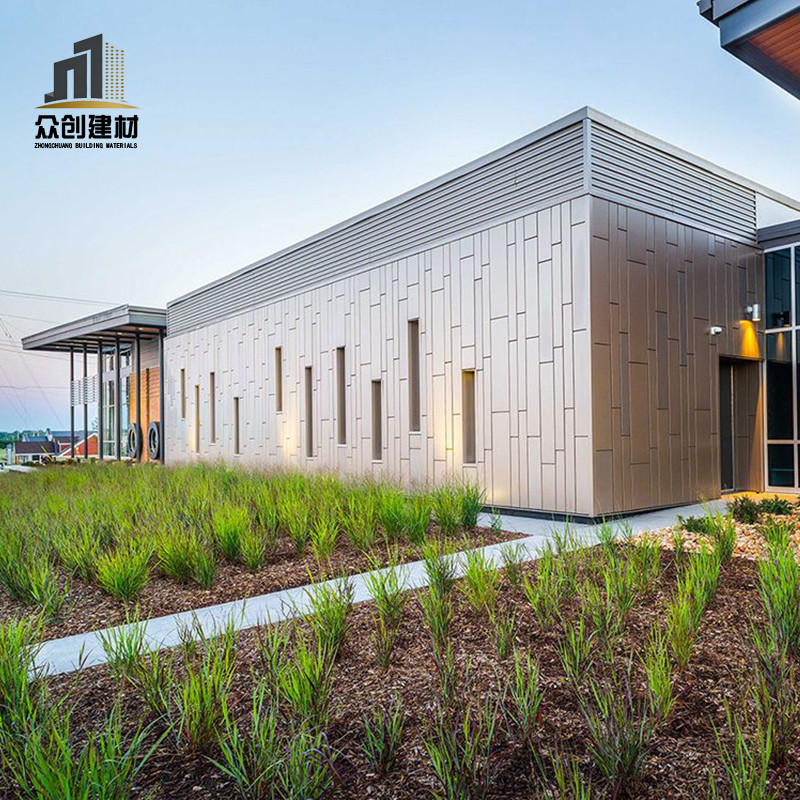

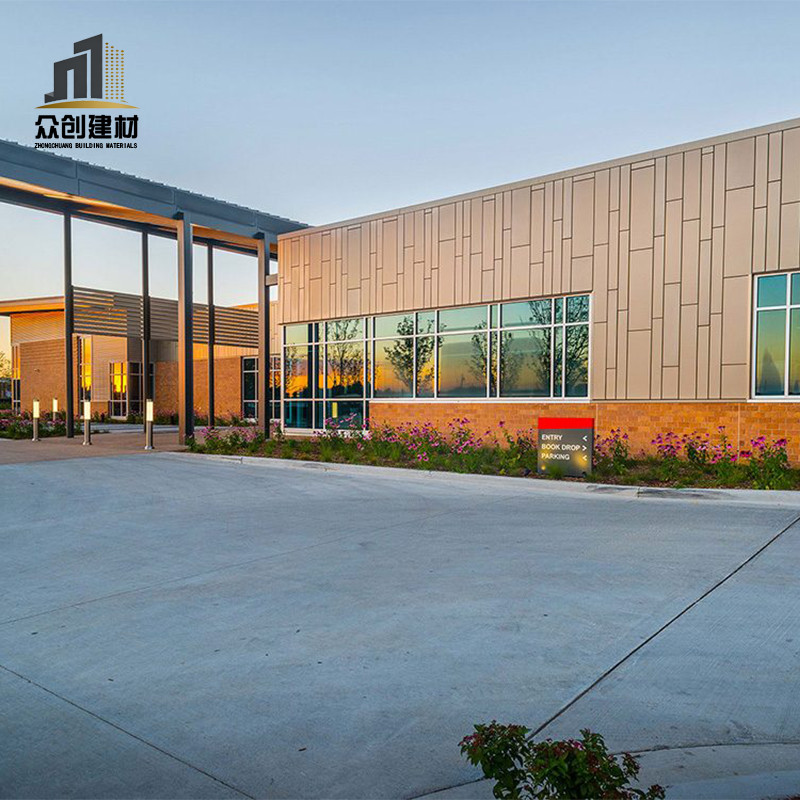

aluminum curtain wall
Name:Aluminum wall panel
Application scenarios:shopping malls, hotels, airports, high-speed rail stations, office buildings, etc
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size:Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-20 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description
Premium Aluminum Curtain Wall Solutions for Modern Architecture
When you're planning your next architectural project, choosing the right exterior system matters. Our aluminum curtain wall systems represent the perfect blend of engineering excellence and aesthetic appeal for today's demanding construction requirements. As a widely used exterior enclosure system in modern architecture, these solutions combine aluminum alloy profiles with glass, stone, or decorative panels to create stunning building facades. Whether you're developing shopping malls, hotels, airports, or office buildings, our systems deliver exceptional performance and visual impact that transforms your vision into reality.
Superior Material Performance and Innovation
Your extend merits materials that surpass desires. Our aluminum divider boards highlight premium grades counting 1100, 3003, 5005, and 6063 combinations, advertising thickness alternatives from 1.5mm to 5.0mm. Each board experiences progressed PVDF/PE surface treatment, guaranteeing long-lasting assurance against natural challenges.
The lightweight plan altogether diminishes your building's auxiliary stack. This implies you can accomplish noteworthy structural statures without compromising security or expanding establishment costs. Our boards keep up extraordinary strength-to-weight proportions that back complex plan geometries.
Surface coating quality meets the most noteworthy industry benchmarks. Film thickness midpoints ≥50μm with least nearby thickness of ≥34μm. The hardness rating comes to ≥2H, whereas corrosive resistance testing appears no changes after 24-hour presentation to 5% HCl arrangements.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Comprehensive Customization Capabilities
Each building has interesting prerequisites. That's why we offer total customization for measure, color, and setup. Select from RAL color frameworks or ask custom color coordinating to accomplish your correct details. Our plan group works closely with your planners to guarantee idealize integration.
Our designing administrations incorporate CAD 3D modeling and fabric mechanics recreation. This progressed arranging approach recognizes potential issues some time recently fabricating starts. Plant pre-assembly testing ensures exactness establishment with venture blunders kept up at ≤0.5mm resiliences.
Quality Certifications and Reliability
Trust comes from proven performance. Our aluminum curtain wall systems carry CE, UL, SASO, and ISO 12944-6 certifications. These internationally recognized standards validate our commitment to quality and safety in every component we manufacture.
Testing protocols exceed industry requirements. Each batch undergoes rigorous quality control procedures including adhesion testing, gloss deviation measurement, and abrasion resistance evaluation. Results consistently demonstrate superior performance characteristics.
Sustainable Building Solutions
Natural duty drives our fabricating forms. Aluminum's recyclable properties bolster green building activities. Our PVDF coating frameworks give extraordinary strength, expanding benefit life whereas diminishing upkeep necessities and lifecycle costs.
Energy proficiency benefits incorporate warm execution optimization and common lighting upgrade. These highlights contribute to LEED certification focuses and diminished operational costs all through your building's life expectancy.
Production Capacity and Delivery
Our fabricating office conveys 50,000 square meters month to month capacity. Standard conveyance timeframes run from 15-20 days, guaranteeing your venture plan remains on track. Least arrange amounts begin at fair 30 square meters, obliging ventures of different scales.
Quality control strategies screen each generation arrange. Last assessment conventions confirm dimensional exactness, surface wrap up quality, and execution determinations some time recently shipment. This efficient approach guarantees you get items that meet correct determinations.

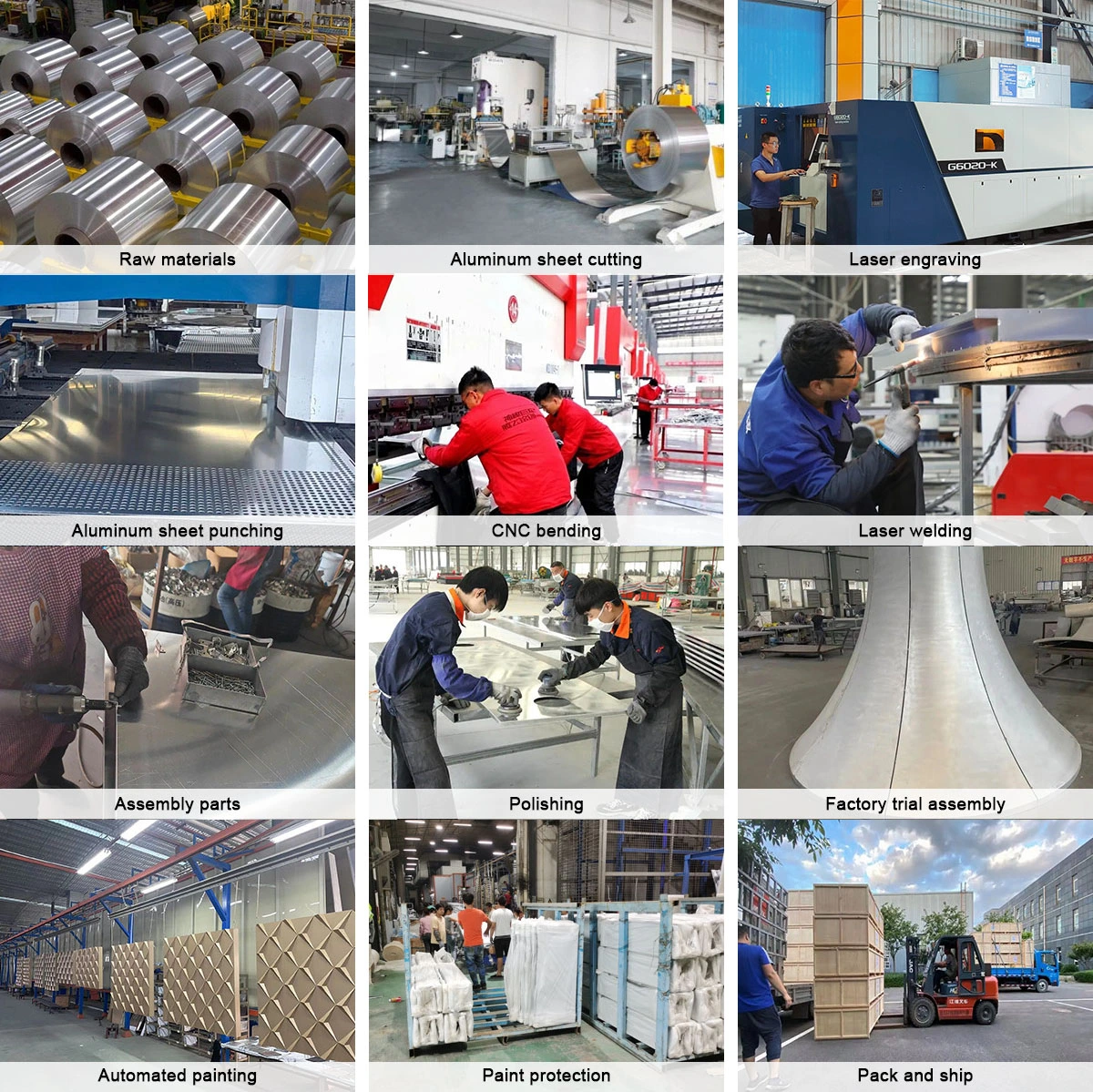

Production process
Contact Us
Ready to transform your architectural vision into reality? Our aluminum curtain wall experts are here to help you create exceptional building exteriors that stand the test of time. Contact us at [email protected] to discuss your project requirements and discover how our innovative solutions can exceed your expectations.
