insulated aluminium cladding panels
Thickness:1.5-5.0mm
Material:1100, 3003, 5005, 6063, etc
Surface treatment:PVDF/PE
Supply capacity:50000 ㎡/month
Service life:30-year warranty
Minimum Order Quantity (MOQ):30㎡
Color:RAL and other customized colors
Size Customized size
Feature:Durable, easy to install, environmentally friendly, high-quality
Certificate:CE，UL，SASO，ISO 12944-6
Delivery time:15-50 days
Installation Guide:Provide detailed construction drawings
Place of Origin:Guangdong, China
- Product Description
Insulated Aluminium Cladding Panels: Superior Building Envelope Solutions
Are you looking for building materials that combine exceptional thermal performance with stunning aesthetics? Our insulated aluminium cladding panels deliver both beauty and function in one innovative solution. These high-performance composite panels feature dual aluminum skins with advanced insulating cores, providing unmatched energy efficiency for your project. With proven durability and weather resistance, these panels transform building exteriors while reducing energy costs significantly.
Why Choose Our Thermal Composite Panels?
Advanced Multi-Layer Construction
Our boards highlight a advanced three-layer plan. Two precision-engineered aluminum skins (0.3-0.6mm thickness) sandwich a strong separator center made from shake fleece or polyurethane froth. This makes a bound together framework that conveys predominant warm resistance with R-values extending from 10 to 30.
The aluminum skins give fabulous climate security and keep up their appearance for decades. In the mean time, the protection center makes an successful warm boundary that keeps your building comfortable year-round.
Energy Efficiency Benefits
These warm boards altogether diminish warming and cooling costs. The nonstop separator layer kills warm bridging common in conventional development strategies. Your building keeps up steady indoor temperatures whereas utilizing less energy.
Winter warm misfortune drops significantly, whereas summer warm pick up remains negligible. This interprets to lower utility bills and moved forward inhabitant consolation all through the year.
Surface coating quality standards
|
Serial Number
|
Item
|
Standard Requirements
|
|
01
|
Appearance Quality
|
No cracks or weld breaks on either side of the aluminum material; no coating peeling or cracking. The appearance is clean and the color is basically consistent, with no obvious scratches. The decorative surface has no obvious indentations, marks, or unevenness. No obvious color changes; the coating has no flow marks, cracks, bubbles, inclusions, or other surface defects.
|
|
02
|
Film Thickness
|
Average film thickness ≥ 50μm, minimum local film thickness ≥ 34μm.
|
|
03
|
Gloss Deviation
|
Gloss range 31.0～33.9, average 32.0
|
|
04
|
Adhesion
|
Cross-cut test, grade 0
|
|
05
|
Hardness
|
≥2H
|
|
06
|
Acid Resistance
|
5% HCl, 24h, no change
|
|
07
|
Abrasion Resistance
|
6.6L/μm
|
|
08
|
Warranty Period
|
≥ 10 years
|
Installation and Design Flexibility
Streamlined Installation Process
Our tongue-and-groove edge design for insulated aluminium cladding panels ensures tight seams and professional results. Installation speed increases by up to 50% compared to separate cladding and insulation systems. We provide detailed construction drawings and on-site technical guidance for optimal results.
The lightweight composite design reduces structural loads while maintaining exceptional rigidity. Large panel sizes (up to 12 feet) minimize joints and create clean, modern facades.
Customization Capabilities
Each extend gets personalized consideration through our comprehensive plan administrations. We offer CAD 3D modeling and fabric mechanics reenactment to guarantee idealize fit and performance.
Our manufacturing plant pre-assembly benefit ensures exactness with venture mistakes kept up at ≤0.5mm resistance. This consideration to detail guarantees faultless establishment and long-term execution.
Applications and Performance

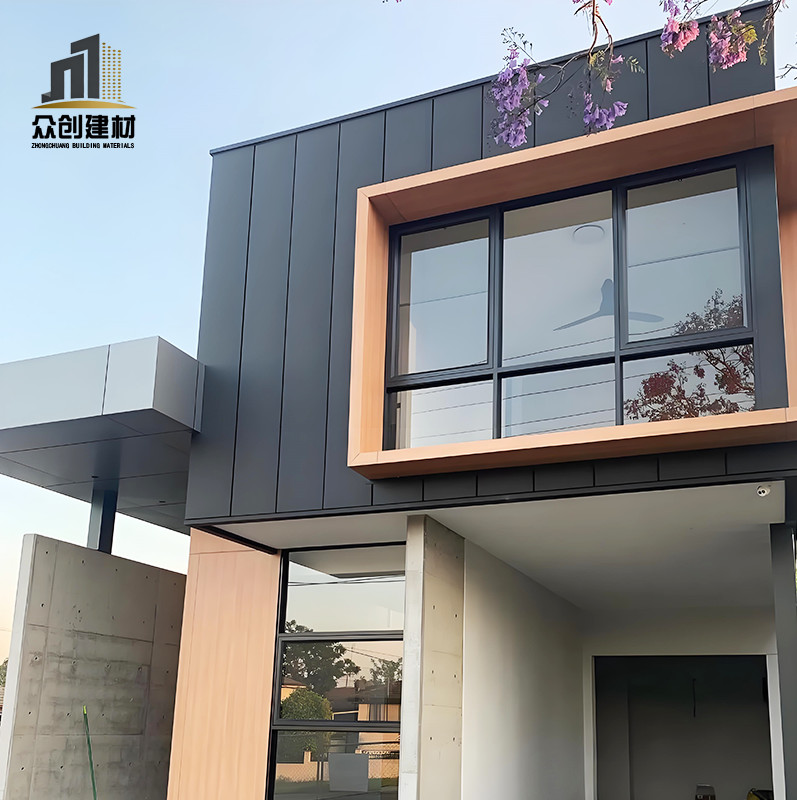

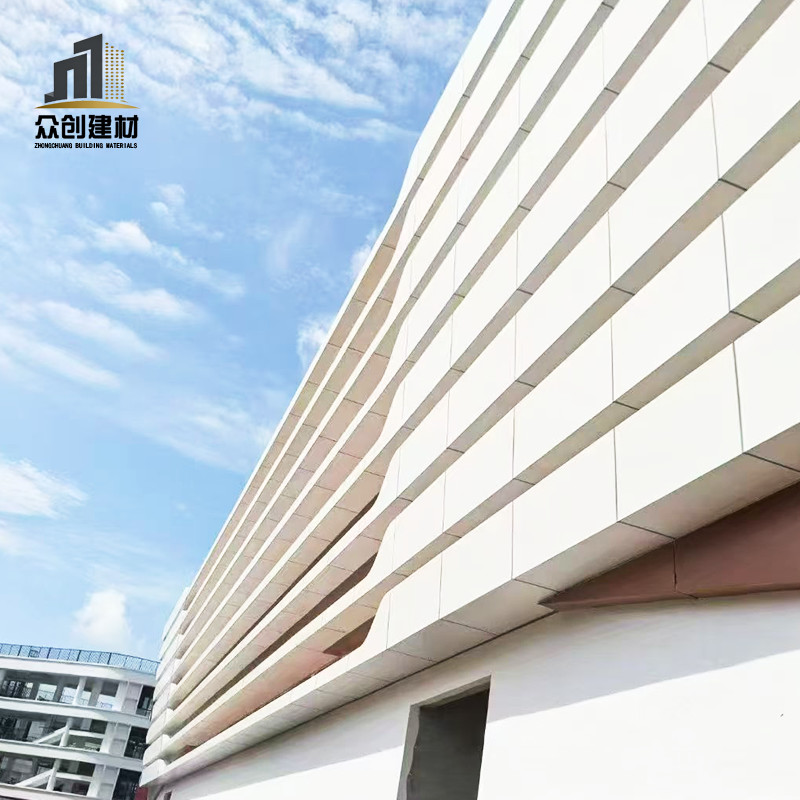

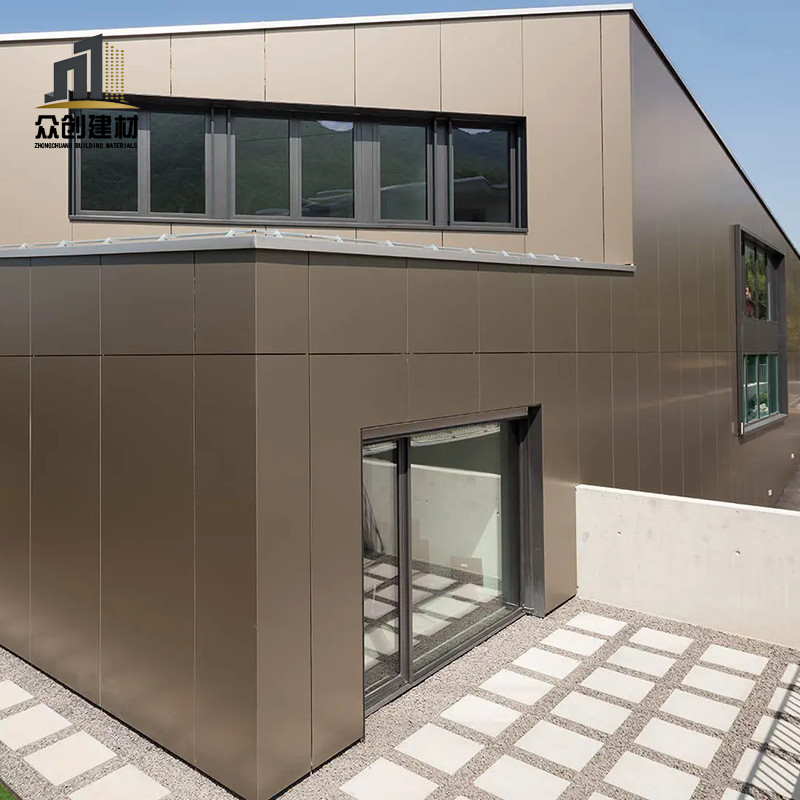

Versatile Building Applications
These panels excel in various building types:
- Commercial office buildings
- Industrial warehouses
- Cold storage facilities
- Food processing plants
- Residential developments
- Healthcare facilities
The fire-rated construction (Class A for rock wool cores) meets strict building codes. Wind resistance testing confirms suitability for high-rise buildings and coastal environments.
Quality Assurance Standards
Our manufacturing processes meet rigorous international standards. Each panel undergoes comprehensive quality testing including:
- Film thickness verification (≥50μm average)
- Adhesion testing (Grade 0 cross-cut)
- Hardness rating (≥2H)
- Acid resistance confirmation
- Abrasion resistance validation
We maintain CE, UL, SASO, and ISO 12944-6 certifications, ensuring global compliance and reliability.
Contact Us
Choose our insulated aluminium cladding panels for your next project and experience the perfect balance of performance, aesthetics, and efficiency. Contact us today at [email protected] to discuss your specific requirements and receive a detailed quotation.
